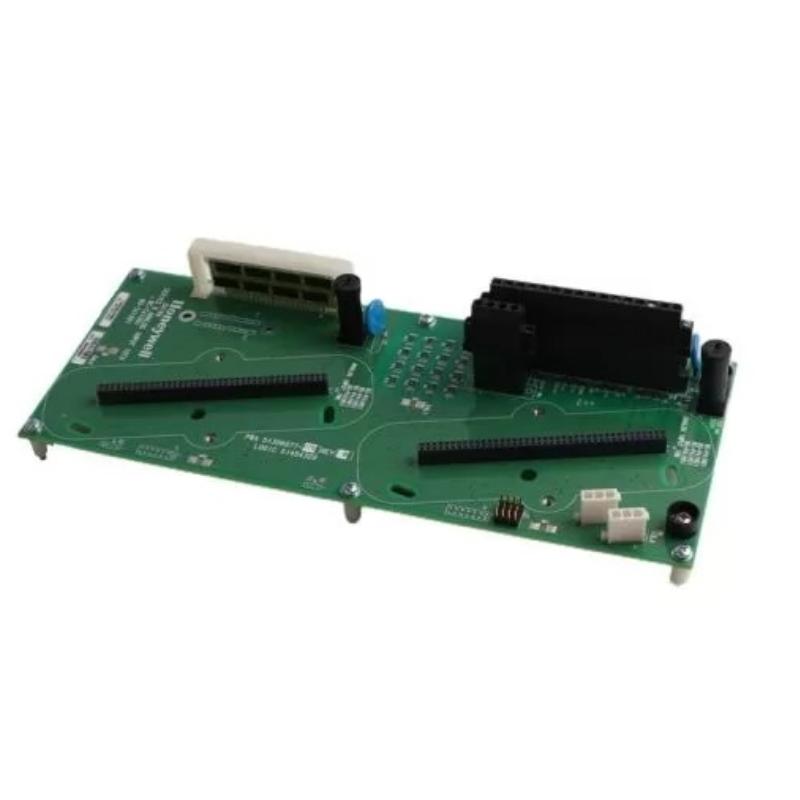

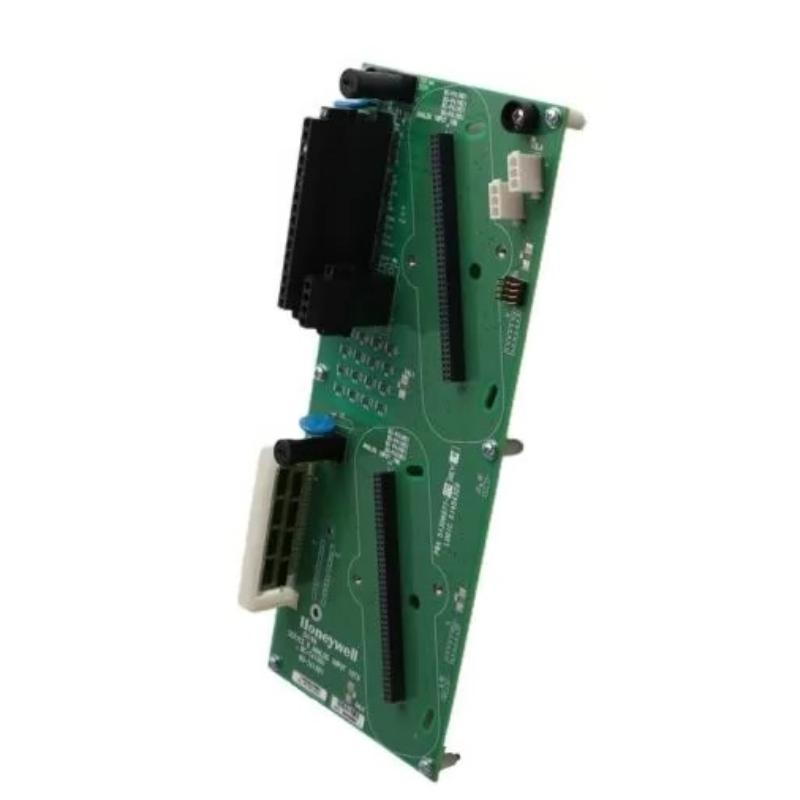

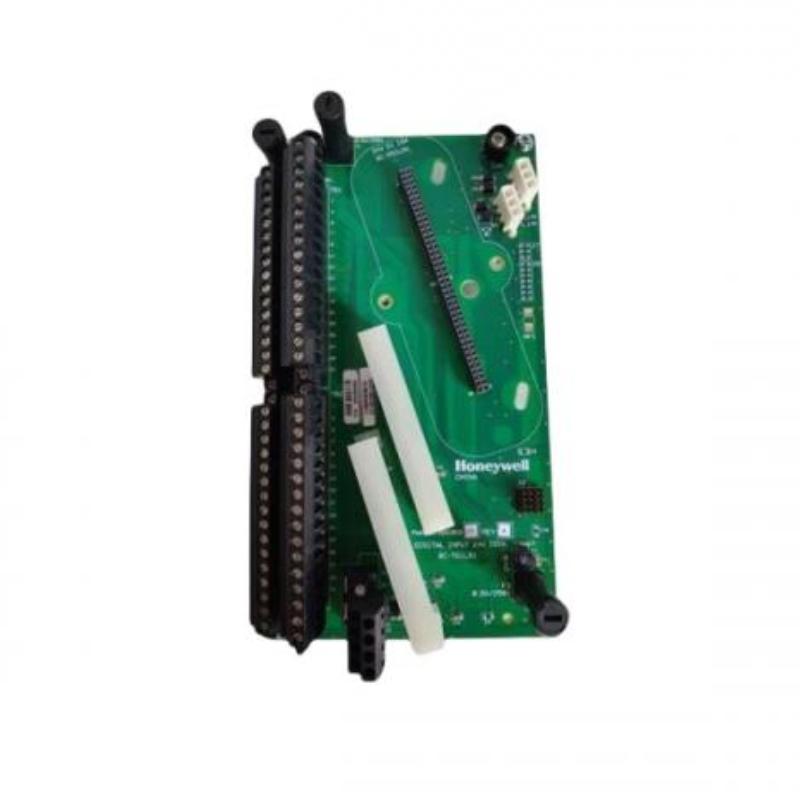

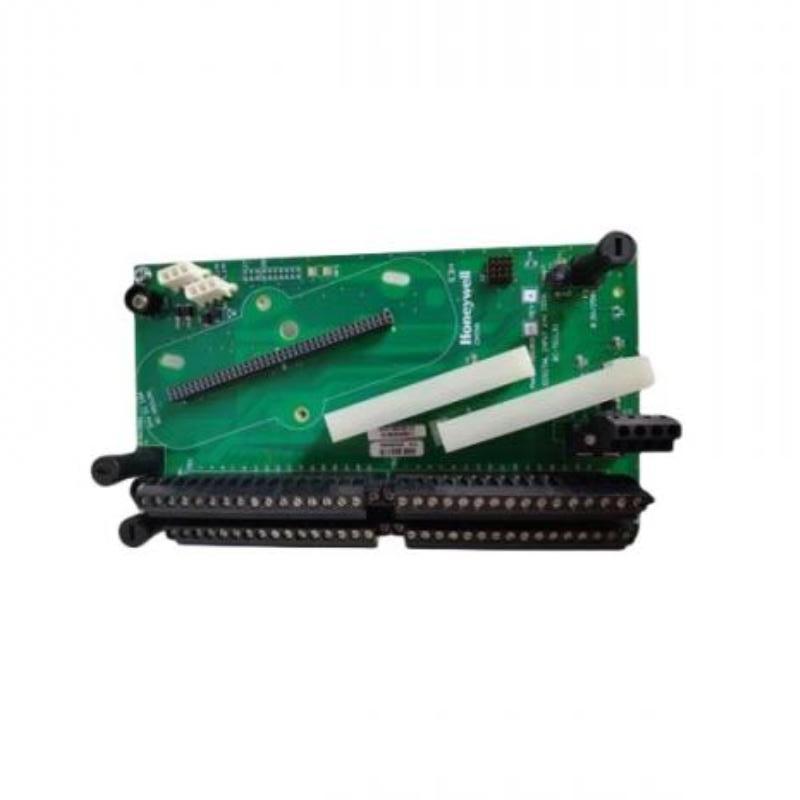

Honeywell 8C-TAOX61 51306981-175 Analog Output I/O Module Price Advantage 100% New

Brand：Honeywell DCS

Item No.：Honeywell 8C-TAOX61 51306981-175

Product origin：USA

Dimensions:145 × 120 × 65 mm

Weight:0.27 kg

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview
The Honeywell 8C-TAOX61 (51306981-175) is a 16-channel analog output module designed for redundant applications in Honeywell Series 8 and C300 systems. It provides reliable 4–20 mA and voltage outputs with HART communication capability, offering channel-level diagnostics, configurable fail-safe options, and full redundancy for high-availability control environments.

General Information

Part Number: 51306981-175 / 8C-TAOX61

Product Name / Model: 8C-TAOX61 Redundant Analog Output Module

Manufacturer: Honeywell

Country of Origin: United States

Series / Module Type: Series-8 Analog Output I/O Module (Redundant)

Type: Analog Output (HART, redundant capable)

Mounting / Format: Backplane / IOTA slot within Series-8 I/O rack

Application Area: Process control, DCS output systems, actuator/valve control, redundant field signal output

Electrical Specifications

Number of Channels: 16 analog outputs

Output Type: 4–20 mA DC with HART communication overlay

Output Range: 2.9 mA to 21.1 mA (HART included)

Max Load Resistance: 800 Ω typical

Open-Circuit Voltage: 22 V DC maximum

Resolution: 12 bits

Accuracy: ±0.1% of full scale typical

Response Time: ≤ 80 ms to reach 1% of final value

Diagnostics / Protection: Open-wire detection, channel isolation fault reporting, conformal coating for environmental protection

Fail-Safe (FAILOPT): Configurable per channel to hold last or drive to a defined safe value

Redundancy: Full module-level redundancy supported with automatic switchover between paired modules

Environmental

Operating Temperature: −40 °C to +70 °C

Storage Temperature: −55 °C to +85 °C

Relative Humidity: Up to 95%, non-condensing

Cooling Method: Natural convection

Protection / Coating: Conformal coated for resistance to dust, humidity, and corrosive atmospheres

Dimensions & Weight

Dimensions (L × W × H): 145 × 120 × 65 mm

Weight: Approximately 0.27 kg

Brand-new original stock, contact us for instant price details.

This product is an imported conventional model, with timely delivery. For large purchases, we welcome targeted quotation consultation.
