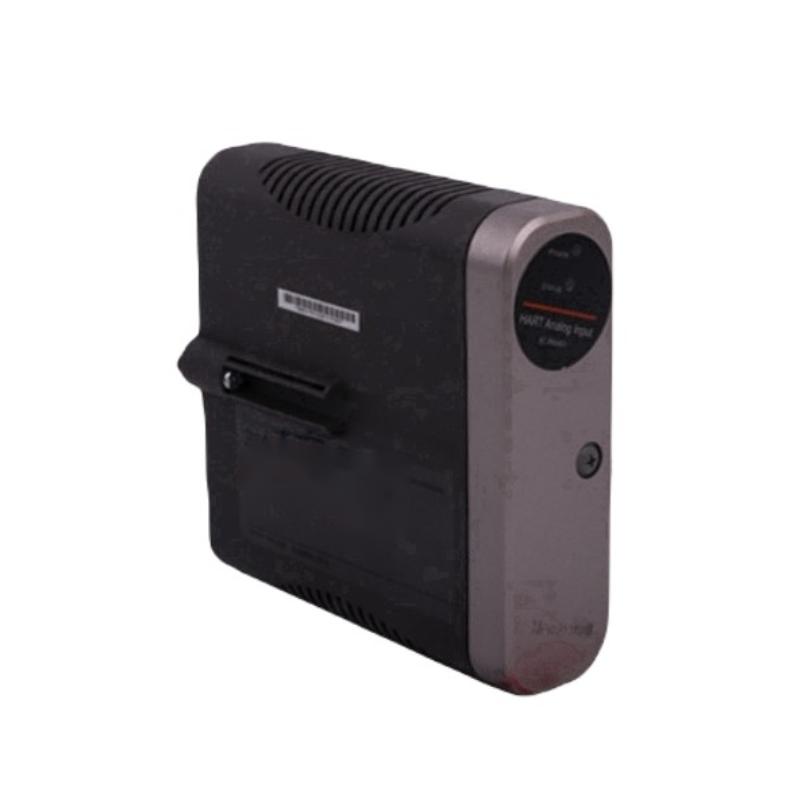

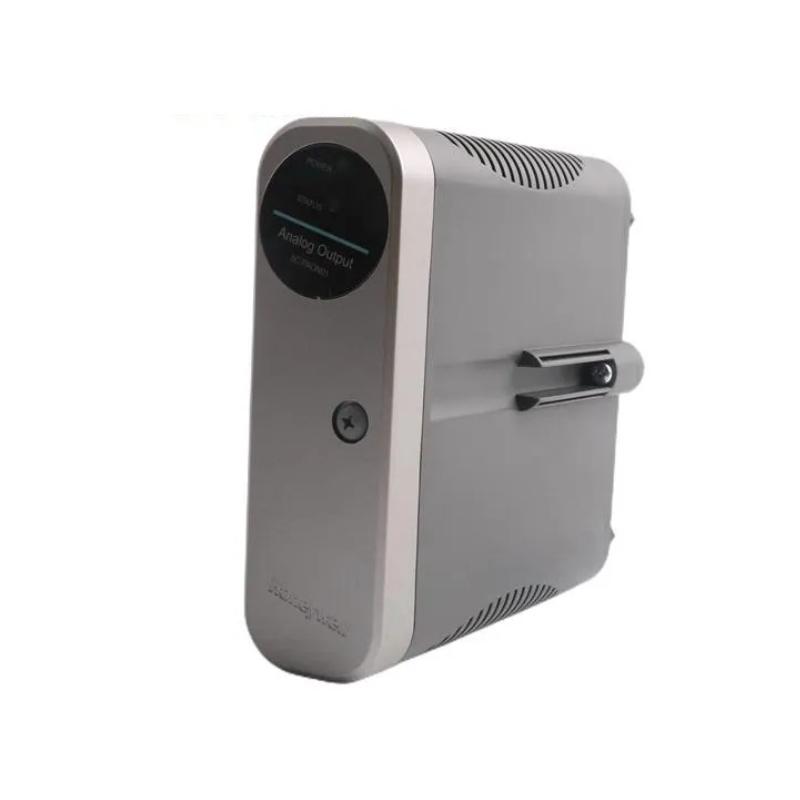

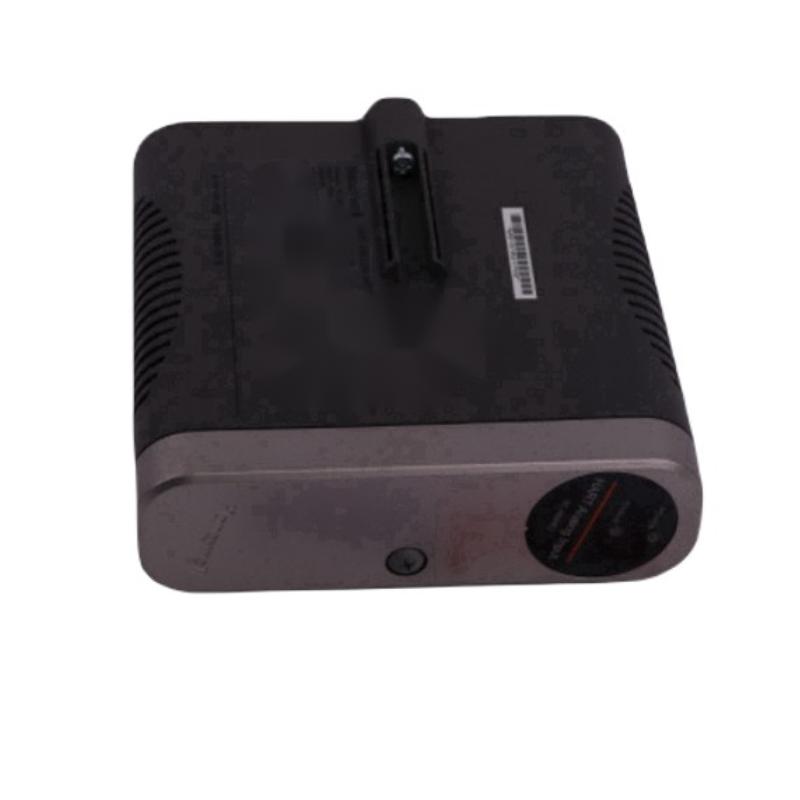

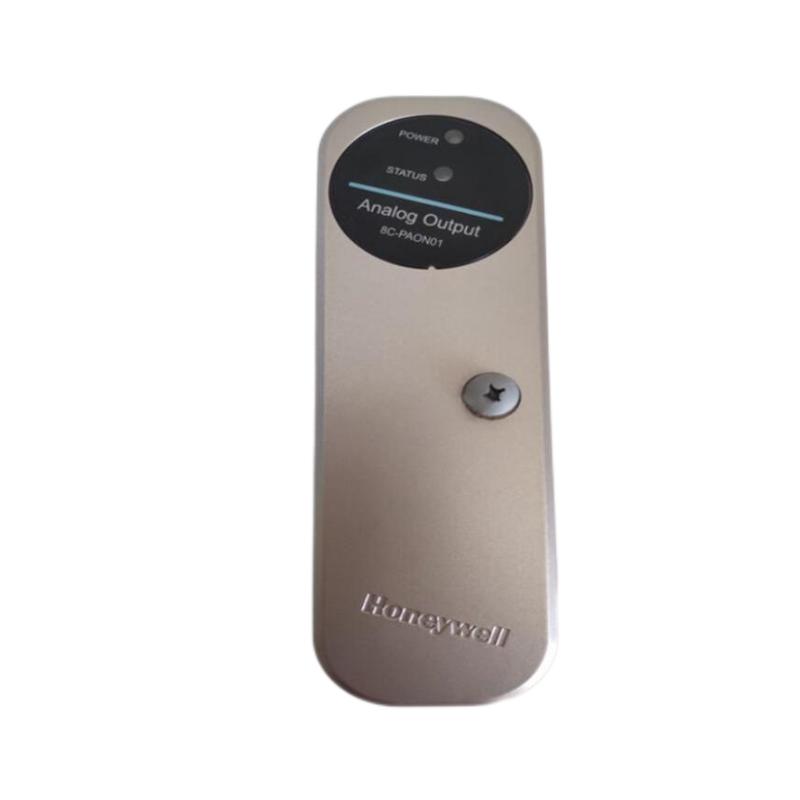

Honeywell 8C-PAON01 51454357-175 Analog Output Module 30-Day Returns Original

Brand：Honeywell DCS

Item No.：Honeywell 8C-PAON01 51454357-175

Product origin：USA

Dimensions:210 × 70 × 58 mm

Weight:0.3 kg

Original import channel supply, support testing instructions, worry-free after-sales

A wide range of spot models, support quick docking of procurement needs, welcome to inquire!

Product Introduction：

Overview

The Honeywell 8C-PAON01 (51454357-175) is a 16-channel analog output module designed for process automation systems. It provides 4–20 mA DC outputs with HART communication, advanced diagnostics, and configurable fail-safe functions. The coated version ensures durability and protection in harsh industrial environments.

General Information

Part Number: 51454357-175 / 8C-PAON01

Product Name / Model: 8C-PAON01 Analog Output Module

Manufacturer: Honeywell

Country of Origin: United States

Series / Module Type: Coated Series 8 AO

Type: Analog Output Module

Mounting / Format: Backplane / rack installation

Application Area: Industrial process control, DCS systems, plant automation

Electrical Specifications

Number of Output Channels: 16

Output Type: 4–20 mA DC

Output Range: Configurable (2.9 mA to 21.1 mA)

Maximum Open-Circuit Voltage: 22 V

Output Ripple: 100 mV peak-to-peak (on 250 Ω load)

Resolution: ±0.05% of full scale

Accuracy: ±0.35% of full scale (at 25 °C)

Response Time: 80 ms (to reach within 1%)

Fail-Safe (FAILOPT): Configurable (HOLD last value or set to safe value)

Diagnostics: Open-wire detection and soft-failure indication

Environmental

Operating Temperature: 0 °C to +60 °C

Storage Temperature: −40 °C to +70 °C

Relative Humidity: Up to 95%, non-condensing

Cooling Method: Natural convection

Protection: Conformal coating for humidity and dust resistance

Dimensions & Weight

Dimensions (L × W × H): 210 × 70 × 58 mm

Weight: 0.30 kg

Factory-new authentic products, stock in hand, 24-hour service.

The product supply channel is regular, the delivery cycle is flexible and controllable, and exclusive quotations can be negotiated for large quantities.
