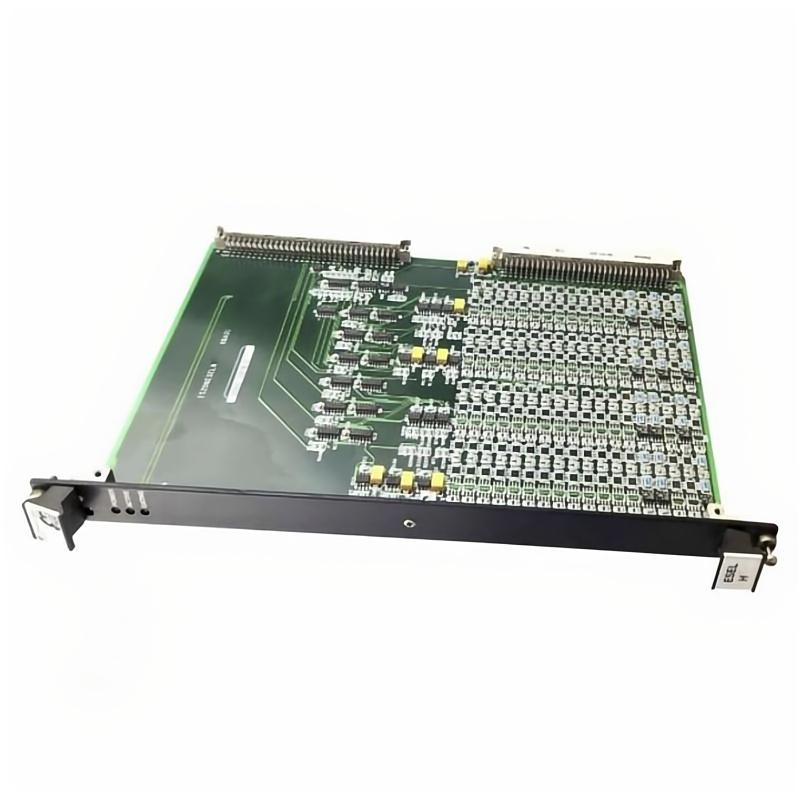

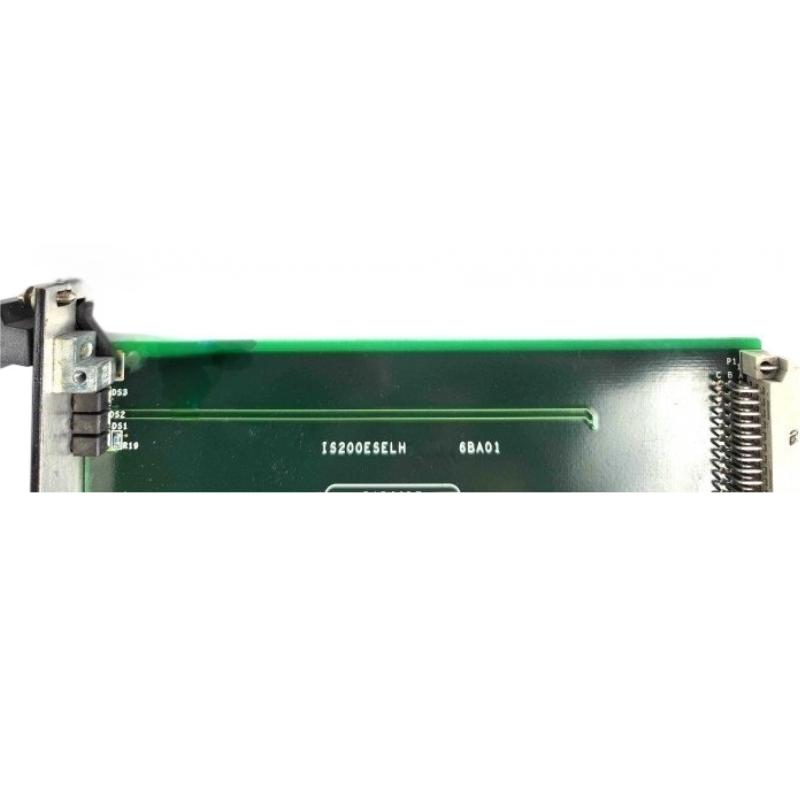

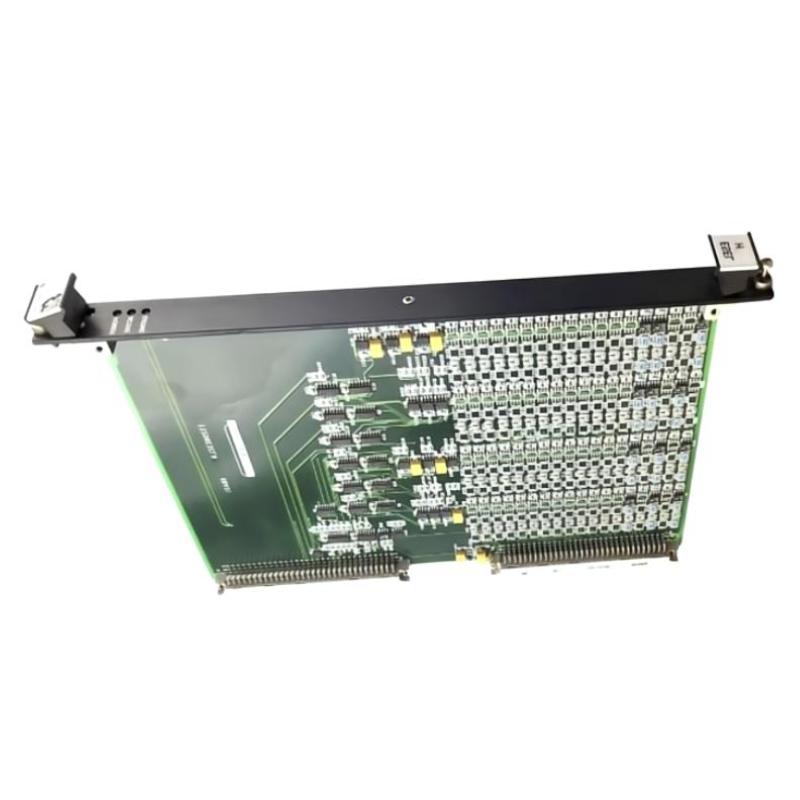

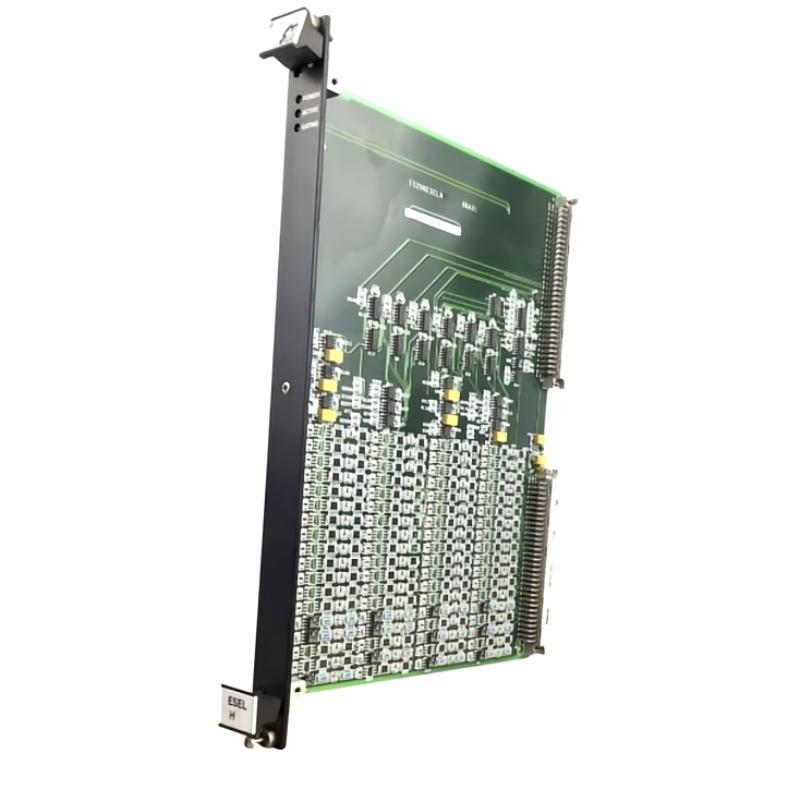

GE IS200ESELH3A Exciter Selector Board Price Advantage Unbelievable Prices!

Brand：GE Fanuc PLC

Item No.：GE IS200ESELH3A

Product origin：USA

Dimensions:330.2 x 101.6 mm

Weight:0.35 kg

Original source, data support testing content, efficient after-sales processing

Flexible stocking of multiple models, support for quick response, welcome to cooperate and communicate!

Product Introduction：

Overview
The GE IS200ESELH3A is an Exciter Selector Board within the EX2100 excitation system, part of GE's Mark VI turbine control platform. It processes and distributes gate pulse signals from the Exciter Master I/O (EMIO) board to the Exciter Gate Pulse Amplifier (EGPA) boards, facilitating precise control of the generator's excitation system.

General Information

Part Number: IS200ESELH3A

Product Name / Model: Exciter Selector Board

Manufacturer: General Electric (GE)

Country of Origin: United States

Series / Module Type: EX2100 Excitation System / Exciter Selector Board

Type: Control Board

Mounting: Mounted in the control rack of the EX2100 system

Application Area: Generator excitation control in steam and gas turbine applications

Electrical Specifications

Input Signals: Receives six logic-level gate pulse signals from the EMIO board

Output Signals: Distributes signals to EGPA boards via six sets of cables

Bridge Drivers: Equipped with six independent bridge drivers for comprehensive gate control

Signal Processing: Coordinates gate drive control for SCR firing, ensuring precise signal timing and synchronization

Redundancy: Supports redundant control configurations when used in conjunction with EGPA models

Environmental

Operating Temperature: Typically 0°C to +60°C

Storage Temperature: Typically -40°C to +70°C

Humidity: Up to 95%, non-condensing

Cooling: Natural convection

Dimensions & Weight

Dimensions (L × W × H): 330.2 x 101.6 mm

Weight: 0.35 kg

Brand-new products with immediate stock access, supported by service.

Imported sources, complete supporting information, short delivery cycle, and price support strategies for batch transactions.
