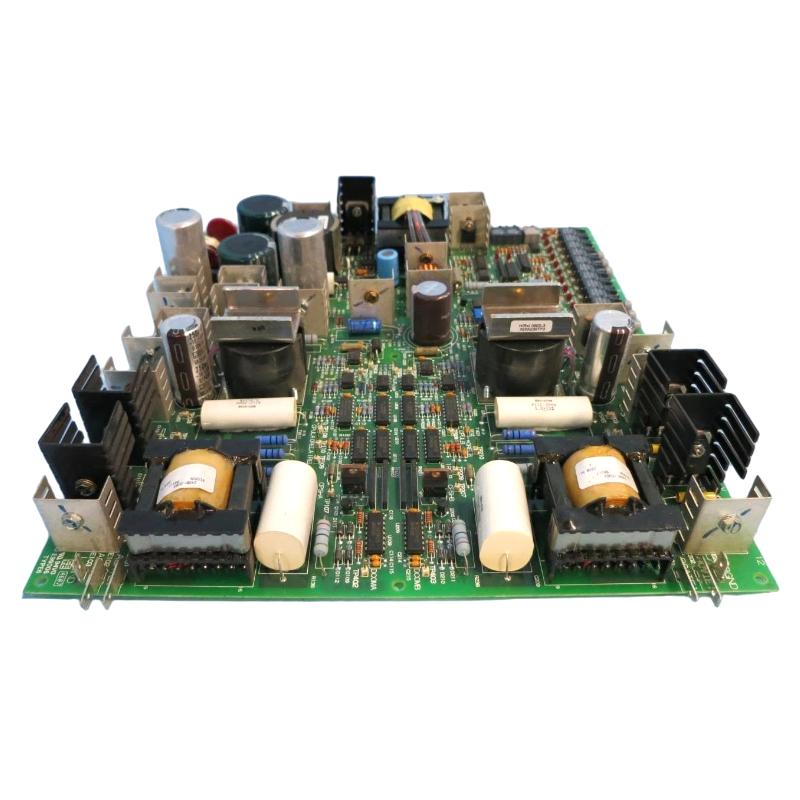

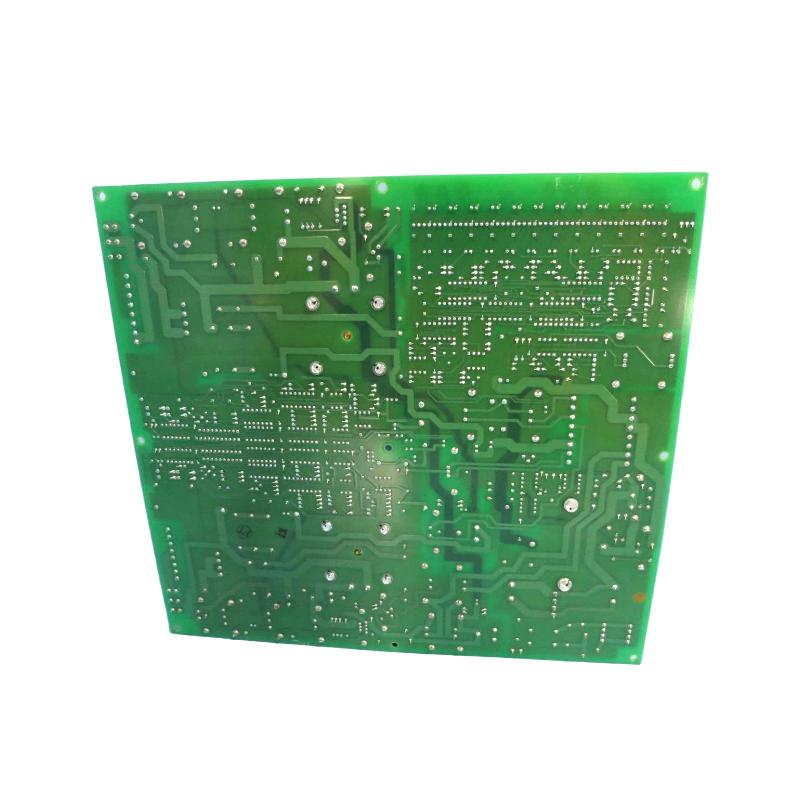

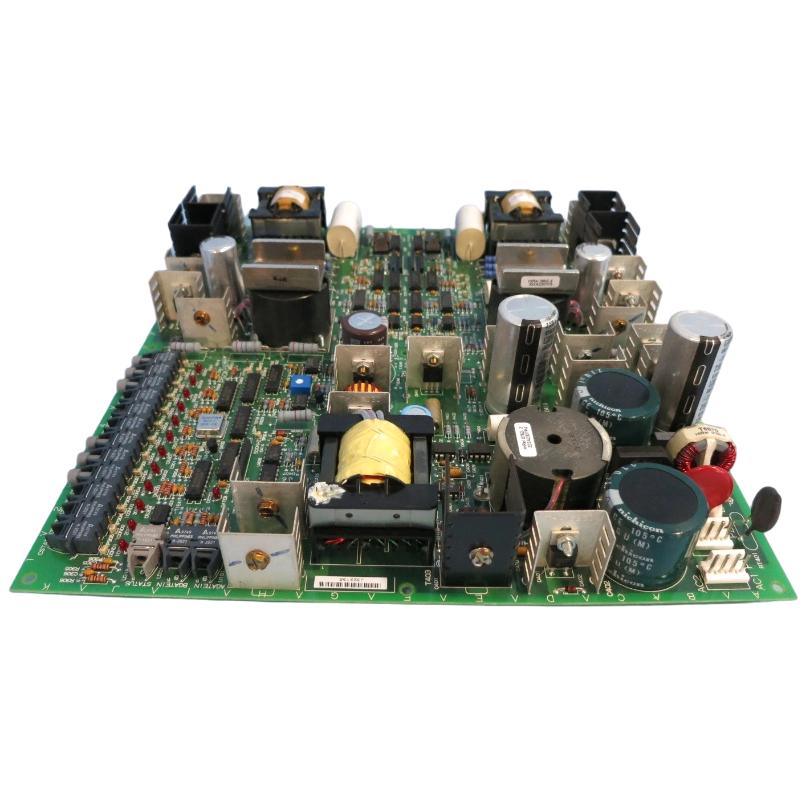

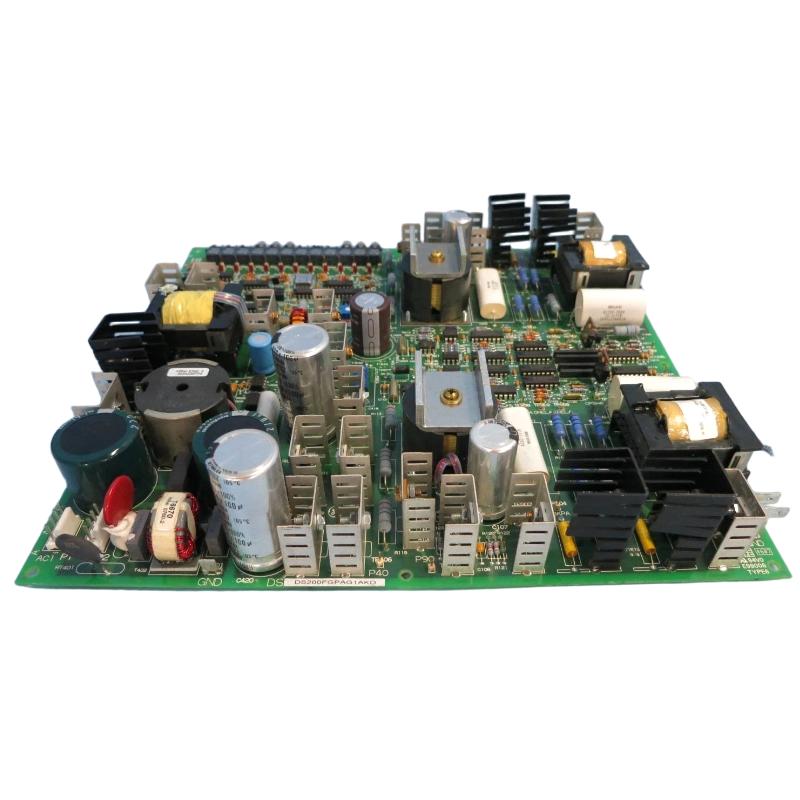

GE DS200FGPAG1A Gate Pulse Amplifier Board Quality Selection 30-Day Returns！

Brand：GE Fanuc PLC

Item No.：GE DS200FGPAG1A

Product origin：USA

Dimensions:508 × 406 × 229 mm

Weight:3.6 kg

The source of goods is formal, the test instructions can be coordinated, and the after-sales service continues to follow up

Various models are in stock flexibly, supporting quick response, and welcome cooperation and communication!

Product Introduction：

Overview
The GE DS200FGPAG1A is a Gate Pulse Amplifier Board designed for the Mark V turbine control system. It serves three primary functions: converting AC to DC power, driving gate pulses for SCR (Silicon-Controlled Rectifier) bridges, and monitoring SCR status. This module is integral to the Load Commutated Inverter (LCI) used in turbine control applications.

General Information

Part Number: DS200FGPAG1A

Product Name / Model: Gate Pulse Amplifier Board

Manufacturer: General Electric (GE)

Country of Origin: United States

Series / Module Type: Mark V / Gate Pulse Amplifier

Type: Control Board

Mounting: Installed in the turbine control system rack

Application Area: Turbine control systems utilizing Load Commutated Inverters

Electrical Specifications

Input Voltage: 120 Vrms ±20%, 50/60 Hz, approximately 350 VA maximum

Output Voltage: Various DC outputs for gate driving and monitoring

Power Consumption: Approximately 350 VA

Fiber Optic Ports: 1 transmitting and 14 receiving ports for data communication

Gate Driver: Provides gate pulses to one phase of an SCR bridge

SCR Monitoring: Monitors SCR status and communicates via fiber optic links

Environmental

Operating Temperature: Typically 0°C to +60°C

Storage Temperature: Typically -40°C to +70°C

Humidity: Up to 95%, non-condensing

Cooling: Natural convection

Dimensions & Weight

Dimensions (L × W × H): Approximately 508 × 406 × 229 mm

Weight: Approximately 3.6 kg

100% genuine factory-new goods, ready for customer quotation.

The channel of this product is real and reliable, the delivery efficiency is high, and it supports project-based procurement price coordination.
