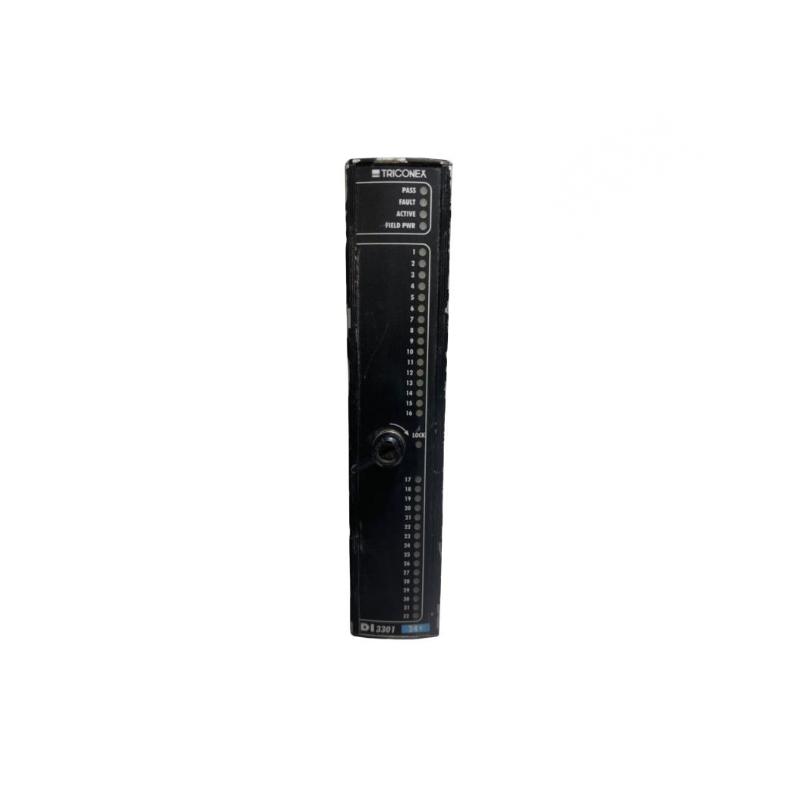

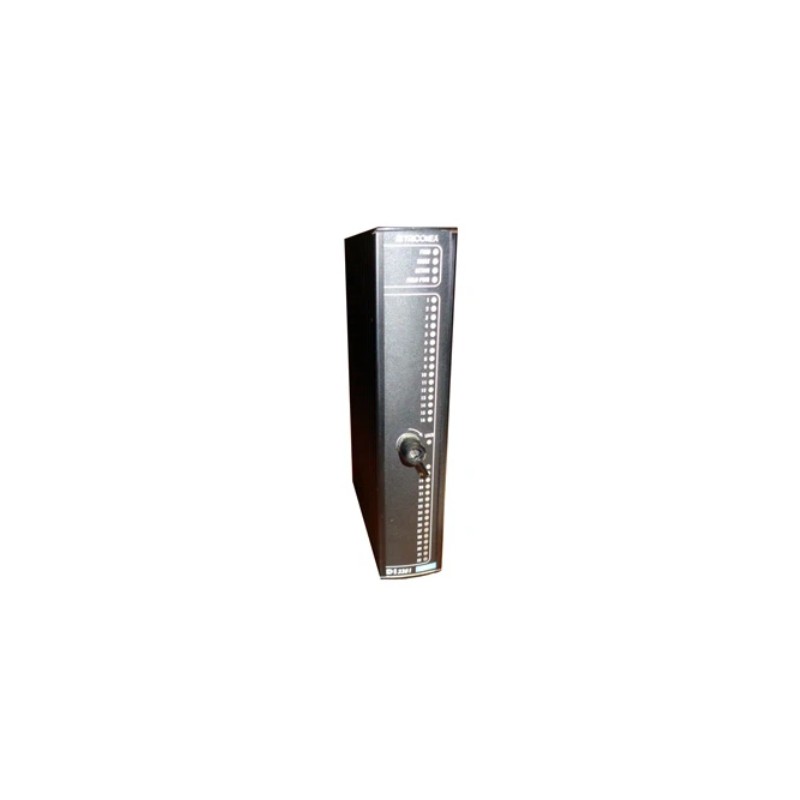

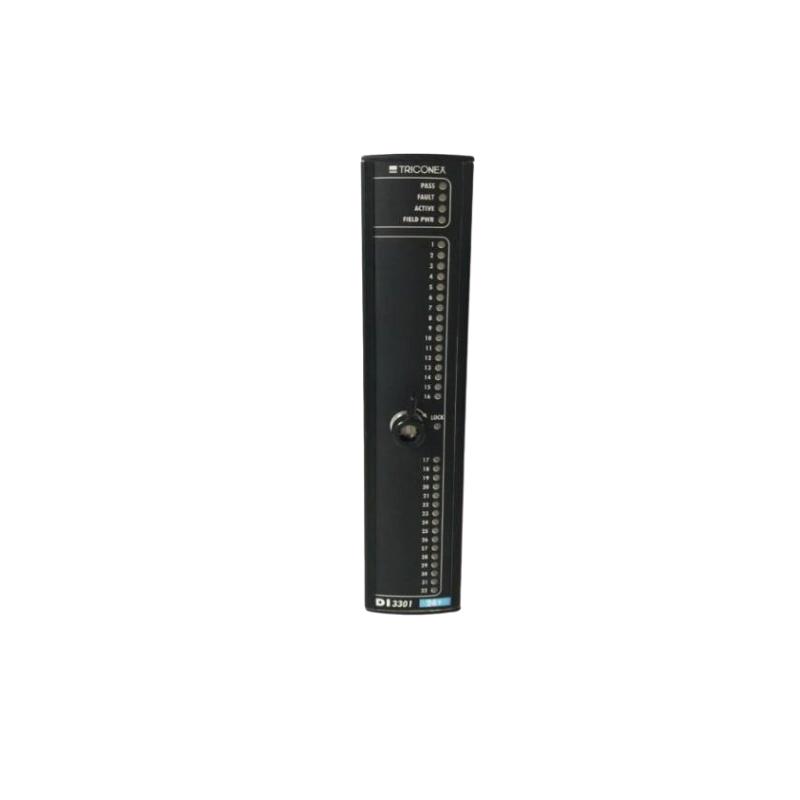

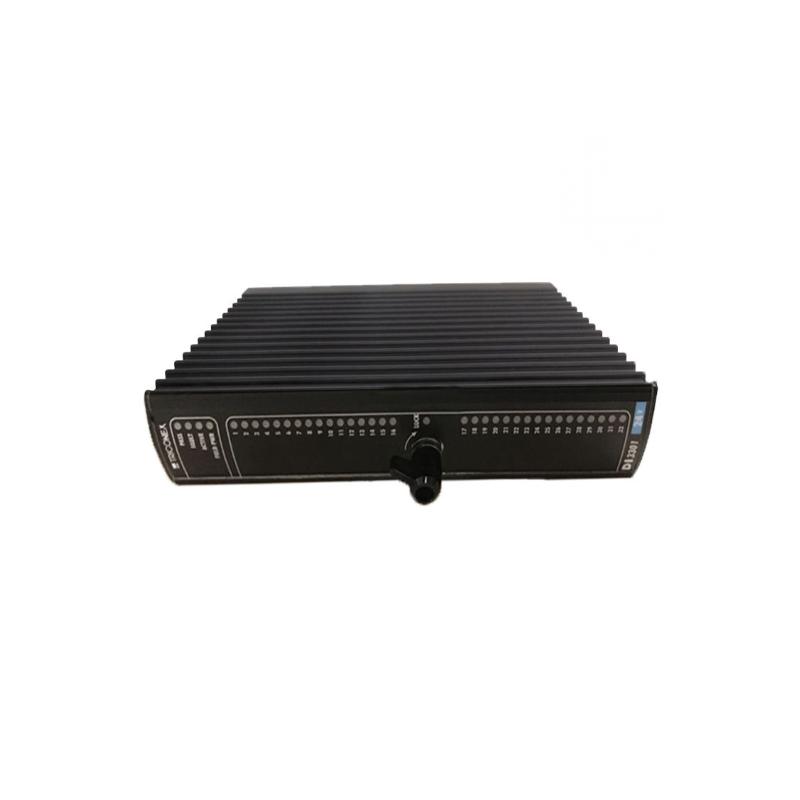

Triconex 3301 Digital Input Module Recommended products 12-Month Warranty

Brand：Invensys Triconex

Item No.：Triconex 3301

Product origin：USA

Dimensions:166.7 x 247.9 x 62.4 mm

Weight:1.3 kg

Formal source, test instructions can be coordinated, and after-sales service continues to follow up

Complete models, inventory is updated in real time, welcome to get the latest list!

Product Introduction：

Overview
The Triconex 3301 (DI3301) is a 32-point digital input module designed for the Tricon safety and control system. It provides reliable and redundant digital input channels for safety-critical applications, ensuring accurate data acquisition from field devices.

General Information

Part Number: DI3301 / 3301

Product Name / Model: Triconex 3301 Digital Input Module

Manufacturer: Triconex (Schneider Electric)

Country of Origin: United States

Series / Module Type: Tricon Digital Input Module

Type: Digital Input Module

Mounting / Format: Mounts on Tricon backplane

Application Area: Industrial automation systems requiring reliable digital input channels

Electrical Specifications

Input Voltage: Nominal 24 V DC

Operational Voltage Range: 15–30 V DC

Absolute Maximum Input Voltage: 33 V DC

Input Impedance: >30 kΩ without baseplate; ~3 kΩ with baseplate

Input Thresholds:

Off: 0–5 V DC

Transition: 6–14 V DC

On: 15–30 V DC

Input Delay: <10 ms

Input Power Consumption: 0.2 W per point at 24 V DC

Maximum Input Switching Rate: <20 toggles per second

Environmental

Operating Temperature: 0 °C to +60 °C

Storage Temperature: −40 °C to +70 °C

Relative Humidity: Up to 95%, non-condensing

Cooling: Natural convection

Protection / Coating: Standard industrial module for cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 166.7 x 247.9 x 62.4 mm

Weight: 1.3 kg
