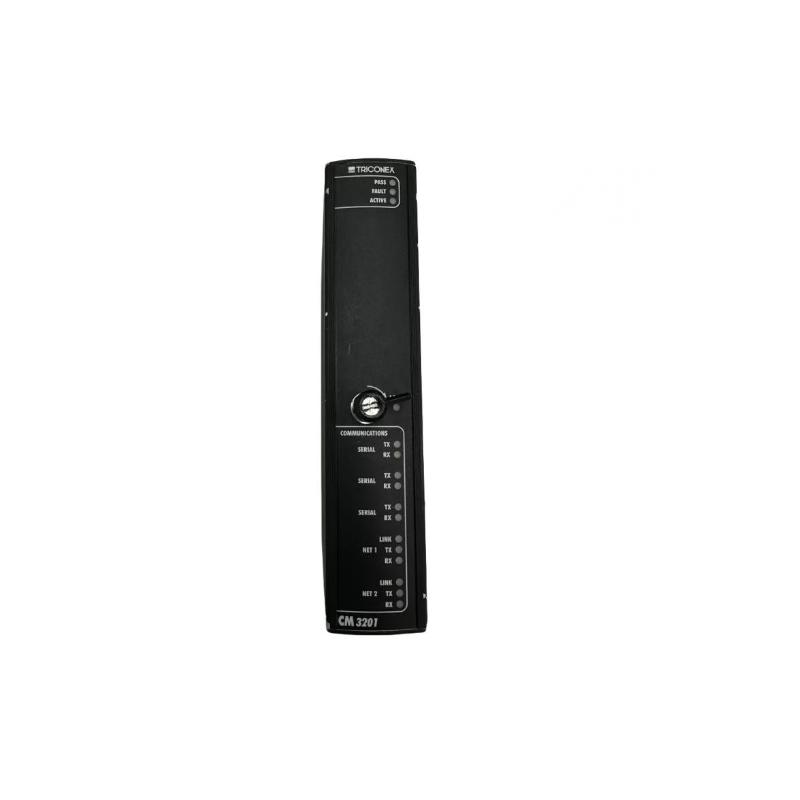

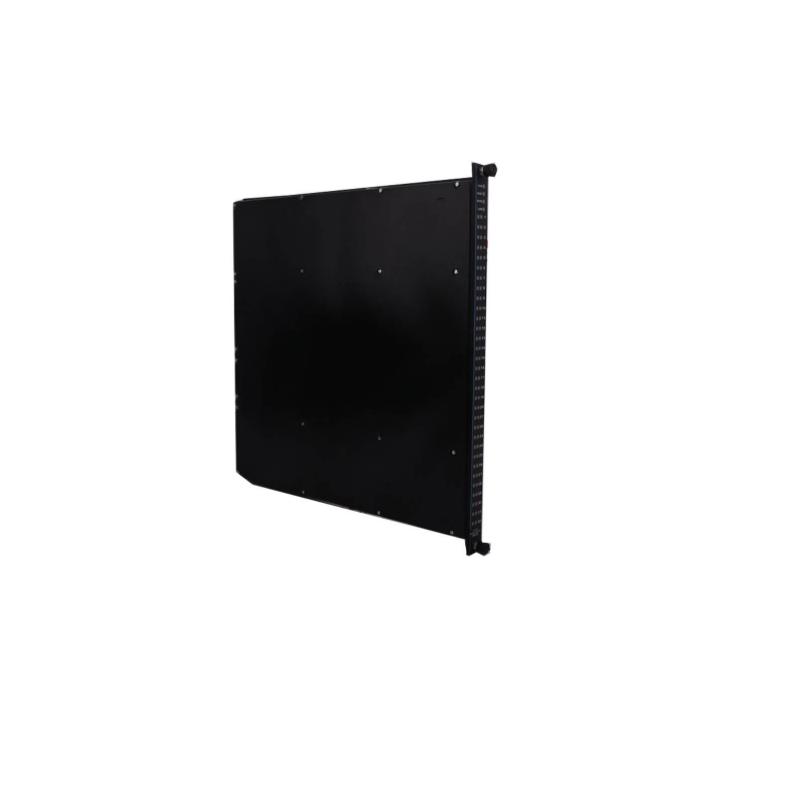

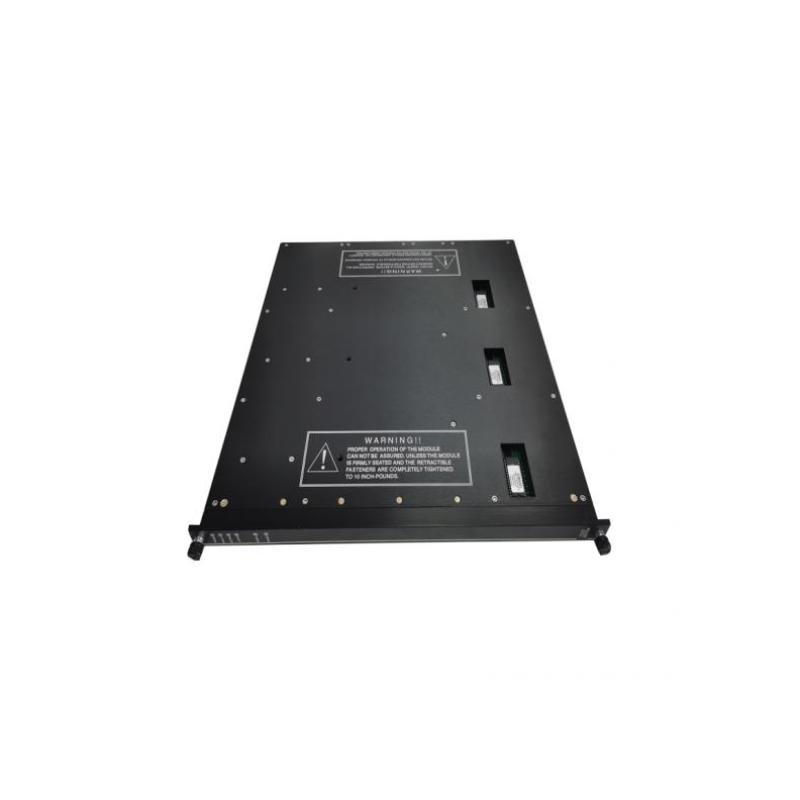

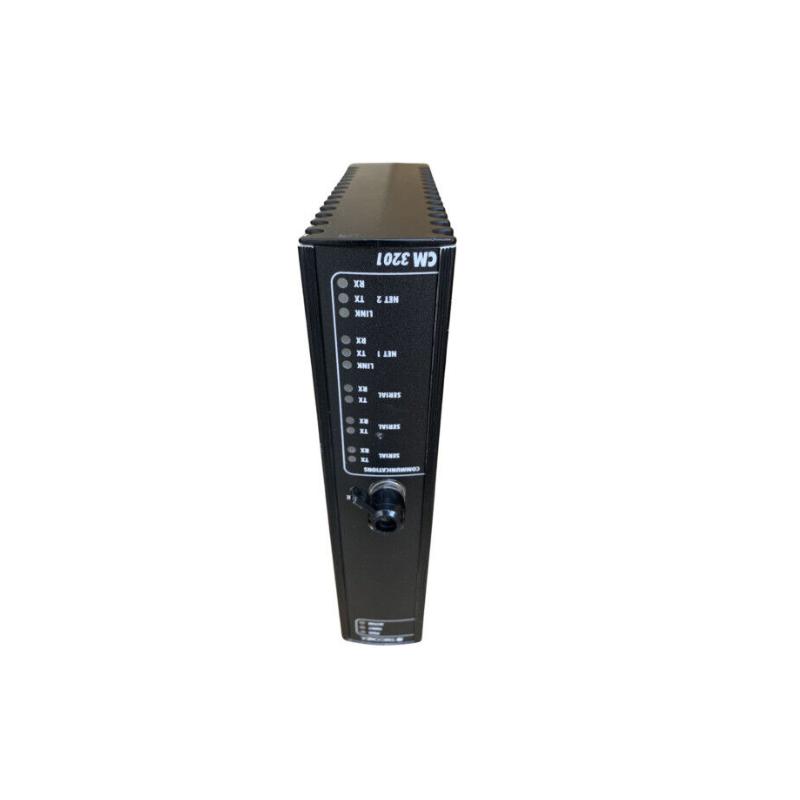

Triconex 3201 Communication Interface Module Quality Assurance Original

Brand：Invensys Triconex

Item No.：Triconex 3201

Product origin：USA

Dimensions:220 × 169 × 44 mm

Weight:0.8 kg

Formal sources, cooperative testing instructions, and continuous follow-up of after-sales service

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview
The Triconex 3201 is a communication interface module designed for Tricon safety and control systems. It provides reliable and redundant communication between the main processor and external devices or networks, ensuring stable data exchange in critical industrial applications.

General Information

Part Number: 3201

Product Name / Model: Triconex 3201 Communication Module

Manufacturer: Triconex (Schneider Electric)

Country of Origin: United States

Series: Tricon Communication Series

Type: Communication Interface Module

Mounting: Installed on Tricon main chassis backplane

Function: Provides network and serial communication channels for control systems

Power Specifications

Supply Voltage: 24 V DC nominal

Power Consumption: ≤ 10 W

Power Source: From system backplane

Protection: Built-in surge and polarity protection

Communication & Interface

Ports: 2 Ethernet ports and 3 configurable RS-232/RS-485 serial ports

Supported Protocols: Modbus, TriStation, and industrial communication standards

Baud Rate: Up to 115.2 kbps (serial)

Diagnostics: Continuous self-check, communication status indication via LEDs

Environmental

Operating Temperature: 0 °C to +60 °C

Storage Temperature: −40 °C to +70 °C

Humidity: Up to 95% RH, non-condensing

Cooling: Natural air convection

Dimensions & Weight

Dimensions (L × W × H): 220 × 169 × 44 mm

Weight: Approx. 0.8 kg

Genuine and unused stock, full-time support available.

Quick response to product supply, quotations support multi-level stratification, and adapt to the rhythm of bulk purchases.
