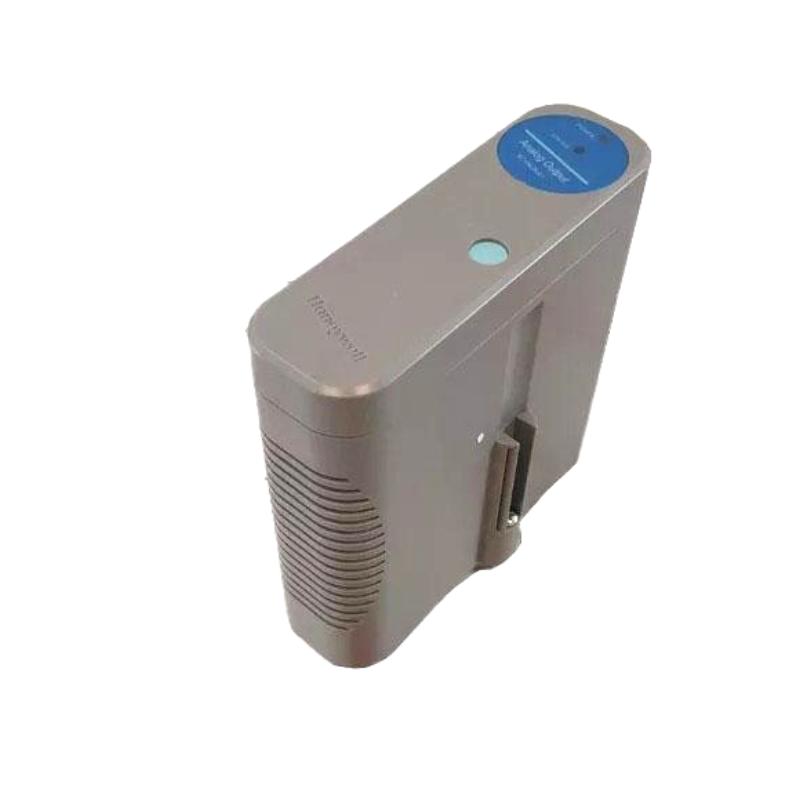

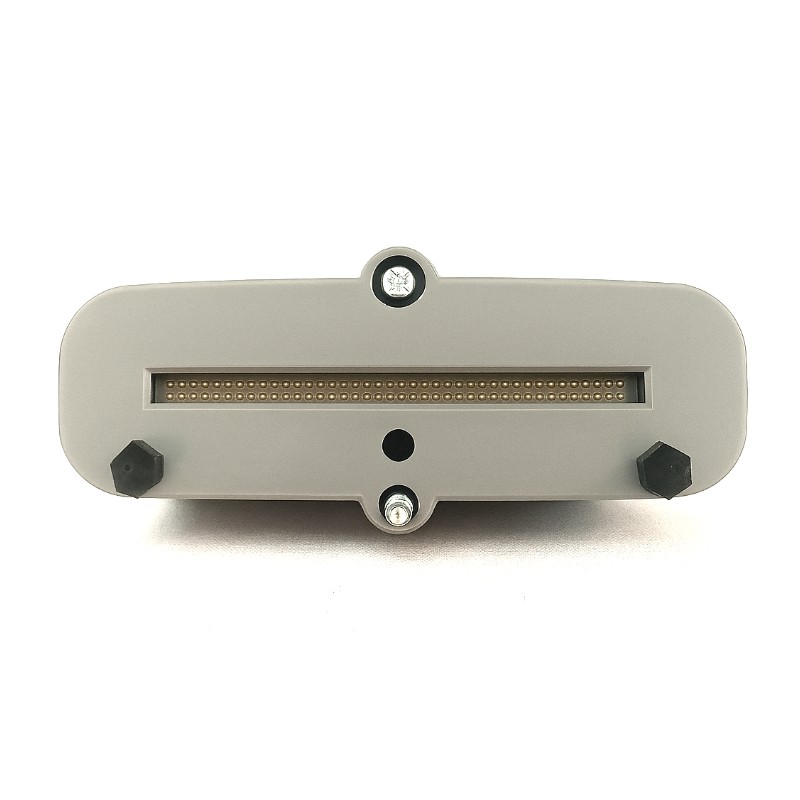

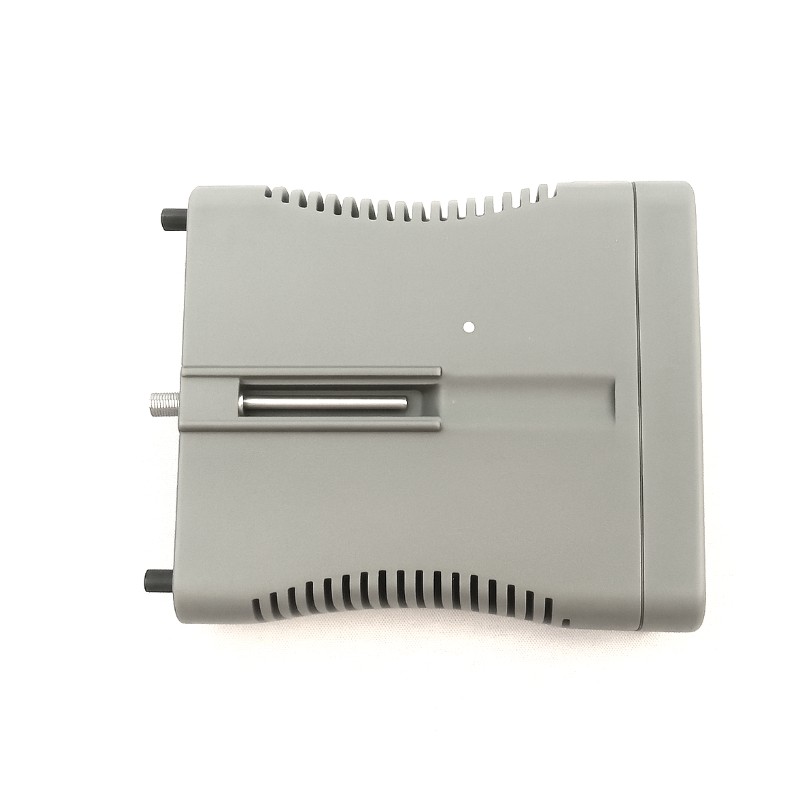

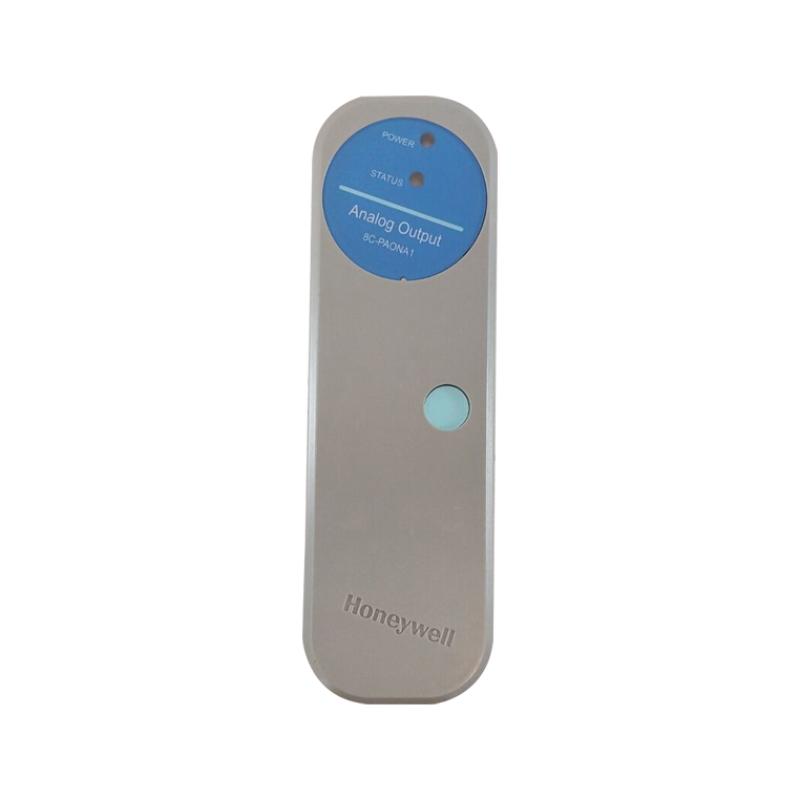

Honeywell 8C-PAONA1 51454469-175 Analog Output Module 12-Month Warranty Fast Shipping!

Brand：Honeywell DCS

Item No.：Honeywell 8C-PAONA1 51454469-175

Product origin：USA

Dimensions:267 × 51 × 178 mm

Weight:0.5 kg

Standardized import process, support for testing, and guaranteed after-sales

Complete models, inventory is updated in real time, welcome to get the latest list!

Product Introduction：

Overview

The Honeywell 8C-PAONA1 (Part No. 51454469-175) is a 16-channel analog output module (coated), used in Honeywell Series 8 I/O systems. It provides reliable 4–20 mA output channels with configurable fail-safe modes and self-diagnostic features.

General Information

Part Number: 51454469-175 / 8C-PAONA1

Product Name / Model: 8C-PAONA1 Analog Output Module

Manufacturer: Honeywell

Country of Origin: United States

Series / Module Type: Coated Series 8 AO

Type: Analog Output Module

Mounting / Format: Backplane / rack module

Application Area: DCS, process control, industrial automation

Electrical Specifications

Number of Output Channels: 16 (coated)

Output Type: 4–20 mA DC

Output Ripple: < 100 mV peak-to-peak on 250 Ω load

Linearity: ±0.05% of full scale nominal

Temperature Drift: 0.005% of full scale / °C

Load Resistance Range: 50 to 800 Ω

Supply Voltage: 24 VDC

Module Current Rating: 190 mA

Calibrated Accuracy: ±0.2% of full scale at 25 °C

Output Range Setting: 2.9 mA to 21.1 mA

Max Compliant Voltage: 16 V

Open-Circuit Voltage (max): 22 V

Response Time: 80 ms to 1%

FAILOPT (Fail-Safe): Configurable per channel to HOLD last value or drive to a safe value

Diagnostics: Open-wire detection and channel soft-failure indication

Self-Diagnostics & Isolation: System-to-field isolation possible when using external field power

Environmental

Operating Temperature: 0 °C to +60 °C

Storage Temperature: −40 °C to +85 °C

Relative Humidity: Up to 95%, non-condensing

Cooling Method: Natural convection

Protection / Coating: Conformal coating for moisture and contaminant resistance

Dimensions & Weight

Dimensions (L × W × H): 267 × 51 × 178 mm

Weight: 0.5 kg
