IS200TRPGH1BCC Termination Relay Board Rave reviews Fast Shipping!

Brand：GE Fanuc PLC

Item No.：IS200TRPGH1BCC

Product origin：USA

Dimensions:180 × 180 × 30 mm

Weight:0.8 kg

The channel is formal, the test instructions are complete, and the service is responsive

Regular models are in stock for a long time, and the inventory is stable. Please inquire about the price!

Product Introduction：

Overview

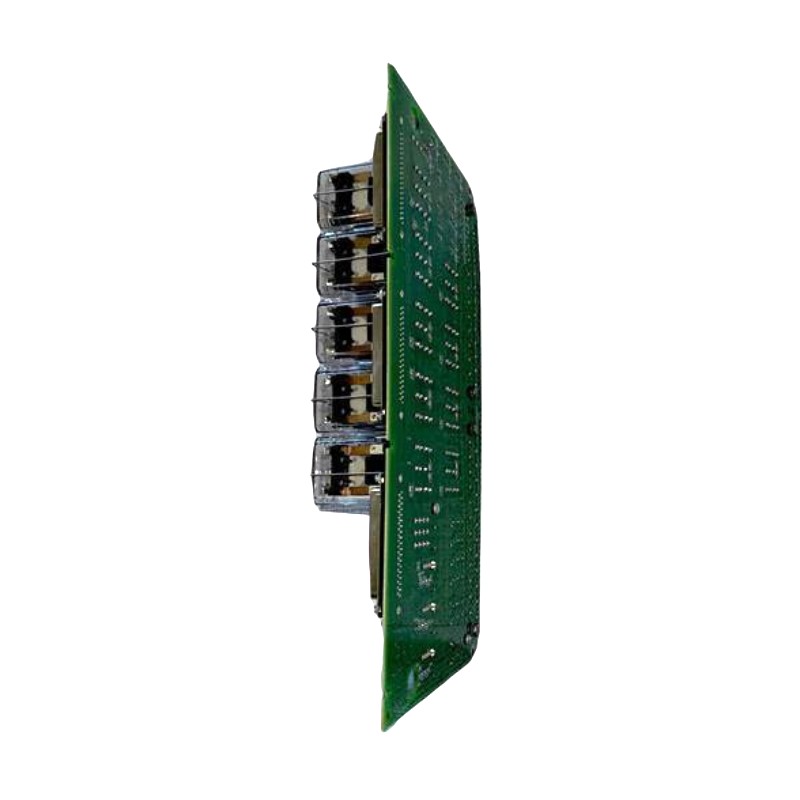

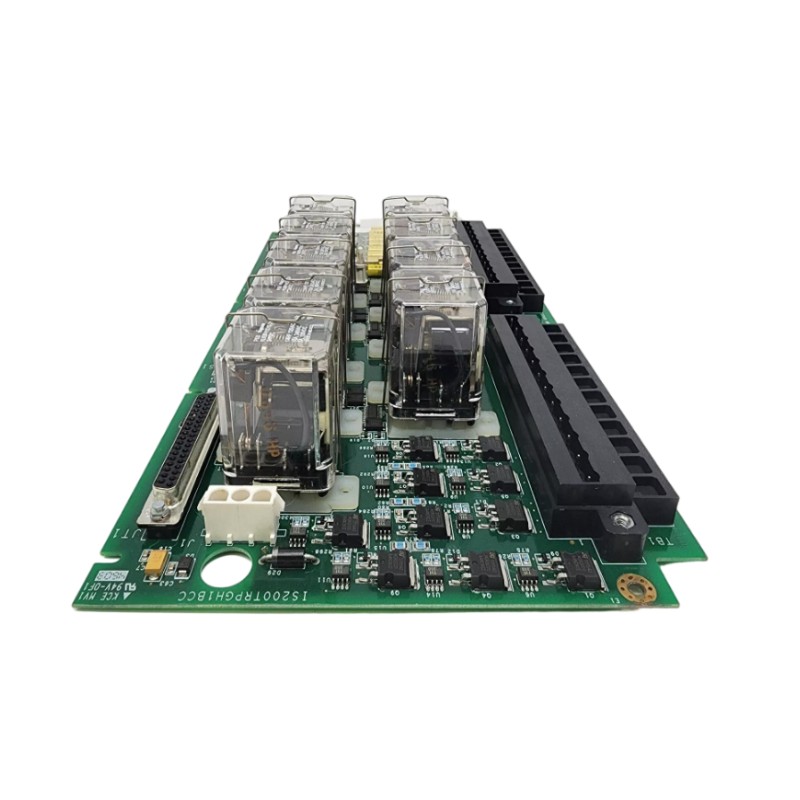

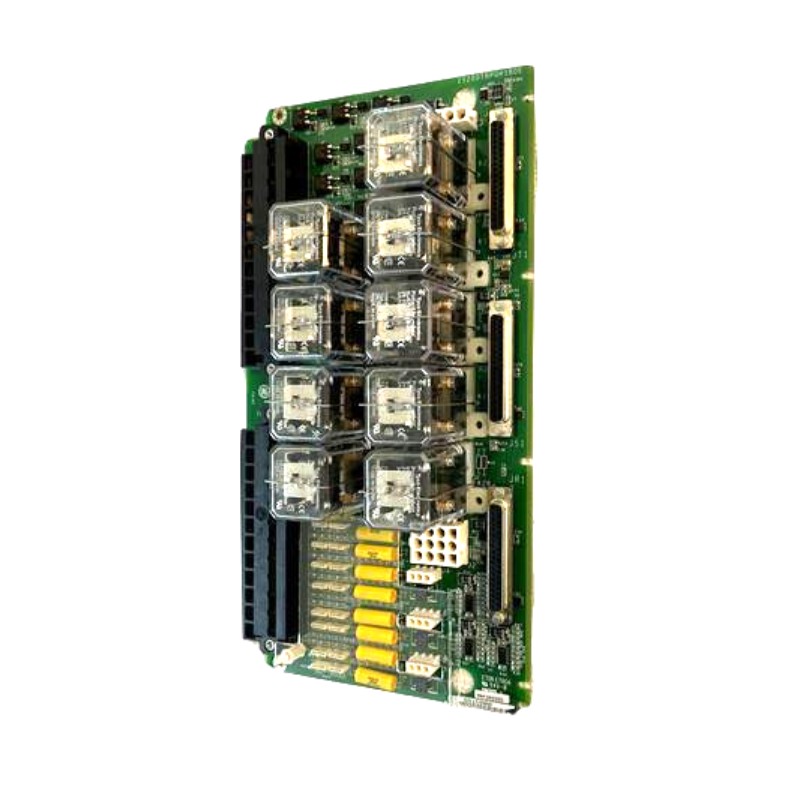

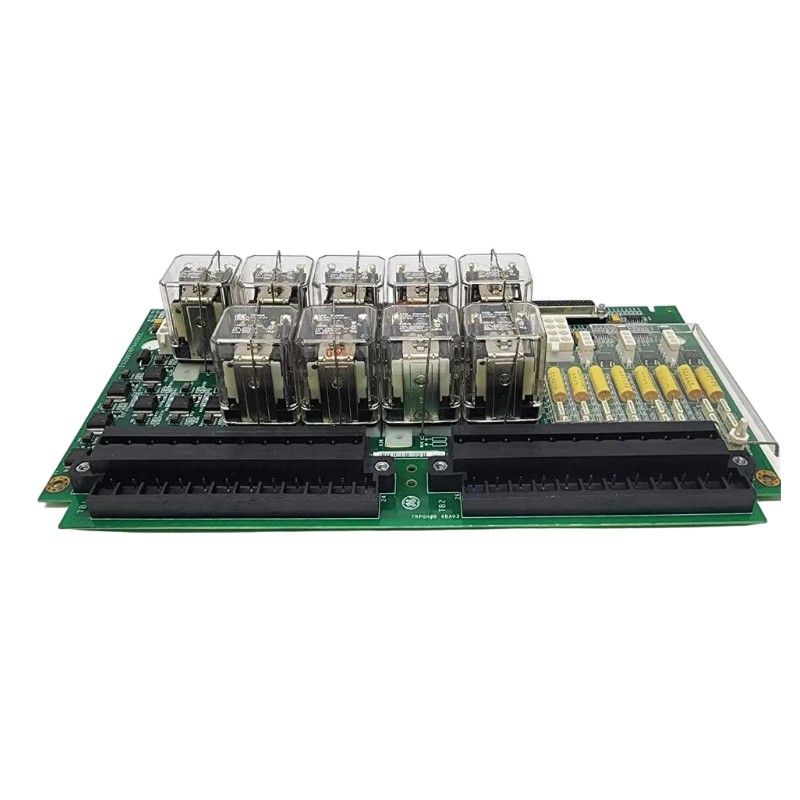

The GE IS200TRPGH1BCC is a Termination Relay Board used in GE Mark VI turbine control systems. It provides a reliable interface between the control system and external devices, supporting safe turbine operation and signal routing.

General Information

Part Number: IS200TRPGH1BCC

Manufacturer: General Electric (GE)

Country of Origin: United States

Type: Termination Relay Board

Mounting: 3U rack installation

Compatibility: GE Mark VI turbine control systems

Electrical Specifications

Relay Configuration: 8 Form C (SPDT) relays, up to 10A at 24V DC

Input Terminals: 16

Operating Voltage: 12–48 VDC

Power Supply: 24 VDC

Function: Interfaces control system with external trip devices and relays

Environmental

Operating Temperature: −40°C to +70°C

Storage Temperature: −40°C to +85°C

Relative Humidity: 5% to 95%, non-condensing

Vibration Resistance: 5g, 10–150 Hz (IEC 60068-2-6)

Shock Resistance: 15g, 11 ms (IEC 60068-2-27)

Altitude: Up to 3,000 meters

Cooling: Natural convection

Dimensions & Weight

Dimensions (L × W × H): 180 × 180 × 30 mm

Weight: 0.8 kg

Authentic brand-new products are always available, and our customer service team is ready around the clock.

The product has reasonable price-performance ratio, timely delivery, and special preferential quotations can be applied for project-based procurement.
