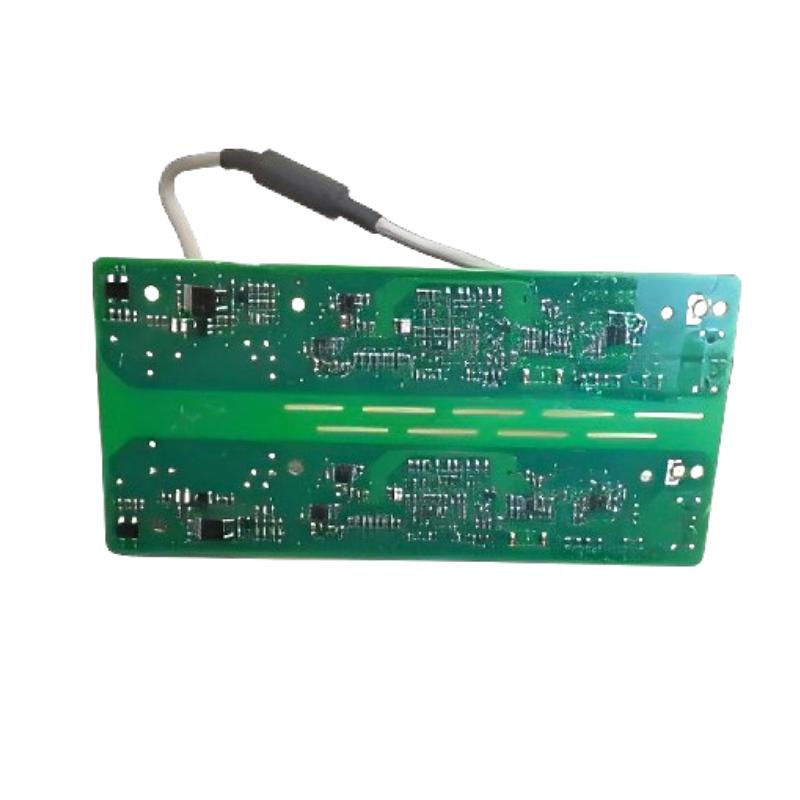

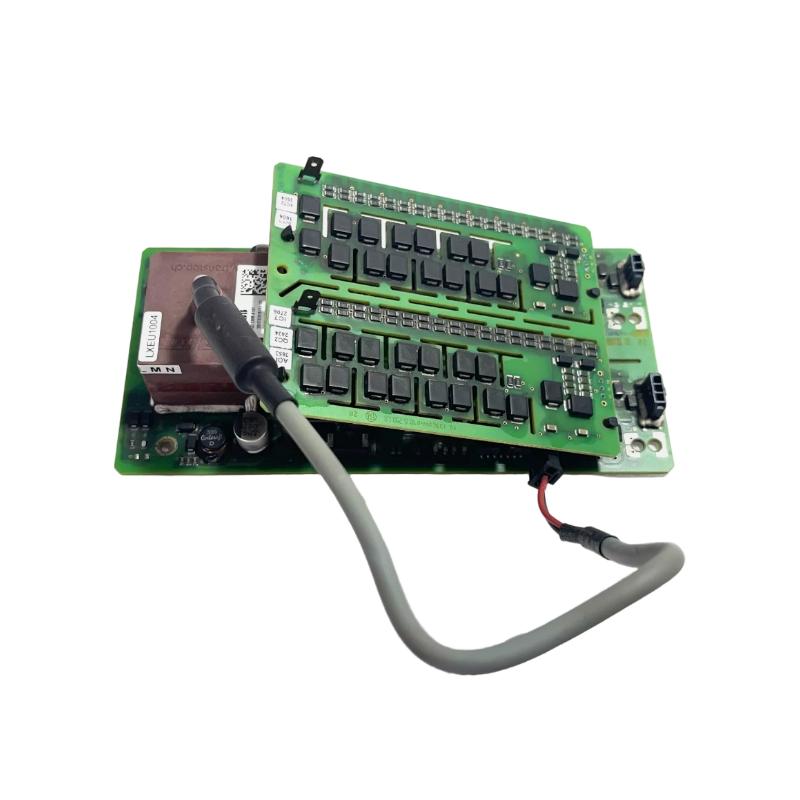

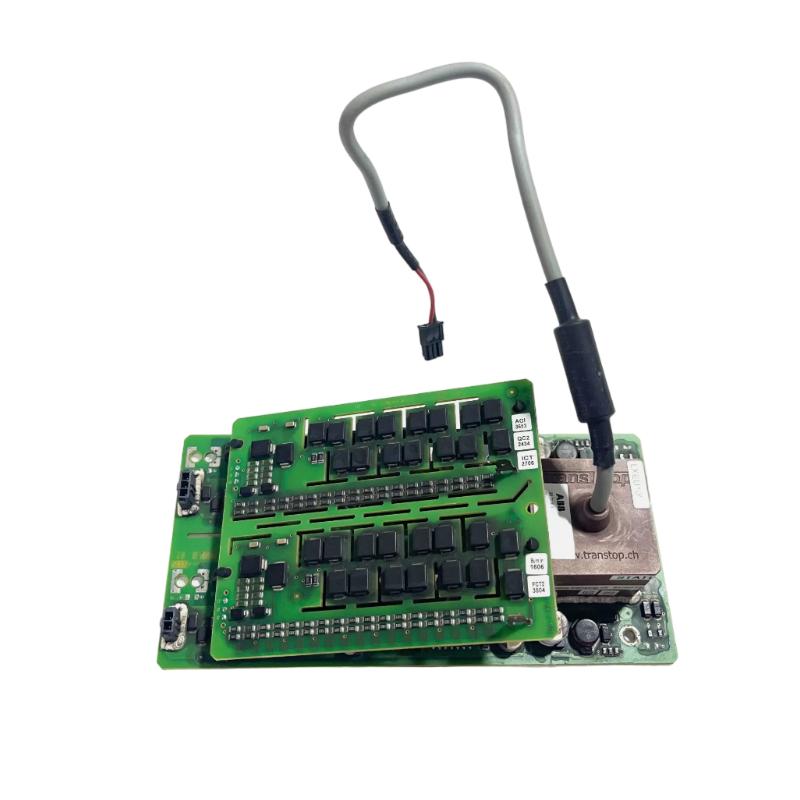

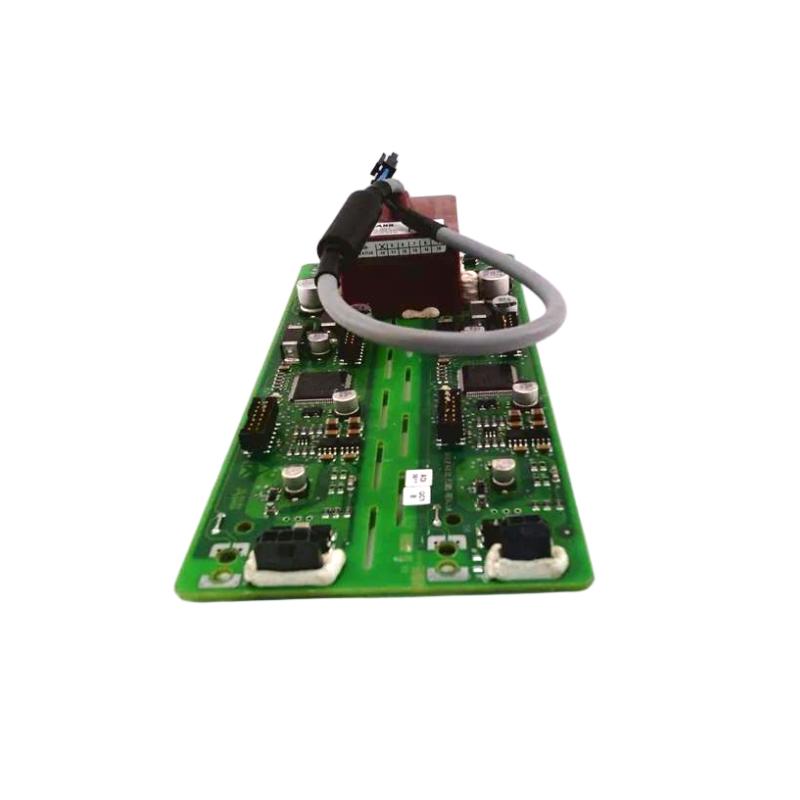

ABB GD C806 B 3BHE036130R0101 Gate Driver Module Efficient delivery Fast Shipping!

Brand：ABB PLC

Item No.：ABB GD C806 B 3BHE036130R0101

Product origin：Sweden

Dimensions:200 × 150 × 20 mm

Weight:0.165 kg

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product Introduction：

Overview

The ABB GD C806 B (Part No. 3BHE036130R0101) is a specialized PCB circuit board designed for use in ABB's industrial automation and drive systems. It is part of the GD C806 series, which encompasses various gate driver modules used for controlling power semiconductor devices such as IGBTs and MOSFETs.

General Information

Part Number: 3BHE036130R0101

Product Name / Model: GD C806 B

Manufacturer: ABB

Series / Module Type: Gate Driver Module

Type: PCB Circuit Board

Country of Origin: Switzerland

Mounting / Format: Rack or chassis module format for integration inside control systems

Application Area: Industrial automation, drive systems, power converters

Electrical Specifications

Rated Input Voltage: 24 V DC

Overload Current: 8 mA

Power Consumption: Not explicitly listed in available sources

Signal Types Supported: Not explicitly listed in available sources

Communication Protocols: Not explicitly listed in available sources

Environmental

Operating Temperature: –20 °C to +60 °C

Storage Temperature: Not explicitly listed in available sources

Relative Humidity: Not explicitly listed in available sources

Cooling Method: Natural convection

Protection Rating: Not explicitly listed in available sources

Dimensions & Weight

Dimensions (L × W × H): 200 × 150 × 20 mm

Weight: 0.165 kg

Factory-sealed brand-new goods, quick response, and transparent prices.

The product import information is complete, and it supports fast delivery. If there is a bulk demand, the price can be adjusted according to the quantity.
