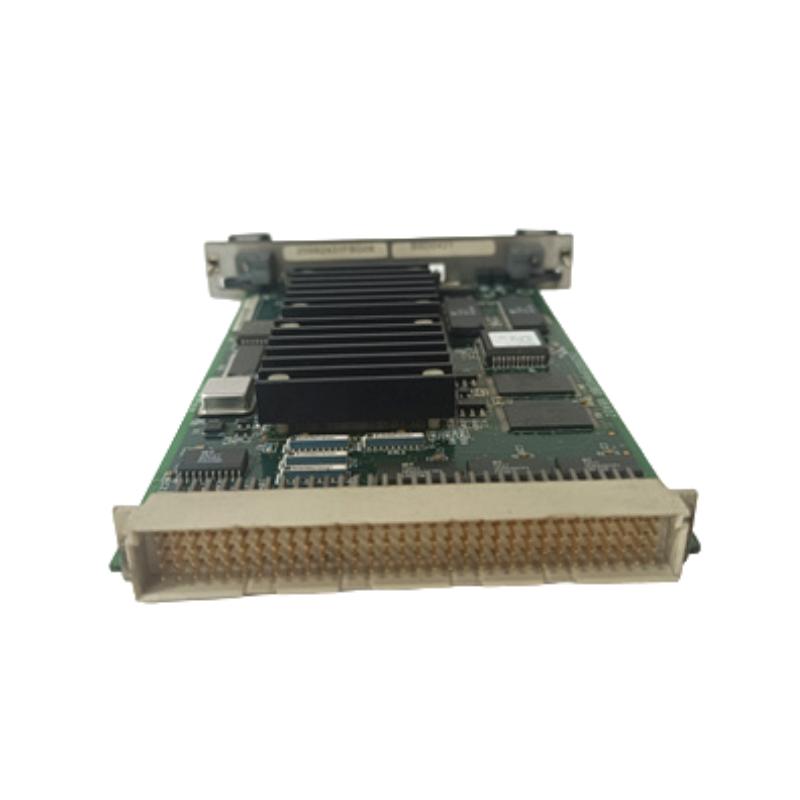

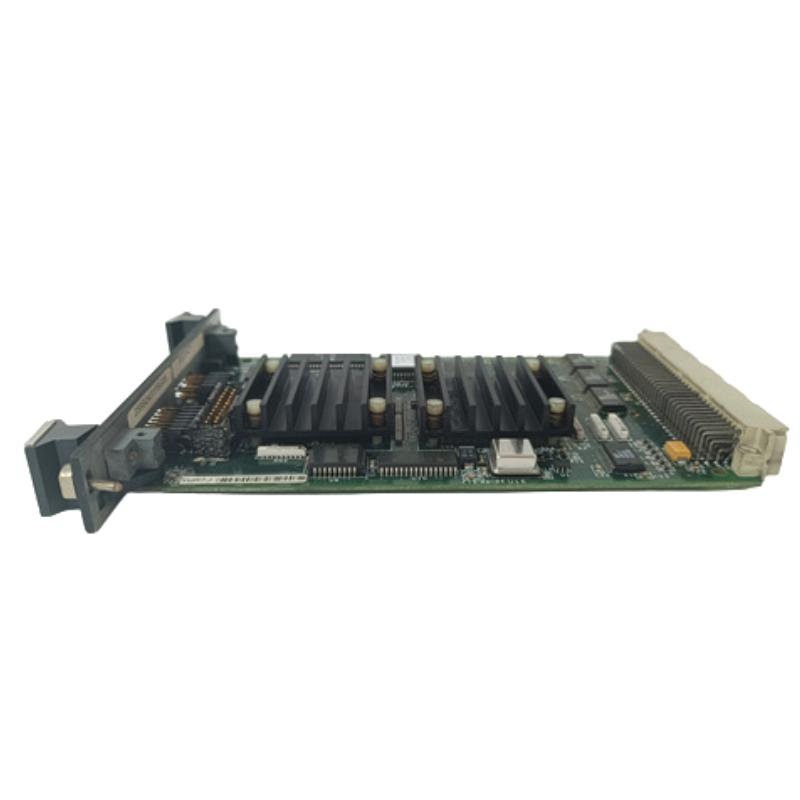

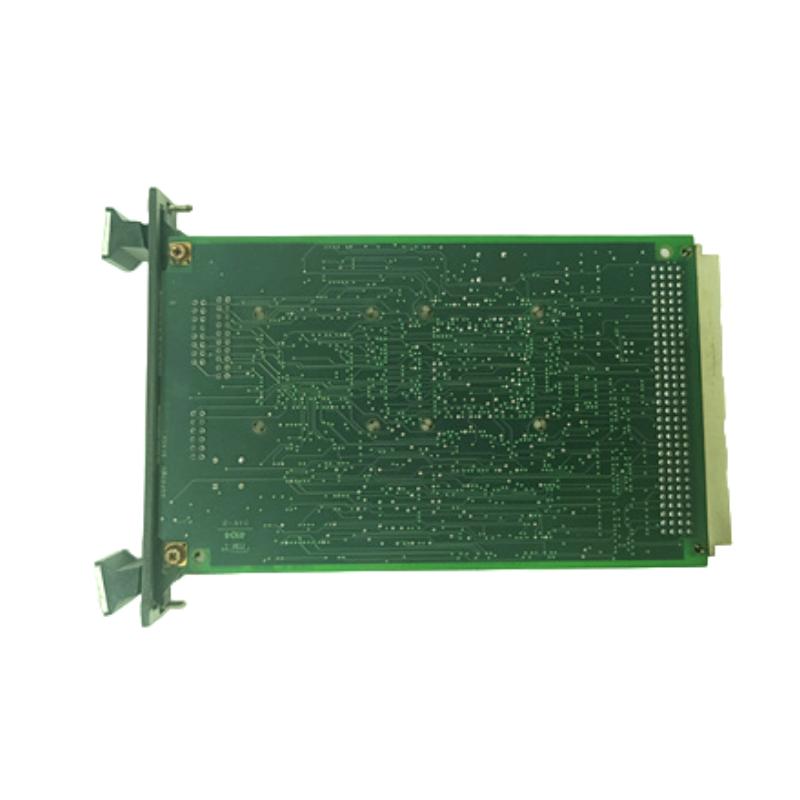

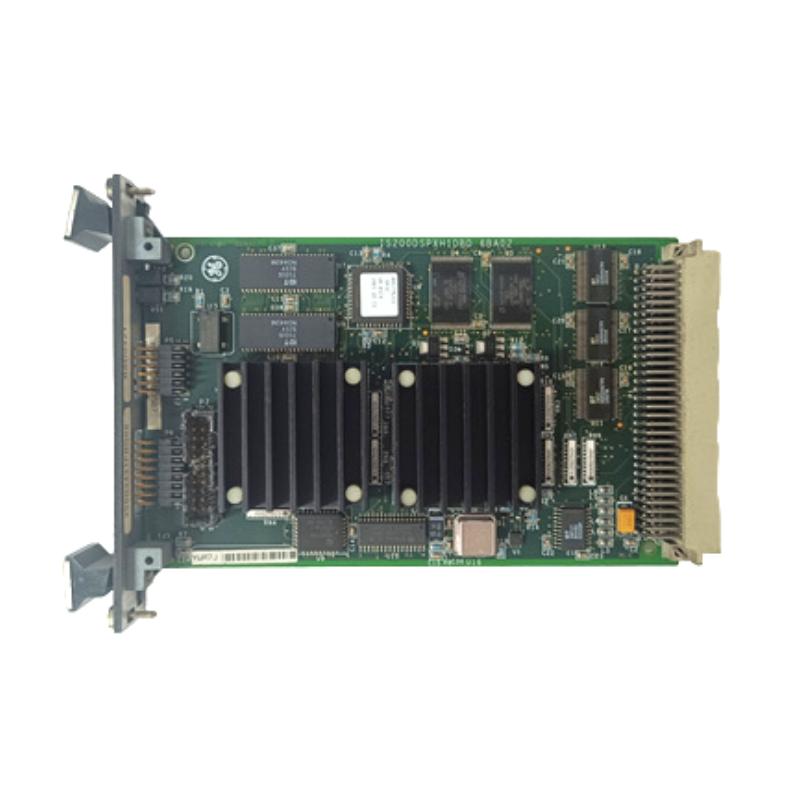

GE IS200DSPXH1DBD Digital Signal Processor Control Board Quality Assurance Original

Brand：GE Fanuc PLC

Item No.：GE IS200DSPXH1DBD

Product origin：USA

Dimensions:190 × 125 × 35 mm

Weight:0.68 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

Sufficient inventory of tens of thousands of models, fast delivery of spot goods, welcome to consult!

Product Introduction：

Overview

The GE IS200DSPXH1DBD is a Digital Signal Processor (DSP) Control Board designed for the GE Mark VI Speedtronic control system. It serves as the primary controller for critical functions within the EX2100 excitation control system and Innovation Series drives. The board manages motor regulation, bridge control, and generator field control operations.

General Information

Part Number: IS200DSPXH1DBD

Manufacturer: General Electric (GE)

Country of Origin: United States

Series: Mark VI Speedtronic

Type: Digital Signal Processor Control Board

Mounting: 3U rack-mounted

Compatibility: EX2100 excitation control system and Innovation Series drives

Electrical Specifications

Processor: 60 MHz DSP

Memory: Flash memory for firmware storage

Power Supply: +5 VDC ±5%

Power Consumption: Approximately 20 W

Communication Interfaces: Serial RS-232 / RS-485

I/O Connections: 10 Digital Inputs, 8 Digital Outputs

Environmental

Operating Temperature: −20°C to +70°C

Storage Temperature: −40°C to +85°C

Relative Humidity: 5% to 95%, non-condensing

Vibration Resistance: 5g, 10–150 Hz (IEC 60068-2-6)

Shock Resistance: 15g, 11 ms (IEC 60068-2-27)

Altitude: Up to 3,000 meters

Cooling: Natural convection

MTBF: >200,000 hours at 25°C (calculated)

Dimensions & Weight

Dimensions (L × W × H): 190 × 125 × 35 mm

Weight: 0.68 kg

All items are original and new, with sufficient stock and active customer support anytime.

The import process is clear, the supply is timely, and matching quotation suggestions can be provided for large quantities.
