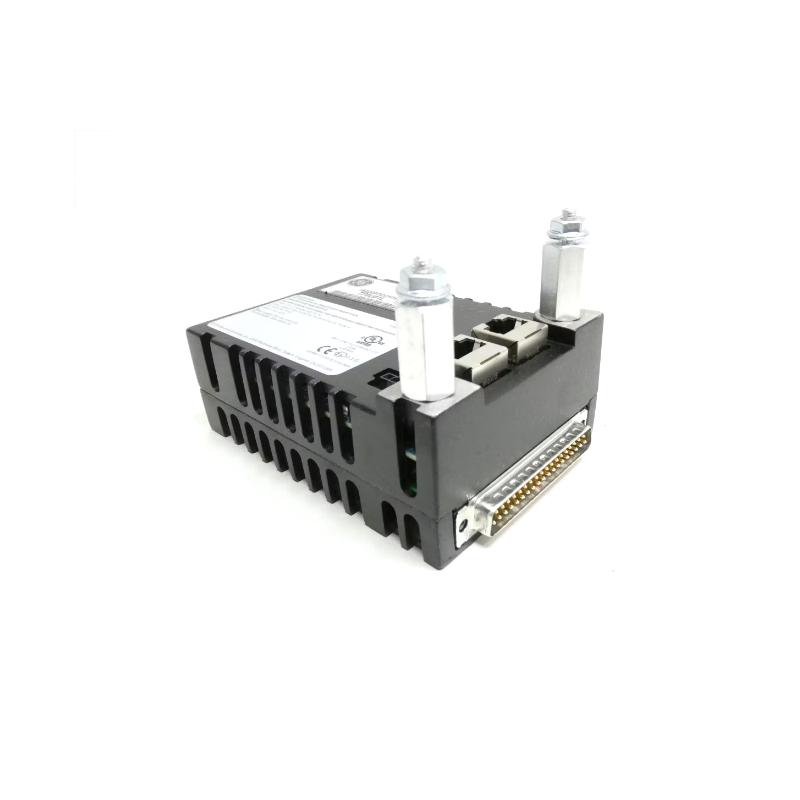

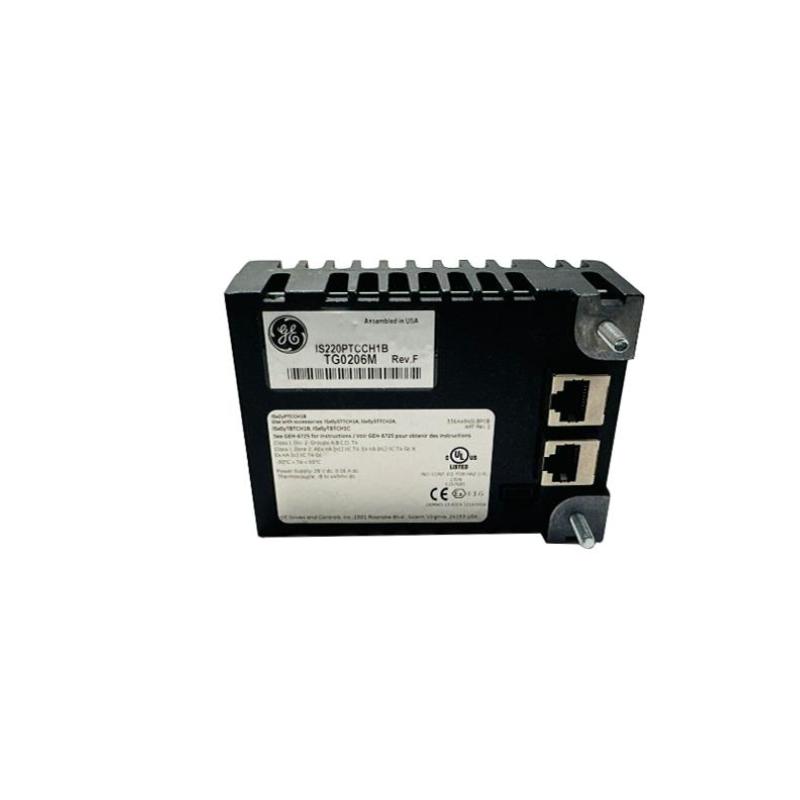

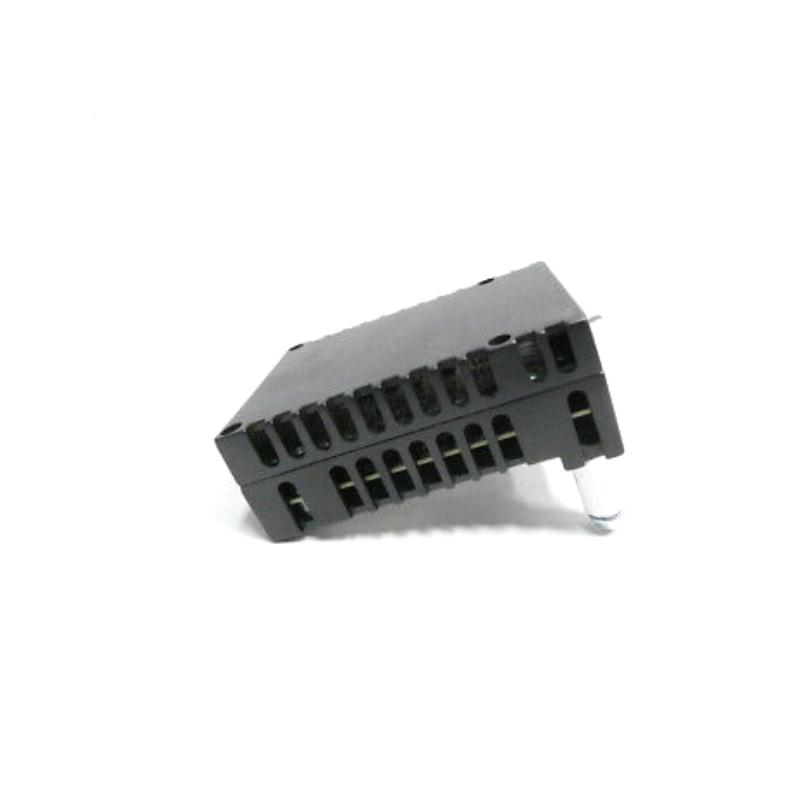

GE IS220PTCCH1B Thermocouple Input Module Thoughtful service Fast Shipping!

Brand：GE Fanuc PLC

Item No.：GE IS220PTCCH1B

Product origin：USA

Dimensions:210 × 107 × 35 mm

Weight:0.4 kg

Original overseas introduction, test assistance instructions support, stable and reliable service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The GE IS220PTCCH1B is a thermocouple input module designed for the GE Speedtronic Mark VIe control system. It features 12 combustion-optimized inputs and 1 cold junction, facilitating precise temperature measurements in industrial applications.

General Information

Part Number: IS220PTCCH1B

Manufacturer: General Electric (GE)

Country of Origin: United States

Series: Mark VIe

Type: Thermocouple Input Module

Mounting: DIN rail or panel installation

Compatibility: Designed for use with GE Speedtronic Mark VIe control systems

Electrical Specifications

Input Channels: 12

Input Types: Thermocouples (types E, J, K, S, T) and mV inputs (−8 mV to +45 mV)

Cold Junction Compensation: Integrated

A/D Converter: 16-bit

Common Mode Voltage: +5 V

Normal Mode Rejection: 250 mV

Microprocessor: AMD-K6 300 MHz

Power Supply: 28 VDC, 0.16 A

Diagnostic Features: Flash memory, RAM, processor board hardware, and Ethernet port self-tests

Internal Power Supply Monitoring: Continuous

Environmental

Operating Temperature: −30°C to +65°C

Storage Temperature: −40°C to +85°C

Relative Humidity: 5% to 95%, non-condensing

Vibration Resistance: 5g, 10–150 Hz (IEC 60068-2-6)

Shock Resistance: 15g, 11 ms (IEC 60068-2-27)

Altitude: Up to 3,000 meters

Cooling: Natural convection

MTBF: >200,000 hours at 25°C (calculated)

Dimensions & Weight

Dimensions (L × W × H): 210 × 107 × 35 mm

Weight: 0.4 kg

100% genuine, brand-new products in stock, with 24-hour online consultation available.

Supplied through import channels, fast delivery, and customized pricing for bulk transactions.
