Brand：Honeywell DCS

Item No.：Honeywell 8C-TAIXA1 51307127-175

Product origin：USA

Dimensions:234 × 27 × 112.5 mm

Weight:0.3 kg

Formal source, test instructions can be coordinated, and after-sales service is continuously followed up

Flexible stock of multiple models, support quick response, welcome to cooperate and exchange!

Product Introduction：

Overview

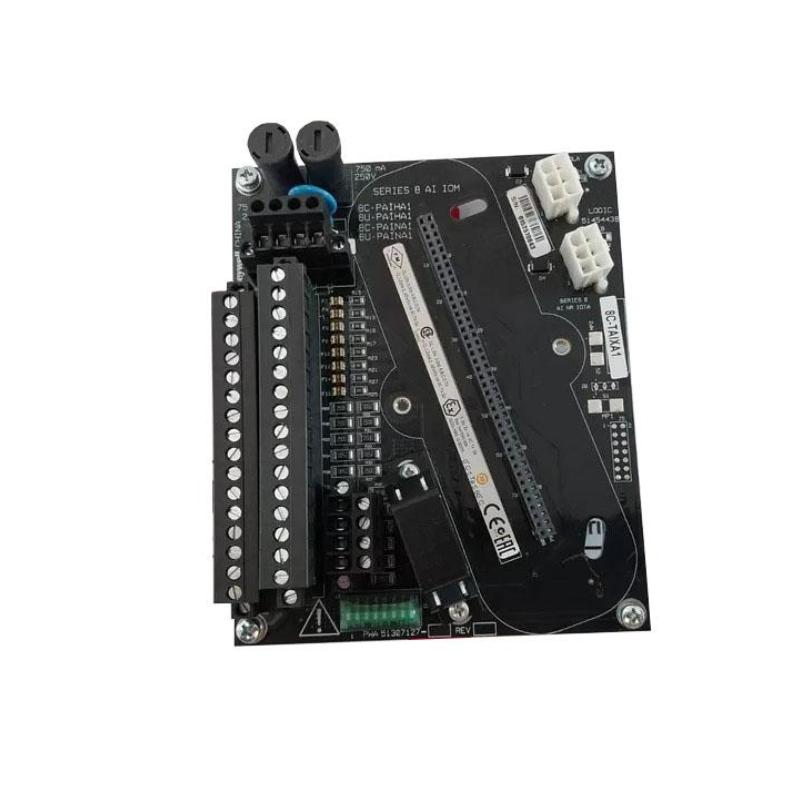

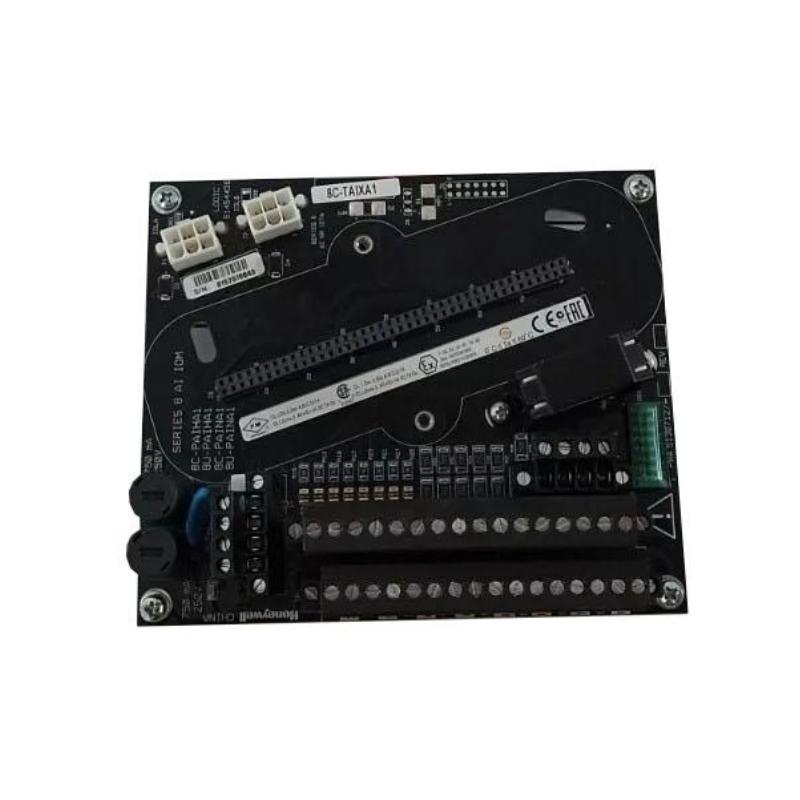

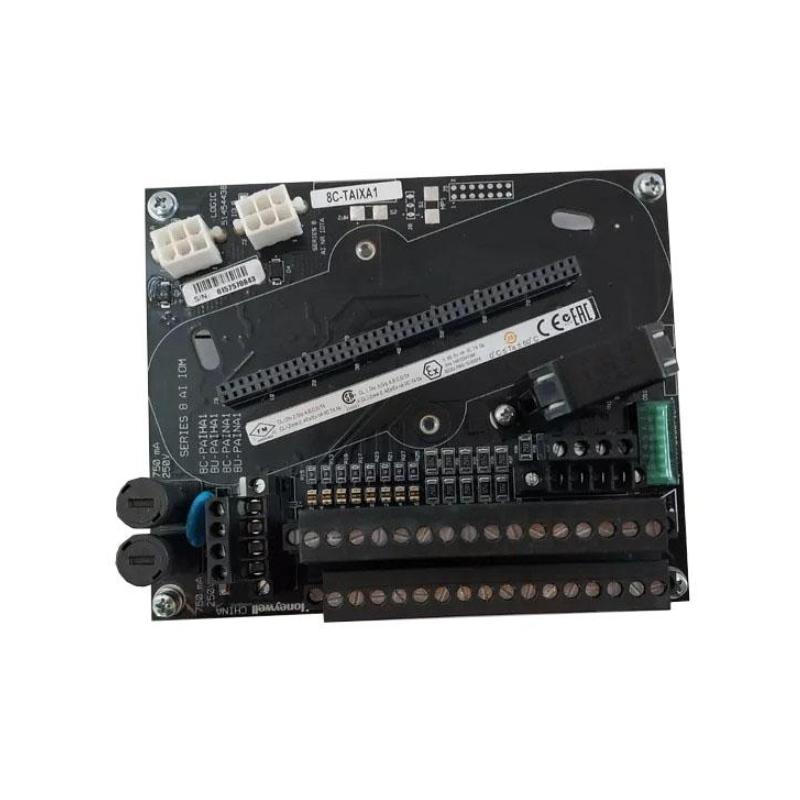

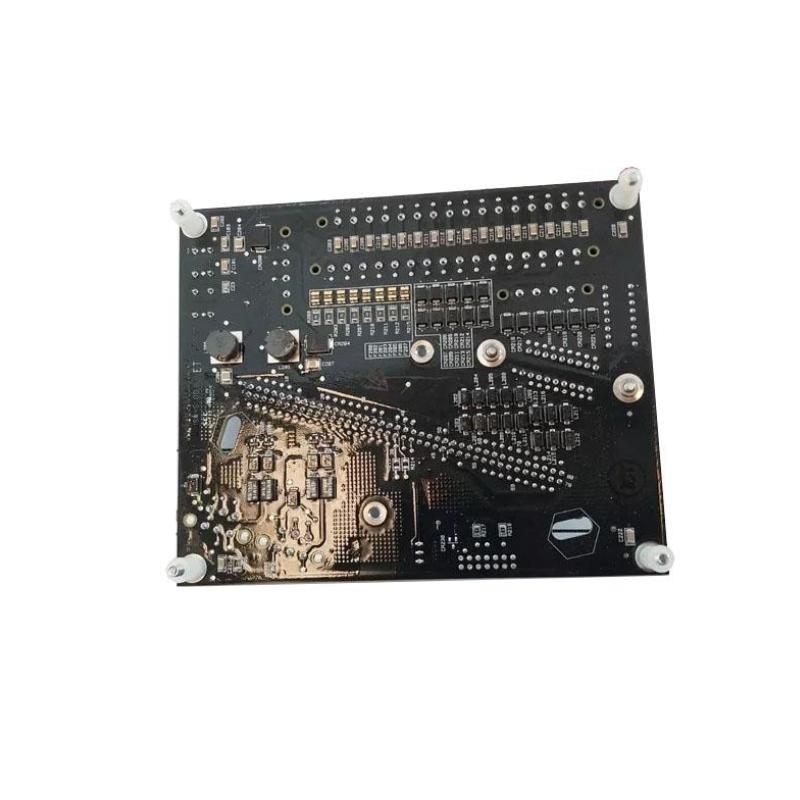

The Honeywell 8C-TAIXA1 (Part Number: 51307127-175) is an analog input module designed for Honeywell Experion PKS and C300 control systems. It accurately converts voltage, current, RTD, and thermocouple signals into digital data to ensure precise process monitoring and control.

General Information

Part Number: 51307127-175

Manufacturer: Honeywell

Country of Origin: United States

Series: Experion Series 8

Type: Analog Input Module (I/O Expansion)

Mounting: 9-inch I/O slot installation

Compatibility: Honeywell C300 Controller

Power Specifications

Supply Voltage: 24 V DC

Current Consumption: ~310 mA

Voltage Tolerance: ±30 V

Input & Channels

Input Types: Voltage (0–5 V, 1–5 V, 0.4–2 V), Current (4–20 mA via 250 Ω resistor), RTD, Thermocouple

Number of Channels: 16 differential or single-ended

Input Impedance: >10 MΩ (voltage mode)

Common-Mode Rejection: 70 dB (500 Ω unbalance)

Scan Time: 50 ms per channel

Accuracy: ±0.075% full scale at 23.5°C; ±0.15% over 0–60°C

Environmental

Operating Temperature: −40 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Dimensions & Weight

Dimensions (L × W × H): 234 × 27 × 112.5 mm

Weight: ~0.3 kg
