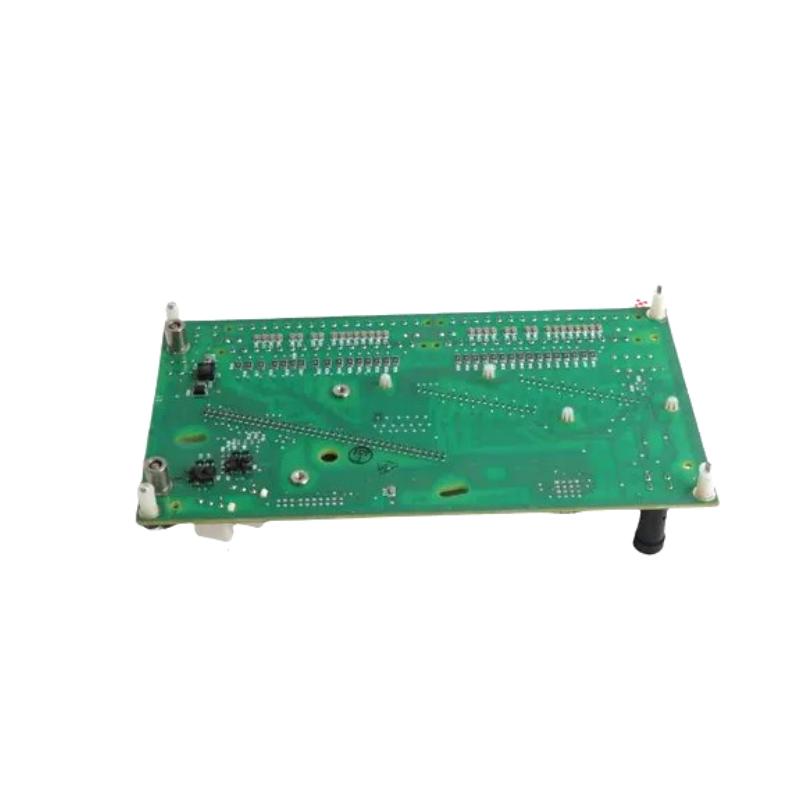

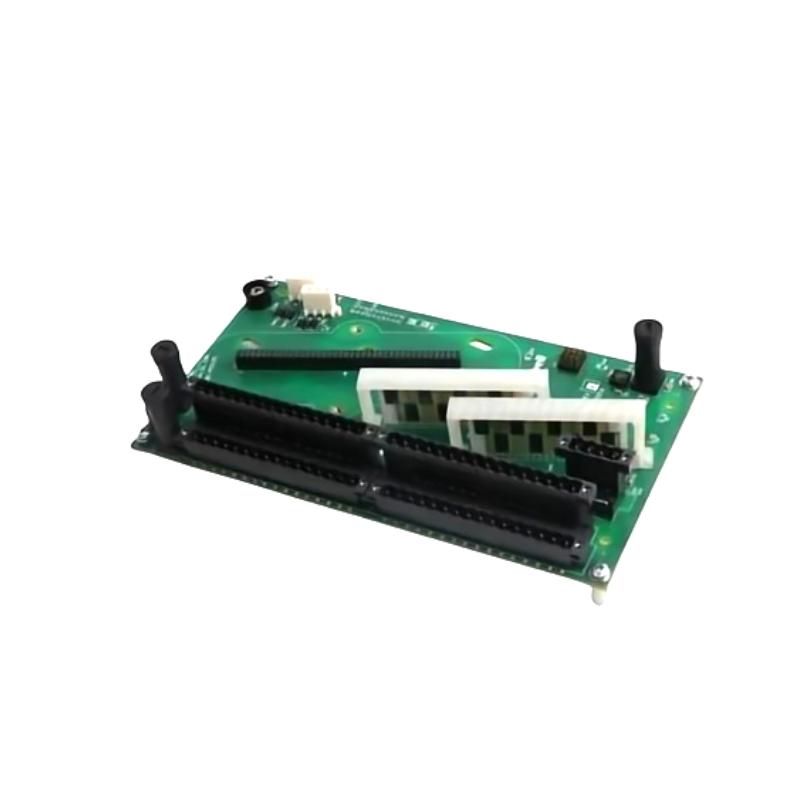

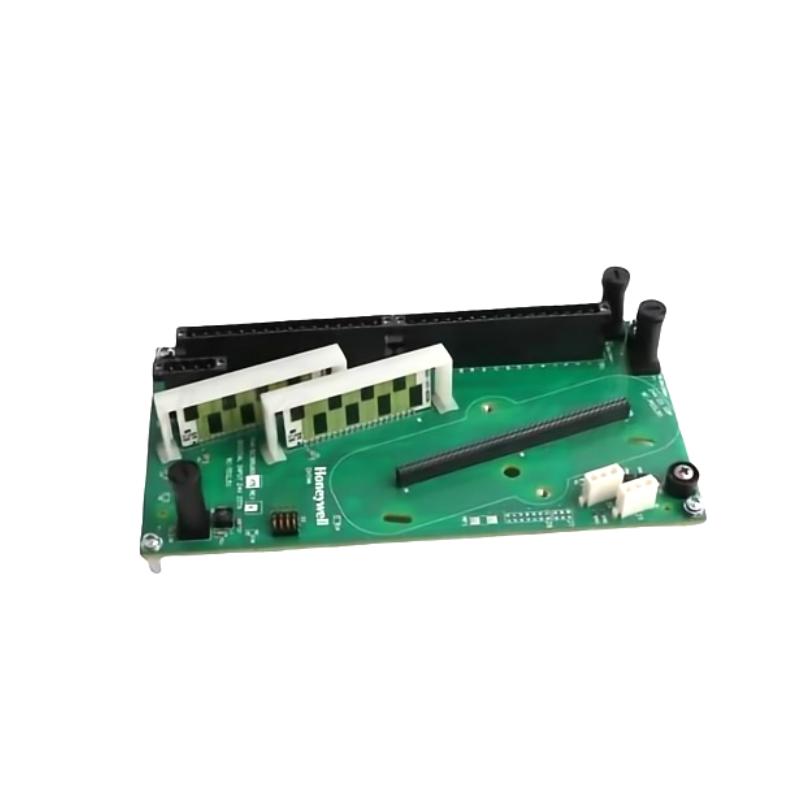

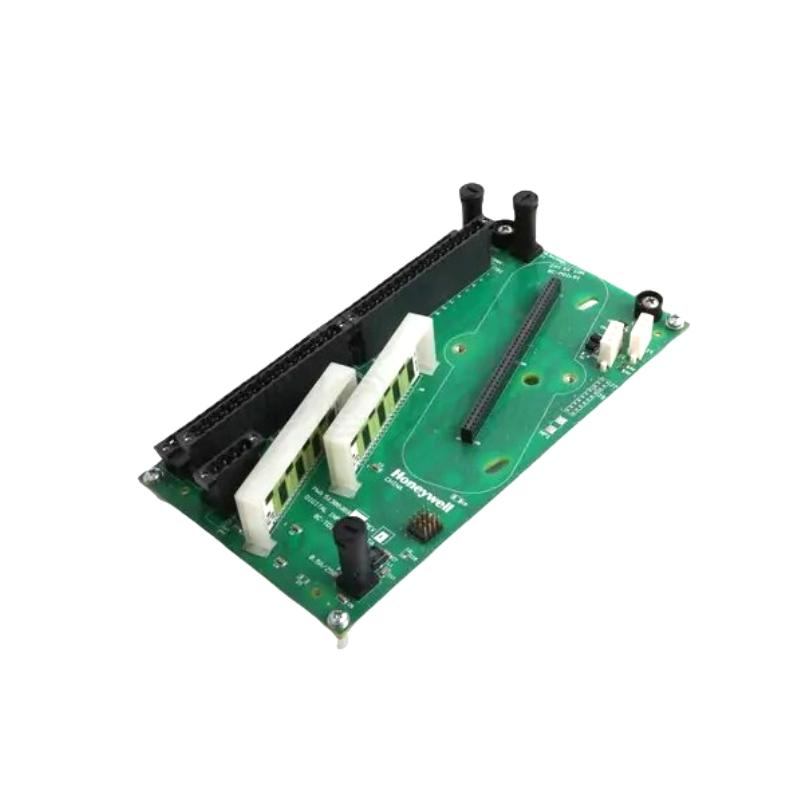

Honeywell 8C-TAIM01 51306999-175 Fast Shipping!

Brand：Honeywell DCS

Item No.：Honeywell 8C-TAIM01 51306999-175

Product origin：USA

Dimensions:234 × 27 × 112.5 mm

Weight:0.3 kg

Formal channels, complete testing instructions, and responsive services

Rich stock models support quick docking of procurement needs, welcome to inquire!

Product Introduction：

Overview

The Honeywell 8C-TAIM01 (Part Number: 51306999-175) is an analog input module for Honeywell Experion PKS and C300 control systems. It captures precise voltage, current, RTD, and thermocouple signals, converting them into digital data to support accurate process control and monitoring.

General Information

Part Number: 51306999-175

Manufacturer: Honeywell

Country of Origin: United States

Series: Experion Series 8

Type: Analog Input Module (IOM01)

Mounting: 9-inch IOM slot installation

Compatibility: Honeywell C300 Controller

Power Specifications

Supply Voltage: 24 V DC

Current Consumption: ~310 mA

Voltage Tolerance: ±30 V

Input & Channels

Input Types: Voltage (0–5 V, 1–5 V, 0.4–2 V), Current (4–20 mA via 250 Ω resistor), RTD, Thermocouple

Number of Channels: 16 differential or single-ended

Input Impedance: >10 MΩ (voltage mode)

Common-Mode Rejection: 70 dB (500 Ω unbalance)

Scan Time: 50 ms per channel

Accuracy: ±0.075% full scale at 23.5°C; ±0.15% over 0–60°C

Environmental

Operating Temperature: −40 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Dimensions & Weight

Dimensions (L × W × H): 234 × 27 × 112.5 mm

Weight: ~0.3 kg
