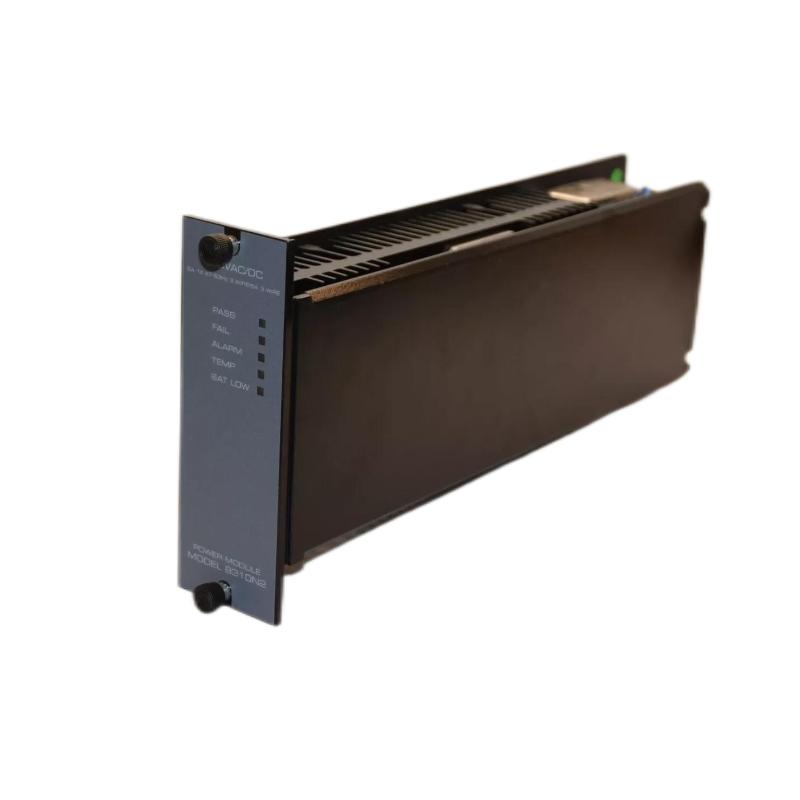

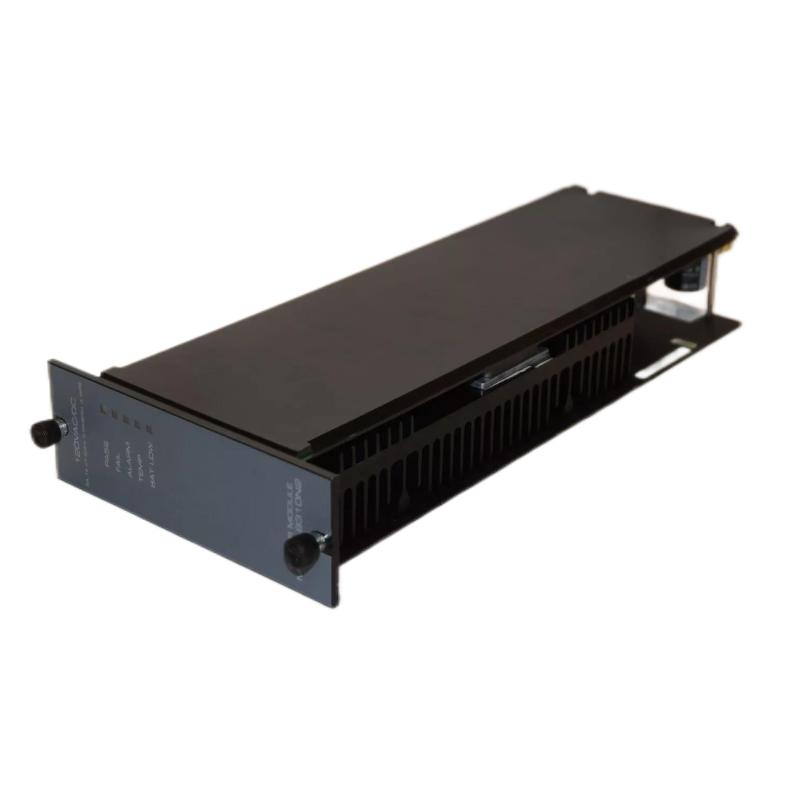

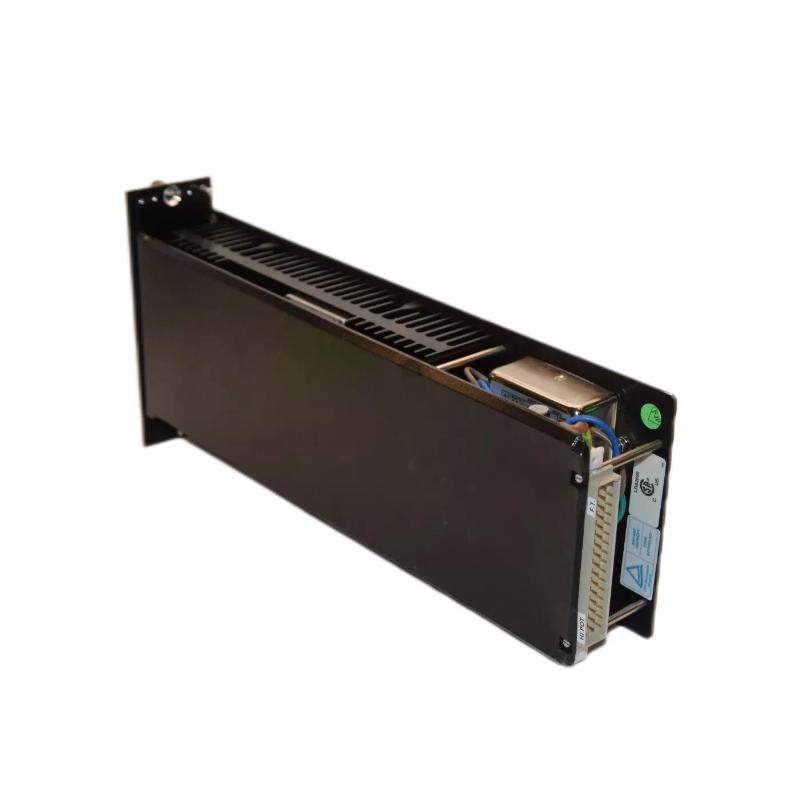

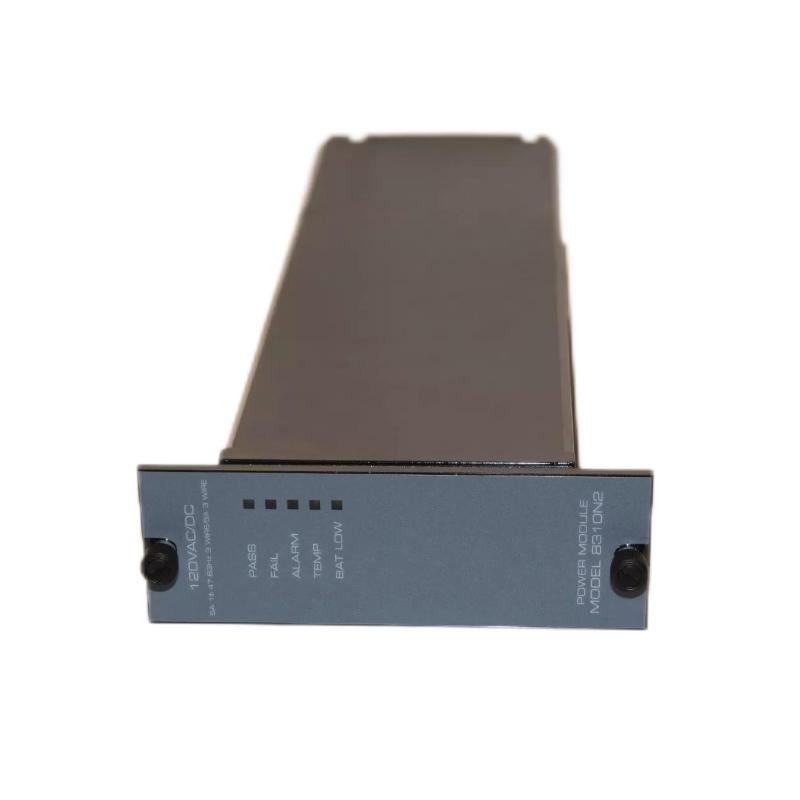

Triconex 8310N Power Supply Module 30-Day Returns New In Stock

Brand：Invensys Triconex

Item No.：Triconex 8310N

Product origin：USA

Dimensions:490 × 453 × 68 mm

Weight:3.8 kg

Formal channel supply, complete information can be checked, and supporting service guarantee

There are rich models in stock, which support quick docking of procurement needs. Welcome to inquire for details!

Product Introduction：

Overview

The Triconex 8310N is a high-reliability power supply module designed to provide stable 24 VDC output for Triconex safety instrumented systems (SIS). It ensures continuous operation in critical applications requiring high availability and fault tolerance.

General Information

Part Number: 8310N

Manufacturer: Triconex (part of Schneider Electric)

Country of Origin: United States

Series: 8310

Type: Power Supply Module

Mounting: 19-inch rack installation

Compatibility: Compatible with Triconex safety systems

Power Specifications

Input Voltage: 120 V AC/DC

Input Voltage Range: 100–132 V AC or 100–150 V DC

Output Voltage: 6.5 V DC ±1%

Output Power: 175 W at 60°C

Output Current: Maximum 27 A

Efficiency: >85%

Power Factor: 0.95 typical

Inrush Current: <50 A peak at 120 V AC

Hold-up Time: >20 ms at full load

Isolation Voltage: >1,000 V AC or 1,500 V DC (input to output)

Fuse Rating: 5 A, time-delay

Diagnostic Indicators: PASS, FAULT, ALARM, TEMP, BAT LOW

Alarm Contacts: Normally open, normally closed, and common; each supports 120 V AC at 1 A

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: −40°C to +85°C

Relative Humidity: 5% to 95%, non-condensing

Vibration Resistance: 5g, 10–150 Hz (IEC 60068-2-6)

Shock Resistance: 15g, 11 ms (IEC 60068-2-27)

Altitude: Up to 3,000 meters

Cooling: Natural convection

MTBF: >200,000 hours at 25°C (calculated)

Dimensions & Weight

Dimensions (L × W × H): 490 × 453 × 68 mm

Weight: 3.8 kg

Our inventory consists of factory-new original components, with dedicated support available anytime.

The product information is complete, the delivery cycle is short, and special price services can be supported for bulk orders.
