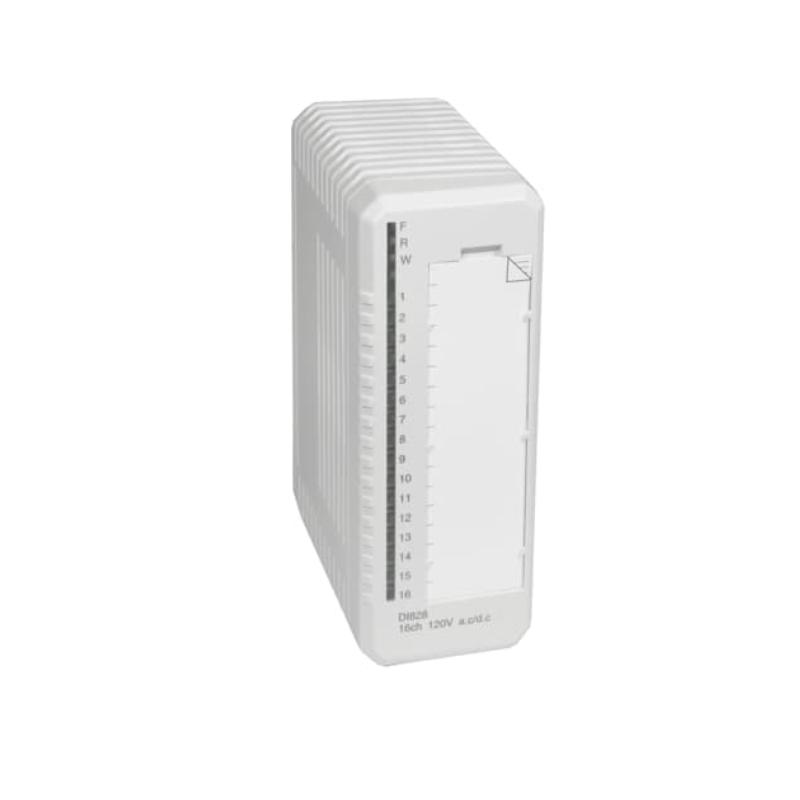

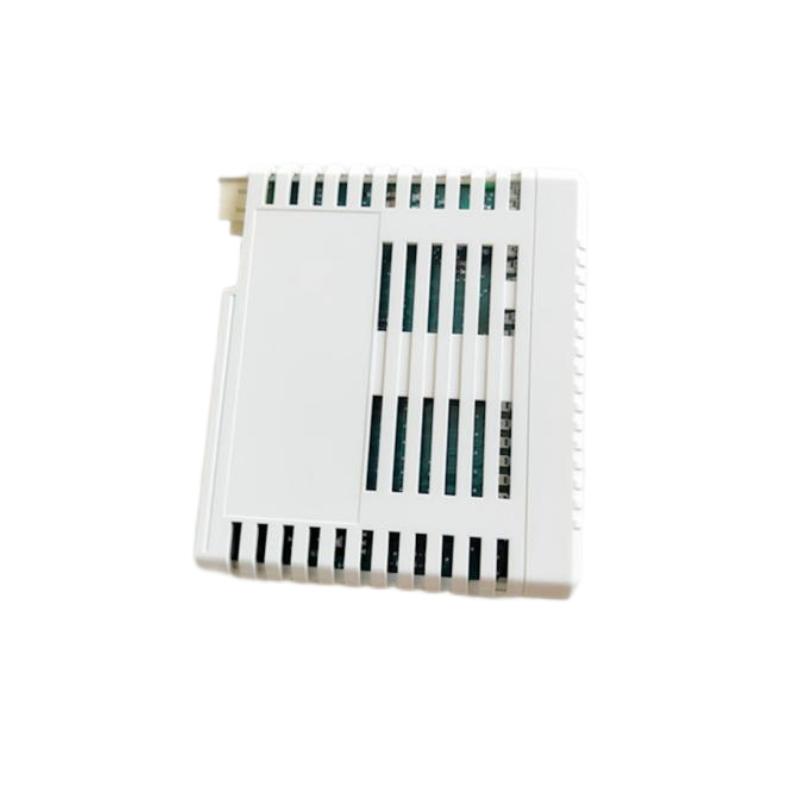

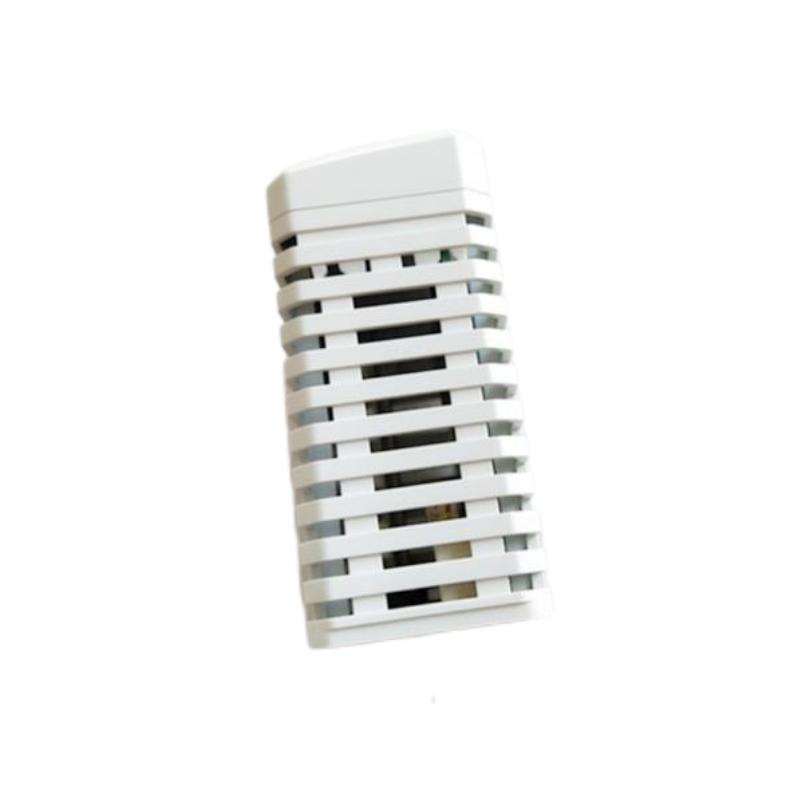

ABB DI828 3BSE069054R1 Digital Input Module Hot Items Unbelievable Prices!

Brand：ABB PLC

Item No.：ABB DI828 3BSE069054R1

Product origin：Sweden

Dimensions:45 x 102 x 119 mm

Weight:0.15 kg

Formal sources, cooperative testing instructions, and continuous follow-up of after-sales service

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview

The ABB DI828 3BSE069054R1 is a digital input module designed for ABB’s AC 800M and S800 I/O systems. It provides reliable detection of discrete input signals from field devices, enabling accurate monitoring and control of industrial processes. The module supports high-speed scanning, advanced diagnostics, and integration with ABB control systems.

General Information

Part Number: 3BSE069054R1

Manufacturer: ABB

Product Series: DI800 Series / S800 I/O

Type: Digital Input Module

Country of Origin: Sweden

Mounting: DIN-rail or baseplate installation within S800 I/O system

System Compatibility: AC 800M Controller and S800 I/O subsystems

Power Specifications

Supply Voltage: 24 V DC nominal

Power Consumption: ≤ 2.5 W

Input Source: Powered via I/O backplane

Protection: Short-circuit, overvoltage, and reverse-polarity protection

Indicators: LEDs for power, channel status, and fault detection

Communication & Interface

Input Channels: 8 digital inputs

Input Signal Type: 24 V DC discrete signals

Diagnostics: Open/short circuit detection, channel fault monitoring

Configuration: Managed via ABB Control Builder or Compact Control Builder software

Environmental

Operating Temperature: –20 °C to +70 °C

Storage Temperature: –40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for industrial cabinet installation)

Dimensions & Weight

Dimensions (L × W × H): 45 x 102 x 119 mm

Weight: 0.15 kg
