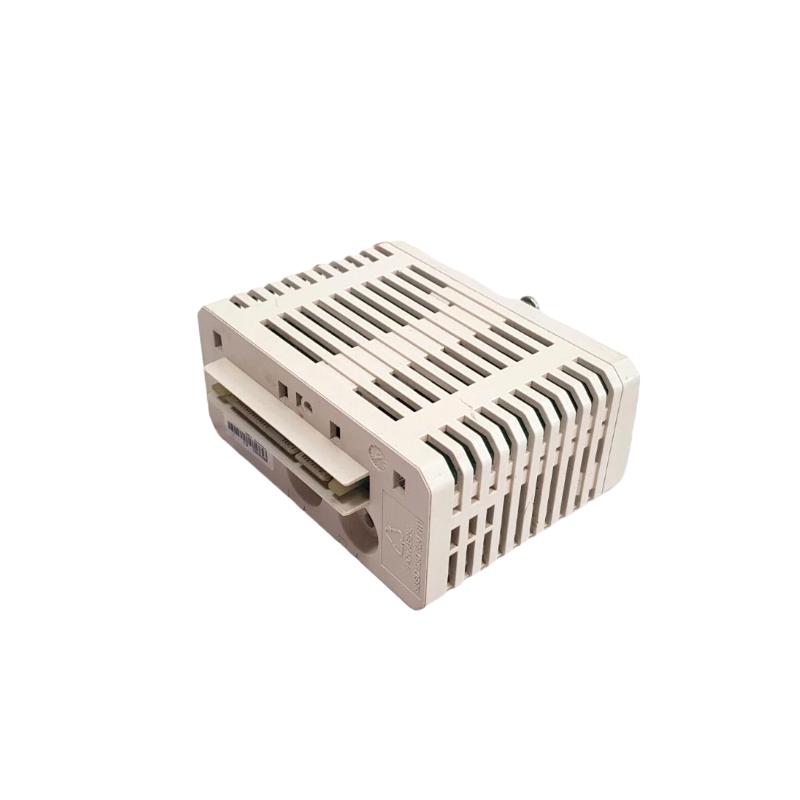

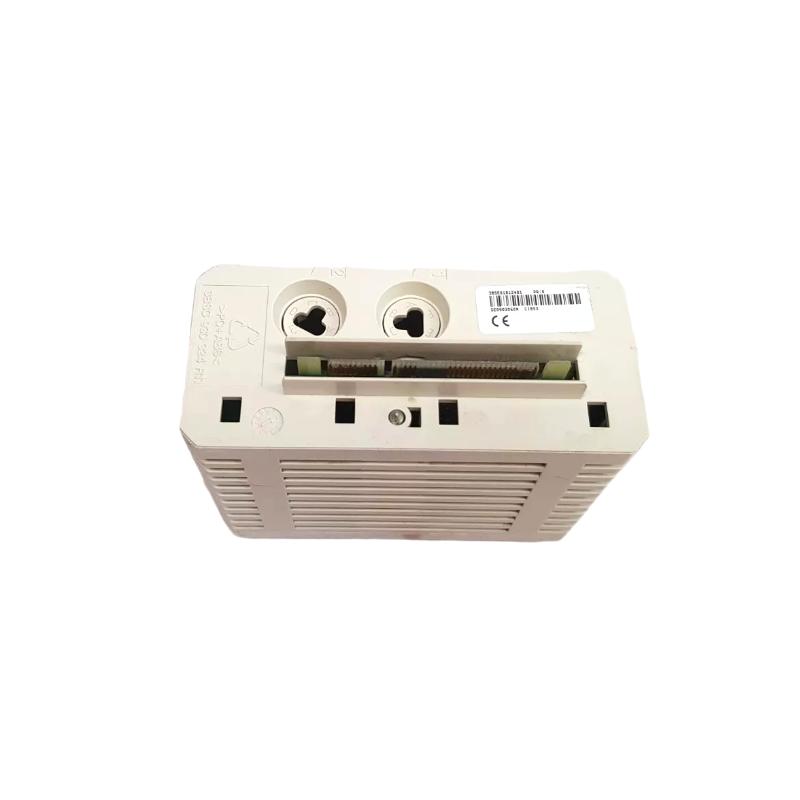

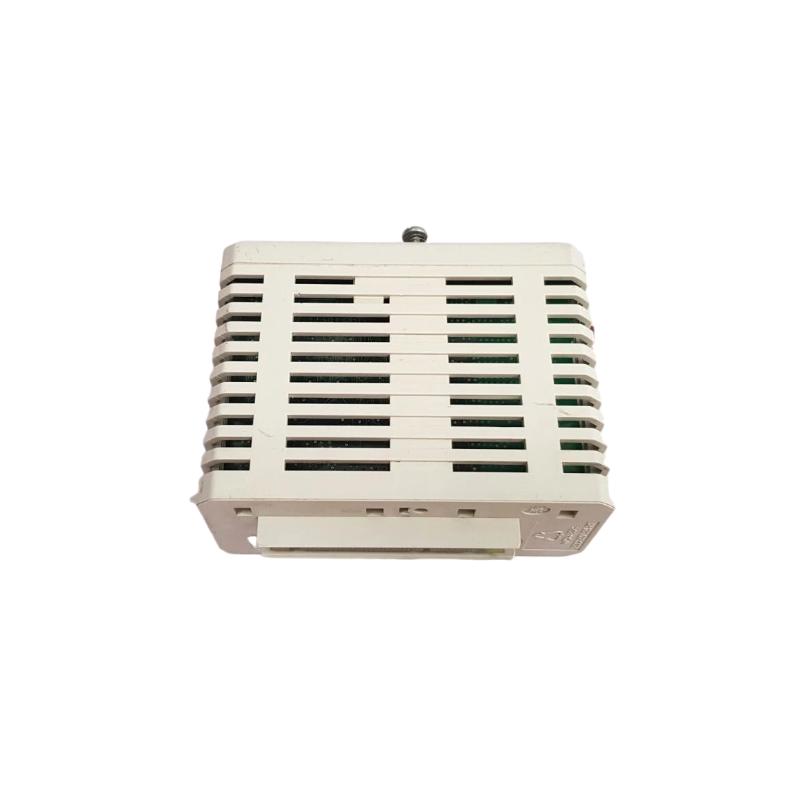

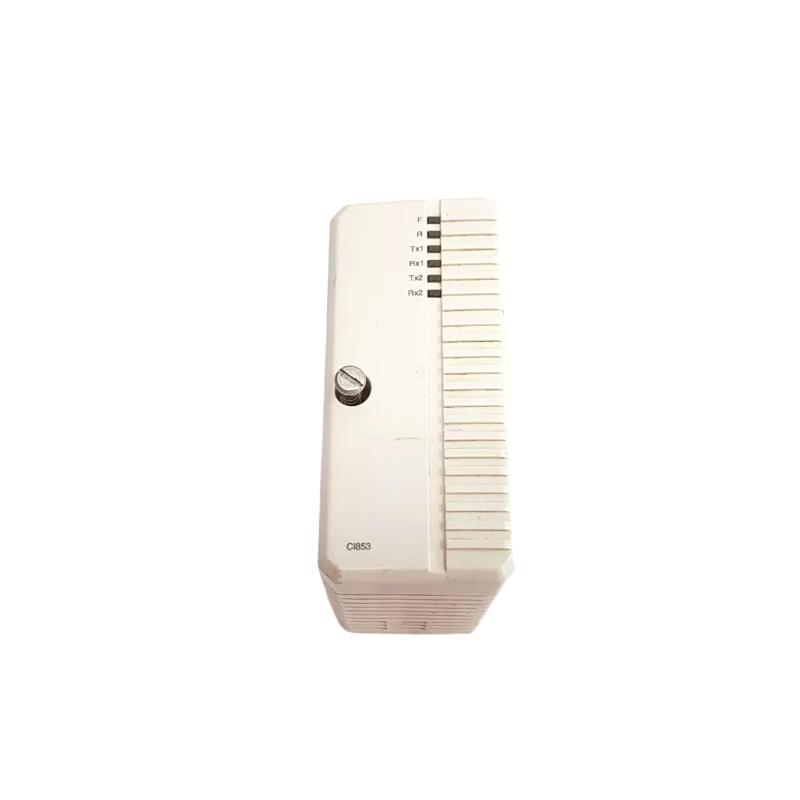

ABB CI853 3BSE018124R1 Communication Interface Module Quality Assurance Original

Brand：ABB PLC

Item No.：ABB CI853 3BSE018124R1

Product origin：Sweden

Dimensions:185 × 59 × 127.5 mm

Weight:0.2 kg

Formal channels, complete testing instructions, and responsive services

Rich stock models support quick docking of procurement needs, welcome to inquire!

Product Introduction：

Overview

The ABB CI853 3BSE018124R1 is a communication interface module designed for ABB’s AC 800M and S800 I/O systems. It enables reliable and high-speed data exchange between the control system and field devices over PROFIBUS-DP, supporting advanced diagnostics and redundancy for critical industrial automation applications.

General Information

Part Number: 3BSE018124R1

Manufacturer: ABB

Product Series: CI800 Series / S800 I/O

Type: Communication Interface Module (PROFIBUS-DP)

Country of Origin: Sweden

Mounting: DIN-rail or baseplate installation within S800 I/O system

System Compatibility: AC 800M Controller and S800 I/O subsystems

Power Specifications

Supply Voltage: 24 V DC nominal

Power Consumption: ≤ 3.5 W

Input Source: Powered from I/O backplane

Protection: Short-circuit, overvoltage, and reverse-polarity protection

Indicators: LEDs for power, communication link, and fault status

Communication & Interface

Interface Type: PROFIBUS-DP slave

Bus Speed: Up to 12 Mbps

Supported Devices: PROFIBUS-compatible field modules and controllers

Diagnostics: Bus supervision, fault detection, and redundancy monitoring

Configuration: Managed via ABB Control Builder or Compact Control Builder software

Redundancy Support: Yes, supports redundant CI853 module pairing

Environmental

Operating Temperature: –20 °C to +70 °C

Storage Temperature: –40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for installation inside industrial cabinets)

Dimensions & Weight

Dimensions (L × W × H): 185 × 59 × 127.5 mm

Weight: 0.2 kg

Brand-new originals directly supplied, 24/7 customer support, quotes provided instantly.

The product information is complete, the delivery cycle is short, and special price services can be supported for bulk orders.
