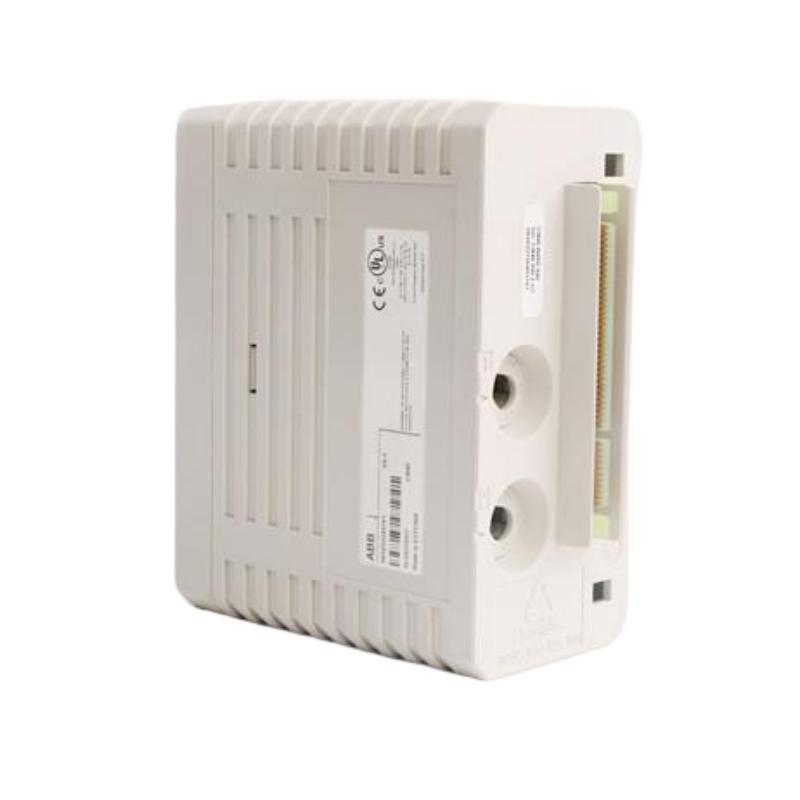

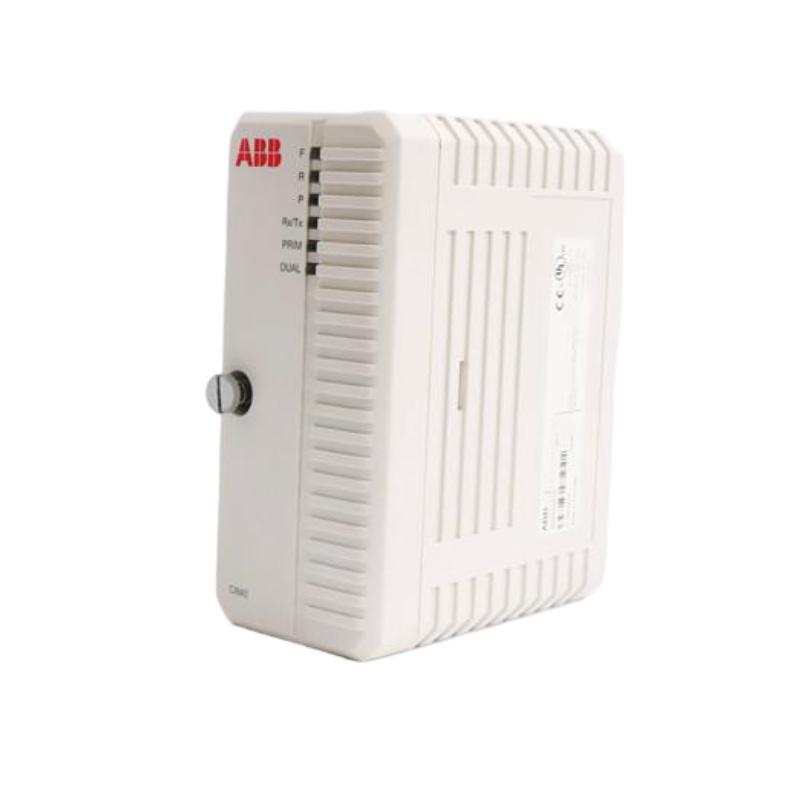

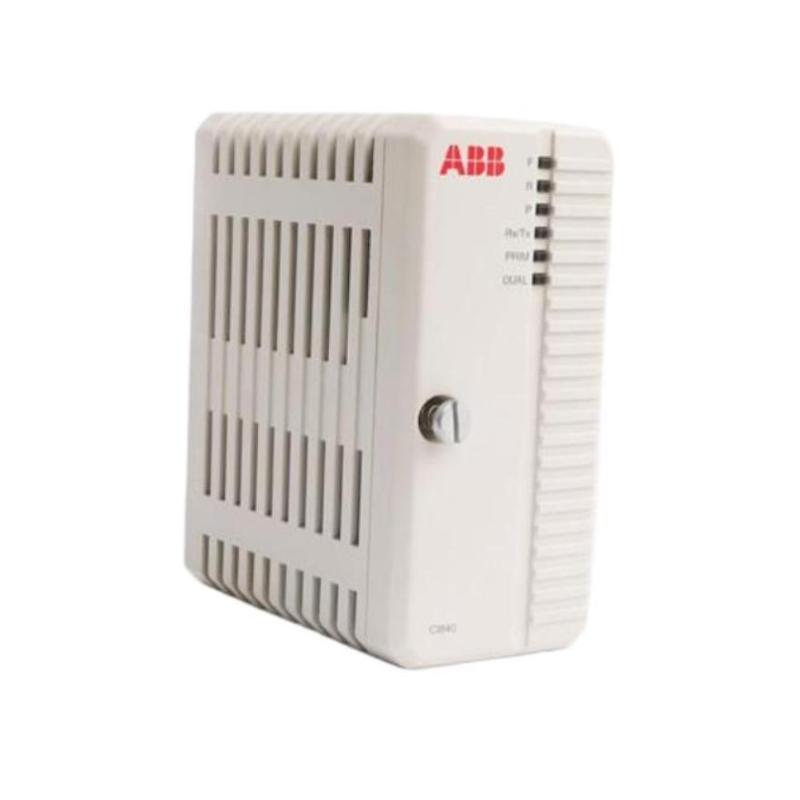

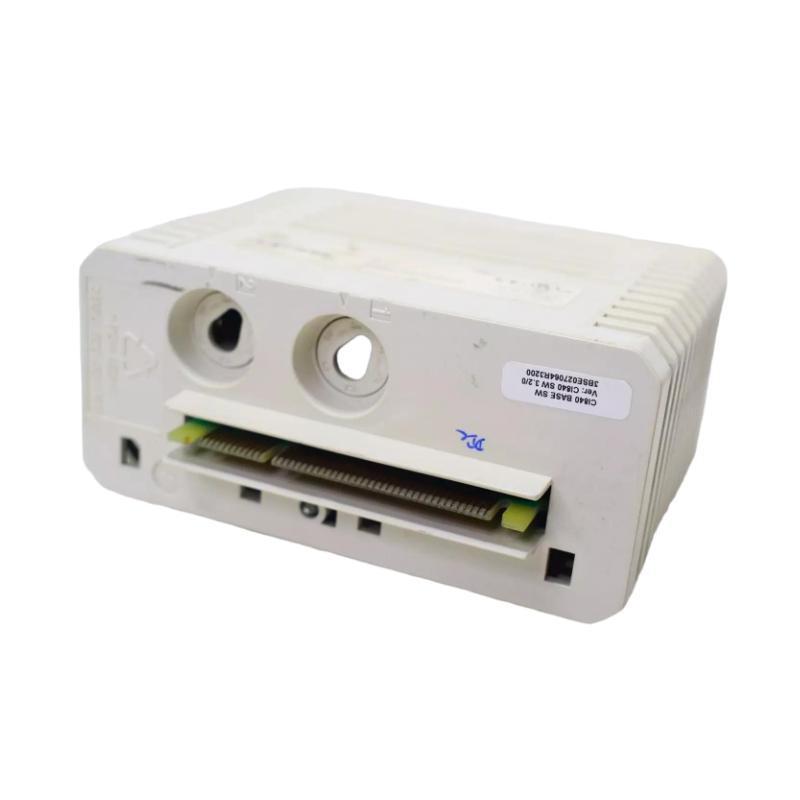

ABB CI840 3BSE022457R1 Communication Interface Module Price Advantage Unbelievable Prices!

Brand：ABB PLC

Item No.：ABB CI840 3BSE022457R1

Product origin：Sweden

Dimensions:122 × 45 × 102 mm

Weight:0.25 kg

Formal channels, complete testing instructions, and responsive services

Large stock, diverse series, and adaptable to different working conditions, welcome to consult!

Product Introduction：

Overview

The ABB CI840 3BSE022457R1 is a high-speed communication interface module designed for ABB’s AC 800M and S800 I/O systems. It enables seamless connectivity between the control system and field devices over PROFIBUS-DP, supporting high-speed data exchange, diagnostics, and redundancy for critical industrial automation applications.

General Information

Part Number: 3BSE022457R1

Manufacturer: ABB

Product Series: CI800 Series / S800 I/O

Type: Communication Interface Module (PROFIBUS-DP)

Country of Origin: Sweden

Mounting: DIN-rail or baseplate installation within S800 I/O system

System Compatibility: AC 800M Controller and S800 I/O subsystems

Power Specifications

Supply Voltage: 24 V DC nominal

Power Consumption: ≤ 3.5 W

Input Source: Powered via I/O backplane

Protection: Short-circuit, overvoltage, and reverse-polarity protection

Indicators: LEDs for power, communication link, and fault

Communication & Interface

Interface Type: PROFIBUS-DP slave

Bus Speed: Up to 12 Mbps

Supported Devices: PROFIBUS-compatible field modules and controllers

Diagnostics: Link supervision, fault detection, redundancy monitoring

Configuration: Managed via ABB Control Builder or Compact Control Builder software

Redundancy Support: Yes, for redundant CI840 module pairing

Environmental

Operating Temperature: –20 °C to +70 °C

Storage Temperature: –40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for industrial cabinet installation)

Dimensions & Weight

Dimensions (L × W × H): 122 × 45 × 102 mm

Weight: ~0.25 kg

Stock includes brand-new originals, 24/7 customer service available, transparent pricing provided.

This product is in stock, with fast delivery, and project-based procurement supports special price assistance.
