ABB CI845 3BSE075853R1 Communication Interface Module Recommended products Unbelievable Prices!

Brand：ABB PLC

Item No.：ABB CI845 3BSE075853R1

Product origin：Sweden

Dimensions:76.3 x 135 x 30 mm

Weight:0.245 kg

Compliant import, support for cooperation testing, and fast response to after-sales service

Tens of thousands of models are in stock, and spot delivery is fast. Welcome to consult!

Product Introduction：

verview

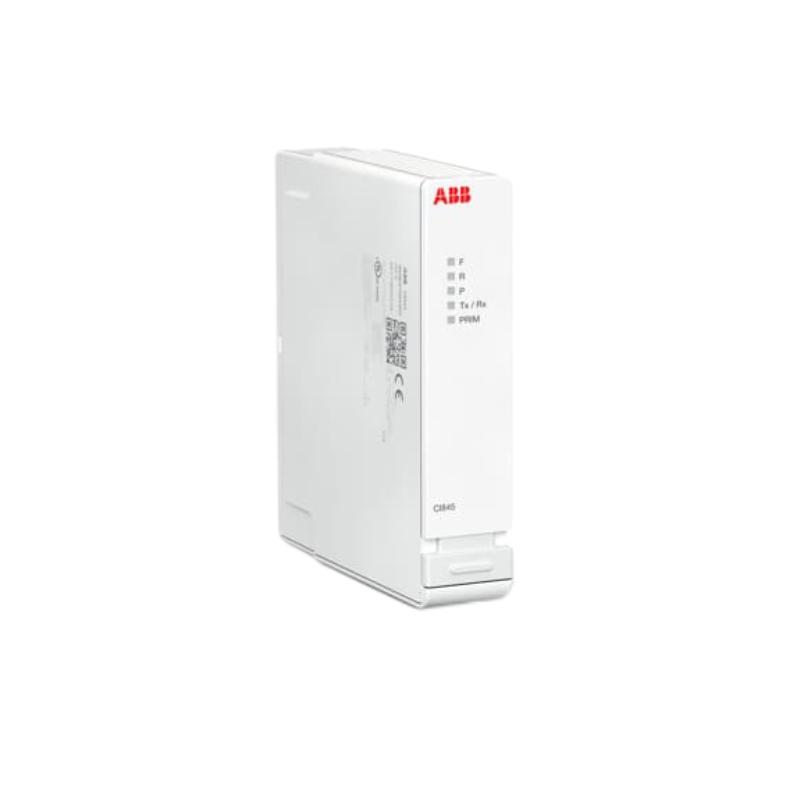

The ABB CI845 3BSE075853R1 is a high-performance communication interface module for ABB’s AC 800M and S800 I/O systems. It provides seamless connection between the control system and field devices via PROFIBUS-DP, ensuring fast, reliable data transfer, advanced diagnostics, and support for redundant network configurations in industrial automation applications.

General Information

Part Number: 3BSE075853R1

Manufacturer: ABB

Product Series: CI800 Series / S800 I/O

Type: Communication Interface Module (PROFIBUS-DP)

Country of Origin: Sweden

Mounting: DIN-rail or baseplate installation within S800 I/O system

System Compatibility: AC 800M Controller and S800 I/O subsystems

Power Specifications

Supply Voltage: 24 V DC nominal

Power Consumption: ≤ 4 W

Input Source: Powered from the I/O backplane

Protection: Short-circuit, overvoltage, and reverse-polarity protection

Indicators: LEDs for power, communication link, and fault

Communication & Interface

Interface Type: PROFIBUS-DP slave

Bus Speed: Up to 12 Mbps

Supported Devices: PROFIBUS-compatible field modules and controllers

Diagnostics: Link supervision, fault detection, redundancy monitoring

Configuration: Managed via ABB Control Builder or Compact Control Builder software

Redundancy Support: Yes, supports redundant CI845 module pairing

Environmental

Operating Temperature: –20 °C to +70 °C

Storage Temperature: –40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for industrial cabinet installation)

Dimensions & Weight

Dimensions (L × W × H): 76.3 x 135 x 30 mm

Weight: 0.245 kg

Brand-new original products supplied, ample stock, quotes provided immediately by customer service.

The product inventory cycle is short, the delivery response is fast, the price coordination is high, and batch cooperation has advantages.
