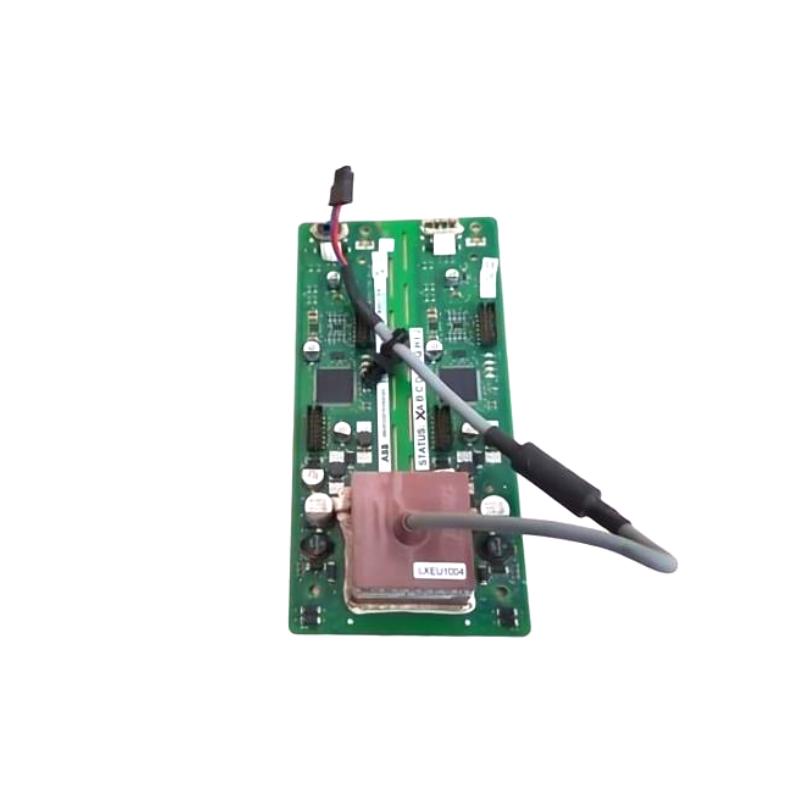

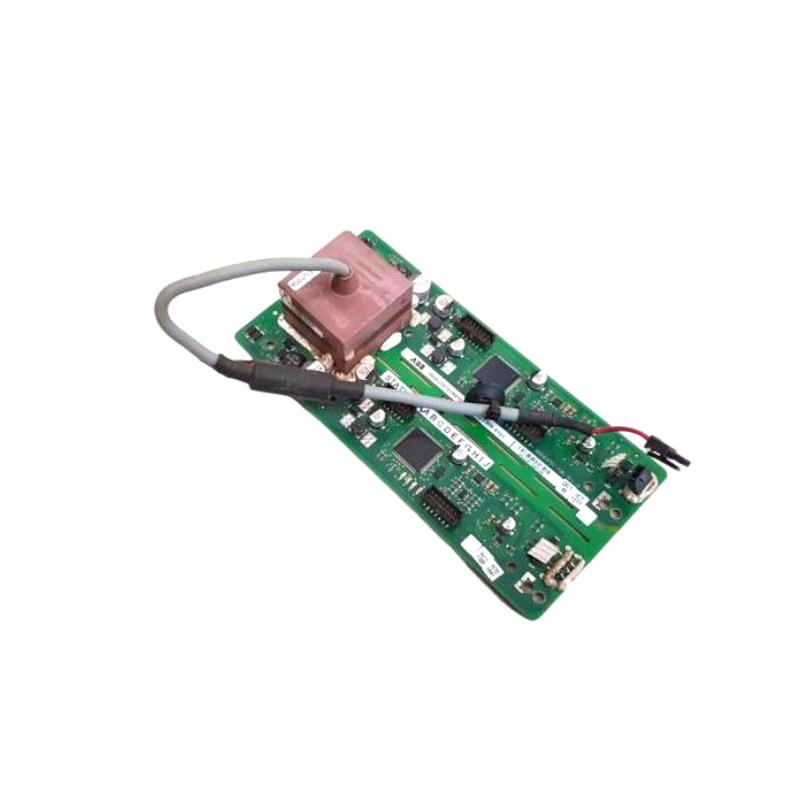

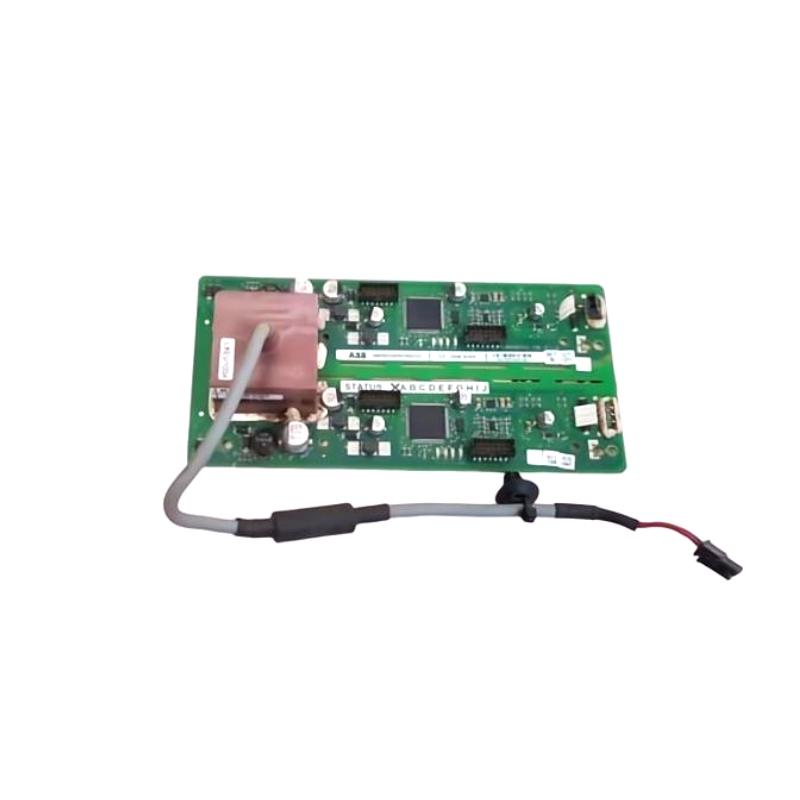

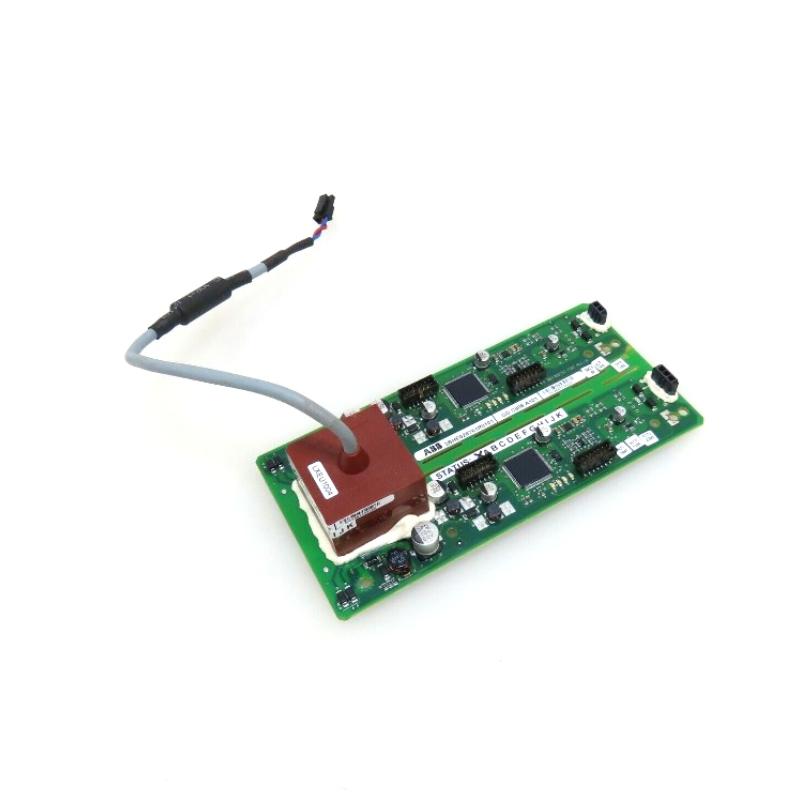

ABB GD C806A 1001 3BHE028761R1001 IGBT / MOSFET Driver Module Brand new and original 30-Day Returns！

Brand：ABB PLC

Item No.：ABB GD C806A 1001 3BHE028761R1001

Product origin：Sweden

Dimensions:180 × 120 × 25 mm

Weight:0.25 kg

Supply through formal channels, complete information available, supporting service guarantee

A wide range of models in stock, support for quick connection with procurement needs, welcome to inquire for details!

Product Introduction：

Overview

The ABB GD C806A 1001 (Part No. 3BHE028761R1001) is a precision gate driver module developed for ABB’s industrial power and drive systems. It is used to control IGBT and MOSFET devices in converters and inverters, providing reliable switching and built-in protection for high-performance industrial applications.

General Information

Part Number: 3BHE028761R1001

Product Name: GD C806A 1001

Manufacturer: ABB

Series: Gate Driver Module Series

Type: IGBT / MOSFET Driver Module

Country of Origin: Sweden

Application Area: Used in ABB ACS and industrial drive systems for high-power switching control

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Output Drive Current: Up to 20 A

Switching Frequency: Up to 10 kHz

Protection Features: Overvoltage, overcurrent, short-circuit, and thermal shutdown protection

Environmental

Operating Temperature: −20 °C to +60 °C

Storage Temperature: −40 °C to +85 °C

Relative Humidity: Up to 95%, non-condensing

Cooling Method: Natural convection

Protection Rating: Suitable for installation inside control cabinet (IP20 environment)

Dimensions & Weight

Dimensions (L × W × H): 180 × 120 × 25 mm

Weight: Approximately 0.25 kg
