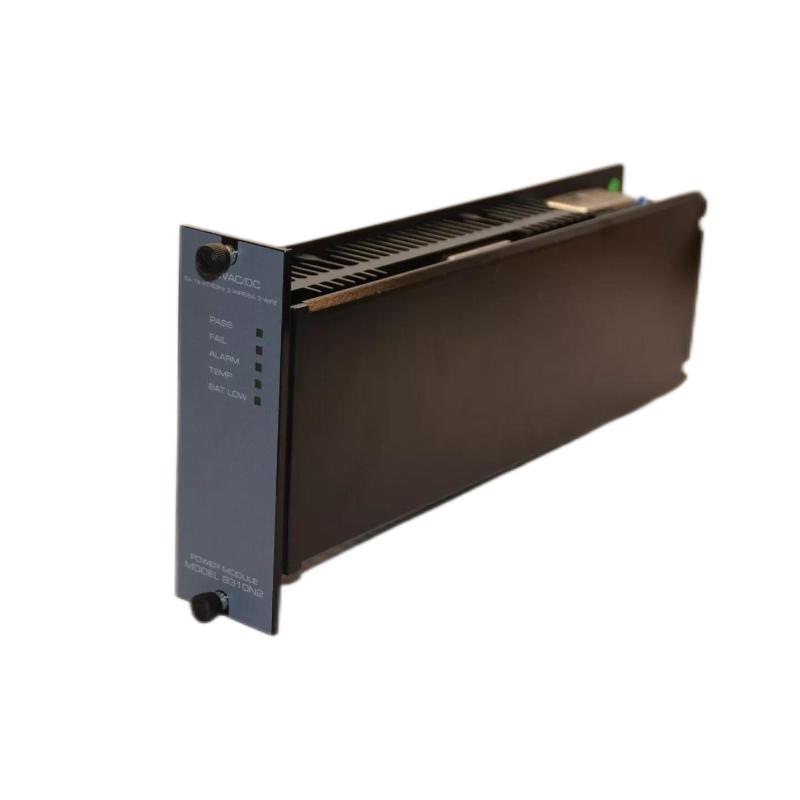

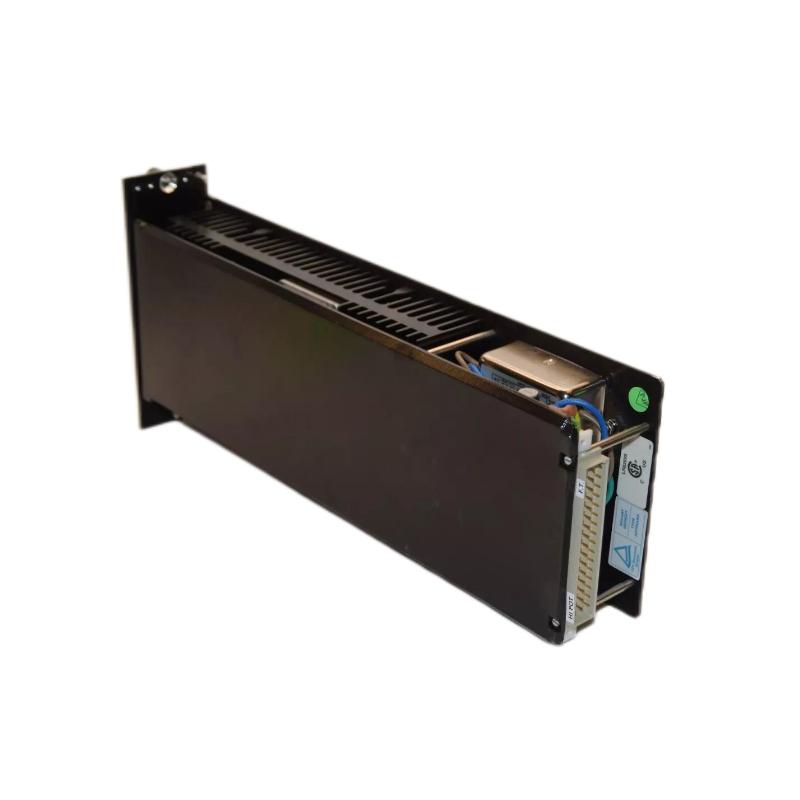

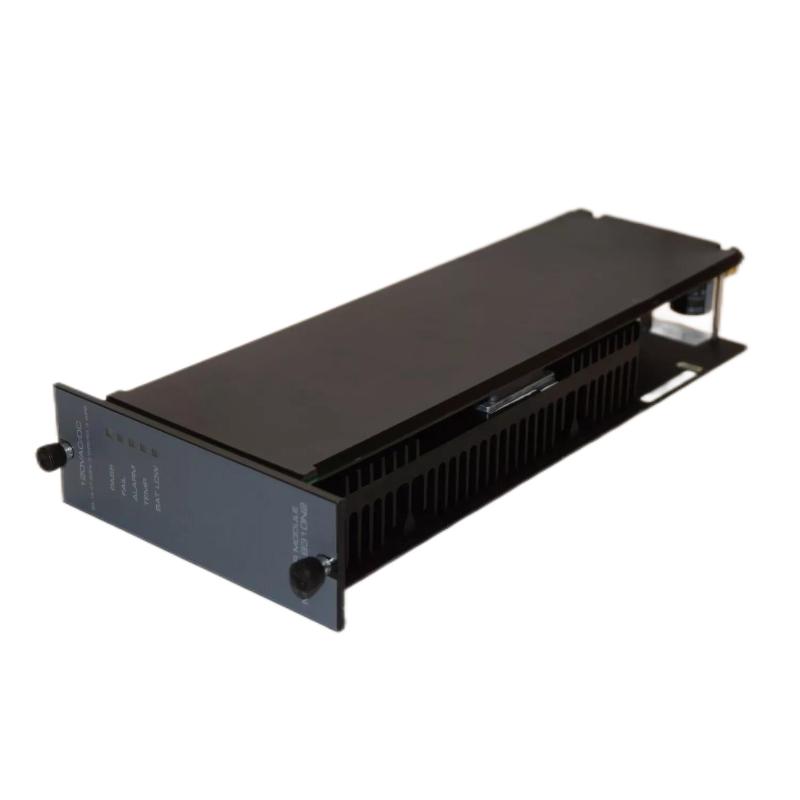

Triconex 8310N2 Power Supply Module 12-Month Warranty Trusted supplier

Brand：Invensys Triconex

Item No.：Triconex 8310N2

Product origin：USA

Dimensions:490 × 453 × 68 mm

Weight:3.8 kg

Original overseas introduction, testing assistance instructions support, stable and reliable service

There are abundant models in stock, which support quick docking of purchasing needs. Please inquire for details!

Product Introduction：

Overview

The Triconex 8310N2 is a high-reliability power supply module designed to provide stable 24 VDC output for Triconex safety instrumented systems (SIS). It ensures continuous operation in critical applications requiring high availability and fault tolerance.

General Information

Part Number: 8310N2

Manufacturer: Triconex (part of Schneider Electric)

Country of Origin: United States

Series: 8310

Type: Power Supply Module

Mounting: 19-inch rack installation

Compatibility: Compatible with Triconex safety systems

Power Specifications

Input Voltage: 120 V AC/DC

Input Voltage Range: 85–140 V AC or 95–180 V DC

Output Voltage: 24 V DC

Output Power: 175 W

Output Current: 5 A

Efficiency: >85%

Power Factor: 0.95 typical

Inrush Current: <50 A peak at 120 V AC

Hold-up Time: >20 ms at full load

Fuse Rating: 5 A, time-delay

Isolation Voltage: >1,000 V AC or 1,500 V DC (input to output)

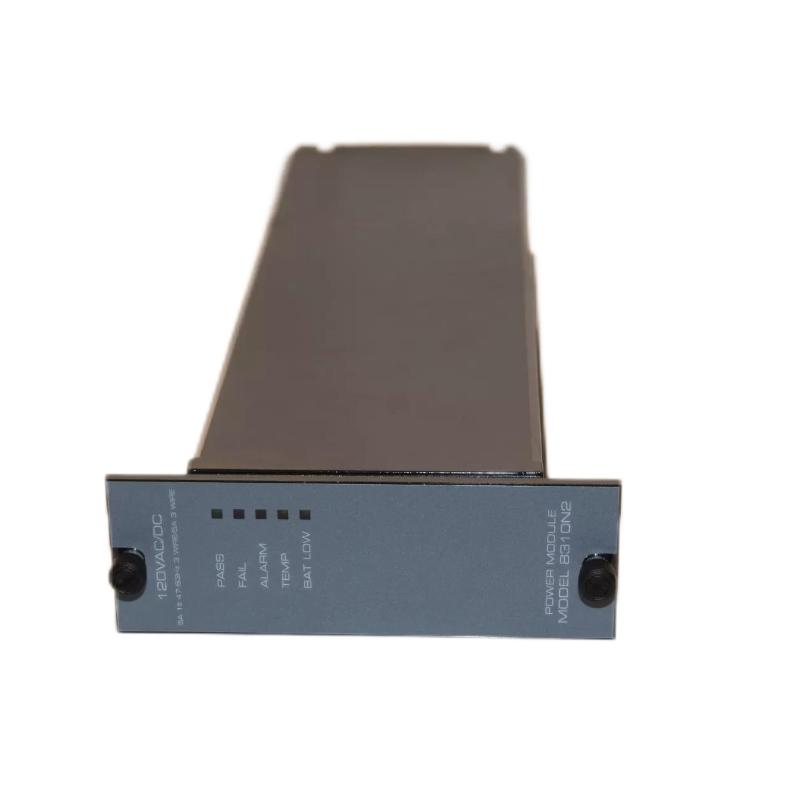

Diagnostic Indicators: PASS, FAULT, ALARM, TEMP, BAT LOW

Alarm Contacts: Normally open, normally closed, and common; each supports 120 V AC at 1 A

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: −40°C to +85°C

Relative Humidity: 5% to 95%, non-condensing

Vibration Resistance: 5g, 10–150 Hz (IEC 60068-2-6)

Shock Resistance: 15g, 11 ms (IEC 60068-2-27)

Altitude: Up to 3,000 meters

Cooling: Natural convection

MTBF: >200,000 hours at 25°C (calculated)

Dimensions & Weight

Dimensions (L × W × H): 490 × 453 × 68 mm

Weight: 3.8 kg
