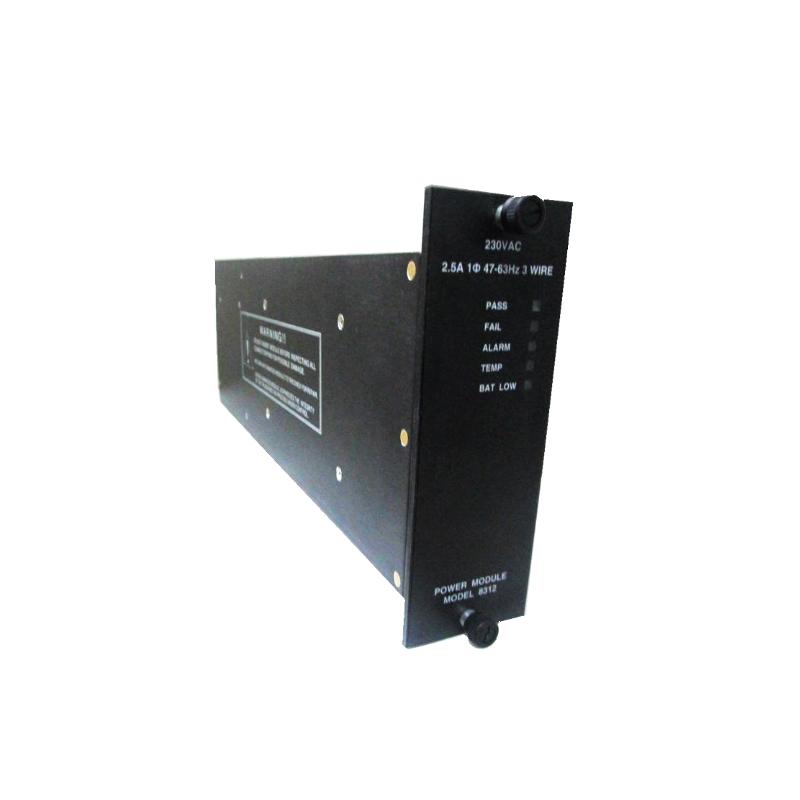

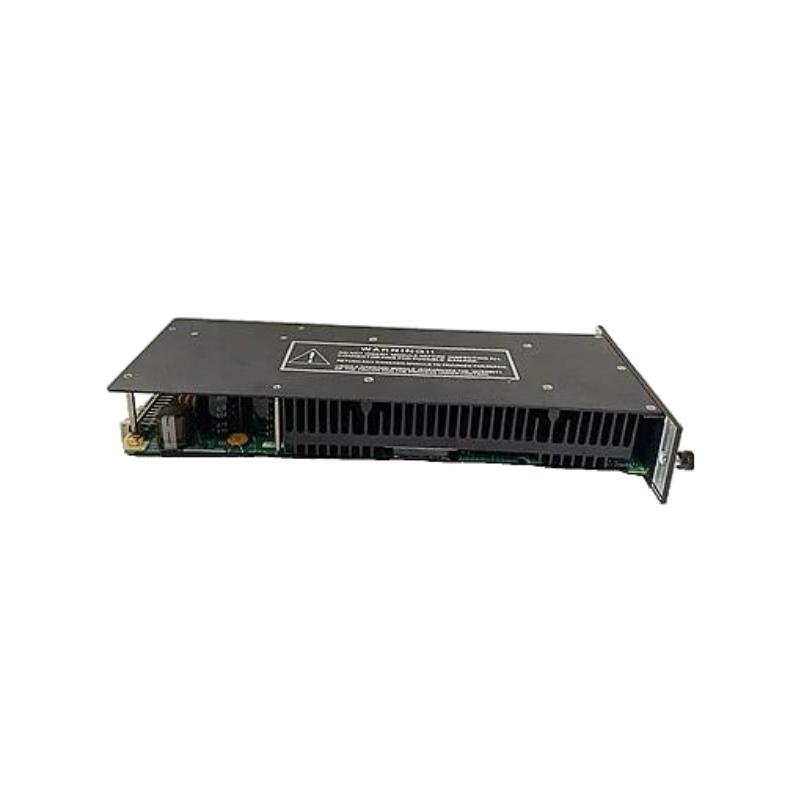

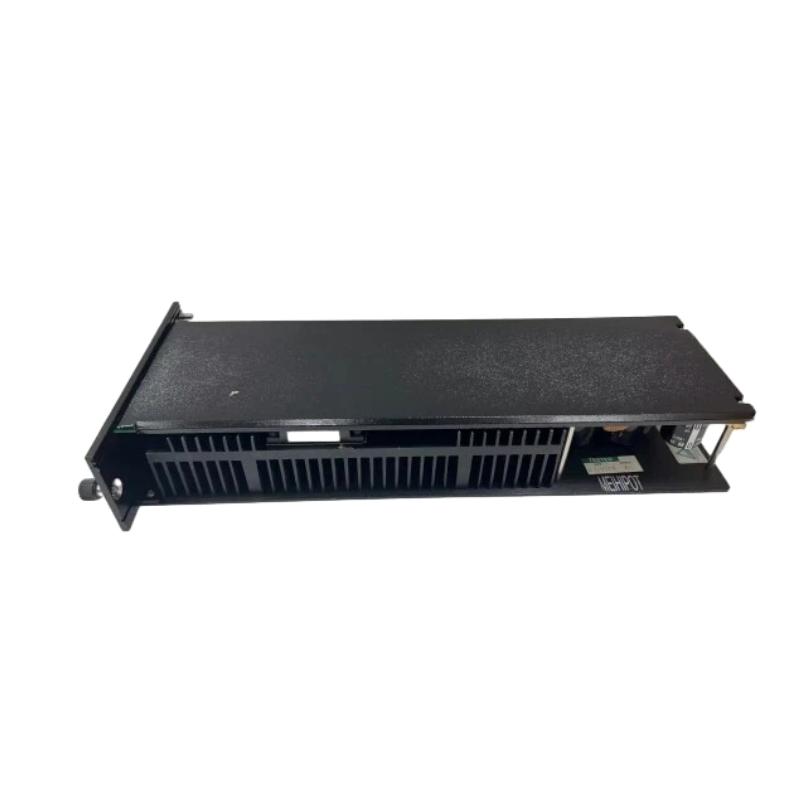

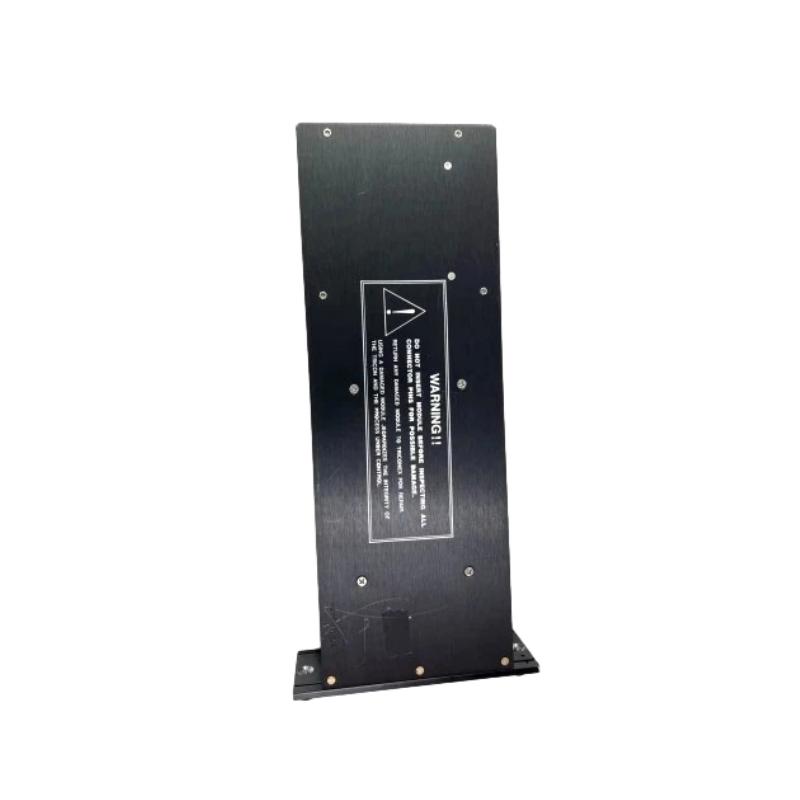

Triconex 8312 Power Supply Module Trusted supplier Original

Brand：Invensys Triconex

Item No.：Triconex 8312

Product origin：USA

Dimensions:490 × 453 × 68 mm

Weight:3.8 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

Tens of thousands of models are in sufficient stock, and the spot is shipped quickly. Welcome to consult!

Product Introduction：

Overview

The Triconex 8312 is a power supply module designed for Triconex safety instrumented systems (SIS). It provides a regulated 24 VDC output to power various system components, ensuring reliable operation in critical applications.

General Information

Part Number: 8312

Manufacturer: Triconex (part of Schneider Electric)

Country of Origin: United States

Series: 8312

Type: Power Supply Module

Mounting: 19-inch rack installation

Compatibility: Compatible with Triconex safety systems

Power Specifications

Input Voltage: 230 VAC

Input Voltage Range: 185–285 VAC at 47–63 Hz

Output Voltage: 24 VDC

Output Current: 10 A

Output Power: 240 W

Hold-up Time: Minimum 20 ms at full load

Fuse Rating: 2.5 A, time-delay

Isolation Voltage: >1,000 V AC or 1,500 V DC (input to output)

Diagnostic Indicators: PASS, FAULT, ALARM, TEMP, BAT LOW

Alarm Contacts: Normally open, normally closed, and common; each supports 120 V AC at 1 A

Environmental

Operating Temperature: −40°C to +70°C

Storage Temperature: −40°C to +85°C

Relative Humidity: 5% to 95%, non-condensing

Vibration Resistance: 5g, 10–150 Hz (IEC 60068-2-6)

Shock Resistance: 15g, 11 ms (IEC 60068-2-27)

Altitude: Up to 3,000 meters

Cooling: Natural convection

MTBF: >200,000 hours at 25°C (calculated)

Dimensions & Weight

Dimensions (L × W × H): 490 × 453 × 68 mm

Weight: 3.8 kg

We ensure every product is brand new, original, and available in stock for immediate delivery.

This product is imported with original packaging, efficient logistics processing, and supports testing instructions. There is corresponding discount space for large quantities.
