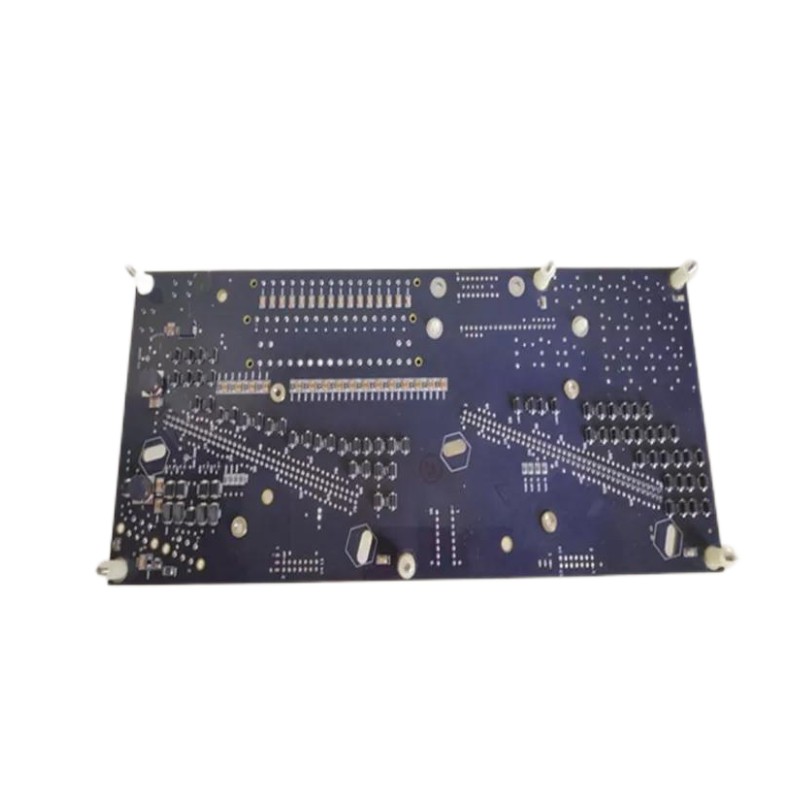

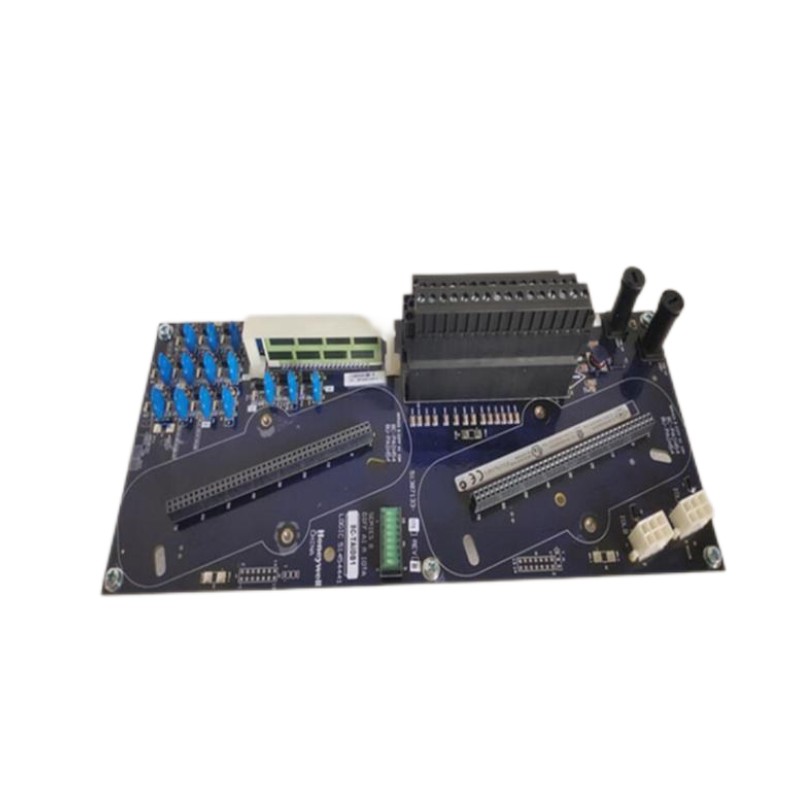

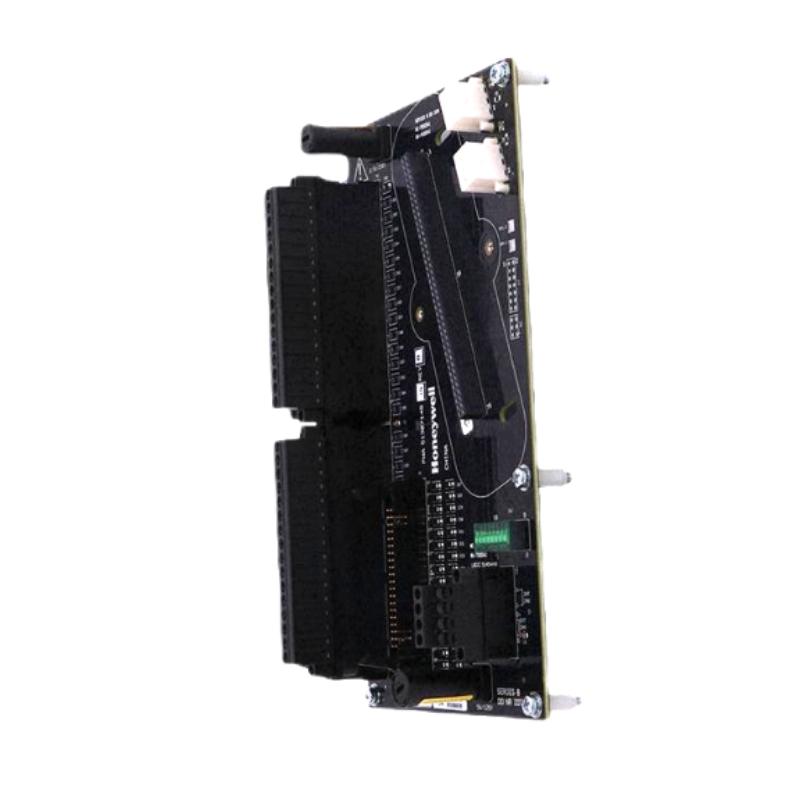

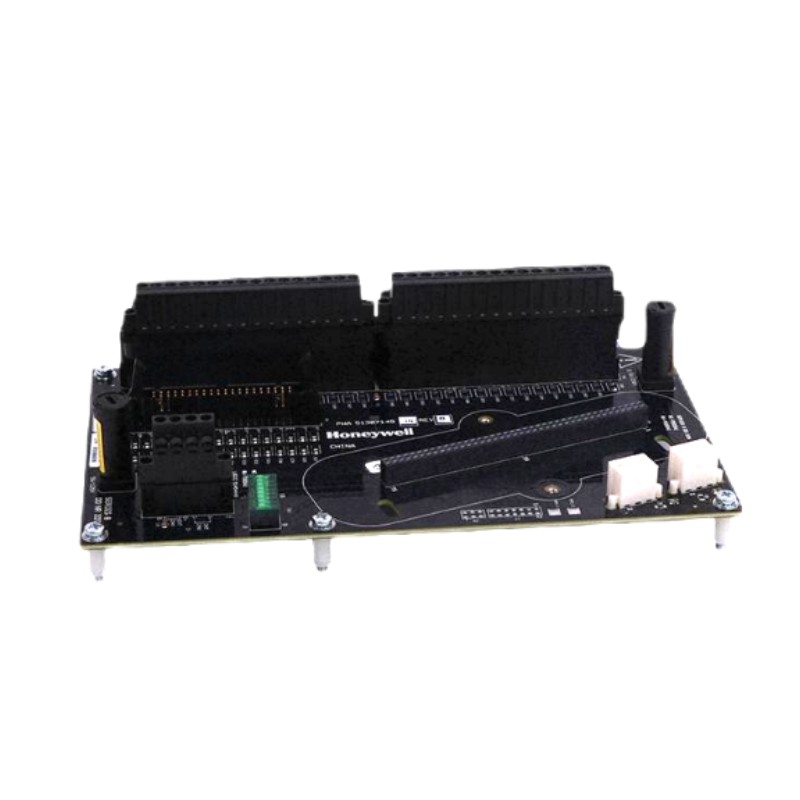

Honeywell 8C-TAIDB1 51307133-175 Low-Level Analog Input Module Efficient delivery Trusted supplier

Brand：Honeywell DCS

Item No.：Honeywell 8C-TAIDB1 51307133-175

Product origin：USA

Dimensions:234 × 27 × 112.5 mm

Weight:0.3 kg

Compliant import, support for testing, fast response to after-sales service

Sufficient inventory of tens of thousands of models, fast delivery of spot goods, welcome to consult!

Product Introduction：

Overview

The Honeywell 8C-TAIDB1 (Part Number: 51307133-175) is a low-level analog input module designed for Honeywell Experion PKS and C300 control systems. It accurately measures current, voltage, RTD, and thermocouple signals and converts them into digital data for precise process monitoring and control.

General Information

Part Number: 51307133-175

Manufacturer: Honeywell

Country of Origin: United States

Series: Experion Series 8

Type: Low-Level Analog Input Module (IOTB)

Mounting: 9-inch IOTB slot installation

Compatibility: Honeywell C300 Controller

Power Specifications

Supply Voltage: 24 V DC

Current Consumption: ~310 mA

Voltage Tolerance: ±30 V

Input & Channels

Input Types: Voltage (0–5 V, 1–5 V, 0.4–2 V), Current (4–20 mA via 250 Ω resistor), RTD, Thermocouple

Number of Channels: 16 differential or single-ended

Input Impedance: >10 MΩ (voltage mode)

Common-Mode Rejection: 70 dB (500 Ω unbalance)

Scan Time: 50 ms per channel

Accuracy: ±0.075% full scale at 23.5°C; ±0.15% over 0–60°C

Environmental

Operating Temperature: −40 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Dimensions & Weight

Dimensions (L × W × H): 234 × 27 × 112.5 mm

Weight: ~0.3 kg

Brand-new original stock, customer service online anytime, prices available immediately.

The product is delivered in time, the price is reasonable, and bulk demand is welcome to consult the bargaining plan.
