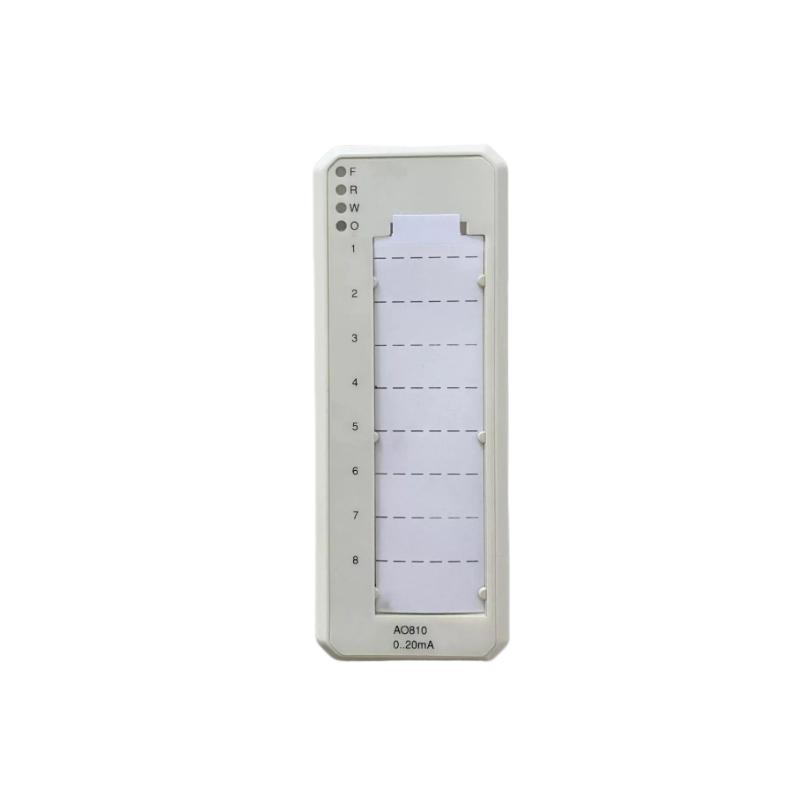

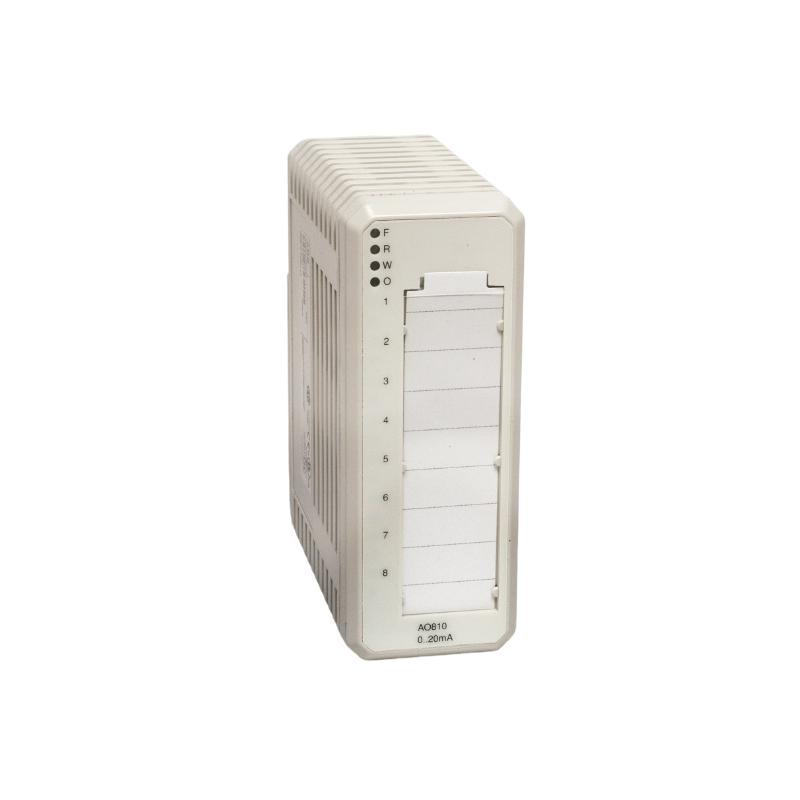

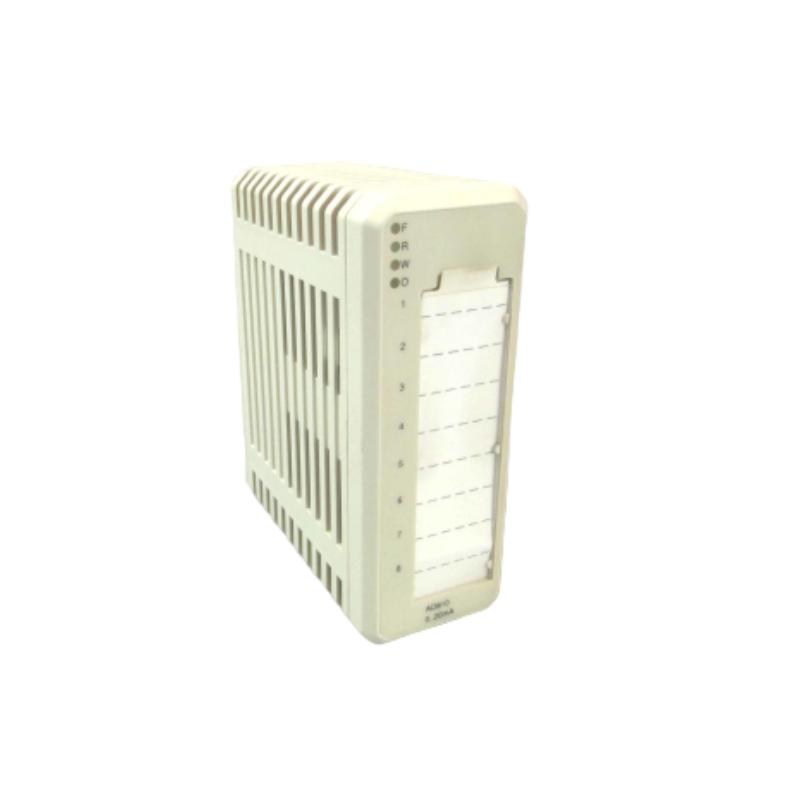

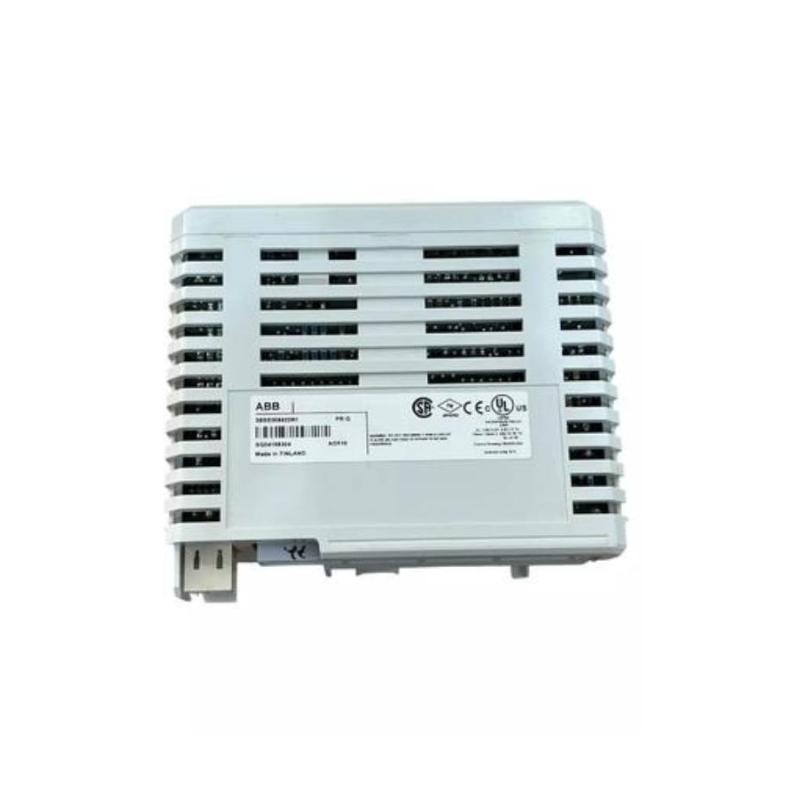

ABB AO810 3BSE008522R1 Analog Output Module Quality Selection Fast Shipping!

Brand：ABB PLC

Item No.：ABB AO810 3BSE008522R1

Product origin：Sweden

Dimensions:102 x 119 x 45 mm

Weight:0.184 kg

Supply through formal channels, complete information available, supporting service guarantee

A wide range of models in stock, support for quick connection with procurement needs, welcome to inquire for details!

Product Introduction：

Overview

The ABB AO810 3BSE008522R1 is an analog output module used in ABB’s AC 800M control system. It provides accurate current outputs for controlling actuators, valves, and other field devices. Designed for high reliability and stability, the AO810 ensures precise process control and smooth integration within distributed control system (DCS) environments.

General Information

Part Number: 3BSE008522R1

Manufacturer: ABB

Product Series: AO800 Series

Type: Analog Output Module

Country of Origin: Sweden

Mounting: DIN-rail or module carrier installation within AC 800M system

System Compatibility: AC 800M / S800 I/O series

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 2.0 W

Input Source: Powered from I/O backplane

Protection: Short-circuit, overvoltage, and reverse-polarity protection

Indicators: LEDs for power and channel status

Communication & Interface

Output Channels: 8 analog outputs

Output Signal Range: 4–20 mA (current output)

Load Range: 0–750 Ω per channel

Resolution: 12 bits

Diagnostics: Channel fault detection, loop supervision, module health reporting

Configuration: Handled through ABB Control Builder or Compact Control Builder software

Environmental

Operating Temperature: –20 °C to +70 °C

Storage Temperature: –40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (intended for use inside industrial enclosures)

Dimensions & Weight

Dimensions (L × W × H): 102 x 119 x 45 mm

Weight: 0.184 kg

Brand-new original products ready to ship, contact our customer service anytime for pricing.

The inventory of this product is stable, fast delivery is supported, and negotiated pricing is supported for batches.
