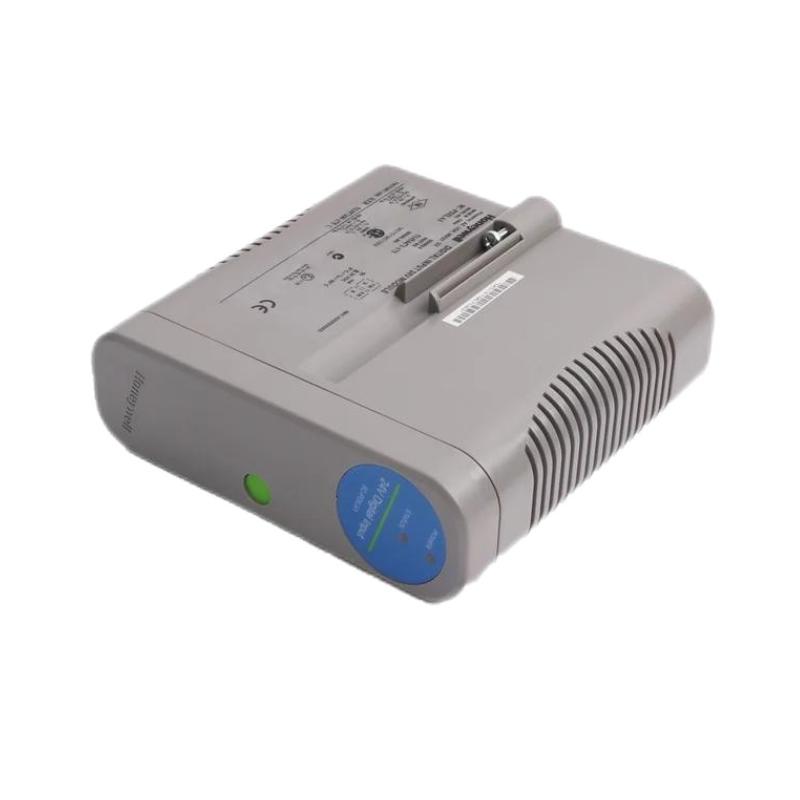

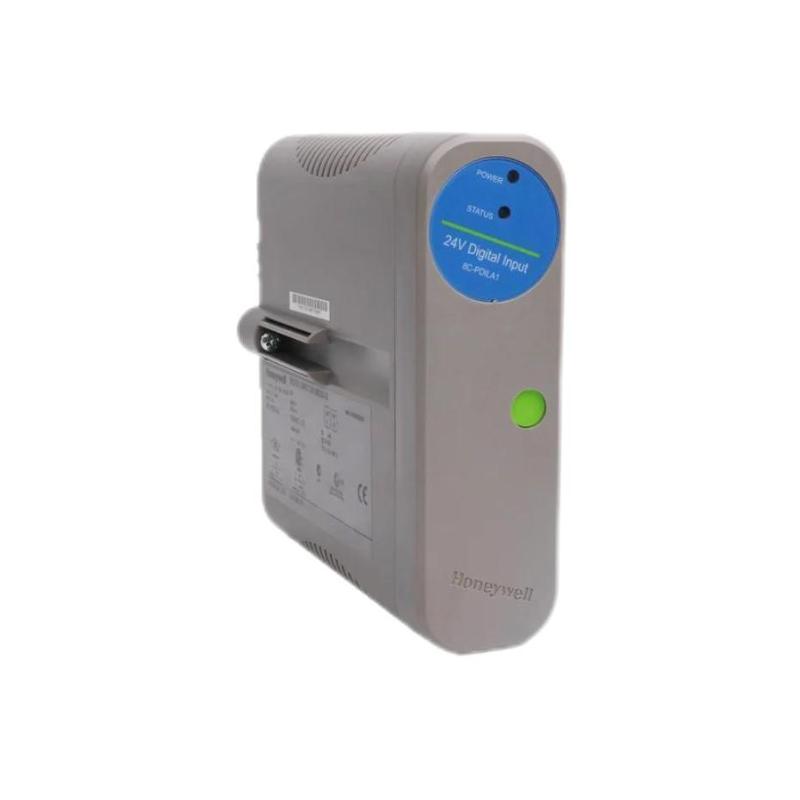

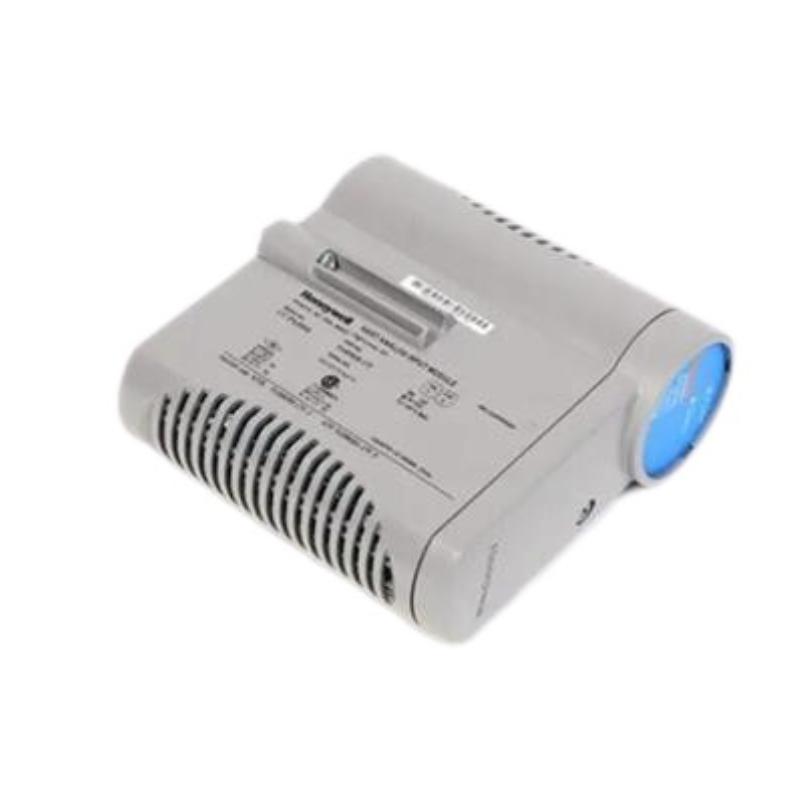

Honeywell 8C-PDIL51 51454359-175 Digital Input Module Efficient delivery 30-Day Returns！

Brand：Honeywell DCS

Item No.：Honeywell 8C-PDIL51 51454359-175

Product origin：USA

Dimensions:234 × 27 × 112.5 mm

Weight:0.3 kg

The source of the product is clear and reliable, support third-party testing, and perfect after-sales support

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview

The Honeywell 8C-PDIL51 51454359-175 is a digital input module designed for the Experion PKS and C300 controller family. It interfaces with discrete field devices such as switches, sensors, and relays, converting digital signals into logic-level data for reliable monitoring and control within industrial automation systems.

General Information

Part Number: 51454359-175

Manufacturer: Honeywell

Product Model: 8C-PDIL51

Series: Experion PKS / C300 Series

Module Type: Digital Input Module

Country of Origin: United States

Mounting: Plug-in module for C300 system chassis

Power Specifications

Supply Voltage: 24 V DC nominal (from controller backplane)

Power Consumption: ≤ 6 W

Input Source: Powered through backplane connection

Protection: Surge and reverse-polarity protection

Indicators: LEDs for module power, channel status, and fault

Communication & Interface

Communication Protocol: FIM (Fieldbus Interface Module) via C300 system bus

Input Type: Digital (discrete) input

Channels: 32 isolated input channels

Input Voltage Range: 18–32 V DC

Diagnostics: Channel fault detection and status indication

Configuration: Managed through Honeywell Control Builder software

Environmental

Operating Temperature: 0 °C to +60 °C

Storage Temperature: -40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for cabinet-mounted use)

Dimensions & Weight

Dimensions (L × W × H): 234 × 27 × 112.5 mm

Weight: ~0.3 kg

All products are original, new, and ready for immediate shipment.

This product is suitable for many types of applications, fast delivery, and bulk purchases support more cost-effective quotation methods.
