Product Introduction：

Overview

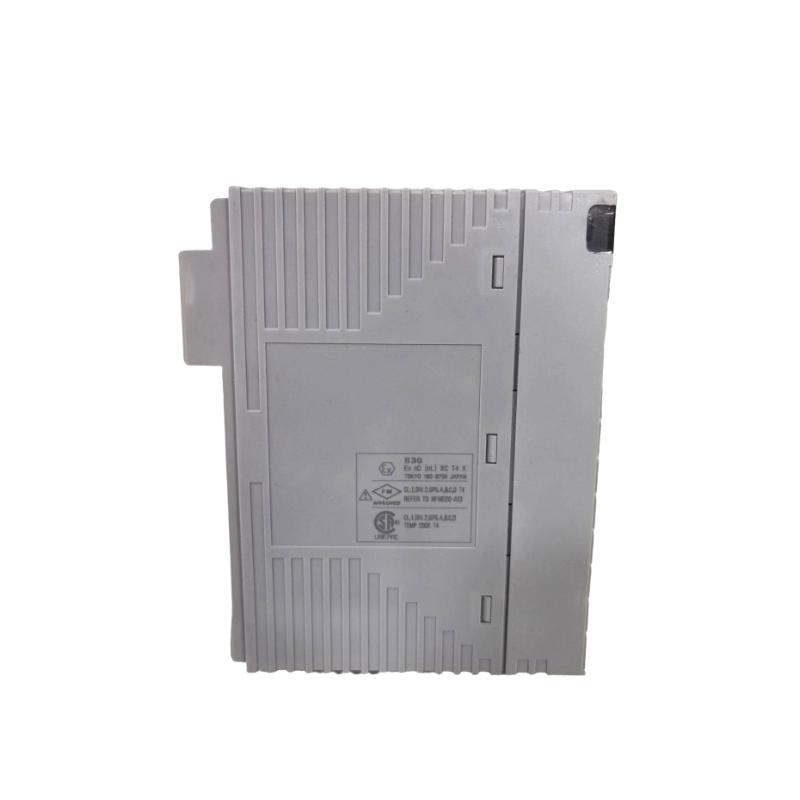

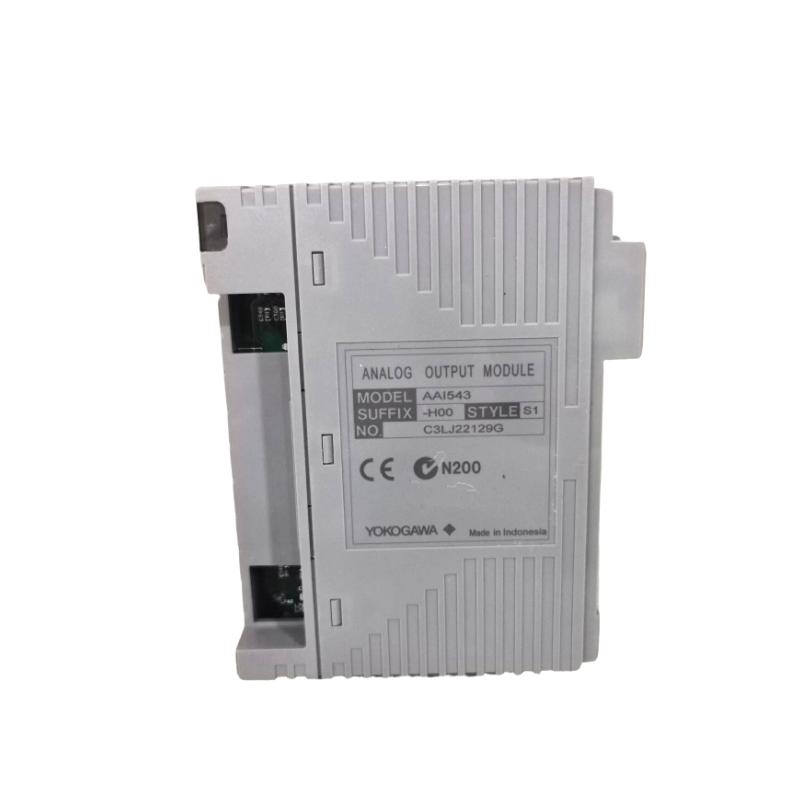

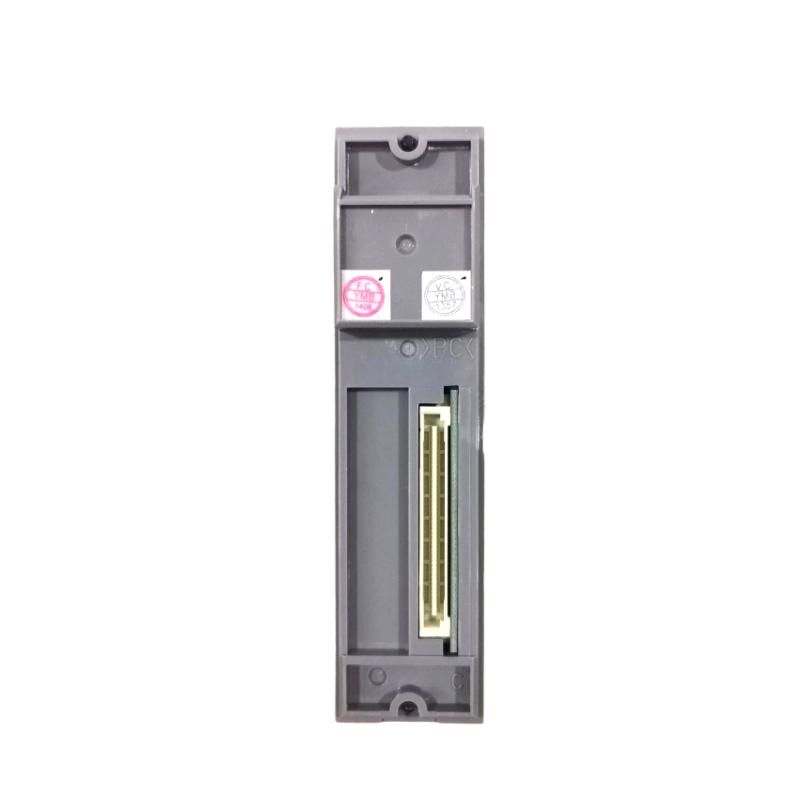

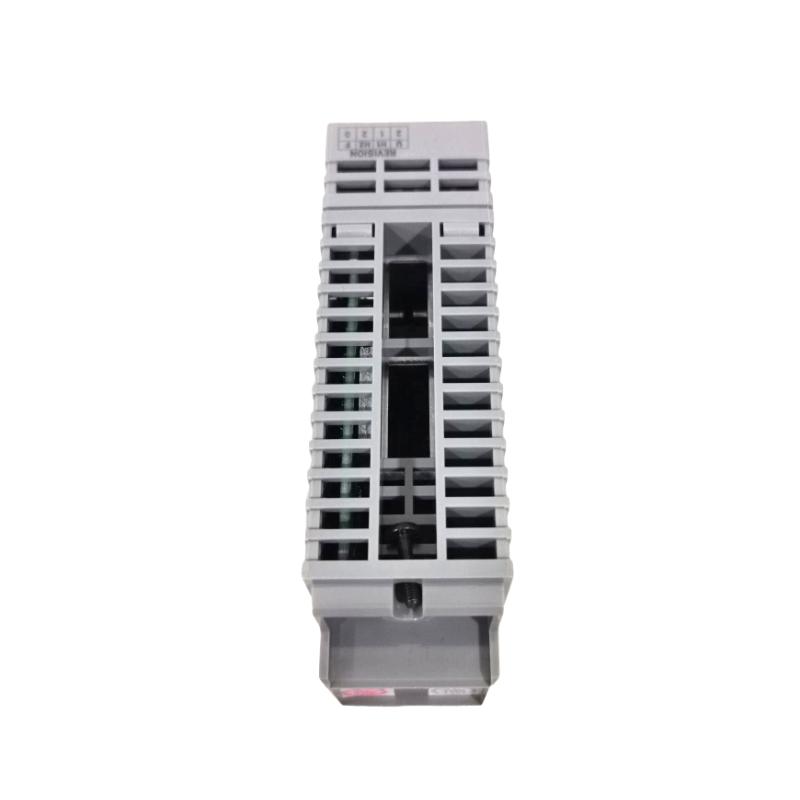

The Yokogawa AAI543-H00/A4S10 is an analog input module for the CENTUM DCS system. It converts field analog signals into precise digital data for process control, supporting high-accuracy monitoring and reliable system operation.

General Information

Part Number: AAI543-H00/A4S10

Manufacturer: Yokogawa

Module Type: Analog Input Module

Series / Family: CENTUM DCS Analog I/O Modules

Country of Origin: Japan

Mounting: Rack-mounted in CENTUM DCS chassis

Power Specifications

Supply Voltage: 24 V DC (from system backplane)

Power Consumption: ≤ 6 W

Input Source: Powered via system backplane

Protection: Surge and reverse-polarity protection

Communication & Interface

Signal Input: Voltage or current analog signals

Channels: 8–16 input channels depending on configuration

Diagnostics: LED indicators for status, error detection, and module health

Functions: Converts analog signals to digital values for the DCS controller

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: -20 °C to +70 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (cabinet environment)

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

Weight: 0.4 kg
