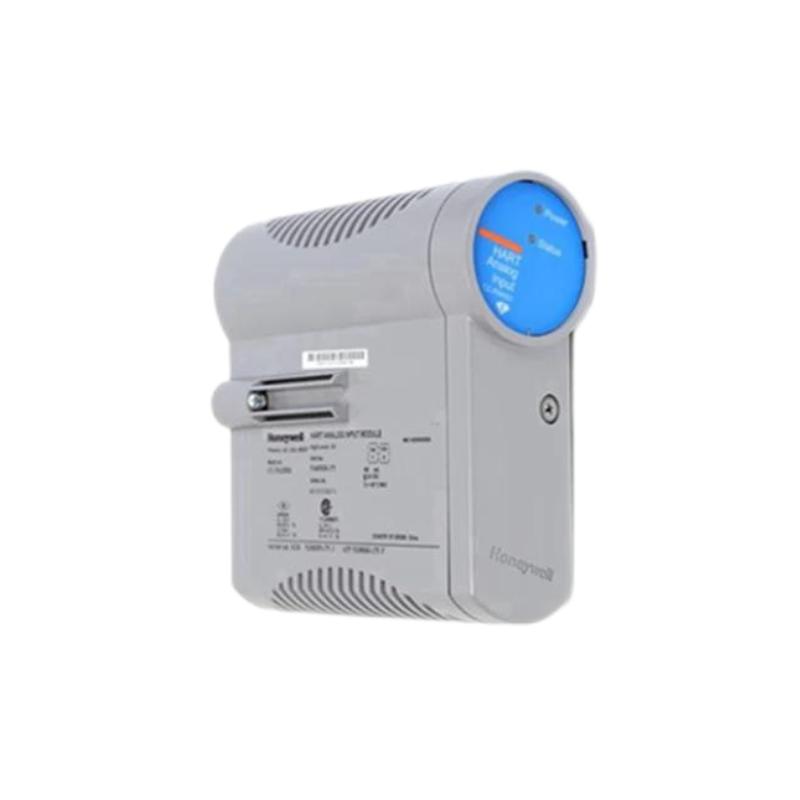

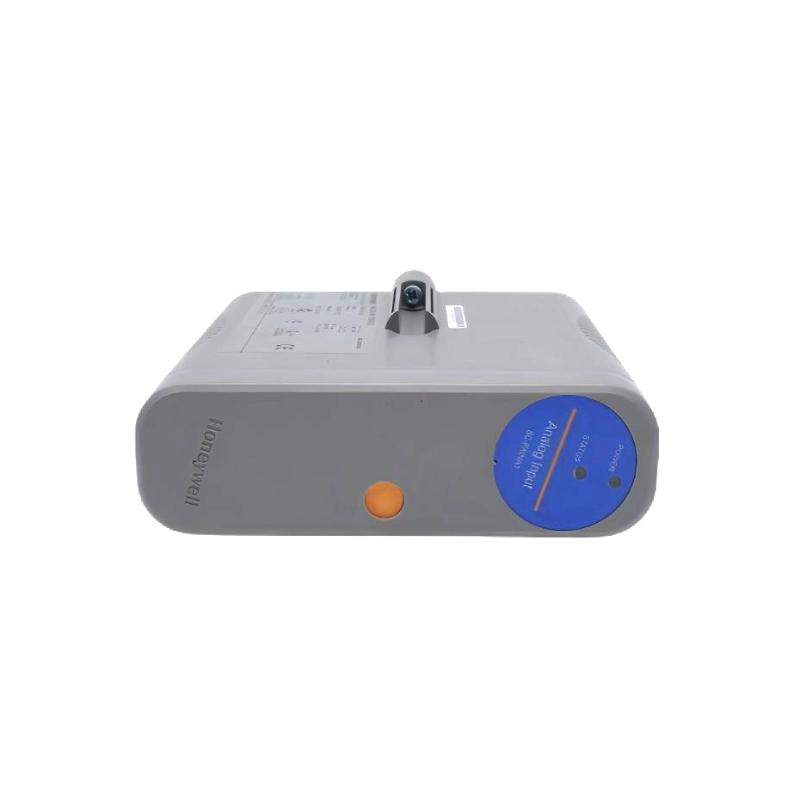

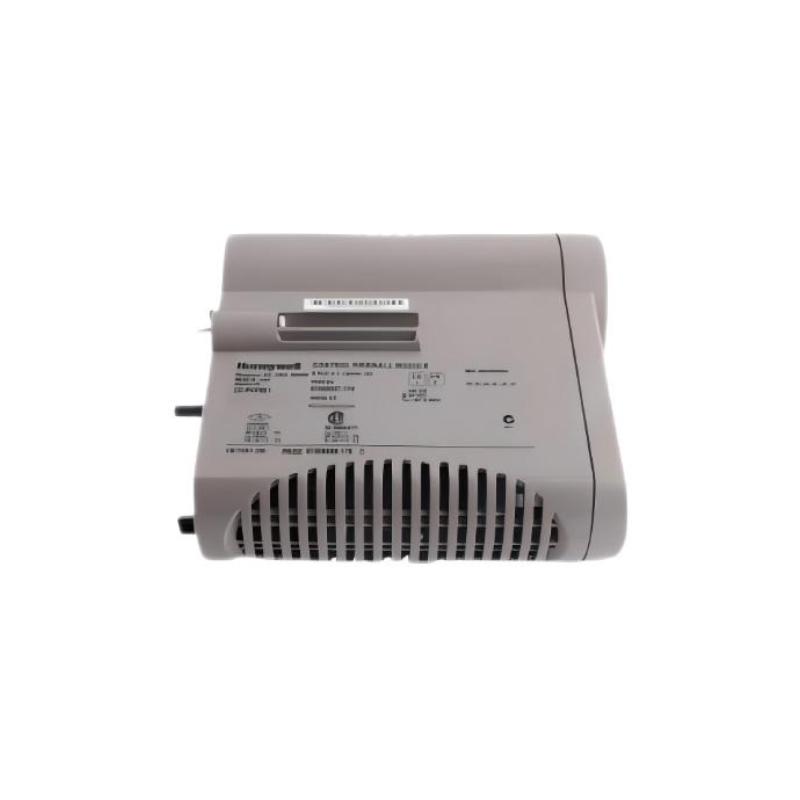

Honeywell 8C-PAINA1 51454470-175 Analog Input Module Efficient delivery Original

Brand：Honeywell DCS

Item No.：Honeywell 8C-PAINA1 51454470-175

Product origin：USA

Dimensions:120 × 100 × 25 mm

Weight:0.5 kg

Original overseas introduction, test assistance instructions support, stable and reliable service

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product Introduction：

Overview

The Honeywell 8C-PAINA1 51454470-175 is a 16-channel analog input module designed for use in Honeywell's Series 8 Experion® Process Knowledge System (PKS). It interfaces with 2-wire or self-powered transmitters, converting analog signals into digital data for precise process monitoring and control.

General Information

Part Number: 8C-PAINA1 51454470-175

Manufacturer: Honeywell

Country of Origin: USA

Series: Series 8 Experion PKS

Module Type: Analog Input Module

Input Channels: 16 single-ended analog inputs

Mounting: Rack-mounted in Series 8 I/O chassis

Input Specifications

Input Type: Current (2-wire or self-powered transmitters)

Input Range:

4–20 mA (through 250 Ω)

0–20 mA

-10 to +10 mA

A/D Converter Resolution: 16 bits

Accuracy: ±0.1% of span

Common Mode Rejection Ratio: 70 dB at 60 Hz

Normal Mode Rejection Ratio: 19 dB at 60 Hz

Filter Response: Single-pole RC, -3 dB at 6.5 Hz

Power and Environmental

Supply Voltage: 24 V DC

Module Current Rating: 105 mA

Operating Temperature: 0°C to 60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for installation inside an industrial cabinet)

Communication and Diagnostics

Communication Protocol: HART (Highway Addressable Remote Transducer)

Diagnostics: LED indicators for power, communication, and channel status

Isolation: Galvanic isolation between channels and ground

Dimensions and Weight

Dimensions (L × W × H): 120 × 100 × 25 mm

Weight: Approximately 0.5 kg
