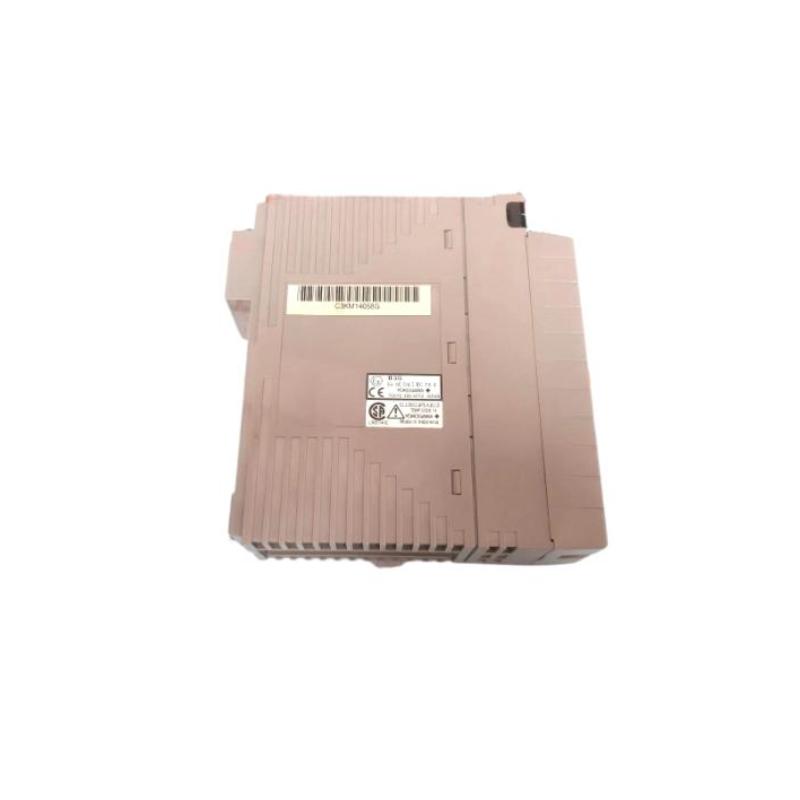

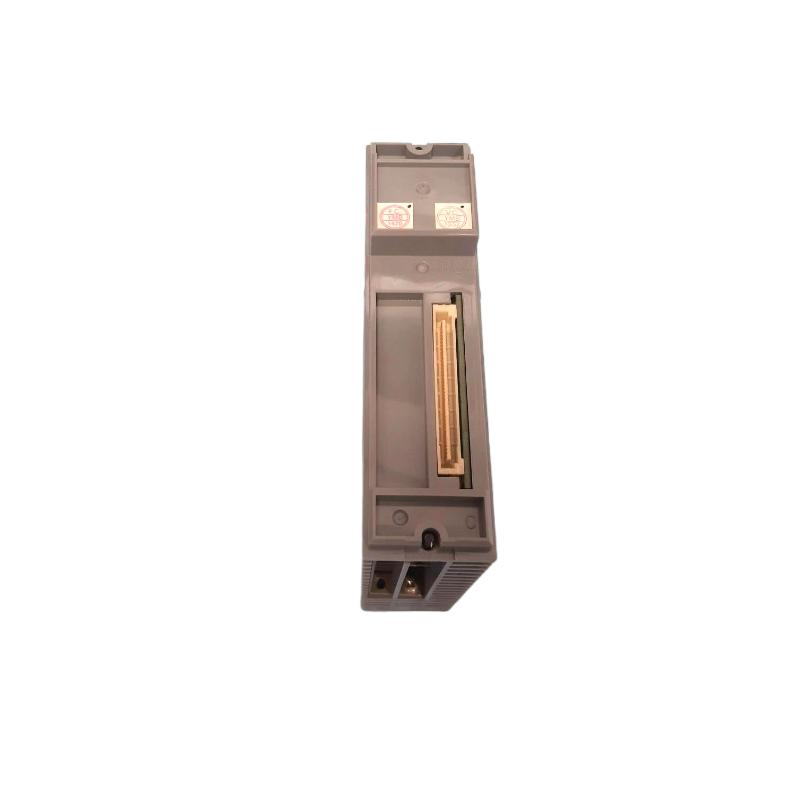

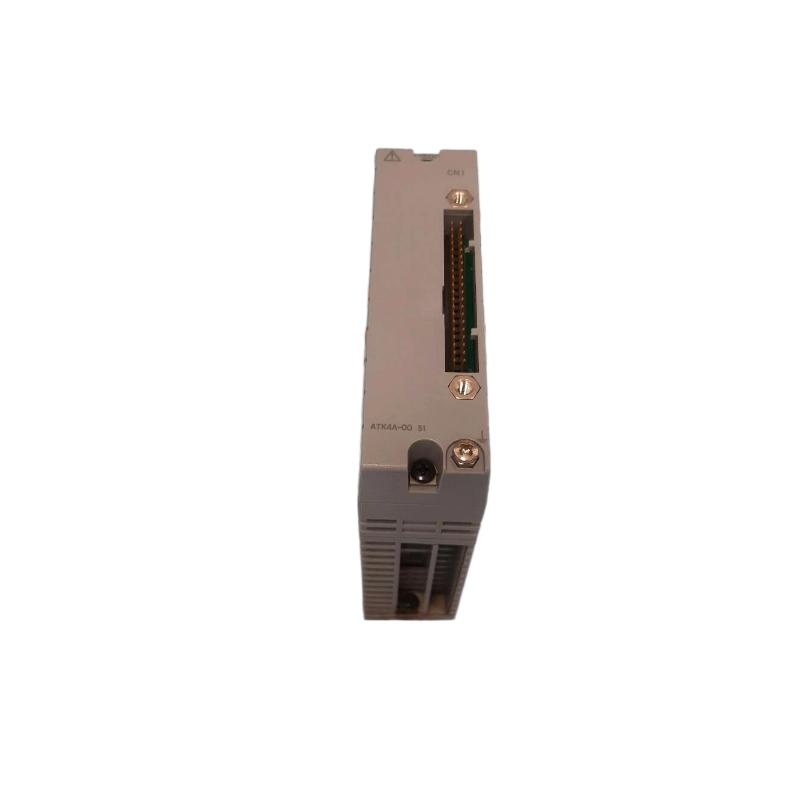

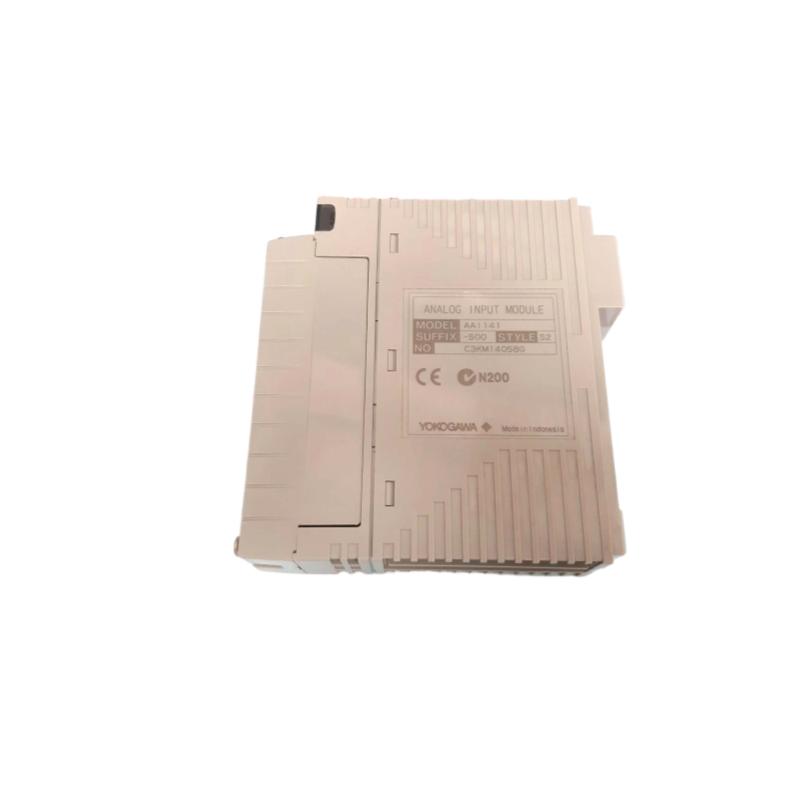

Yokogawa AAI141-S00/K400 Analog Input Module New In Stock 12-Month Warranty

Brand：Yokogawa Electric

Item No.：Yokogawa AAI141-S00/K400

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.2 kg

Original source, data support test content, efficient after-sales processing

Sufficient inventory of tens of thousands of models, fast delivery from stock, welcome to consult!

Product Introduction：

Overview

The Yokogawa AAI141-S00/K400 is a 16-channel analog input module developed for integration with Yokogawa’s CENTUM CS 3000 and CENTUM VP distributed control systems. It receives 4–20 mA analog current signals from field transmitters and converts them into digital signals for process control and monitoring. The “/K400” option code denotes a special calibration or factory configuration version designed for improved input precision and compatibility with specific process standards. This model is highly regarded for its accuracy, long-term reliability, and robust noise immunity, making it suitable for demanding applications in oil refining, power generation, and chemical processing.

General Information

Part Number: AAI141-S00/K400

Manufacturer: Yokogawa Electric Corporation

Series: AAI (Analog Input Module Series)

Type: Analog Input Module (AI)

Number of Channels: 16 isolated analog input channels

Signal Type: 4–20 mA DC current input

Country of Origin: Japan

Mounting: Installed on the Field I/O (FIO) base unit inside a control cabinet

Technology: High-performance 16-bit A/D conversion, optical isolation, digital filtering, and integrated diagnostic logic for superior reliability and signal accuracy

Power Specifications

Power Supply Voltage: 24 V DC (supplied from the I/O base)

Input Voltage Range: 20–28 V DC

Power Consumption: Approx. 6.5 W

Input Power Source: Supplied through backplane connection

Isolation: Optical isolation between channels and ground

Protection: Overvoltage, reverse polarity, and surge protection

Communication & Interface

Interface Type: Field I/O (FIO) bus communication

System Compatibility: Yokogawa CENTUM CS 3000 / CENTUM VP

Input Signal Range: 4–20 mA DC

Input Resistance: 250 Ω typical

Resolution: 16-bit A/D conversion

Accuracy: ±0.1% of full scale or better

Diagnostics: Built-in self-diagnostics with LED indicators for power, communication, and channel faults

Configuration: Fully configurable using Yokogawa engineering software tools (CENTUM system builder and FIO configuration utility)

Environmental

Operating Temperature: 0 °C to +60 °C

Storage Temperature: −20 °C to +70 °C

Humidity: 10% to 90% RH, non-condensing

Vibration Resistance: 10–60 Hz, amplitude 0.075 mm

Protection Rating: IP20 (for installation inside an industrial cabinet)

Maximum Operating Altitude: 2000 m

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

Weight: 0.2 kg
