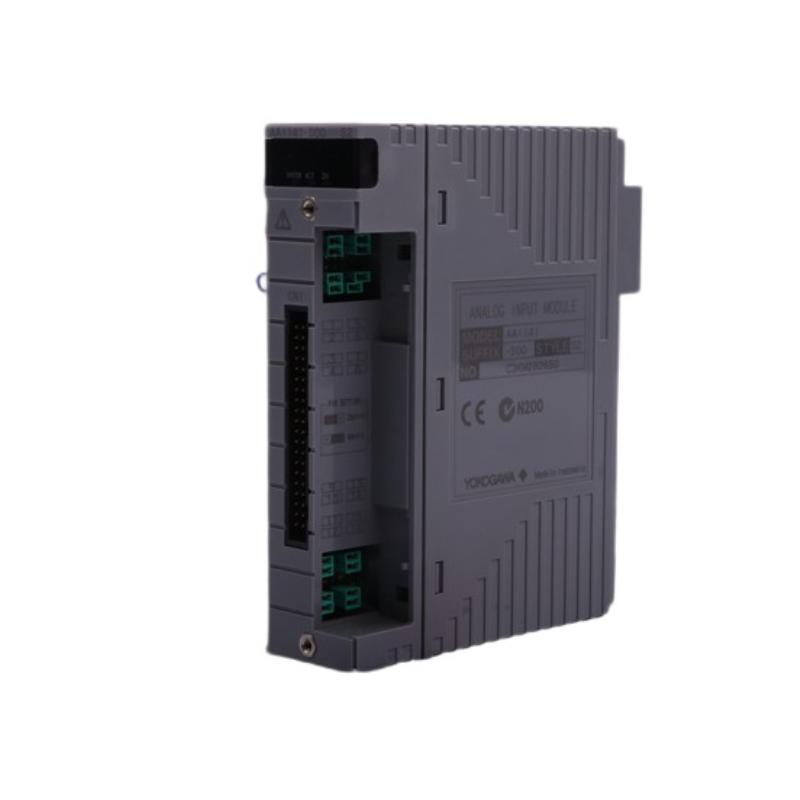

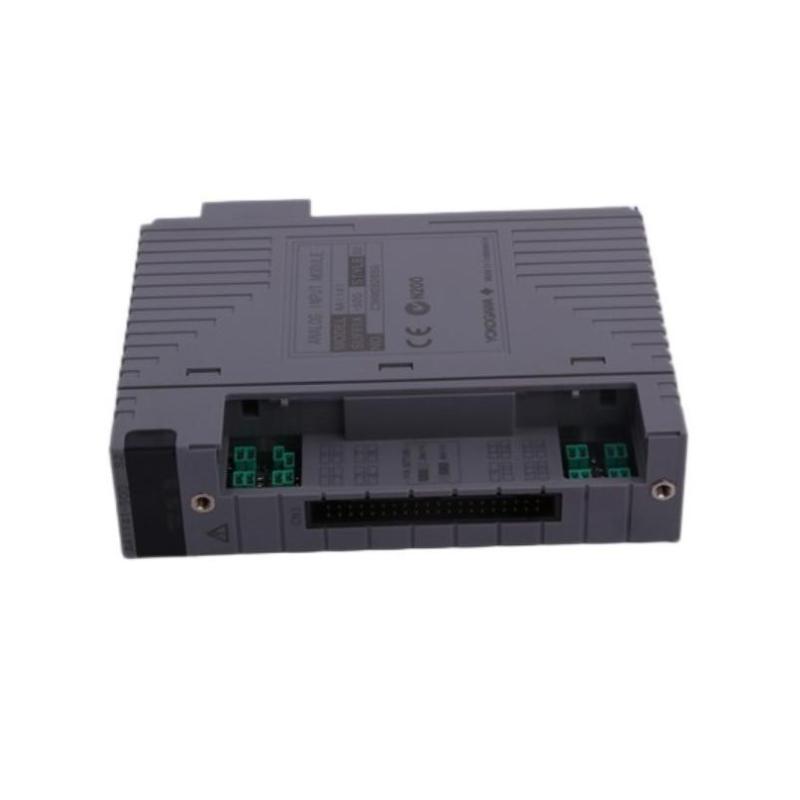

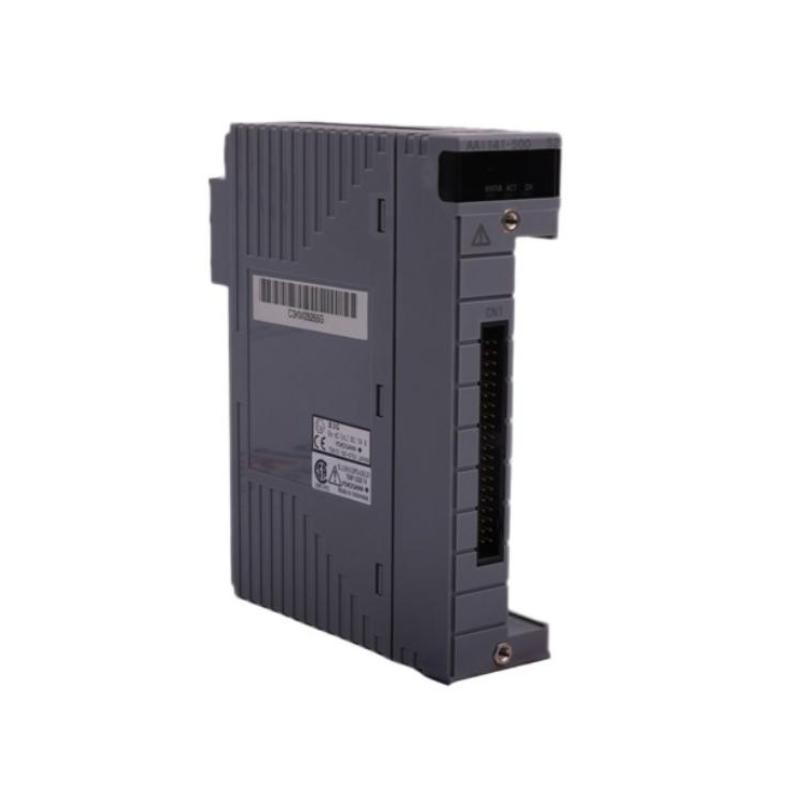

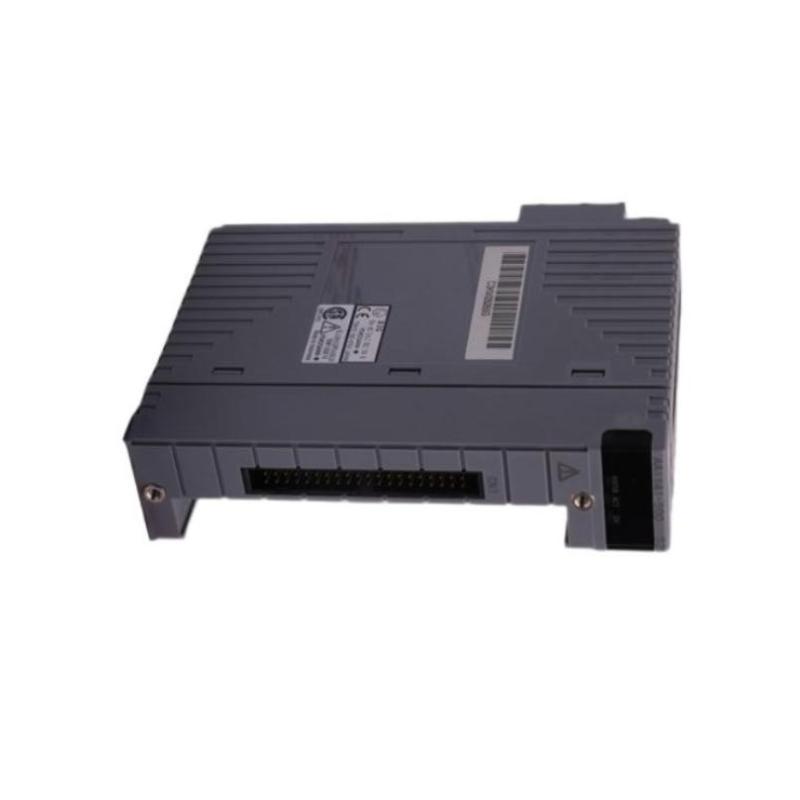

Yokogawa AAI141-S00/A4S00 Analog Input Module Efficient delivery 12-Month Warranty

Brand：Yokogawa Electric

Item No.：Yokogawa AAI141-S00/A4S00

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.2 kg

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The Yokogawa AAI141-S00/A4S00 is a 16-channel analog input module designed for use in Yokogawa’s CENTUM CS 3000 and CENTUM VP distributed control systems. It converts analog 4–20 mA current signals from field transmitters into high-accuracy digital data for process monitoring and control. The “/A4S00” option indicates a specific configuration or calibration version tailored for extended signal handling performance and improved long-term stability. This module is widely used in industries such as petrochemical, oil and gas, and power generation where reliability and precision are essential.

General Information

Part Number: AAI141-S00/A4S00

Manufacturer: Yokogawa Electric Corporation

Series: AAI (Analog Input Module Series)

Type: Analog Input Module (AI)

Number of Channels: 16 isolated analog input channels

Signal Type: 4–20 mA DC current input

Country of Origin: Japan

Mounting: Installed on a Field I/O (FIO) base unit within the control cabinet

Technology: 16-bit A/D conversion with optical isolation, advanced noise suppression, and self-diagnostic features for stable and accurate signal acquisition

Power Specifications

Power Supply Voltage: 24 V DC (supplied from the I/O base)

Input Voltage Range: 20–28 V DC

Power Consumption: Approx. 6.5 W

Input Power Source: Supplied via backplane connector

Isolation: Channel-to-channel and channel-to-ground optical isolation

Protection: Equipped with overvoltage, reverse polarity, and surge protection

Communication & Interface

Interface Type: Field I/O (FIO) bus communication

System Compatibility: Yokogawa CENTUM CS 3000 / CENTUM VP

Input Signal Range: 4–20 mA DC

Input Resistance: 250 Ω typical

Resolution: 16-bit A/D conversion

Accuracy: ±0.1% of full scale or better

Diagnostics: Built-in self-diagnostics with LED indicators for power, communication, and channel status

Configuration: Software-configurable via Yokogawa’s engineering tools (CENTUM system builder and FIO configuration software)

Environmental

Operating Temperature: 0 °C to +60 °C

Storage Temperature: −20 °C to +70 °C

Humidity: 10% to 90% RH, non-condensing

Vibration Resistance: 10–60 Hz, amplitude 0.075 mm

Protection Rating: IP20 (for internal cabinet installation)

Maximum Operating Altitude: 2000 m

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

Weight: 0.2 kg

We supply only brand-new original goods, available immediately with live support.

The product delivery period is flexible, the inventory is updated synchronously, and batch orders support combination discounts.
