Product Introduction：

Overview

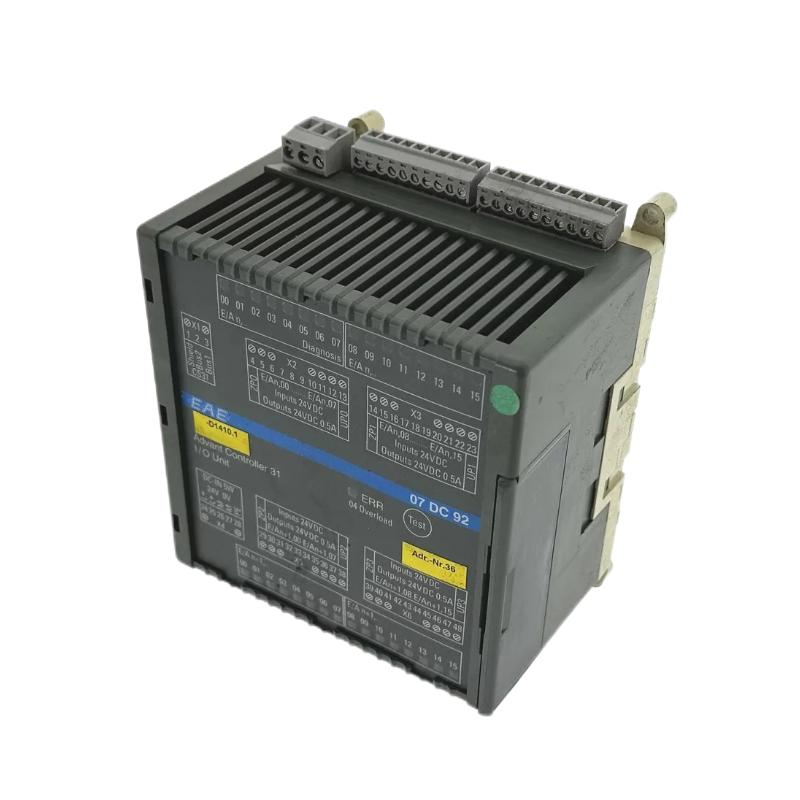

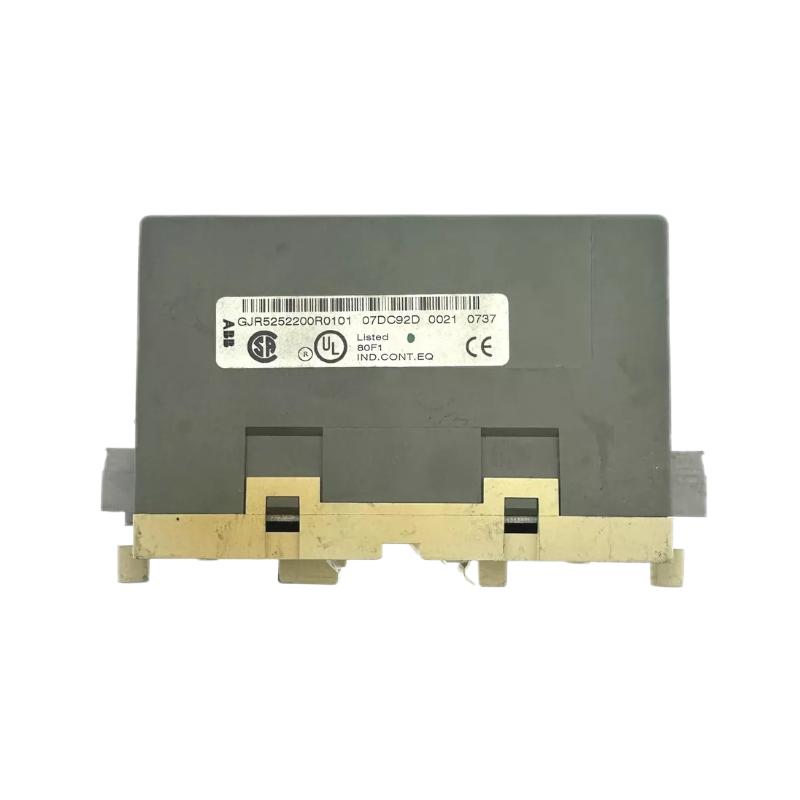

The ABB 07DC92 GJR5252200R0101 is a digital input/output module designed for use with the Advant Controller 31 (AC31) system. It provides 32 configurable digital I/O channels operating at 24 V DC, suitable for industrial automation applications.

General Information

Part Number: GJR5252200R0101

Manufacturer: ABB (Asea Brown Boveri)

Series: Advant Controller 31 (AC31)

Type: Digital Input/Output Module

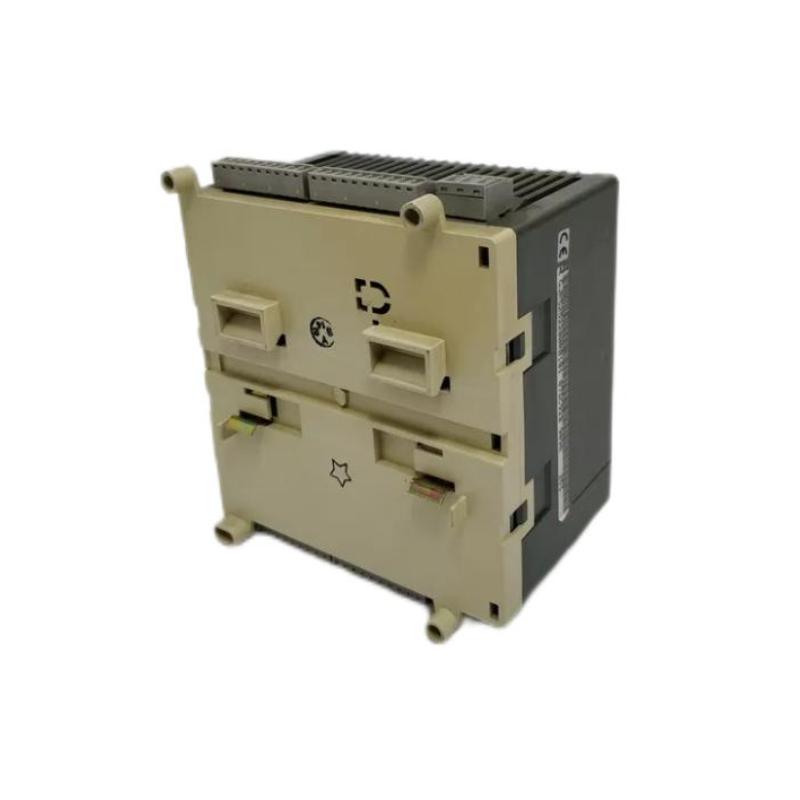

Mounting: DIN rail (35 mm x 15 mm or 35 mm x 7.5 mm)

Technology: 32 configurable digital I/O channels, 24 V DC, CS31 system bus interface

Power Specifications

Operating Voltage: 24 V DC

Input Voltage Range: 20 V DC to 28 V DC

Power Consumption:

Without Load (Outputs): Max. 5 W

Under Load (Outputs): Max. 10 W

Current Consumption:

Without Load: Max. 0.15 A

With Load: Max. 4.0 A (supply terminals)

Protection: Electrically isolated CS31 system bus connection

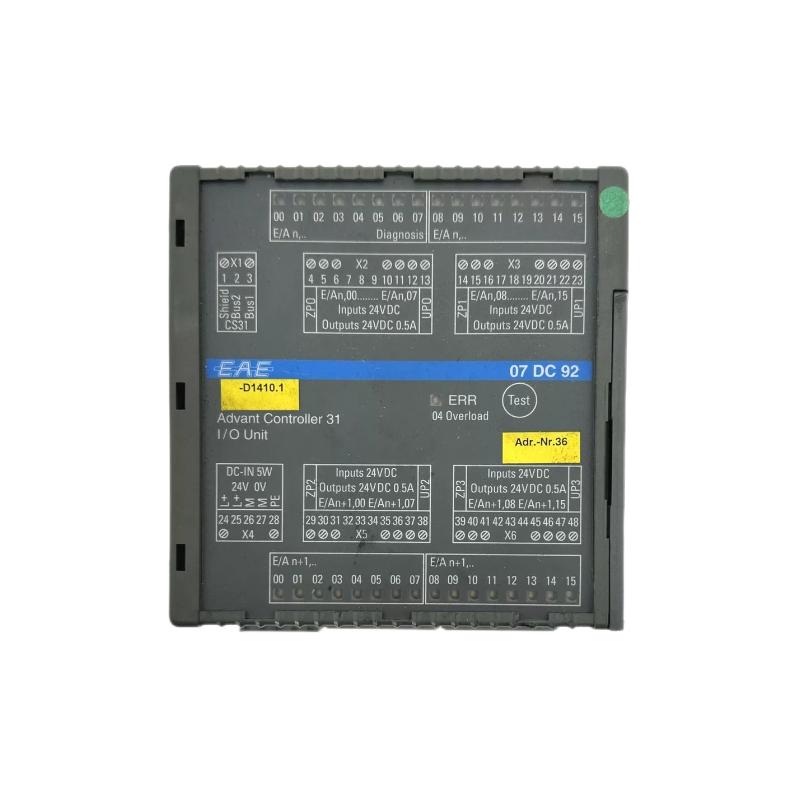

Indicators: 33 LEDs for status and error indication; test button

Communication & Interface

Bus Interface: CS31 system bus

Data Exchange: Up to 8 input words and 8 output words

Configuration: DIP switches for mode and module address

Diagnostics: Onboard diagnostics via LEDs and test button

I/O & Channels

Digital Inputs/Outputs: 32 channels, 24 V DC

Each channel can be configured individually as input, output, or re-readable output (combined input/output)

Outputs are transistorized with a nominal load rating of 0.5 A and are protected against overload and short circuit

The 32 channels are electrically isolated in 4 groups

Operating Modes: Configurable input/output types per channel

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: –25 °C to +75 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for internal cabinet installation)

Maximum Operating Altitude: 2000 m

Dimensions & Weight

Dimensions (L × W × H): 120 × 140 × 85 mm

Weight: 0.45 kg
