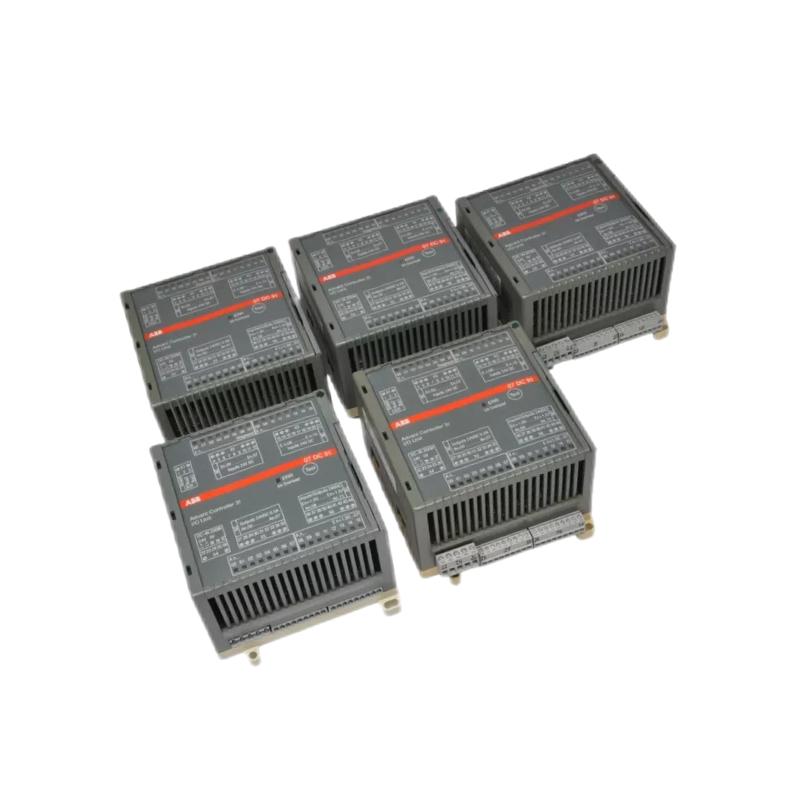

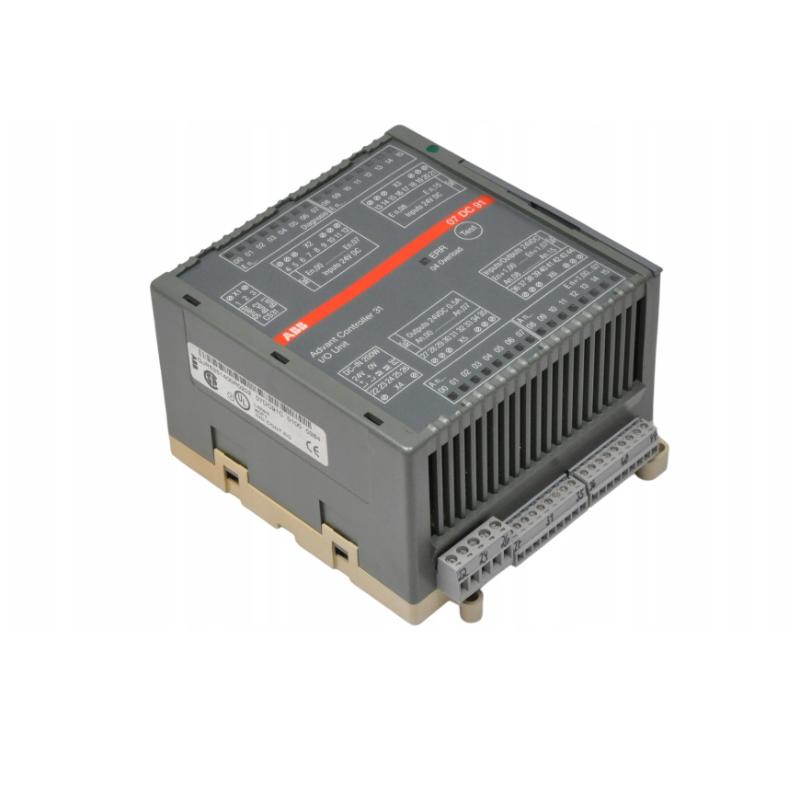

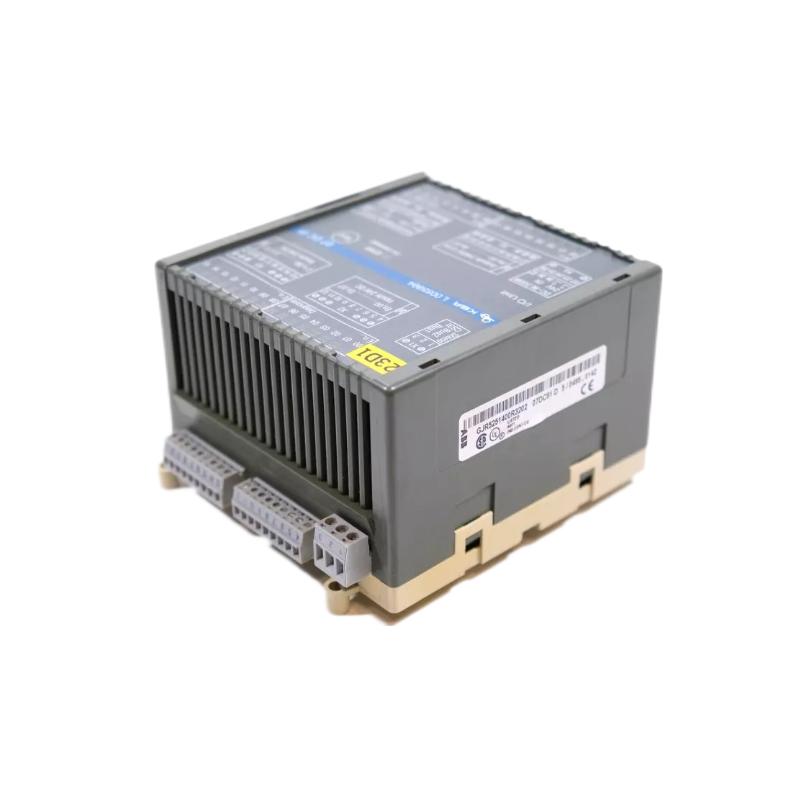

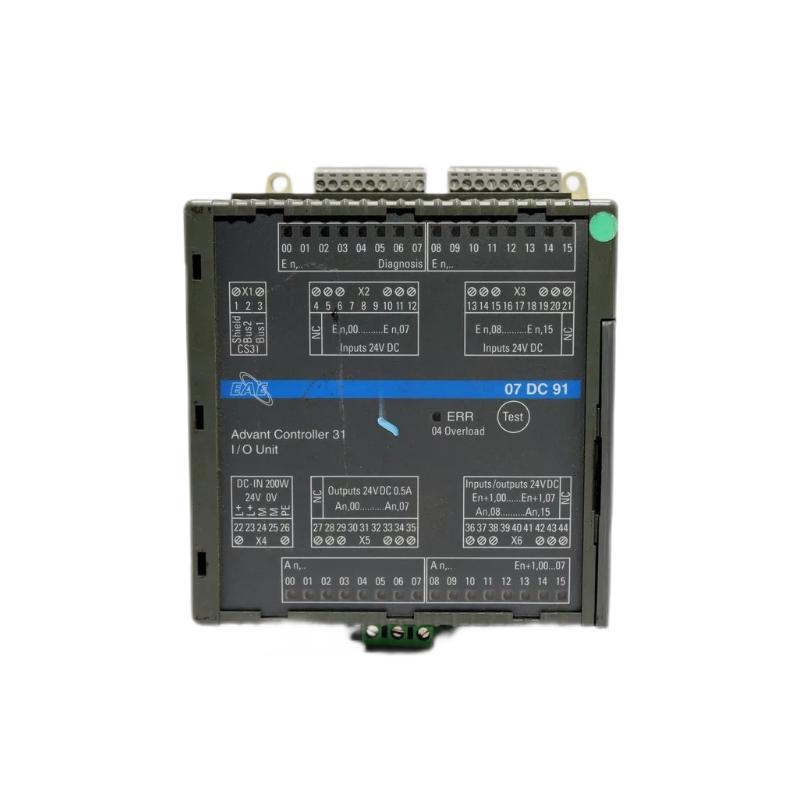

ABB 07DC91 GJR5251400R3202 Digital Input/Output Module Efficient delivery 100% New

Brand：ABB PLC

Item No.：ABB 07DC91 GJR5251400R3202

Product origin：Sweden

Dimensions:120 × 140 × 85 mm

Weight:1.07 kg

The import process is standardized, testing is supported, and after-sales service is guaranteed

There are abundant models in stock, which support quick docking of purchasing needs. Please inquire for details!

Product Introduction：

Overview

The ABB 07DC91 GJR5251400R3202 is a digital input/output module used in ABB’s Advant Controller 31 (AC31) and Advant OCS systems. It provides 16 digital inputs, 8 digital outputs, and 8 configurable I/O channels, supporting 24 V DC signals, and operates on the CS31 system bus.

General Information

Part Number: GJR5251400R3202

Manufacturer: ABB (Asea Brown Boveri)

Brand Origin: Switzerland

Series: Advant Controller 31 (AC31)

Type: Digital Input/Output Module

Mounting: DIN rail (15 mm high) or screw-mounted

Technology: 16 digital inputs, 8 digital outputs, 8 configurable I/O channels, 24 V DC signals, CS31 system bus interface

Power Specifications

Operating Voltage: 24 V DC

Input Voltage Range: 20 V DC to 28 V DC

Power Consumption: ≤ 5 W

Current Consumption: ≤ 0.2 A

Protection: Electrically isolated CS31 system bus connection

Indicators: 17 LEDs for channel selection and diagnostics; test button

Communication & Interface

Bus Interface: CS31 system bus

Data Exchange: Up to 8 input words and 8 output words

Configuration: DIP switches for setting operating mode and module address

Diagnostics: Onboard diagnostics via LEDs and test button

I/O & Channels

Digital Inputs: 16 channels, 24 V DC

Digital Outputs: 8 channels, 24 V DC, 0.5 A output current

Configurable I/O Channels: 8 channels, configurable as inputs or outputs

Operating Modes: Configurable input/output types per channel

Environmental

Operating Temperature: 0 °C to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for internal cabinet installation)

Dimensions & Weight

Dimensions (L × W × H): 120 × 140 × 85 mm

Weight: 1.07 kg
