GE IS200EISBH1A Excitation Control Recommended products Unbelievable Prices!

Brand：GE Fanuc PLC

Item No.：GE IS200EISBH1A

Product origin：USA

Dimensions:186 × 127 × 20 mm

Weight:0.12 kg

Supply through formal channels, complete information available, supporting service guarantee

A wide range of models in stock, support for quick connection with procurement needs, welcome to inquire for details!

Product Introduction：

Overview

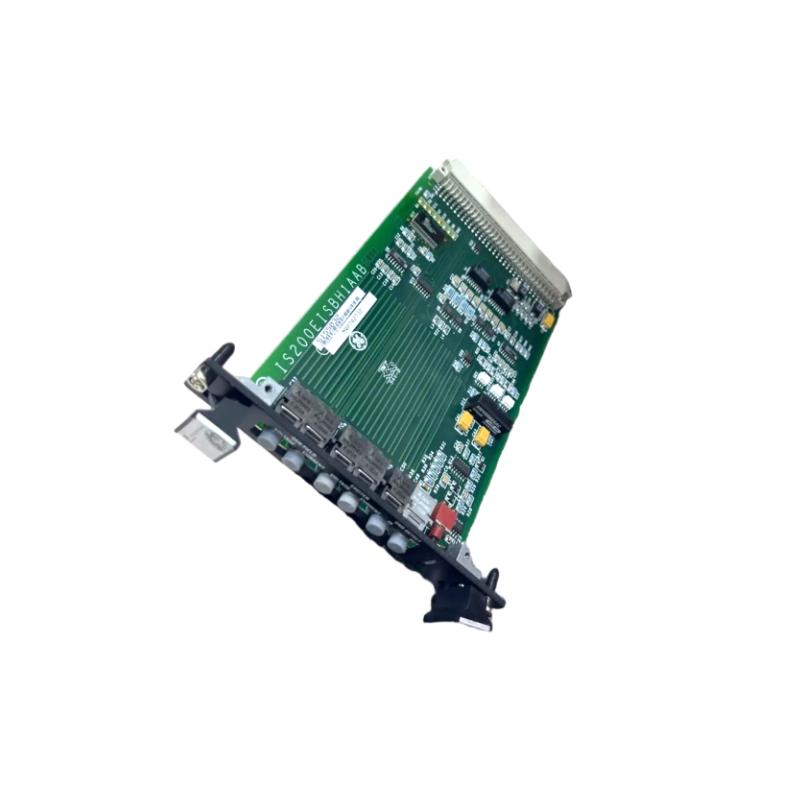

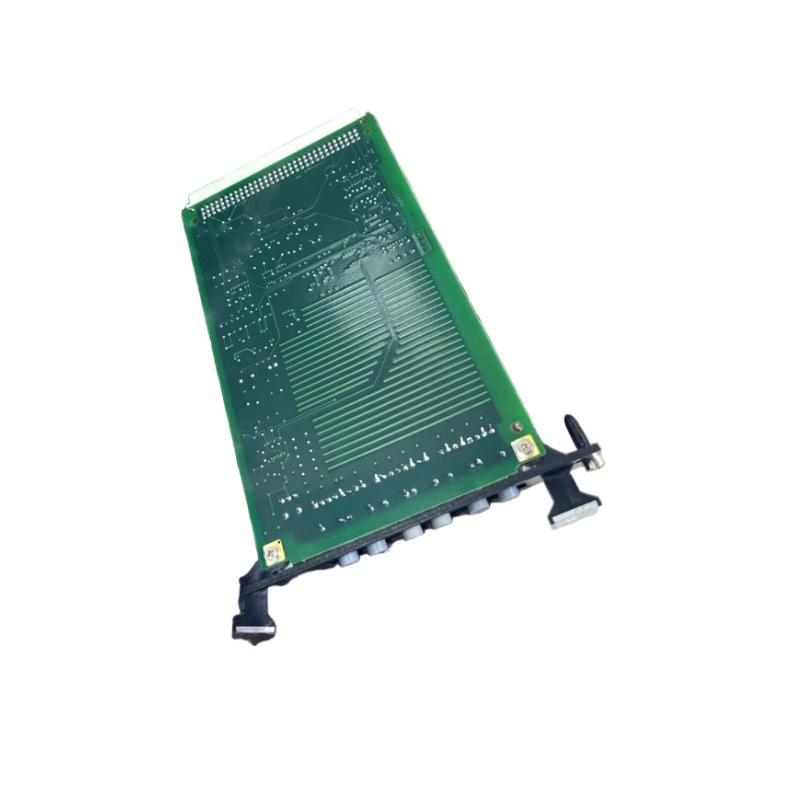

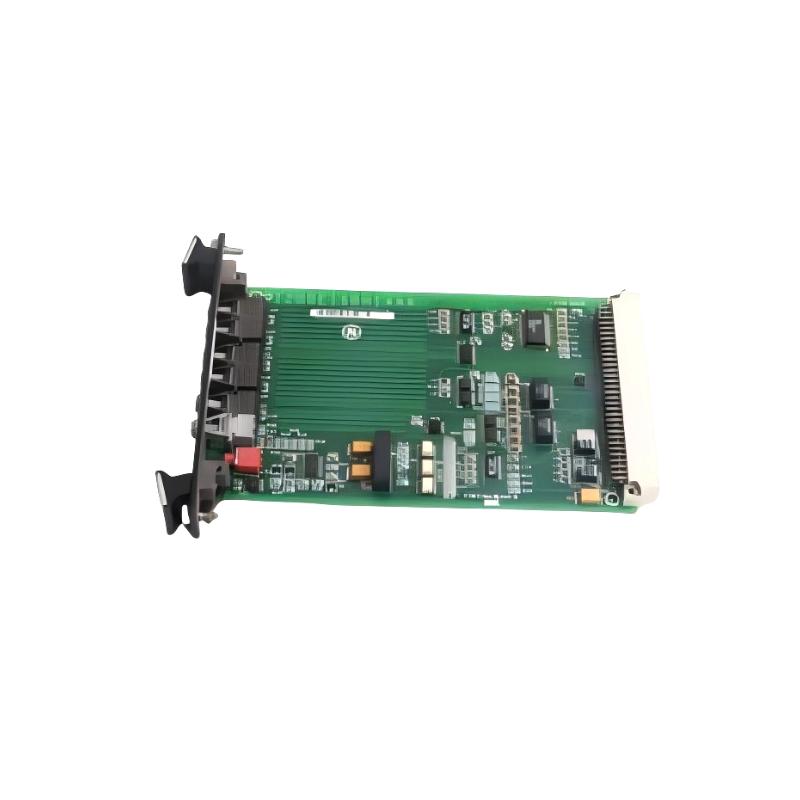

The GE IS200EISBH1A is an Exciter ISBus Board designed for the EX2100 Excitation Control System, part of the GE Speedtronic Mark VI turbine control series. It provides a reliable interface for communication between various control modules, ensuring accurate turbine control and protection.

General Information

Manufacturer: General Electric (GE)

Product Category: Excitation Control / Communication Interface Board

Model / Type: IS200EISBH1A

Series: EX2100

Revision: H1A

Country of Origin: United States

Application: Turbine excitation systems, industrial automation

Electrical Characteristics

Input Channels: 12

Input Span: 4–20 mA

Common Mode Voltage Range: ±5 V

Maximum Lead Resistance: 15 Ω

Analog Output Current: 0–20 mA

Relay Control Voltage: 24 V DC

Wetting Voltage: 70 V DC

Relay Break Characteristic: 28 V DC

Customer Power: 125 V DC

Operational Mode: Simplex

Communication & Connectivity

Fiber-Optic Connectors: 6 front-panel connectors for high-speed data transmission

Communication Interfaces: Facilitates communication between M1, M2, and C control modules

Environmental Conditions

Operating Temperature Range: –30 °C to +65 °C

Storage Temperature Range: −40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Dimensions & Weight

Dimension: Approximately 186 × 127 × 20 mm

Weight: Approximately 0.12 kg

We deliver only genuine new parts, with real-time stock updates and 24/7 quote service.

This product is an imported conventional model, with timely delivery. For large purchases, we welcome targeted quotation consultation.
