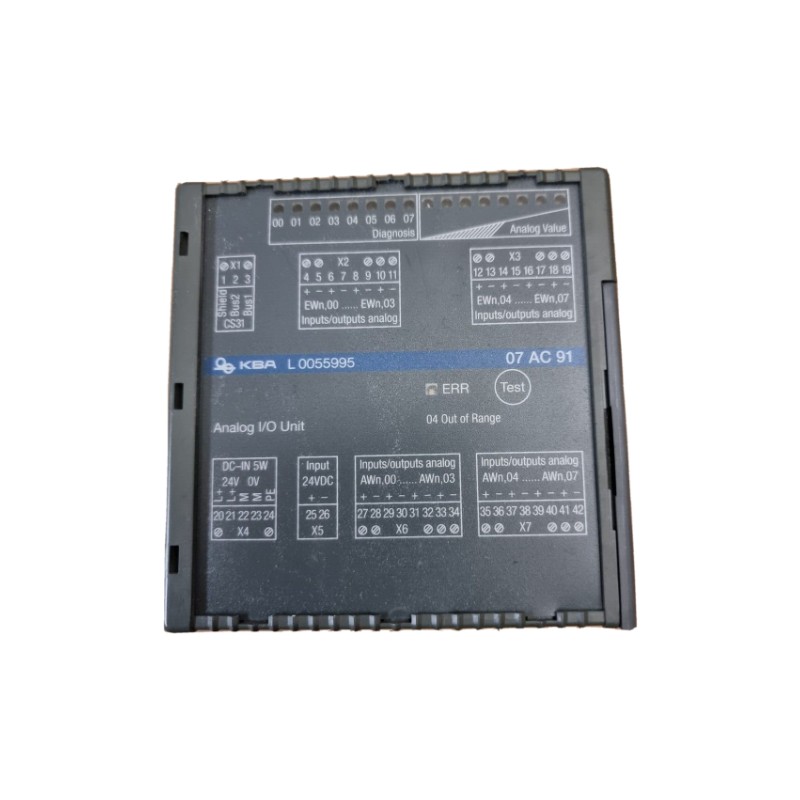

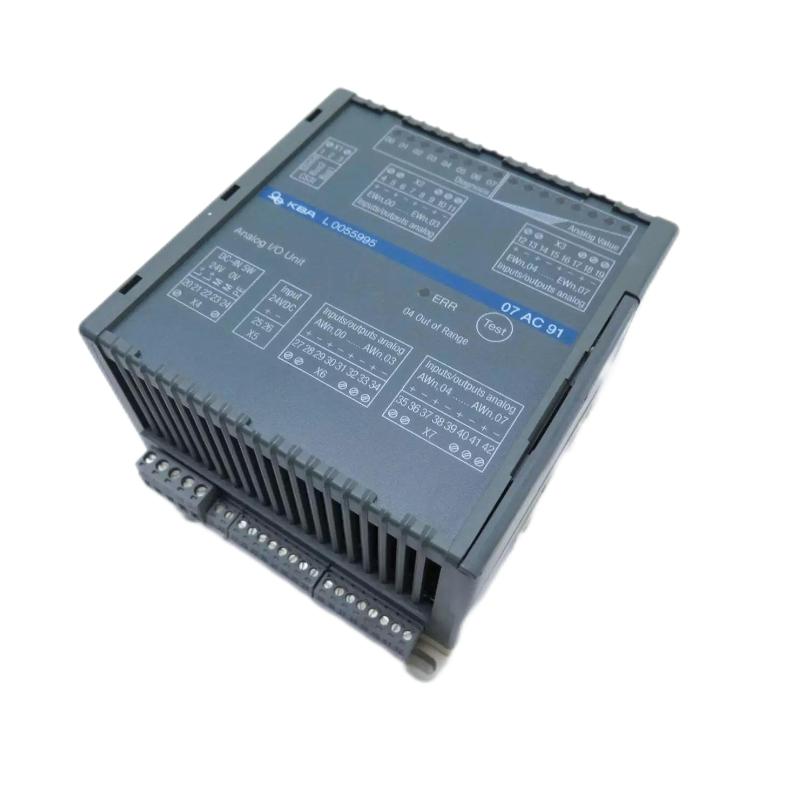

ABB 07AC91 GJR5252300R3101 Analog Input/Output Module Quality Assurance 100% New

Brand：ABB PLC

Item No.：ABB 07AC91 GJR5252300R3101

Product origin：Sweden

Dimensions:120 × 140 × 85 mm

Weight:0.81 kg

Regular source, test instructions can be coordinated, and after-sales service continues to follow up

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product Introduction：

Overview

The ABB 07AC91 GJR5252300R3101 is an analog I/O module used in ABB’s Advant Controller 31 (AC31) and Advant OCS systems. It provides 16 configurable analog input/output channels, supporting various voltage and current combinations, and operates on the CS31 system bus.

General Information

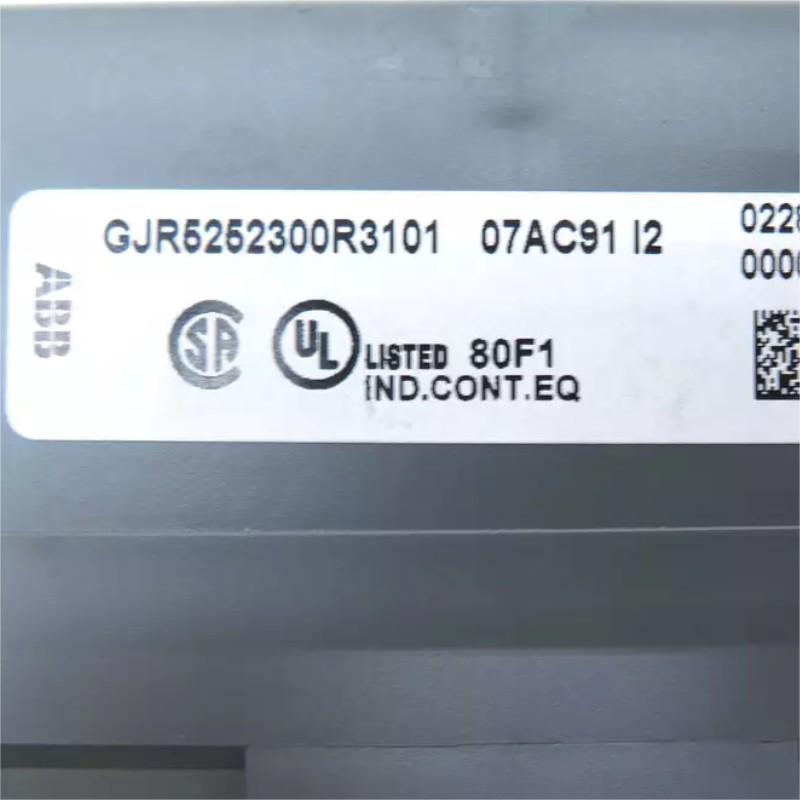

Part Number: GJR5252300R3101

Manufacturer: ABB (Asea Brown Boveri)

Brand Origin: Switzerland

Series: Advant Controller 31 (AC31)

Type: Analog Input/Output Module

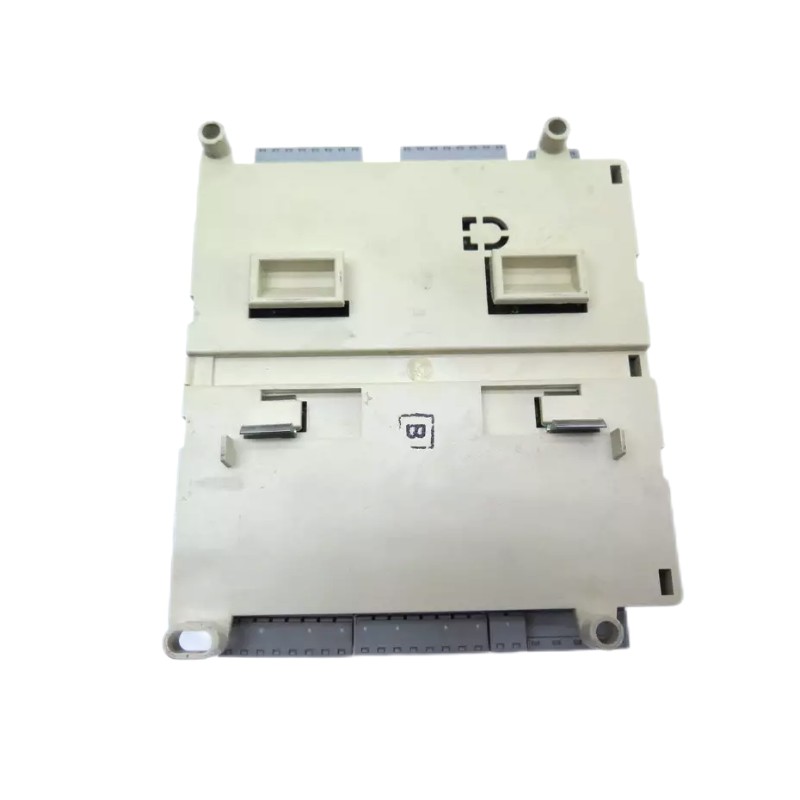

Mounting: DIN rail (15 mm high) or screw-mounted

Technology: 16 configurable analog channels, 8/12-bit resolution, CS31 system bus interface

Power Specifications

Operating Voltage: 24 V DC

Input Voltage Range: 20 V DC to 28 V DC

Power Consumption: Not specified

Protection: Electrically isolated CS31 system bus connection

Indicators: 8 green LEDs for channel selection and diagnostics; 1 red LED for error messages; test button

Communication & Interface

Bus Interface: CS31 system bus

Data Exchange: Up to 8 input words and 8 output words

Configuration: DIP switches for setting operating mode and module address

Diagnostics: Onboard diagnostics via LEDs and test button

I/O & Channels

Analog Inputs: Up to 232 channels (various voltage and current combinations)

Analog Outputs: Up to 228 channels (various voltage and current combinations)

Digital Inputs: 8 channels, 24 V DC

Digital Outputs: 6 transistor outputs

Operating Modes:

12-bit mode: 8 input channels and 8 output channels, individually configurable for ±10 V or 0–20 mA

8-bit mode: 16 channels, configurable in pairs as inputs or outputs, 0–10 V or 0–20 mA

Environmental

Operating Temperature: 0 °C to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for internal cabinet installation)

Dimensions & Weight

Dimensions (L × W × H): 120 × 140 × 85 mm

Weight: 0.81 kg
