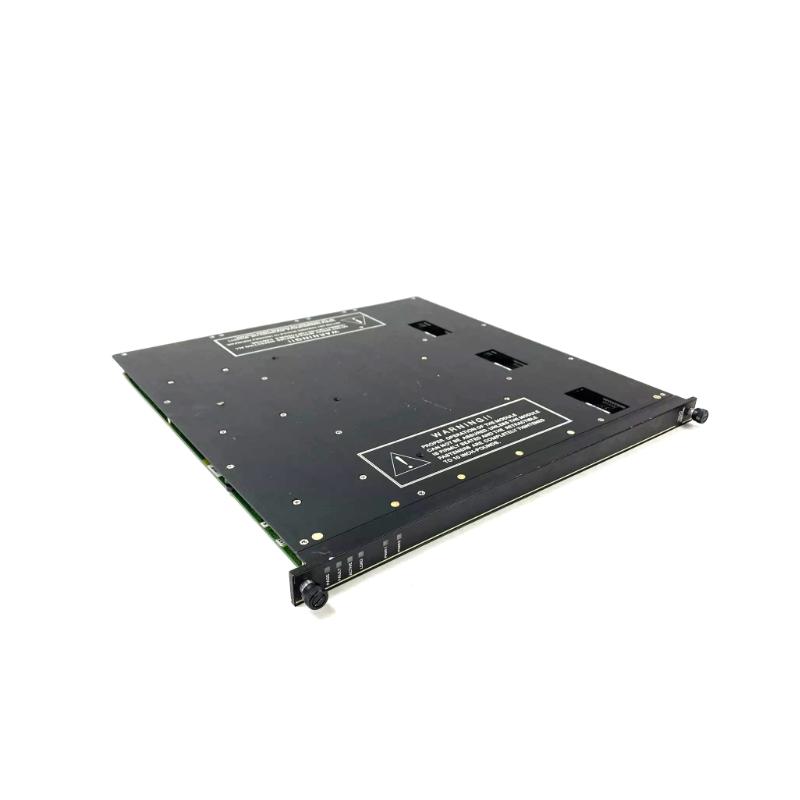

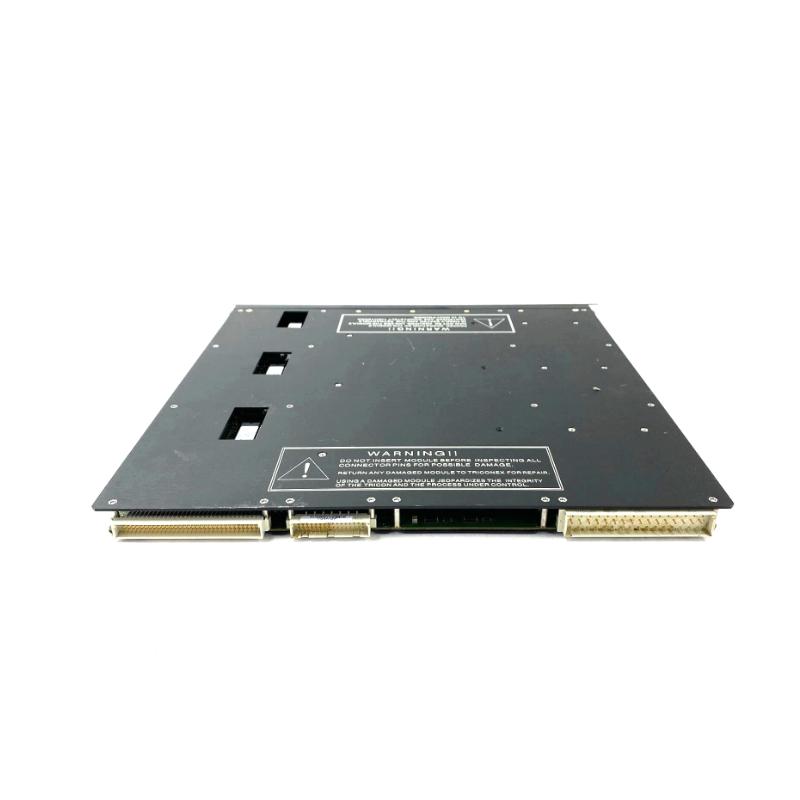

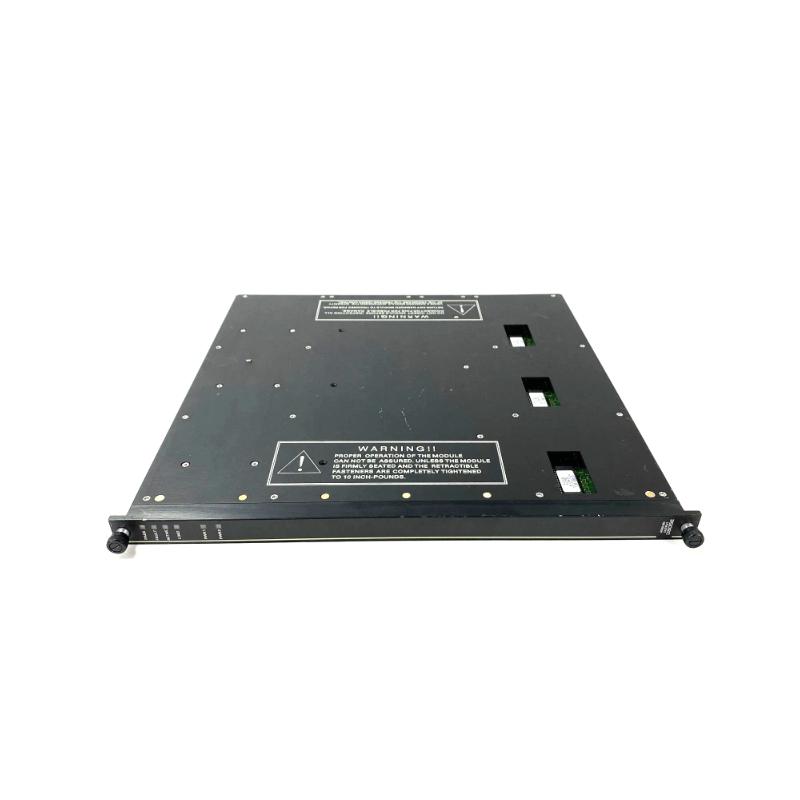

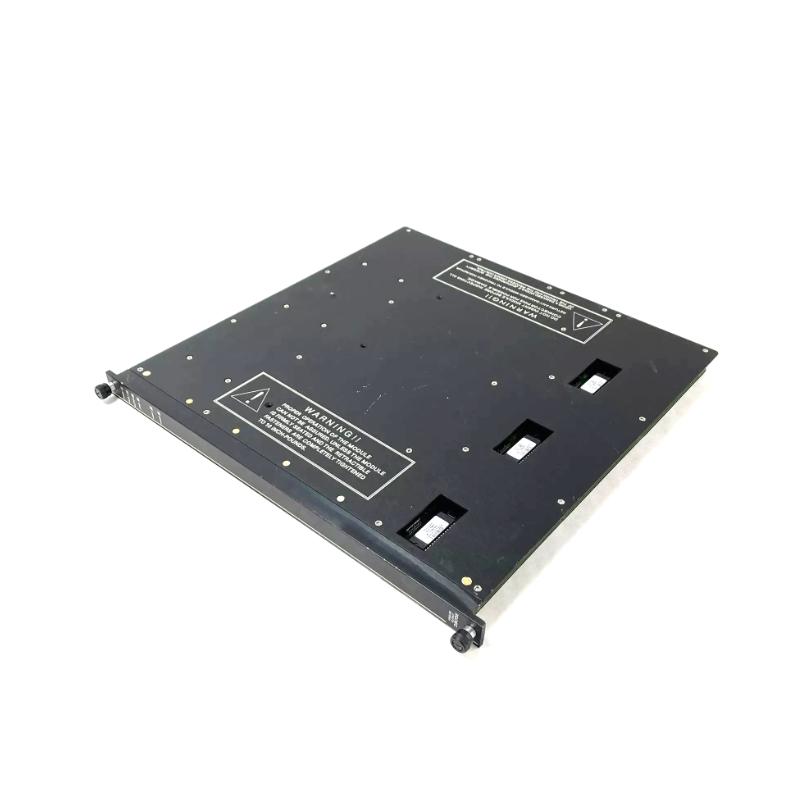

Triconex 3805E/H Analog Output Module Recommended products 30-Day Returns！

Brand：Invensys Triconex

Item No.：Triconex 3805E/H

Product origin：USA

Dimensions:160 × 160 × 120 mm

Weight:0.8 kg

Original overseas introduction, test assistance instructions support, stable and reliable service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The Triconex 3805E/H is a TMR (Triple Modular Redundancy) analog output module designed for use in Tricon safety instrumented systems (SIS). It provides 8 channels of 4–20 mA output, ensuring reliable and precise control in critical industrial applications.

General Information

Part Number: 3805E/H

Manufacturer: Triconex (now part of Schneider Electric)

Module Type: Analog Output Module

Country of Origin: USA

Output Channels: 8

Mounting: Rack-mounted in Tricon chassis

Output Specifications

Output Signal: 4–20 mA DC

Overrange: +6% (up to 21.2 mA)

Resolution: 12 bits

Accuracy: <0.25% of Full Scale Range (FSR)

Isolation: No isolated points; commoned return, DC coupled

Loop Power Requirements:

Load Resistance: 250 Ω to 1000 Ω

Voltage Requirements: Minimum 20 V DC for 250 Ω load; increases with higher resistance

Over-Range Protection: +42.5 V DC continuous

Switch Time on Leg Failure: <10 ms (typical)

Diagnostic Indicators: PASS, FAULT, ACTIVE, LOAD, PWR1, PWR2

Power and Environmental

Supply Voltage: 24 V DC (nominal)

Power Consumption: 1 A at 24 V DC

Operating Temperature: 0°C to 60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for installation inside an industrial cabinet)

Dimensions & Weight

Dimensions (L × W × H): 160 × 160 × 120 mm

Weight: 0.8 kg

Brand-new factory originals, with customer service always ready to assist.

The inventory of this product is stable, fast delivery is supported, and negotiated pricing is supported for batches.
