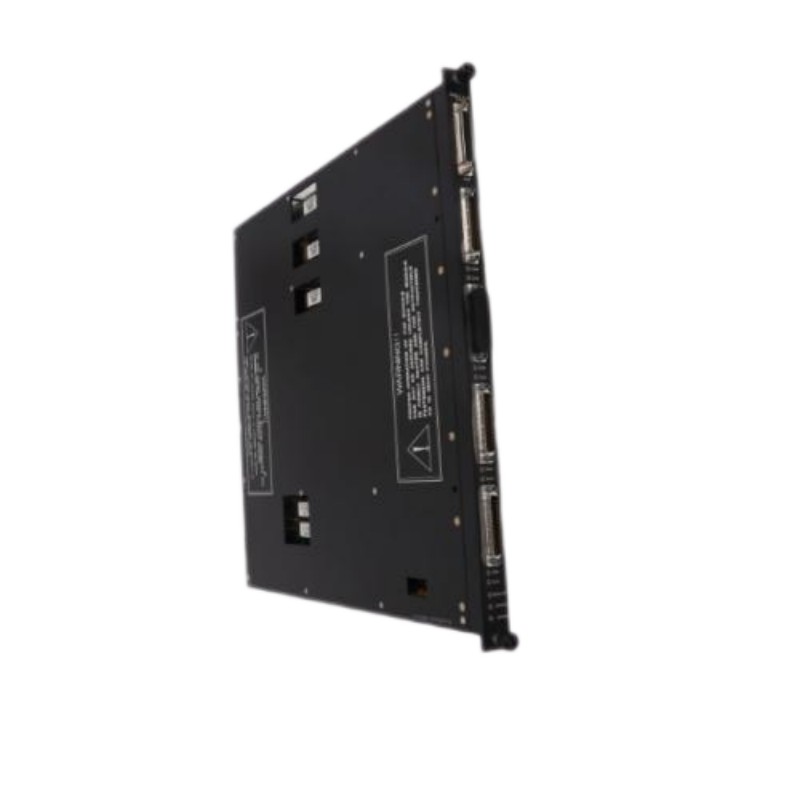

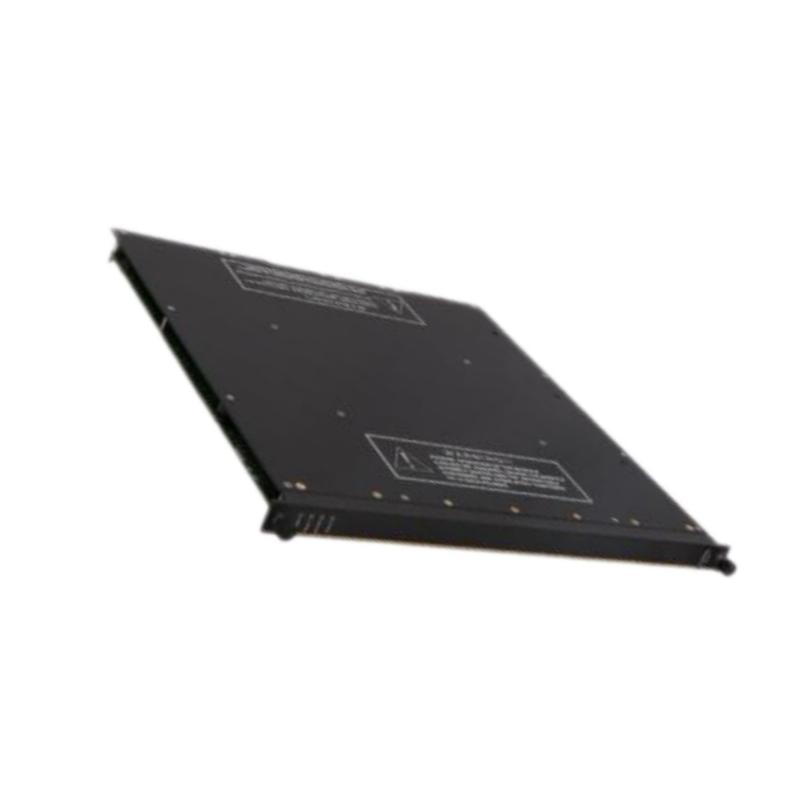

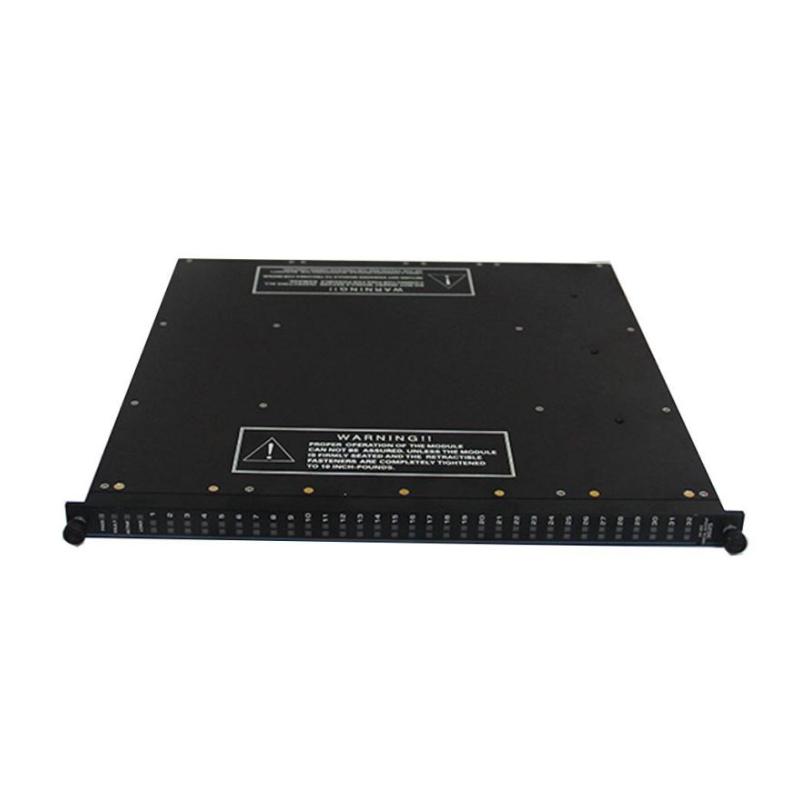

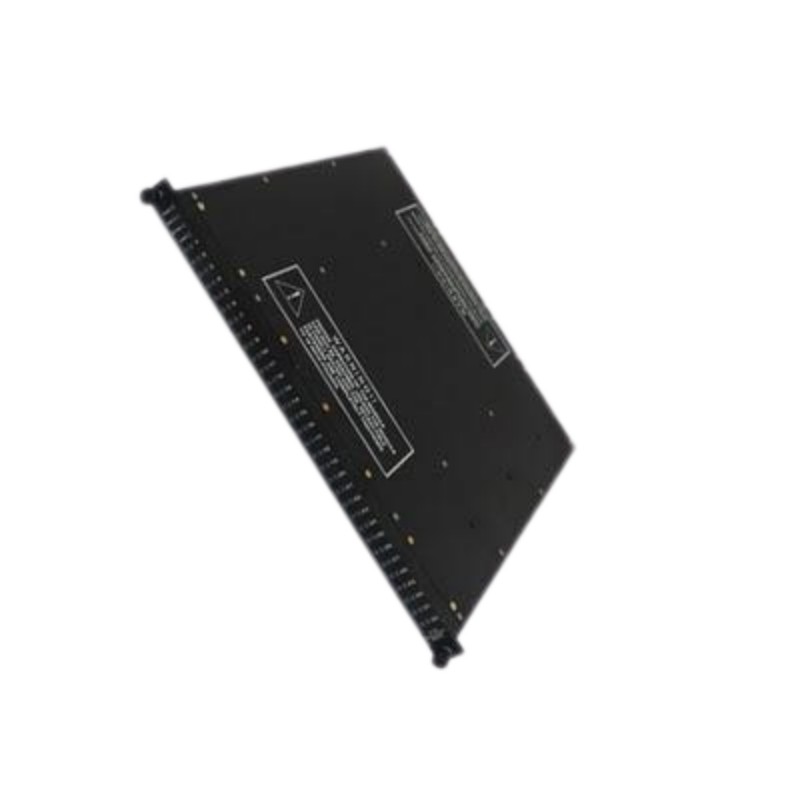

Triconex 3805H Analog Output Module Rave reviews New In Stock

Brand：Invensys Triconex

Item No.：Triconex 3805H

Product origin：USA

Dimensions:160 × 160 × 120 mm

Weight:0.8 kg

Compliant import, support for cooperation testing, and fast response to after-sales service

Tens of thousands of models are in stock, and spot delivery is fast. Welcome to consult!

Product Introduction：

Overview

The Triconex 3805H is a Triple Modular Redundant (TMR) analog output module designed for use in Tricon safety instrumented systems (SIS). It provides 8 channels of 4–20 mA output, ensuring reliable and precise control in critical industrial applications.

General Information

Part Number: 3805H

Manufacturer: Triconex (part of Schneider Electric)

Module Type: Analog Output Module

Country of Origin: USA

Output Channels: 8

Mounting: Rack-mounted in Tricon chassis

Output Specifications

Output Signal: 4–20 mA DC

Overrange: +6% (up to 21.2 mA)

Resolution: 12 bits

Accuracy: <0.25% of Full Scale Range (FSR)

Isolation: No isolated points; commoned return, DC coupled

Loop Power Requirements:

Load Resistance: 250 Ω to 1000 Ω

Voltage Requirements: Minimum 20 V DC for 250 Ω load; increases with higher resistance

Over-Range Protection: +42.5 V DC continuous

Switch Time on Leg Failure: <10 ms (typical)

Diagnostic Indicators: PASS, FAULT, ACTIVE, LOAD, PWR1, PWR2

Power and Environmental

Supply Voltage: 24 V DC nominal

Power Consumption: 1 A at 24 V DC

Operating Temperature: 0°C to 60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 160 × 160 × 120 mm

Weight: 0.8 kg

All items are verified new and original, available in stock for fast dispatch.

The product is delivered in time, the price is reasonable, and bulk demand is welcome to consult the bargaining plan.
