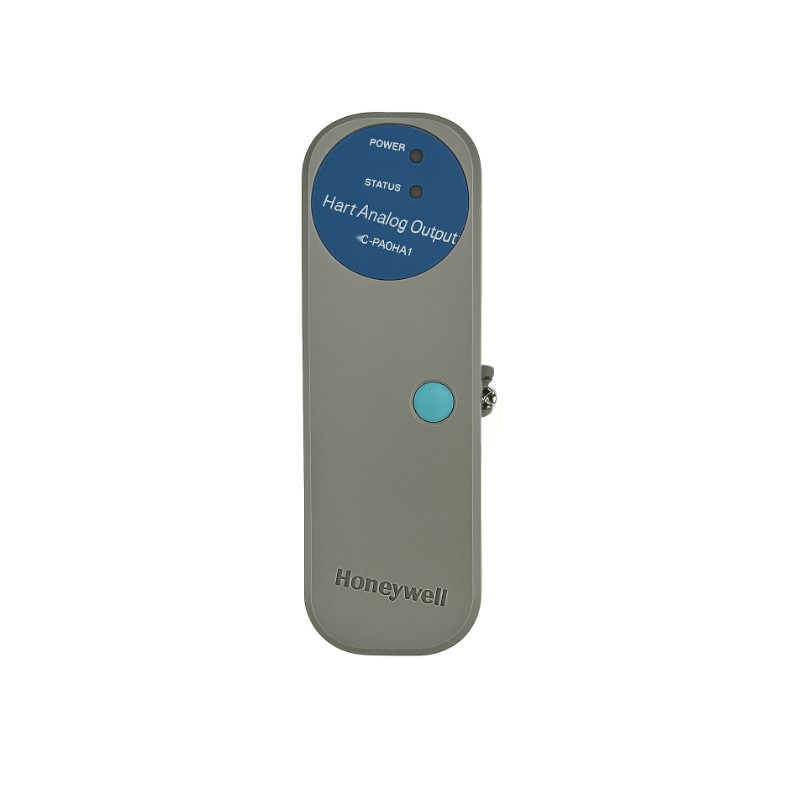

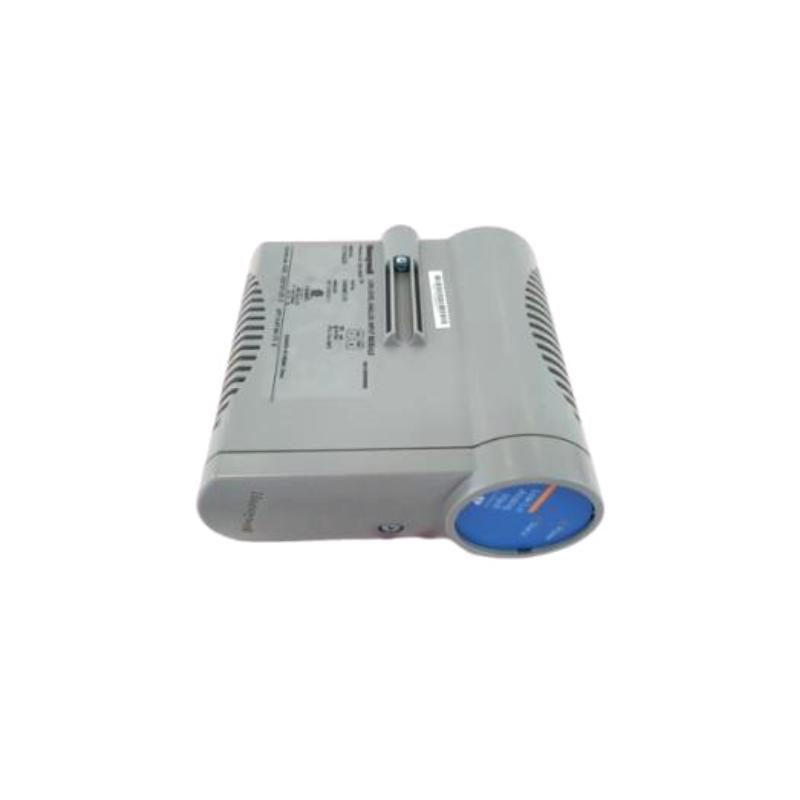

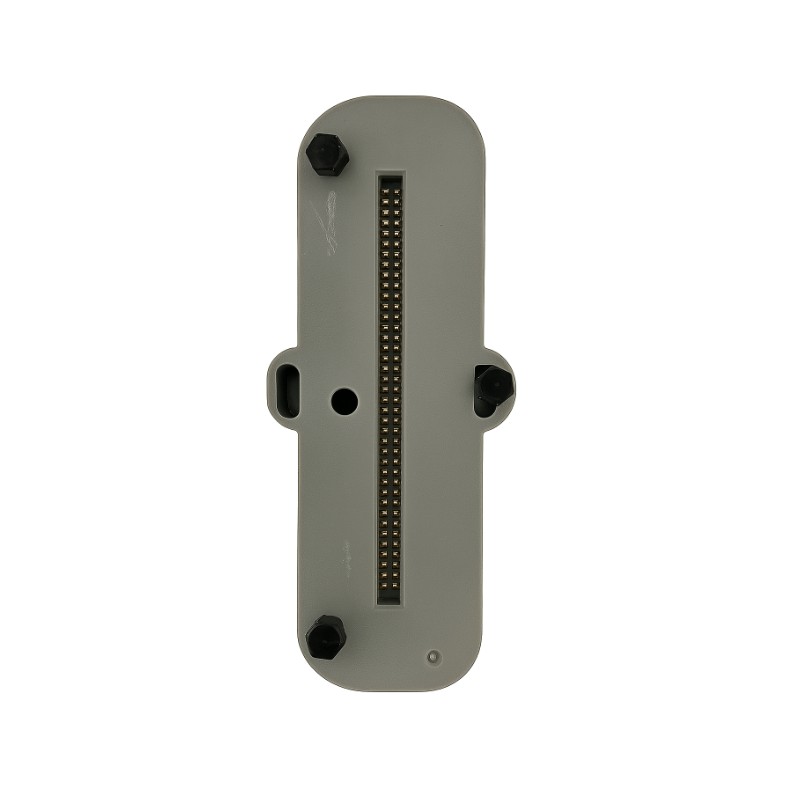

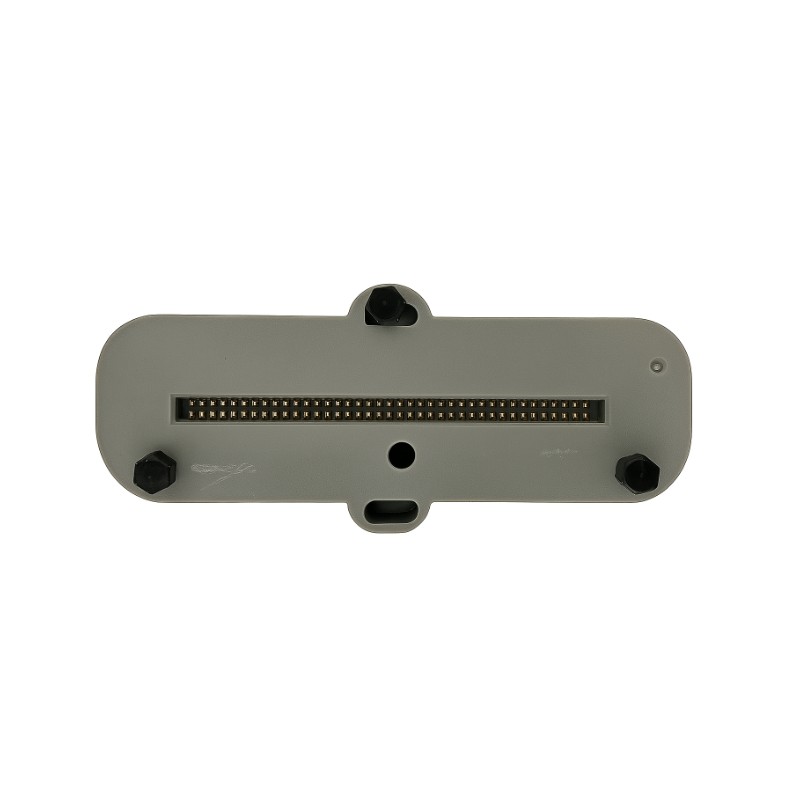

Honeywell 8C-PAOHA1 51454469-275 Analog Output Module Quality Selection New In Stock

Brand：Honeywell DCS

Item No.：Honeywell 8C-PAOHA1 51454469-275

Product origin：USA

Dimensions:241 × 254 × 64 mm

Weight:1 kg

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

Tens of thousands of models are in sufficient stock, and the spot is shipped quickly. Welcome to consult!

Product Introduction：

Overview

The Honeywell 8C-PAOHA1 51454469-275 is a 16-channel analog output module designed for use in Honeywell's Experion® Process Knowledge System (PKS) C300. It provides precise analog signal outputs to field devices, ensuring accurate process control in industrial applications.

General Information

Part Number: 8C-PAOHA1 51454469-275

Manufacturer: Honeywell

Series: Experion PKS C300

Module Type: Analog Output Module

Country of Origin: USA

Output Channels: 16

Mounting: Rack-mounted in Experion C300 I/O chassis

Output Specifications

Output Signal Types: 4–20 mA, 0–10 V, 0–5 V

Output Resolution: 16 bits

Output Accuracy: ±0.05% of full scale

Output Ripple: < 100 mV peak-to-peak at 250 Ω load

Output Temperature Drift: 0.005% of full scale per °C

Load Resistance: 50–800 Ω (with 24 V DC supply)

Update Time: 1 ms per channel

Power and Environmental

Supply Voltage: 24 V DC

Input Current: 5 mA per channel

Power Consumption: 3.5 W

Operating Temperature: -40°C to +70°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for installation inside an industrial cabinet)

Communication and Diagnostics

Communication Protocol: HART® (Highway Addressable Remote Transducer)

Diagnostics: LED indicators for power, communication, and channel status

Isolation: Galvanic isolation between channels and ground

Dimensions & Weight

Dimensions (L × W × H): 241 × 254 × 64 mm

Weight: 1 kg

Brand-new original stock, available anytime, with immediate quote response.

This product is in stock, with fast delivery, and project-based procurement supports special price assistance.
