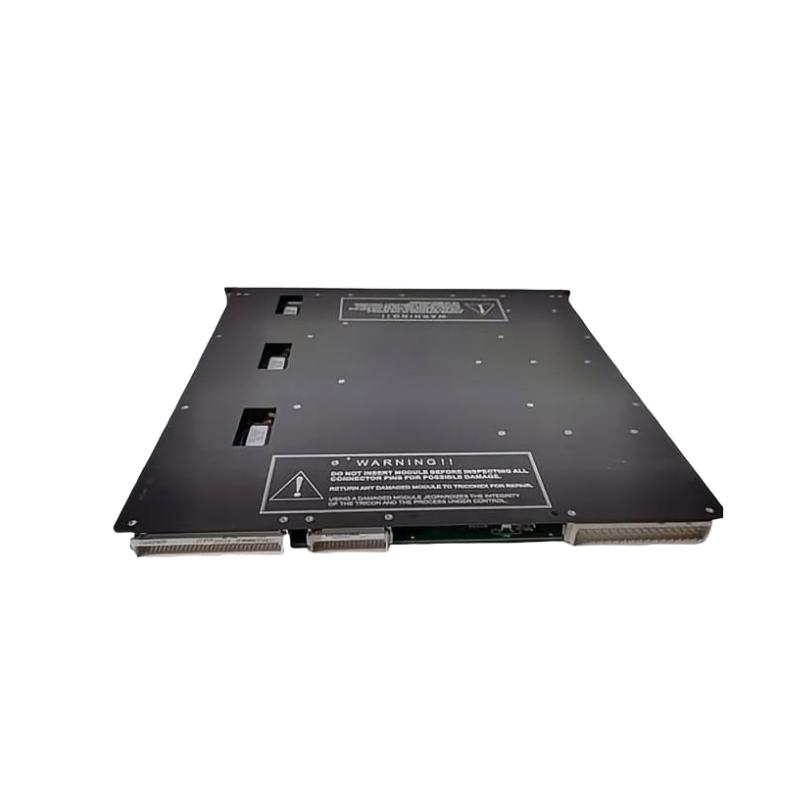

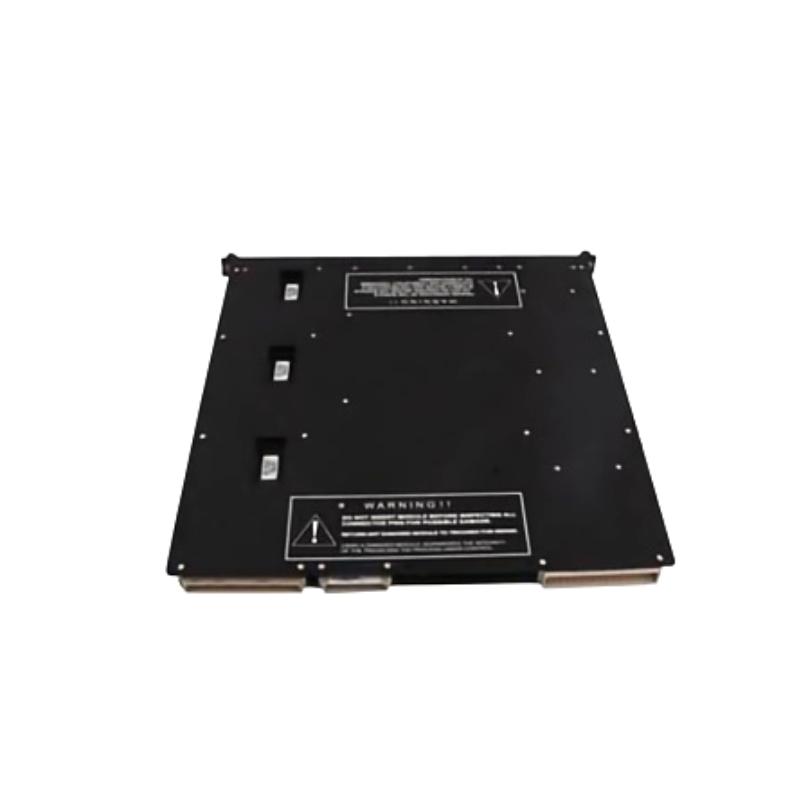

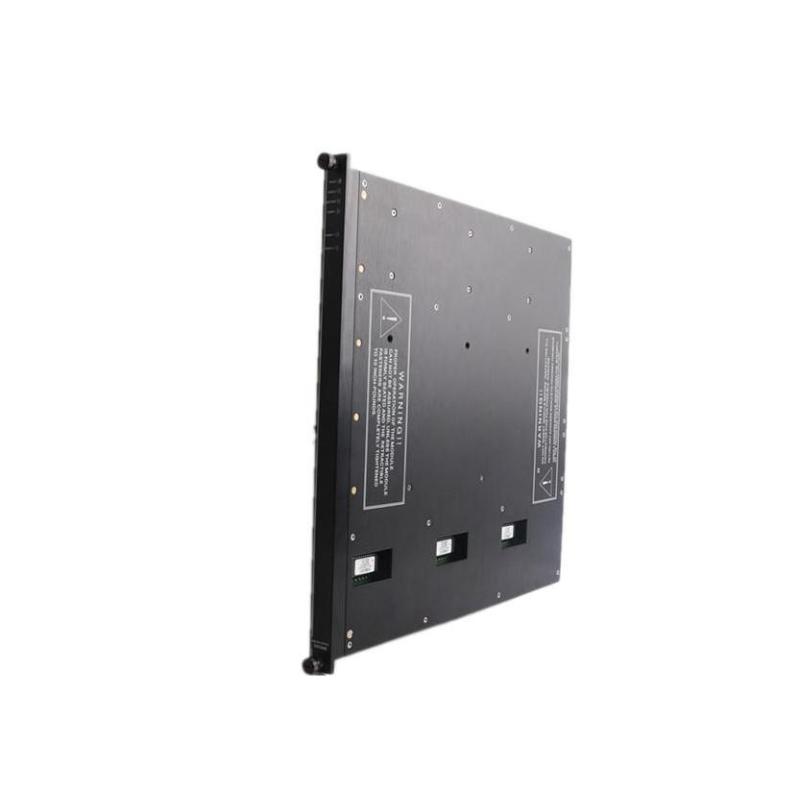

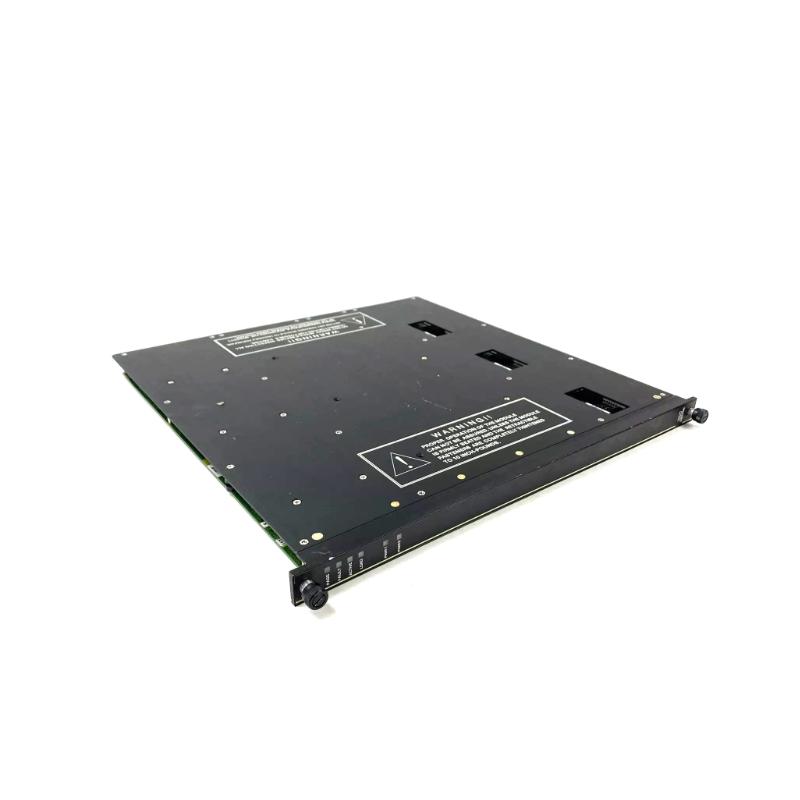

Triconex 3805EN Enhanced Analog Output Module Recommended products Original

Brand：Invensys Triconex

Item No.：Triconex 3805EN

Product origin：USA

Dimensions:160 × 160 × 120 mm

Weight:0.8 kg

Formal channels, complete test instructions, and responsive services

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product Introduction：

Overview

The Triconex 3805EN is an enhanced analog output module with Triple Modular Redundancy (TMR) architecture for Tricon safety instrumented systems (SIS). It provides 8 channels of 4–20 mA output, offering reliable and precise control for critical industrial processes.

General Information

Part Number: 3805EN

Manufacturer: Triconex (part of Schneider Electric)

Module Type: Enhanced Analog Output Module

Series: Tricon Series 3000

Country of Origin: USA

Output Channels: 8

Mounting: Rack-mounted in Tricon chassis

Output Specifications

Output Signal: 4–20 mA DC

Overrange: +6% (up to 21.2 mA)

Resolution: 12 bits

Accuracy: <0.25% of Full Scale Range (FSR)

Isolation: Commoned return, DC coupled

Loop Power Requirements:

Load Resistance: 250 Ω to 1000 Ω

Voltage Requirement: Minimum 20 V DC for 250 Ω load

Over-Range Protection: +42.5 V DC continuous

Switch Time on Leg Failure: <10 ms (typical)

Diagnostic Indicators: PASS, FAULT, ACTIVE, LOAD, PWR1, PWR2

Power and Environmental

Supply Voltage: 24 V DC nominal

Power Consumption: 1 A at 24 V DC

Operating Temperature: 0°C to 60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 160 × 160 × 120 mm

Weight: ~0.8 kg

Our inventory includes genuine new products, supported by quick quote turnaround.

The product delivery cycle is faster than the regular cycle, and the unit price supports a moderate reduction based on the order volume.
