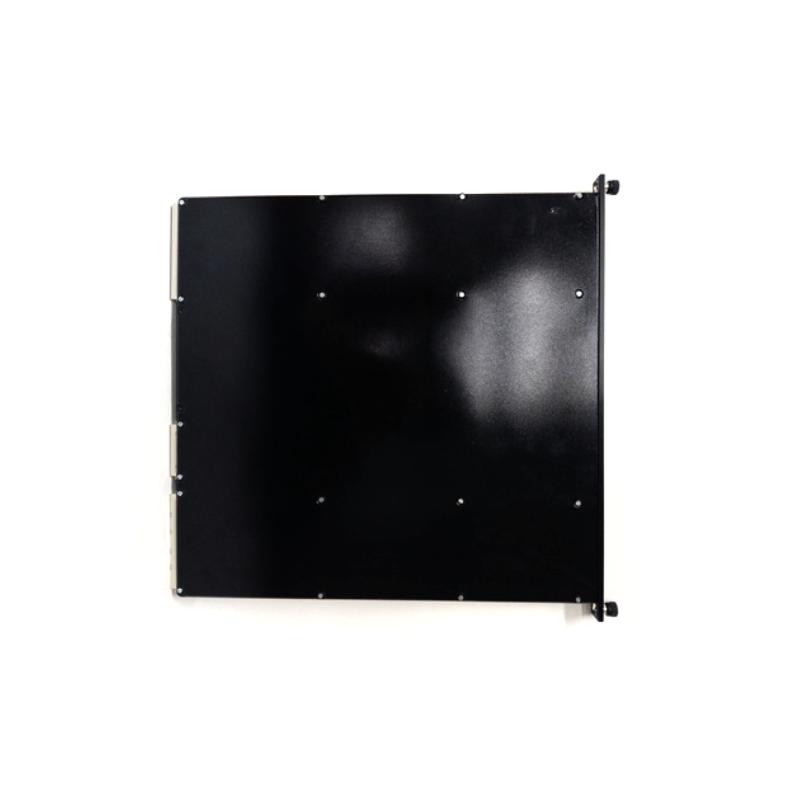

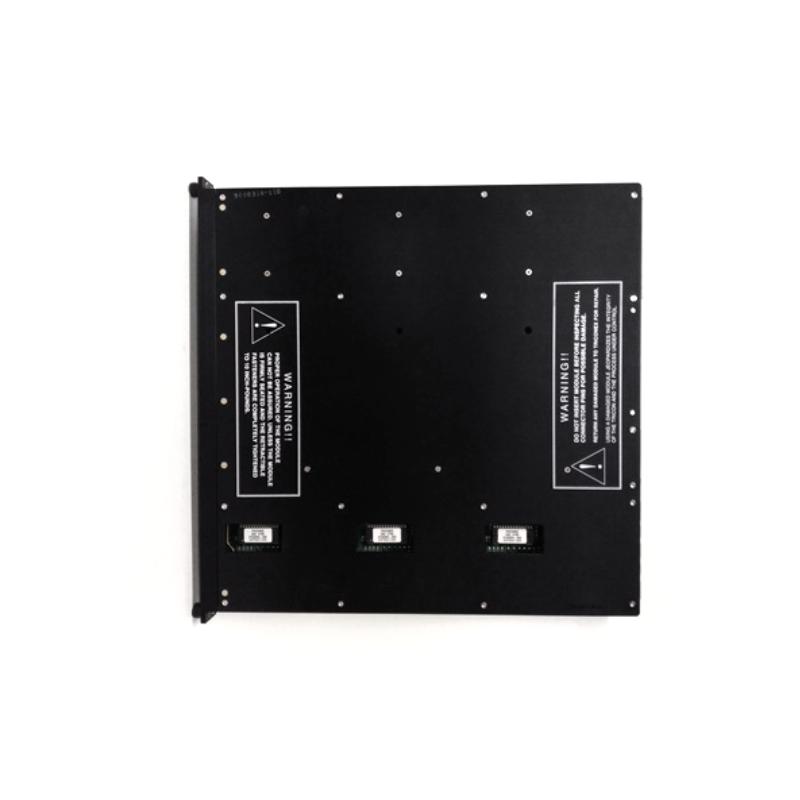

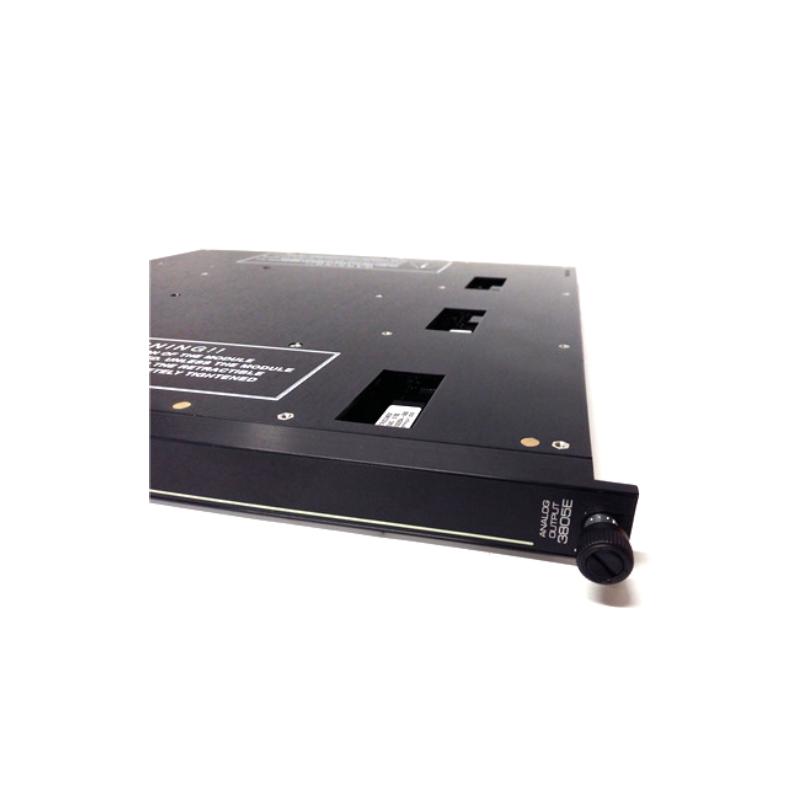

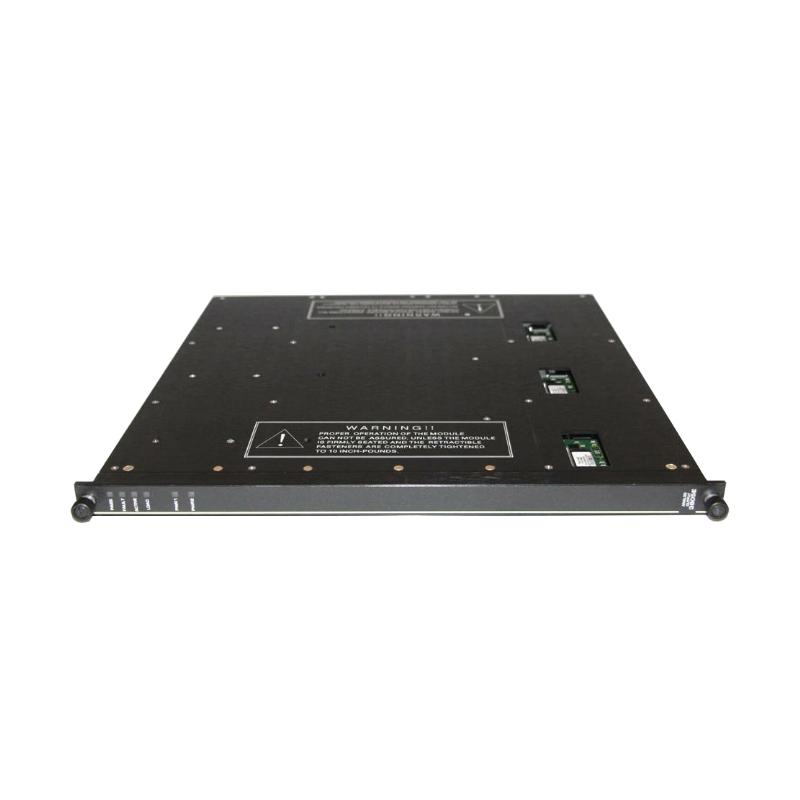

Triconex 3805E Analog Output Module Efficient delivery 30-Day Returns！

Brand：Invensys Triconex

Item No.：Triconex 3805E

Product origin：USA

Dimensions:160 × 160 × 120 mm

Weight:0.8 kg

Original imported channel supply, support for testing instructions, worry-free after-sales

A wide range of spot models, support for quick docking of purchasing needs, welcome to inquire!

Product Introduction：

Overview

The Triconex 3805E is a TMR (Triple Modular Redundancy) analog output module designed for use in critical process control applications. It provides 8 channels of 4–20 mA output, with overrange protection and diagnostic capabilities to ensure reliable operation in demanding environments.

General Information

Part Number: 3805E

Manufacturer: Triconex (now part of Schneider Electric)

Series: Tricon Series 3000

Module Type: Analog Output Module

Country of Origin: USA

Output Channels: 8

Mounting: Rack-mounted in Tricon chassis

Output Specifications

Output Signal: 4–20 mA DC

Overrange: +6% (up to 21.2 mA)

Resolution: 12 bits

Accuracy: <0.25% of Full Scale Range (FSR)

Isolation: No isolated points; commoned return, DC coupled

Loop Power Requirements:

Load Resistance: 250 Ω to 1000 Ω

Voltage Requirements: Minimum 20 V DC for 250 Ω load; increases with higher resistance

Over-Range Protection: +42.5 V DC continuous

Switch Time on Leg Failure: <10 ms (typical)

Diagnostic Indicators: PASS, FAULT, ACTIVE, LOAD, PWR1, PWR2

Power and Environmental

Supply Voltage: 24 V DC (nominal)

Power Consumption: 1 A at 24 V DC

Operating Temperature: 0°C to 60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for installation inside an industrial cabinet)

Dimensions & Weight

Dimensions (L × W × H): 160 × 160 × 120 mm

Weight: 0.8 kg
