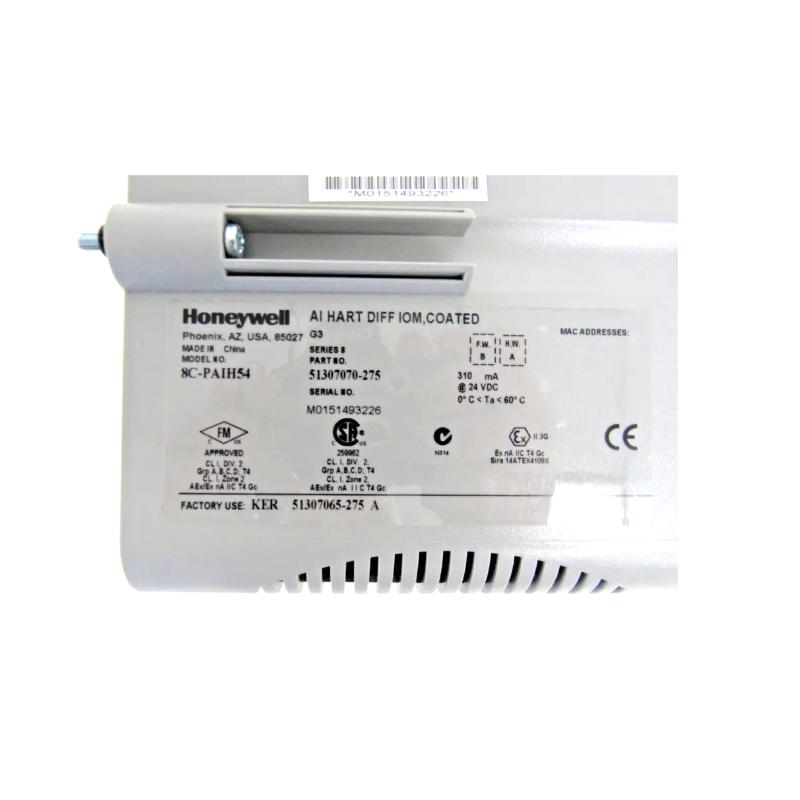

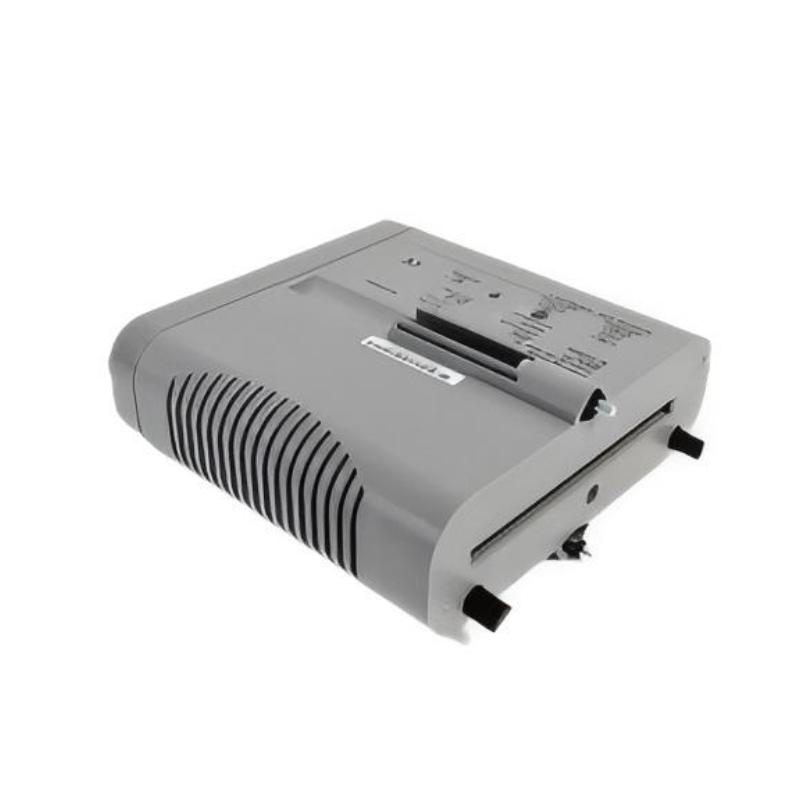

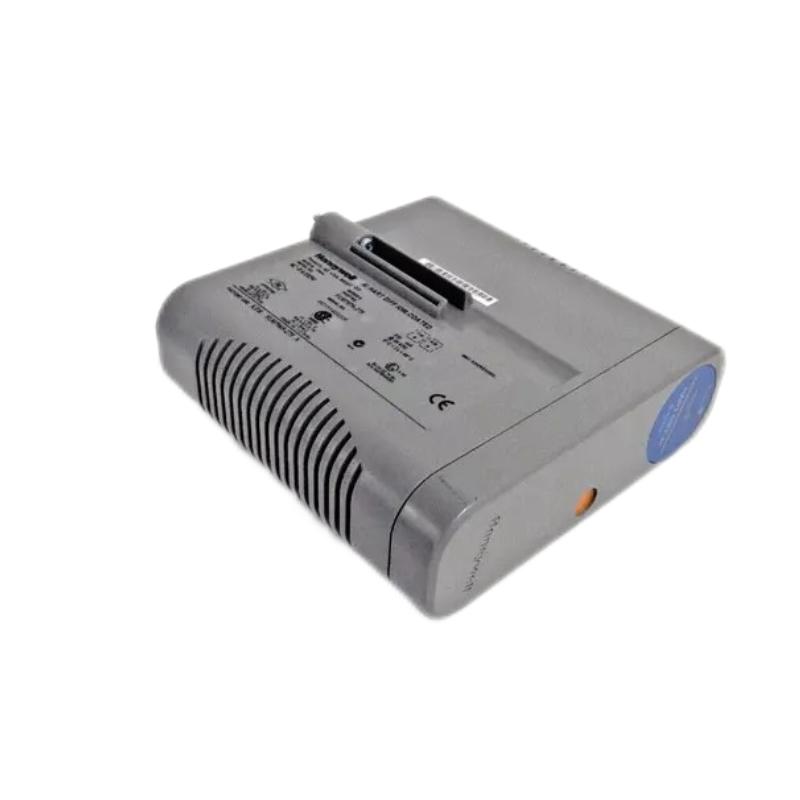

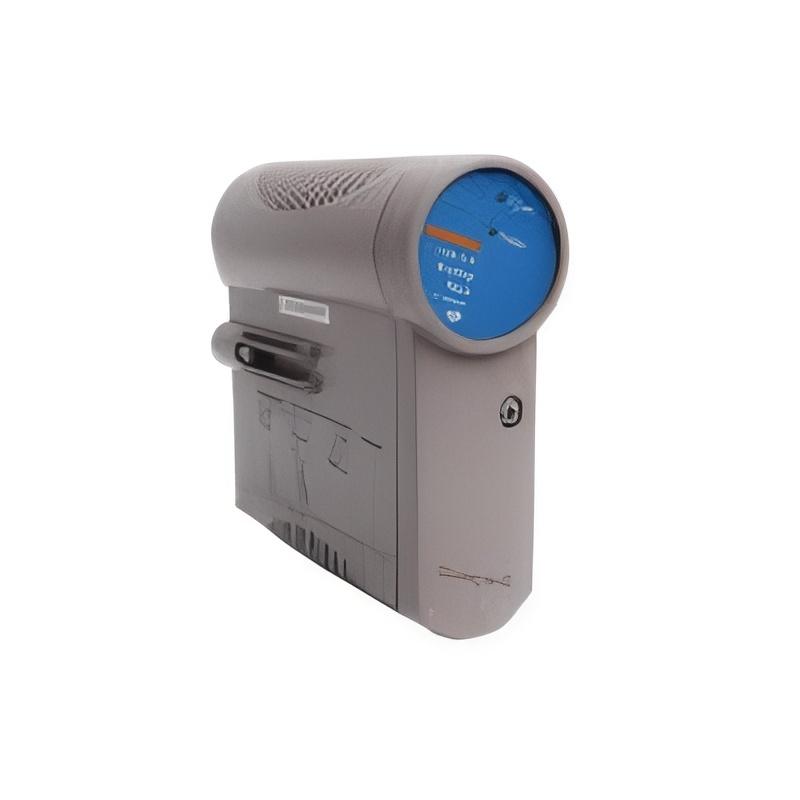

Honeywell 8C-PAIH54 51307070-275 Analog Input Module Quality Assurance 100% New

Brand：Honeywell DCS

Item No.：Honeywell 8C-PAIH54 51307070-275

Product origin：USA

Dimensions:220 × 120 × 60 mm

Weight:0.2 kg

Regular channels, complete test instructions, and responsive services

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product Introduction：

Overview

The Honeywell 8C-PAIH54 51307070-275 is a 16-channel analog input module designed for use in Honeywell's Experion PKS C300 control systems. It converts analog signals from field devices into digital data for precise process monitoring and control.

General Information

Part Number: 8C-PAIH54 51307070-275

Manufacturer: Honeywell

Series: Experion PKS C300

Module Type: Analog Input Module (AI)

Country of Origin: USA

Mounting: Installed in Series-C I/O chassis

Input Channels: 16 isolated analog inputs

Power Specifications

Supply Voltage: 24 V DC (nominal)

Power Consumption: Approximately 6.5 W

Isolation: Optical isolation between channels and ground

Protection: Overvoltage, reverse polarity, and surge protection

Communication & Interface

Communication Protocol: HART (Highway Addressable Remote Transducer)

Interface: Field I/O (FIO) bus

System Compatibility: Honeywell Experion PKS C300

Input Signal Types:

Voltage: 0–5 V, 1–5 V, 0.4–2 V

Current: 4–20 mA (through 250 Ω)

Resolution: 16-bit A/D conversion

Accuracy:

±0.075% at 23.5°C ±2°C

±0.15% at 0–60°C

Common Mode Rejection Ratio (CMRR): 70 dB (DC–60 Hz)

Normal Mode Rejection Ratio (NMRR): 19 dB

Crosstalk: -60 dB

Environmental

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +105°C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for installation inside an industrial cabinet)

Dimensions & Weight

Dimensions (L × W × H): 220 × 120 × 60 mm

Weight: Approximately 0.3 kg

Brand-new original units in stock, supported by our online service team 24/7.

The product supply is stable, the delivery time is short, and the price is moderate. If there is a bulk demand, a separate quotation can be made.
