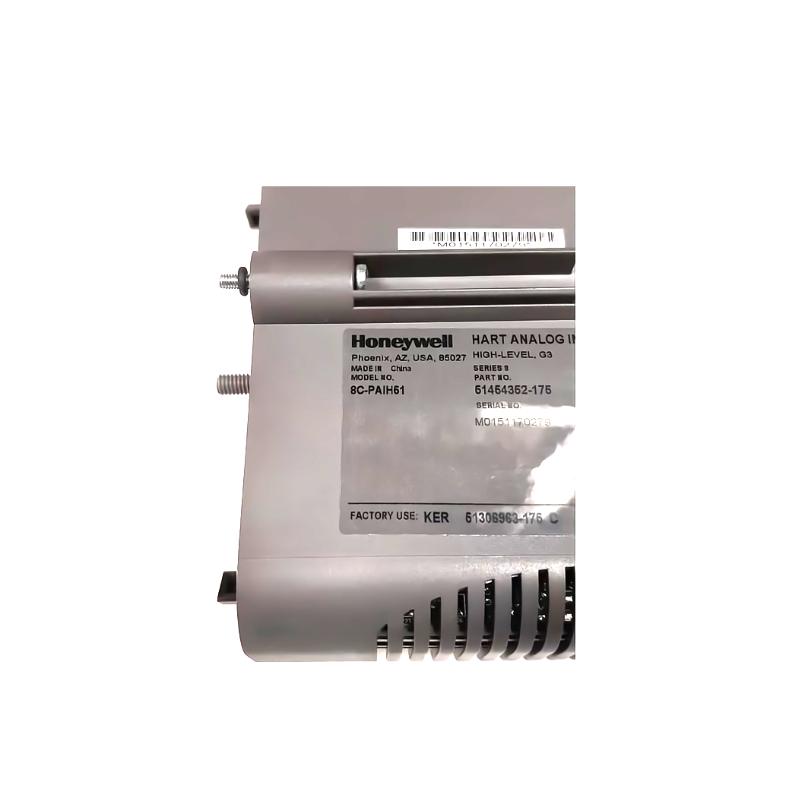

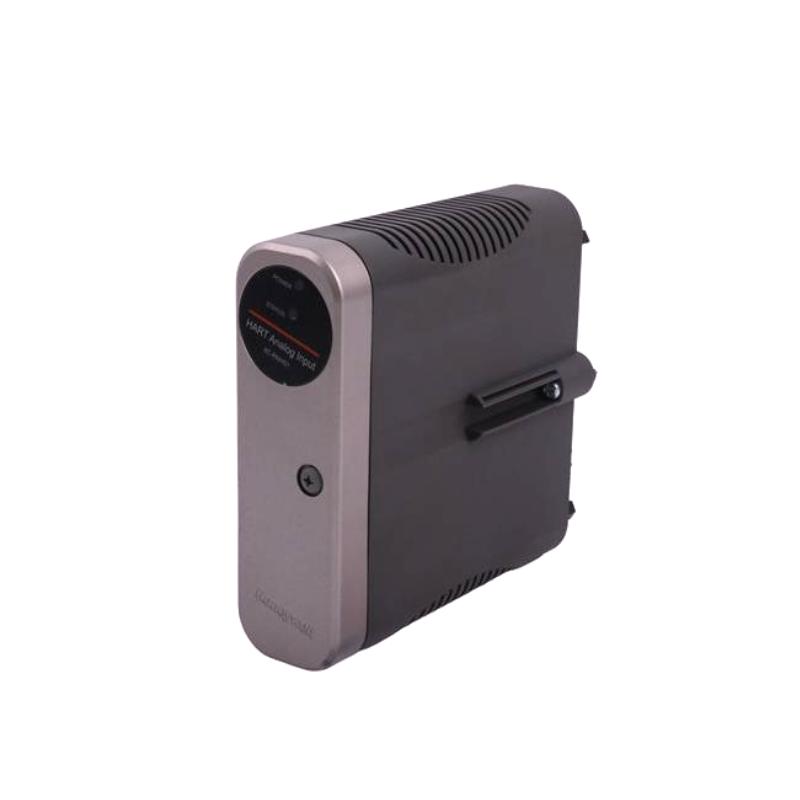

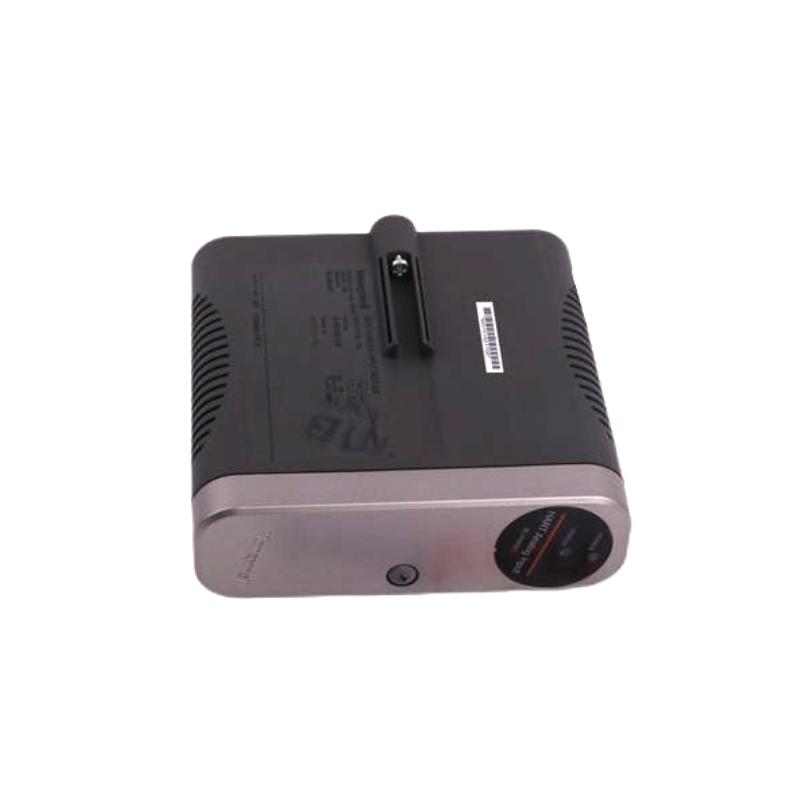

Honeywell 8C-PAIH51 51454352-175 Analog Input Module Shelf life 1 year Original

Brand：Honeywell DCS

Item No.：Honeywell 8C-PAIH51 51454352-175

Product origin：USA

Dimensions:61 × 157 × 144 mm

Weight:0.3 kg

The import process is standardized, supports testing, and after-sales service is guaranteed

Various models are flexible in stock, support quick response, welcome to cooperate and communicate!

Product Introduction：

Overview

The Honeywell 8C-PAIH51 51454352-175 is a 16-channel HART analog input module designed for use in Honeywell's Experion Series-C I/O system. It converts 4–20 mA analog signals from field devices into digital data for industrial control applications.

General Information

Part Number: 8C-PAIH51 51454352-175

Manufacturer: Honeywell

Series: Experion Series-C I/O

Module Type: Analog Input Module (AI)

Country of Origin: USA

Mounting: Installed in Series-C I/O chassis

Input Channels: 16 isolated analog inputs (4–20 mA DC)

Power Specifications

Supply Voltage: 24 V DC (nominal)

Power Consumption: Approximately 6.5 W

Isolation: Optical isolation between channels and ground

Protection: Overvoltage, reverse polarity, and surge protection

Communication & Interface

Communication Protocol: HART (Highway Addressable Remote Transducer)

Interface: Field I/O (FIO) bus

System Compatibility: Honeywell Experion Series-C I/O system

Input Signal Range: 4–20 mA DC

Resolution: 16-bit A/D conversion

Accuracy: ±0.1% of full scale

Diagnostics: LED indicators for power, communication, and channel status

Environmental

Operating Temperature: -40°C to +70°C

Storage Temperature: -40°C to +85°C

Humidity: 10% to 90% RH, non-condensing

Protection Rating: IP20 (for installation inside an industrial cabinet)

Dimensions & Weight

Dimensions (L × W × H): 61 × 157 × 144 mm

Weight: Approximately 0.3 kg

We provide verified new original parts, with full inventory and reliable service.

The channel of this product is real and reliable, the delivery efficiency is high, and it supports project-based procurement price coordination.
