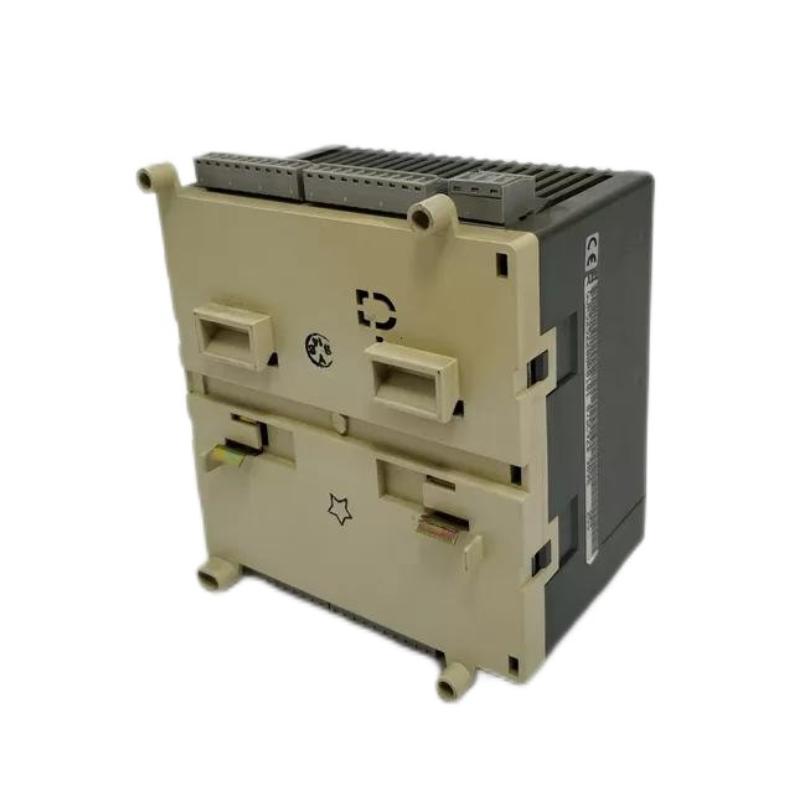

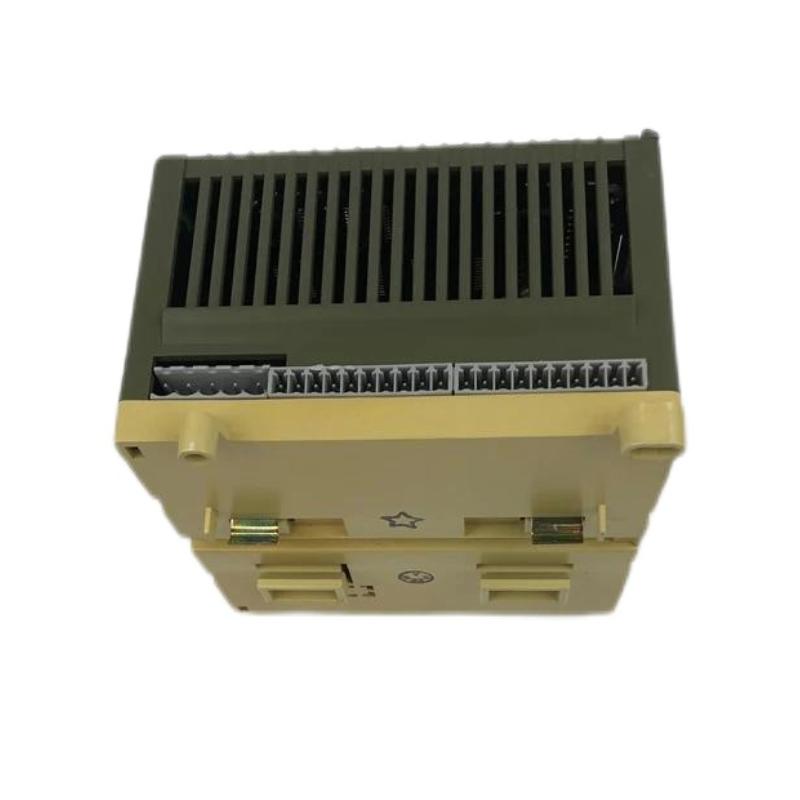

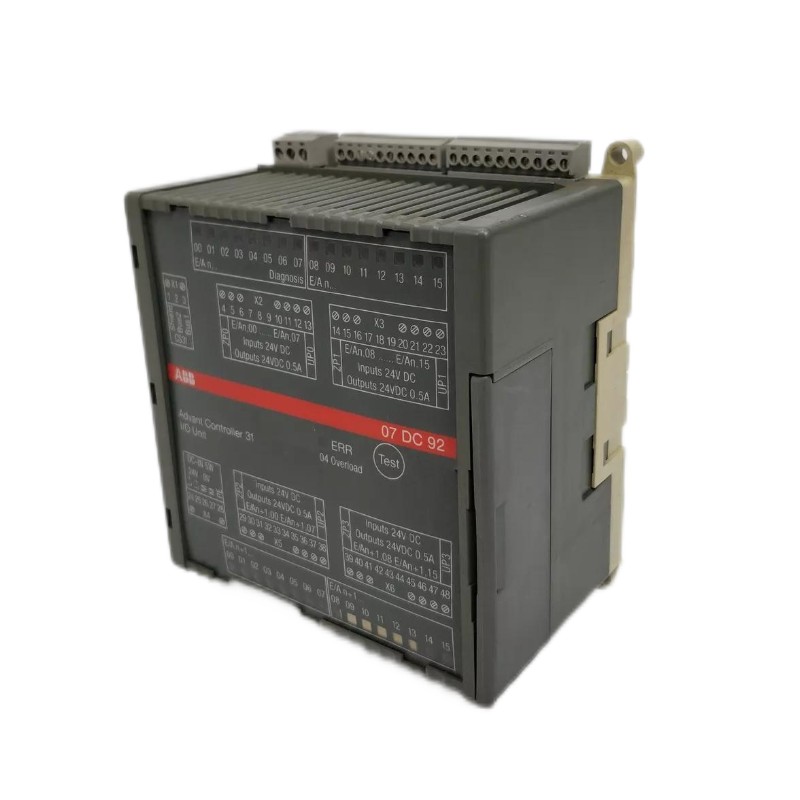

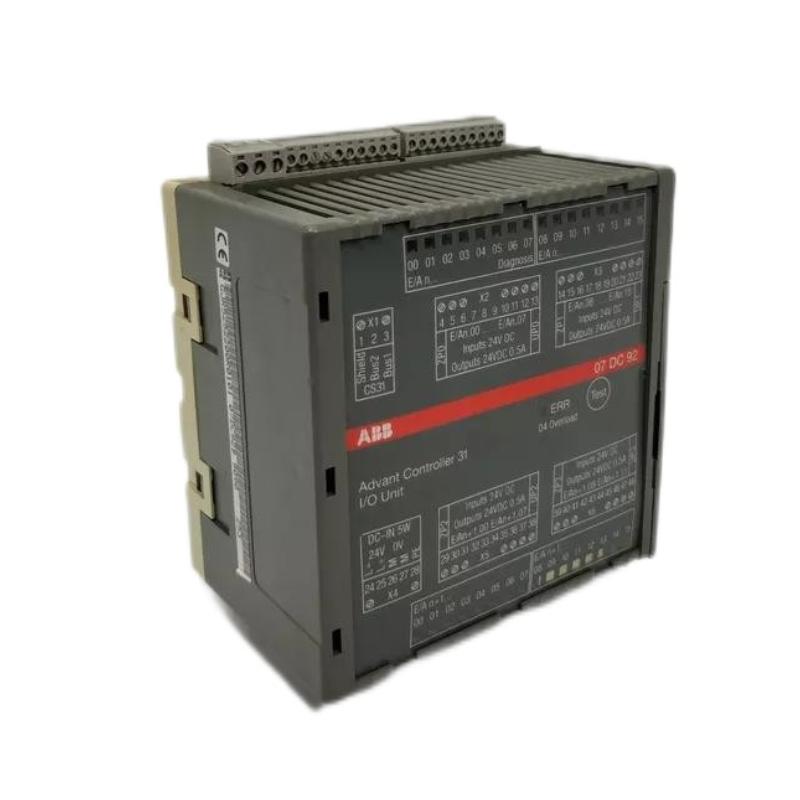

ABB 07DC92 GJR5252400R0101 Digital Input/Output Module New In Stock 12-Month Warranty

Brand：ABB PLC

Item No.：ABB 07DC92 GJR5252400R0101

Product origin：Sweden

Dimensions:120 × 140 × 85 mm

Weight:0.59 kg

Original overseas introduction, test assistance instructions support, stable and reliable service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The ABB 07DC92 GJR5252400R0101 is a digital input/output module designed for the Advant Controller 31 (AC31) system. It provides 32 configurable digital I/O channels operating at 24 V DC, suitable for industrial automation applications.

General Information

Part Number: GJR5252400R0101

Manufacturer: ABB (Asea Brown Boveri)

Series: Advant Controller 31 (AC31)

Type: Digital Input/Output Module

Mounting: DIN rail (35 mm x 15 mm or 35 mm x 7.5 mm)

Technology: 32 configurable digital I/O channels, 24 V DC, CS31 system bus interface

Power Specifications

Operating Voltage: 24 V DC

Input Voltage Range: 20 V DC to 28 V DC

Power Consumption:

Without Load (Outputs): Max. 5 W

Under Load (Outputs): Max. 10 W

Current Consumption:

Without Load: Max. 0.15 A

With Load: Max. 4.0 A (supply terminals)

Protection: Electrically isolated CS31 system bus connection

Indicators: 33 LEDs for status and error indication; test button

Communication & Interface

Bus Interface: CS31 system bus

Data Exchange: Up to 8 input words and 8 output words

Configuration: DIP switches for mode and module address

Diagnostics: Onboard diagnostics via LEDs and test button

I/O & Channels

Digital Inputs/Outputs: 32 channels, 24 V DC

Each channel can be configured individually as input, output, or re-readable output (combined input/output)

Outputs are transistorized with a nominal load rating of 0.5 A and are protected against overload and short circuit

The 32 channels are electrically isolated in 4 groups

Operating Modes: Configurable input/output types per channel

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: –25 °C to +75 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for internal cabinet installation)

Maximum Operating Altitude: 2000 m

Dimensions & Weight

Dimensions (L × W × H): 120 × 140 × 85 mm

Weight: 0.59 kg
