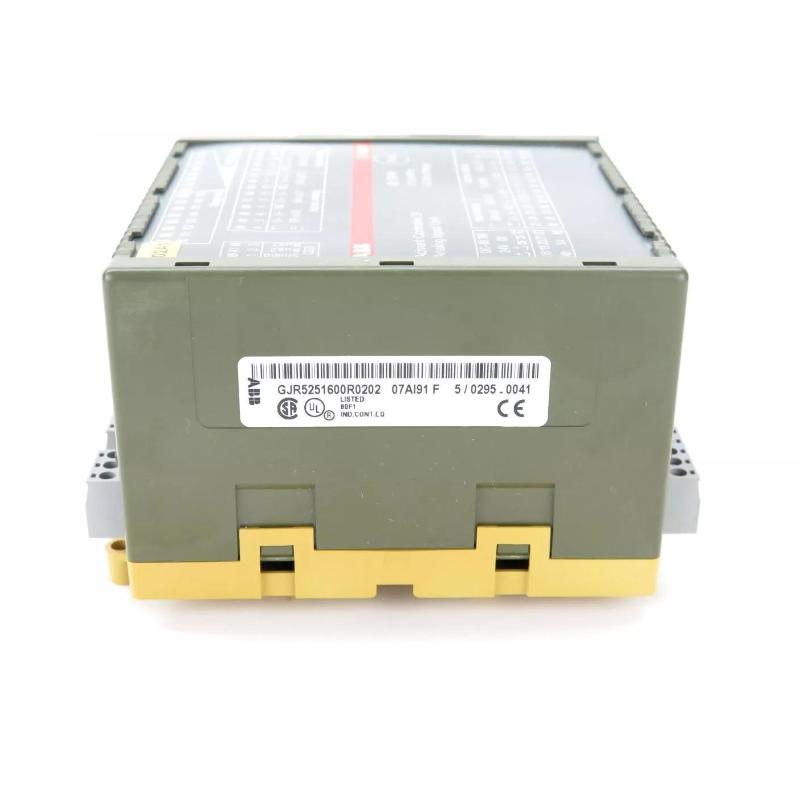

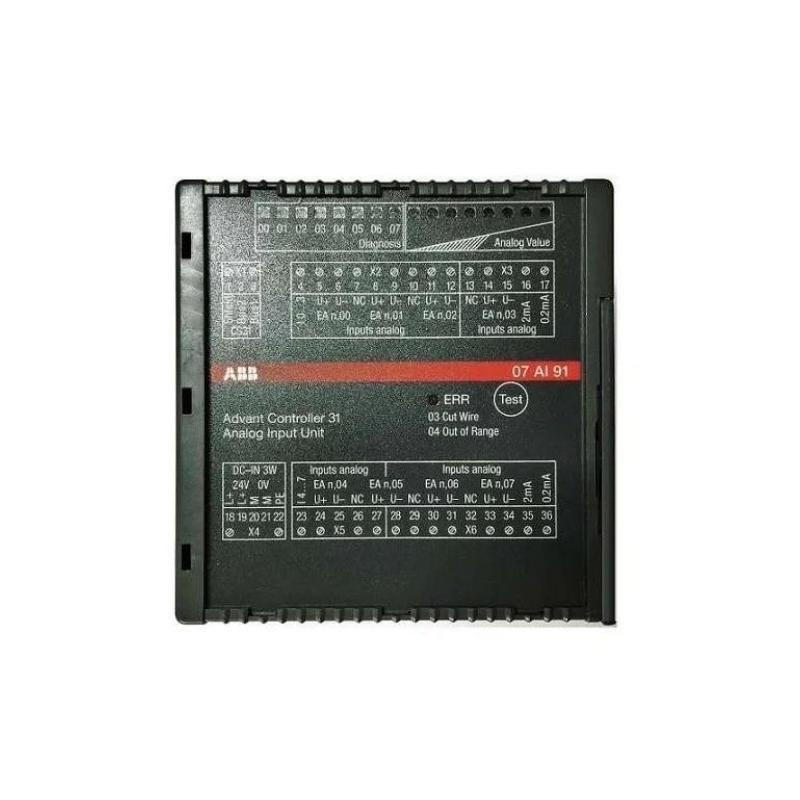

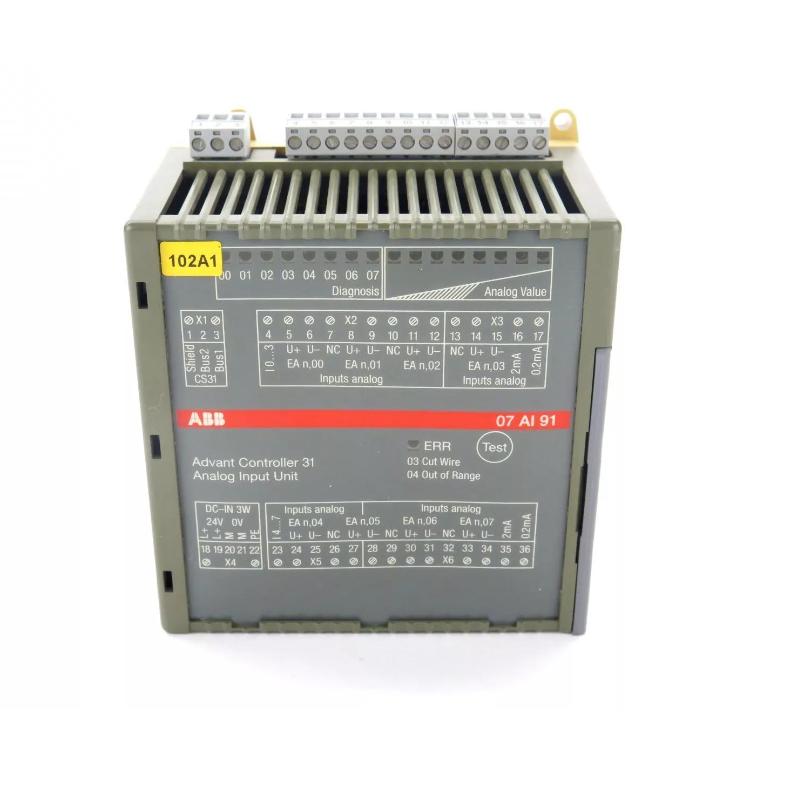

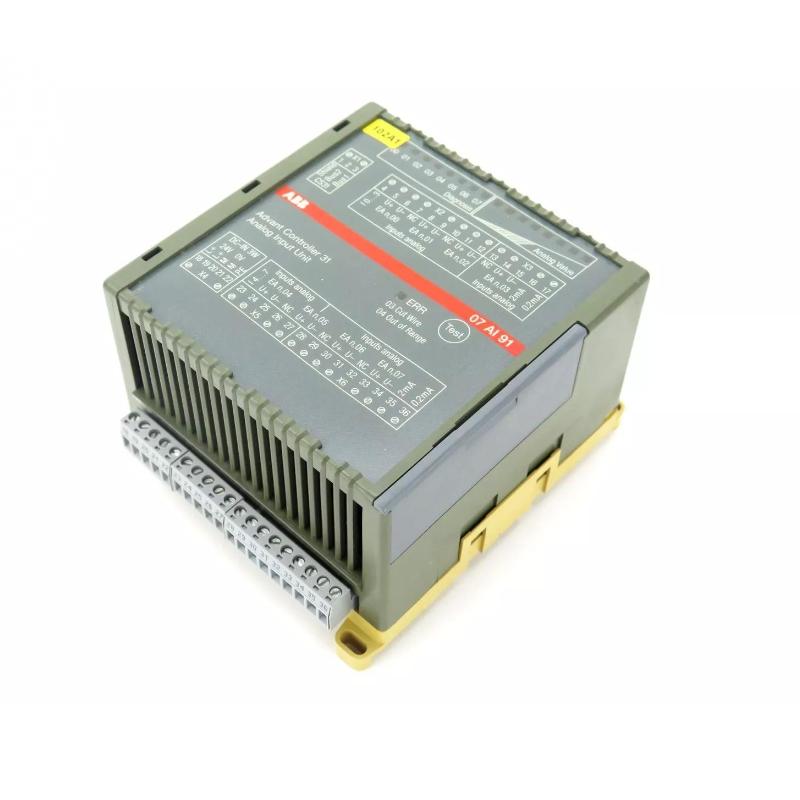

ABB 07AI91 GJR5251600R0202 Analog Input Module Efficient delivery 30-Day Returns！

Brand：ABB PLC

Item No.：ABB 07AI91 GJR5251600R0202

Product origin：Sweden

Dimensions:120 × 140 × 85 mm

Weight:0.45 kg

Formal channels, complete test instructions, responsive service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The ABB 07AI91 GJR5251600R0202 is an analog input module used in ABB’s Advant Controller 31 (AC31) and Advant OCS systems. It provides 8 configurable analog input channels, supporting various voltage, current, and temperature sensor types, and operates on the CS31 system bus.

General Information

Part Number: GJR5251600R0202

Manufacturer: ABB (Asea Brown Boveri)

Brand Origin: Sweden

Series: Advant Controller 31 (AC31)

Type: Analog Input Module

Mounting: DIN rail (15 mm high) or screw-mounted

Technology: 8 configurable analog input channels, 12-bit resolution, CS31 system bus interface

Power Specifications

Operating Voltage: 24 V DC

Input Voltage Range: 20 V DC to 28 V DC

Power Consumption: ≤ 5 W

Current Consumption: ≤ 0.2 A

Protection: Electrically isolated CS31 system bus connection

Indicators: 17 LEDs for channel selection and diagnostics; test button

Communication & Interface

Bus Interface: CS31 system bus

Data Exchange: Up to 8 input words and 8 output words

Configuration: DIP switches for setting operating mode and module address

Diagnostics: Onboard diagnostics via LEDs and test button

I/O & Channels

Analog Inputs: 8 channels, configurable for:

Voltage: ±10 V, ±5 V, ±500 mV, ±50 mV

Current: 0–20 mA (with external 250 Ω resistor)

Temperature Sensors: Pt100, Pt1000 (3-wire), Thermocouples (J, K, S)

Resolution: 12-bit + sign

Operating Modes: Configurable input types per channel

Environmental

Operating Temperature: 0 °C to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for internal cabinet installation)

Dimensions & Weight

Dimensions (L × W × H): 120 × 140 × 85 mm

Weight: 0.45 kg
