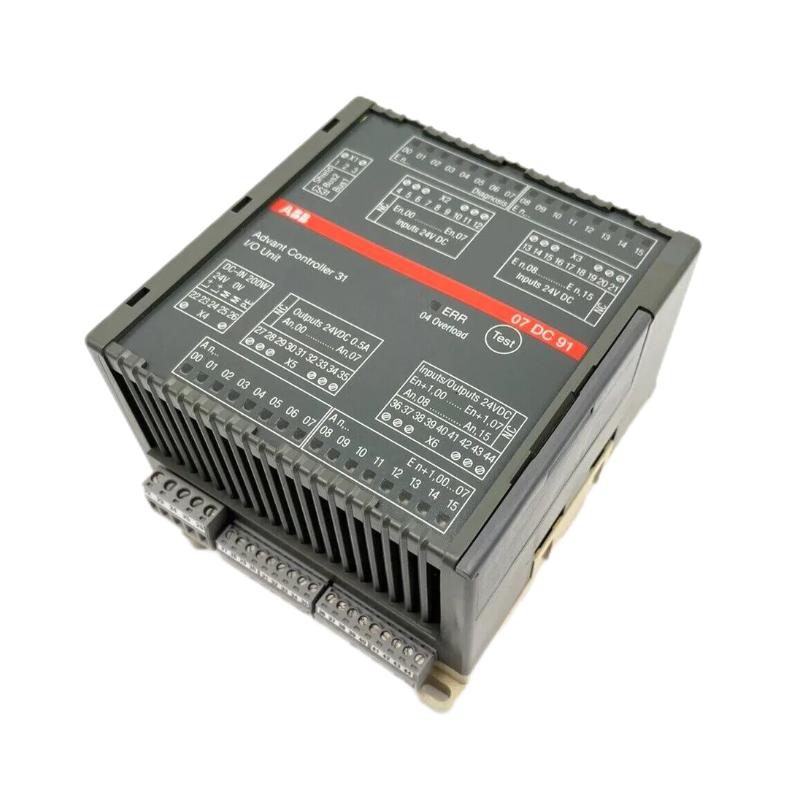

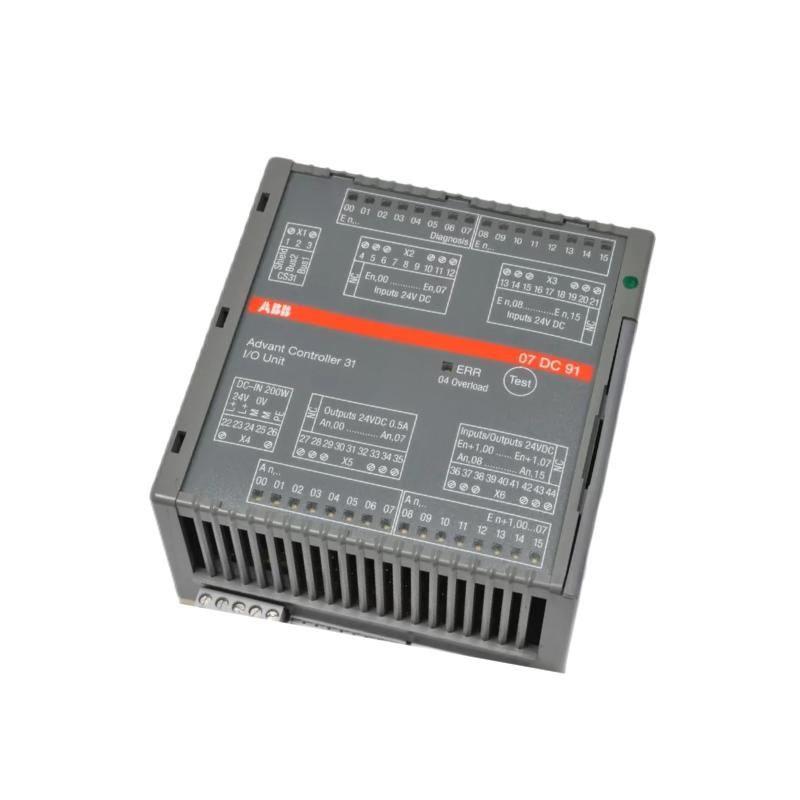

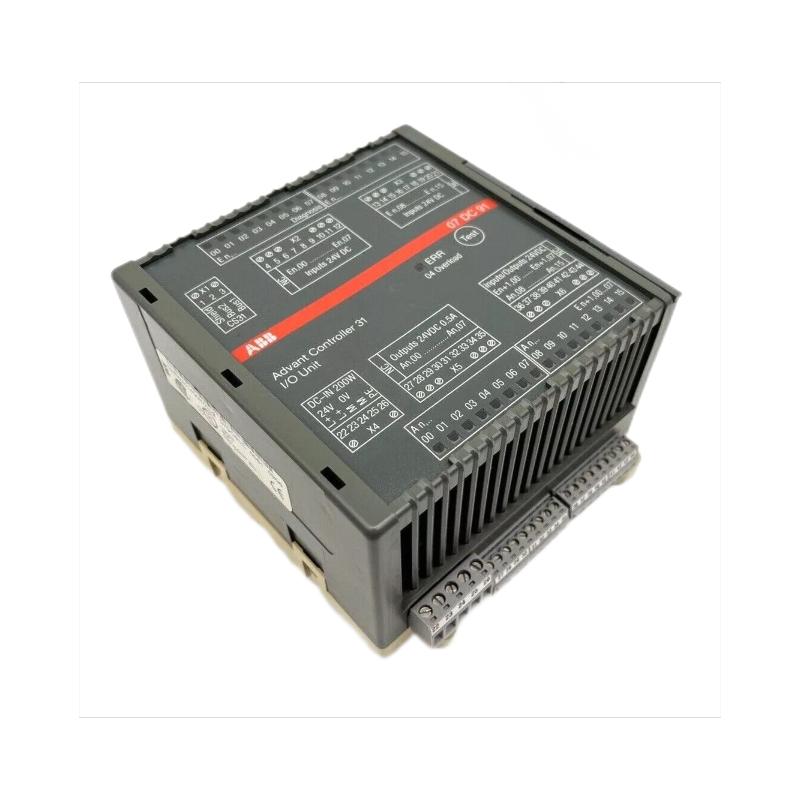

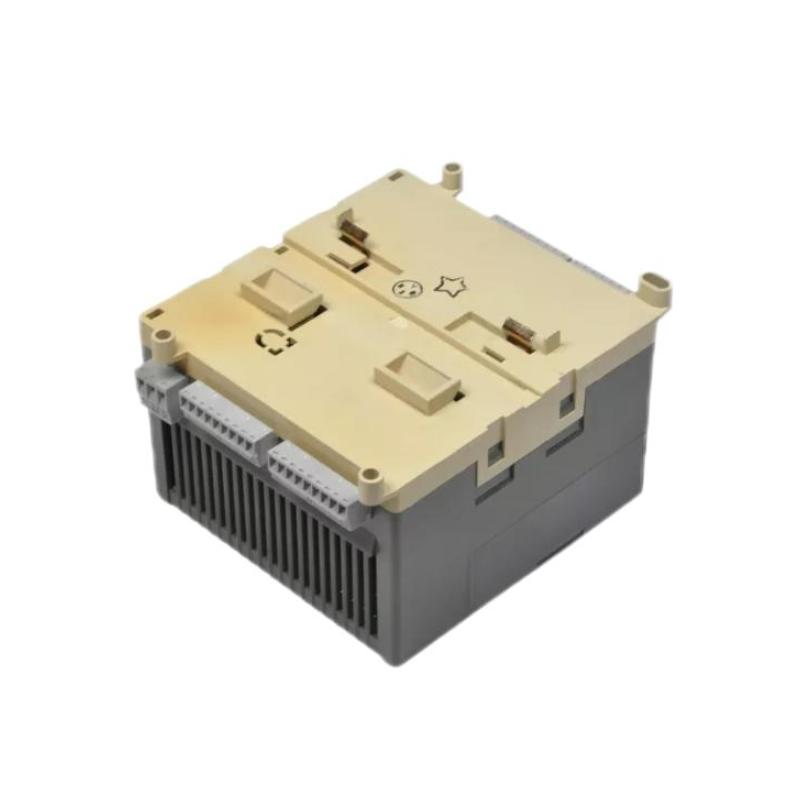

ABB 07DC91 GJR5251400R0202 Digital Input/Output Module 30-Day Returns Fast Shipping!

Brand：ABB PLC

Item No.：ABB 07DC91 GJR5251400R0202

Product origin：Sweden

Dimensions:120 × 140 × 85 mm

Weight:1.07 kg

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

Tens of thousands of models are in stock, and the spot is shipped quickly. Welcome to consult!

Product Introduction：

Overview

The ABB 07DC91 GJR5251400R0202 is a digital input/output module for ABB Advant Controller 31 (AC31) and Advant OCS systems. It provides 16 digital inputs, 8 digital outputs, and 8 configurable I/O channels, supporting 24 V DC signals, and operates via the CS31 system bus.

General Information

Part Number: GJR5251400R0202

Manufacturer: ABB (Asea Brown Boveri)

Brand Origin: Switzerland

Series: Advant Controller 31 (AC31)

Type: Digital Input/Output Module

Mounting: DIN rail or screw-mounted inside control cabinet

Technology: 16 digital inputs, 8 digital outputs, 8 configurable I/O channels, 24 V DC signals, CS31 system bus interface

Power Specifications

Operating Voltage: 24 V DC

Input Voltage Range: 20–28 V DC

Power Consumption: ≤ 5 W

Current Consumption: ≤ 0.2 A

Protection: Electrically isolated CS31 bus connection

Indicators: 17 LEDs for channel selection and diagnostics; test button

Communication & Interface

Bus Interface: CS31 system bus

Data Exchange: Up to 8 input words and 8 output words

Configuration: DIP switches for mode and module address

Diagnostics: Onboard diagnostics via LEDs and test button

I/O & Channels

Digital Inputs: 16 channels, 24 V DC

Digital Outputs: 8 channels, 24 V DC, 0.5 A maximum output current

Configurable I/O Channels: 8 channels, configurable as input or output

Operating Modes: Each channel can be configured individually as input or output

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: –25 °C to +75 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for internal cabinet installation)

Dimensions & Weight

Dimensions (L × W × H): 120 × 140 × 85 mm

Weight: 1.07 kg
