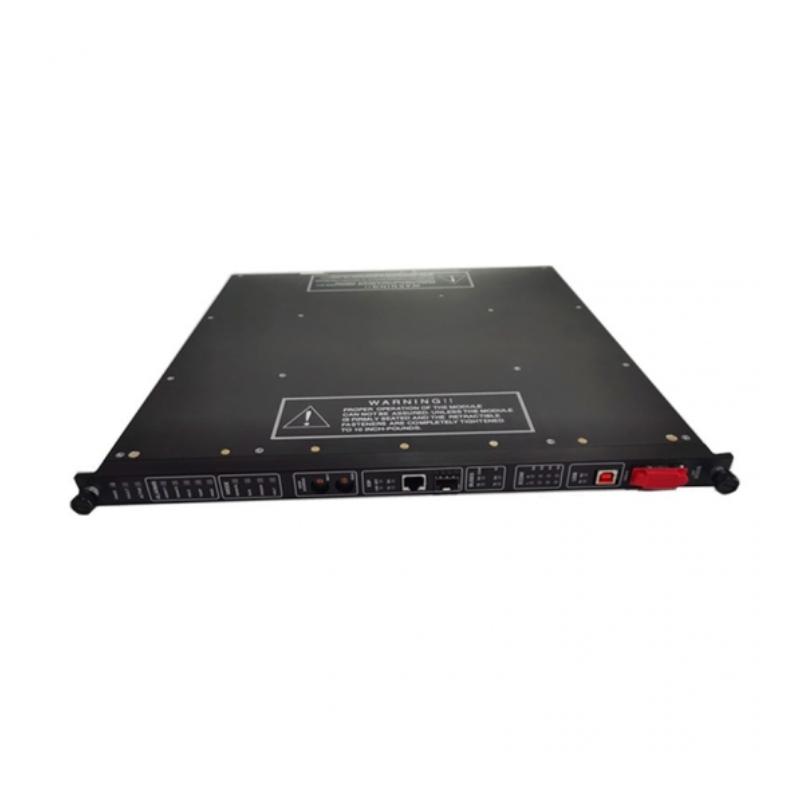

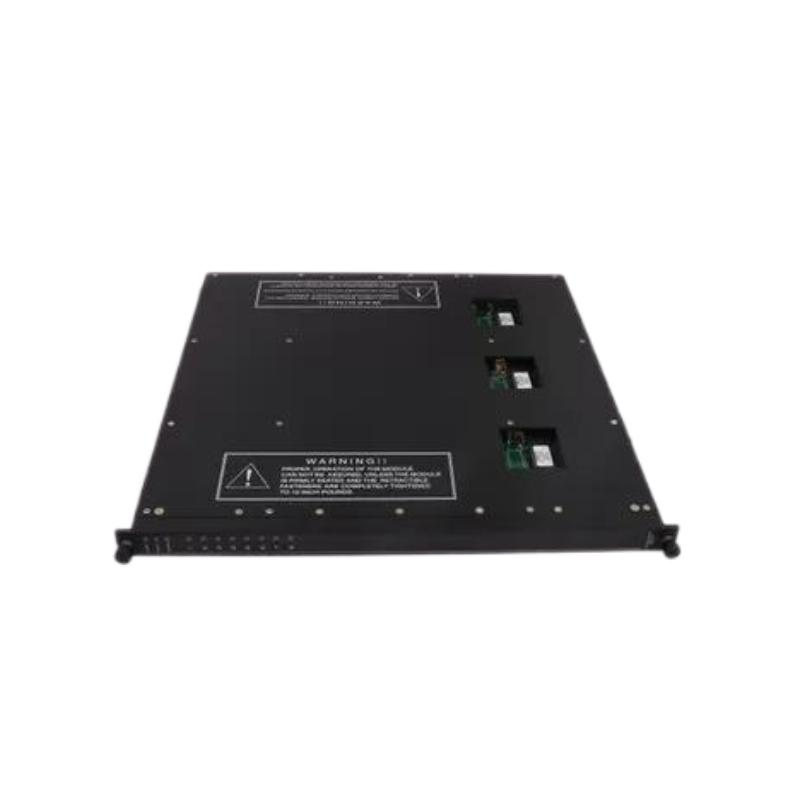

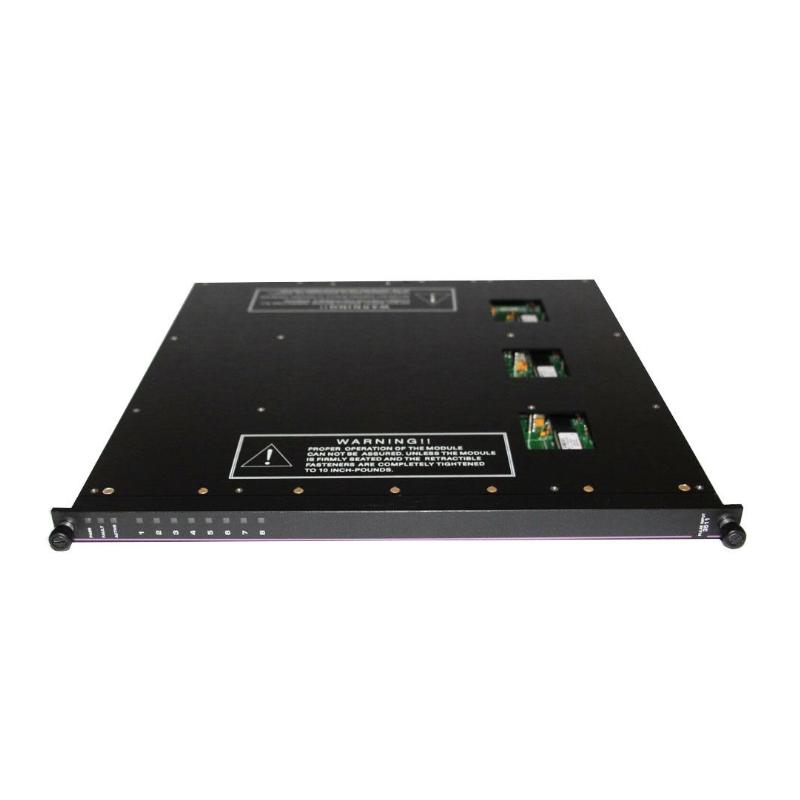

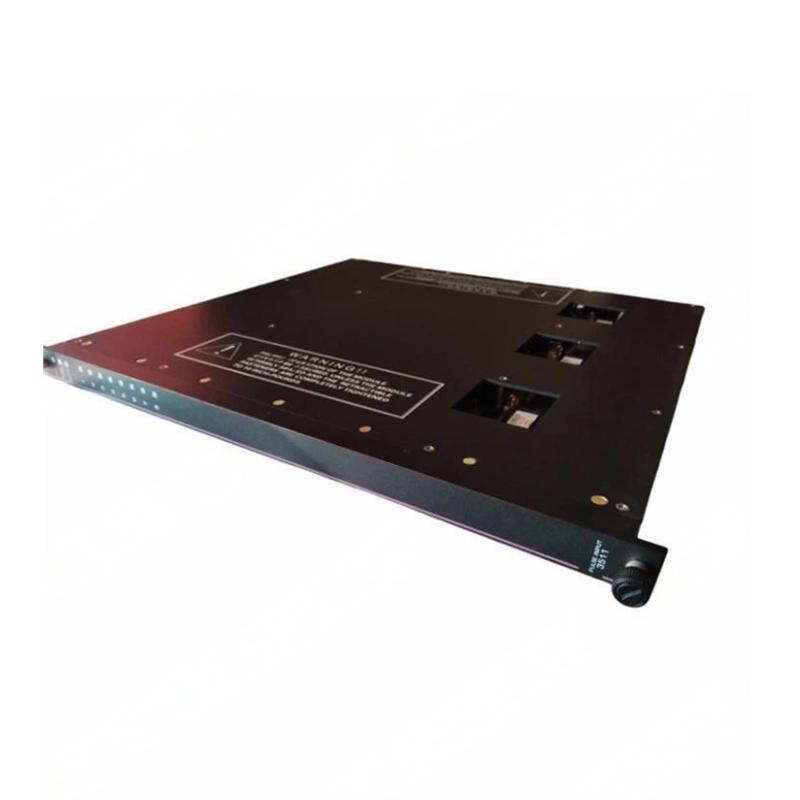

Triconex 3511 Pulse Input Module Hot Items 100% New

Brand：Invensys Triconex

Item No.：Triconex 3511

Product origin：USA

Dimensions:270 x 46 x 253 mm

Weight:3.03 kg

Formal channels, complete test instructions, responsive service

Sufficient inventory of tens of thousands of models, fast delivery from stock, welcome to consult!

Product Introduction：

Overview

The Triconex 3511 is a high-performance Pulse Input (PI) module designed for use in Triconex Safety Instrumented Systems (SIS). It is optimized for monitoring high-frequency signals from rotating equipment such as turbines and compressors.

General Information

Model / Type: 3511

Manufacturer: Triconex (Schneider Electric)

Country of Origin: USA

Product Category: Pulse Input Module

Application: Safety Instrumented Systems (SIS), industrial automation

Electrical & Functional Specifications

Input Channels: 8 non-commoned inputs

Input Type: Pulse signals from magnetic speed sensors

Frequency Range: 1,000 Hz to 20,000 Hz

Resolution: 16 bits

Accuracy: ±0.01%

Input Characteristics: AC coupled, balanced differential

Update Rate: 25 ms (typical)

Impedance (load): > 8 kΩ, 20 kΩ typical

Common Mode Range: ±100 VDC peak-to-peak

Normal Mode Range: 1.5 V to 200 V peak-to-peak

Overrange Protection: ±150 VDC, continuous

Hysteresis: 150 millivolts (typical)

Wave Shape: Sine, square, pulse, etc.

Duty Cycle: 10% to 90%

Color Code: Light Purple

Weight: Approximately 3.03 kg

Environmental Conditions

Operating Temperature Range: −40 °C to +70 °C

Storage Temperature Range: −40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (module designed for internal cabinet environment)

Dimensions & Weight

Dimension: 270 x 46 x 253 mm

Weight: Approximately 3.03 kg
