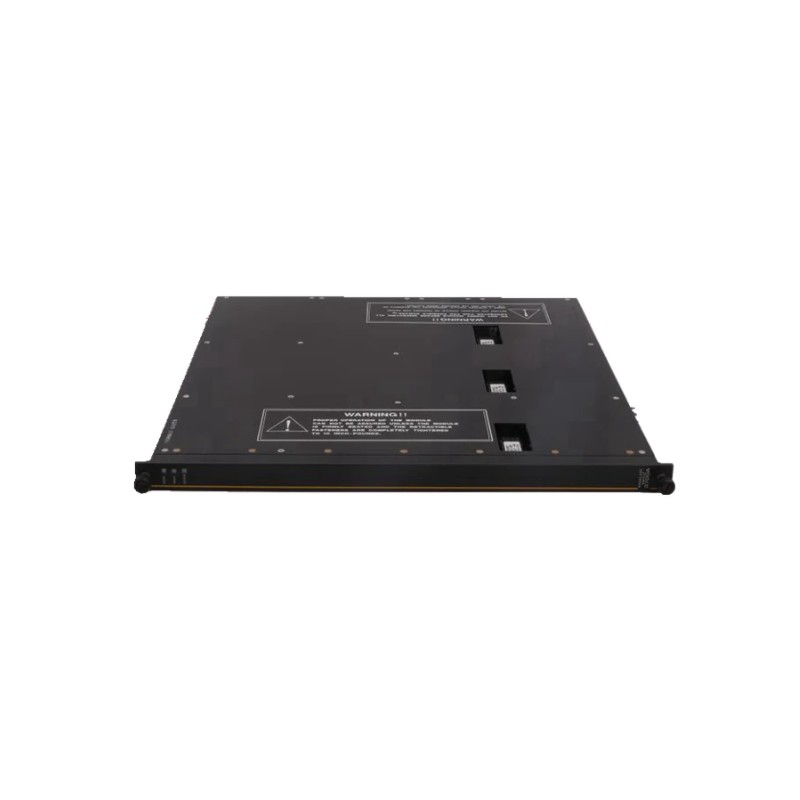

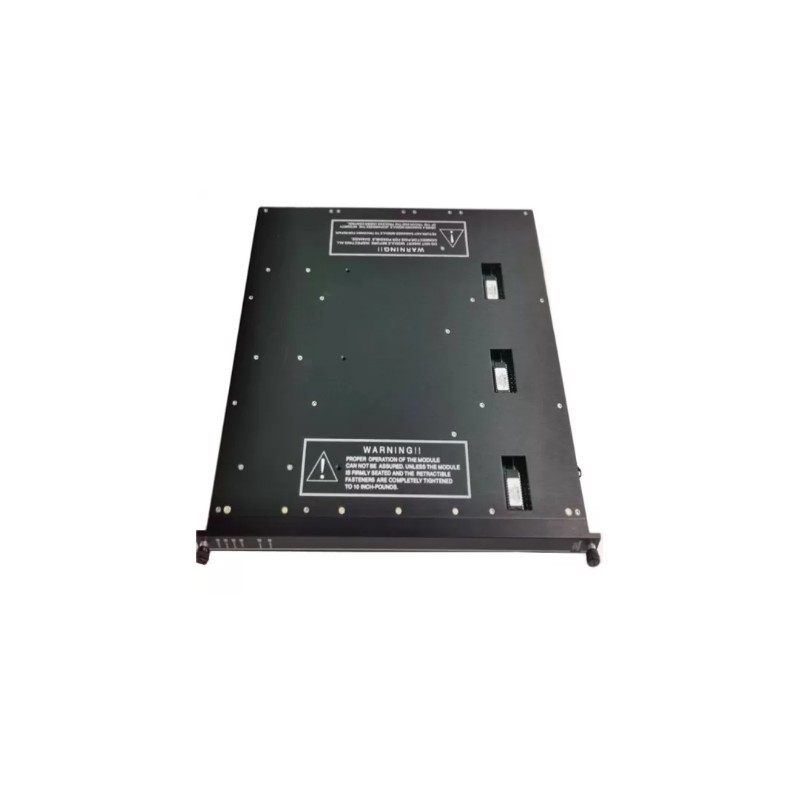

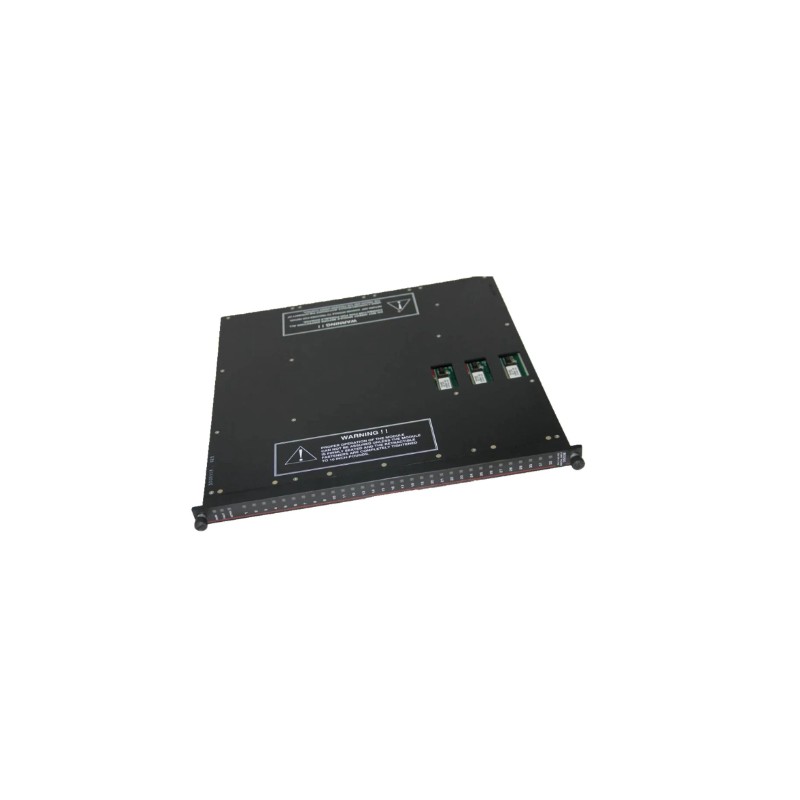

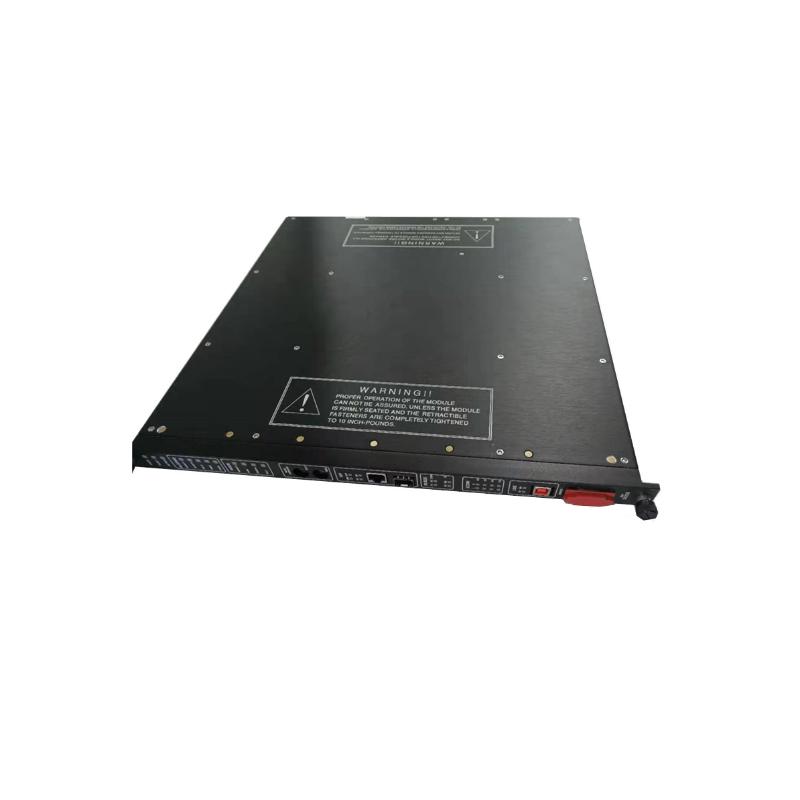

Triconex 3009 Main Processor Module 30-Day Returns 12-Month Warranty

Brand：Invensys Triconex

Item No.：Triconex 3009

Product origin：USA

Dimensions:162 × 107 × 51 mm

Weight:0.68 kg

Regular channels, complete test instructions, and responsive services

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product Introduction：

Overview

The Triconex 3009 is an Enhanced Main Processor (UMP) module designed for use in Triconex Safety Instrumented Systems (SIS). It is part of the Triconex product line, which is now owned by Schneider Electric following the acquisition of Invensys in 2013.

General Information

Model / Type: 3009 Enhanced Main Processor

Manufacturer: Triconex (Schneider Electric)

Country of Origin: USA

Product Category: Main Processor Module

Application: Safety Instrumented Systems (SIS), industrial automation

Electrical & Functional Specifications

Microprocessor: Motorola MPC860, 32-bit, 50 MHz

Memory:

DRAM: 16 MB (non-battery backed-up)

SRAM: 32 KB (battery backed-up)

Communication:

Protocol: RS-485

Baud Rate: 375 kbps

Protocol: RS-485

Baud Rate: 2 Mbps

TriBus: 25 Mbps, 32-bit CRC protected, fully isolated 32-bit DMA

Serial Port: For diagnostic analysis

Optically Isolated RS-232 Interface: One 25-pin connector, 500 VDC isolation

Communication Interface:

I/O Interface:

Indicators:

PASS: Module has passed self-diagnostic tests

FAULT: Module has a fault and should be replaced

ACTIVE: Module is executing the user-written control program

MAINT1 / MAINT2: Maintenance indicators

COM TX / RX: Transmitting/Receiving data across COMM bus

I/O TX / RX: Transmitting/Receiving data across I/O bus

Power Consumption: Approximately 5 W

Environmental Conditions

Operating Temperature Range: –25 °C to +70 °C

Storage Temperature Range: –40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Mounting: Rack or chassis mounting in Tricon system

Protection Rating: IP20 (module designed for internal cabinet environment)

Dimensions & Weight

Dimension: Approximately 162 × 107 × 51 mm

Weight: Approximately 0.68 kg
