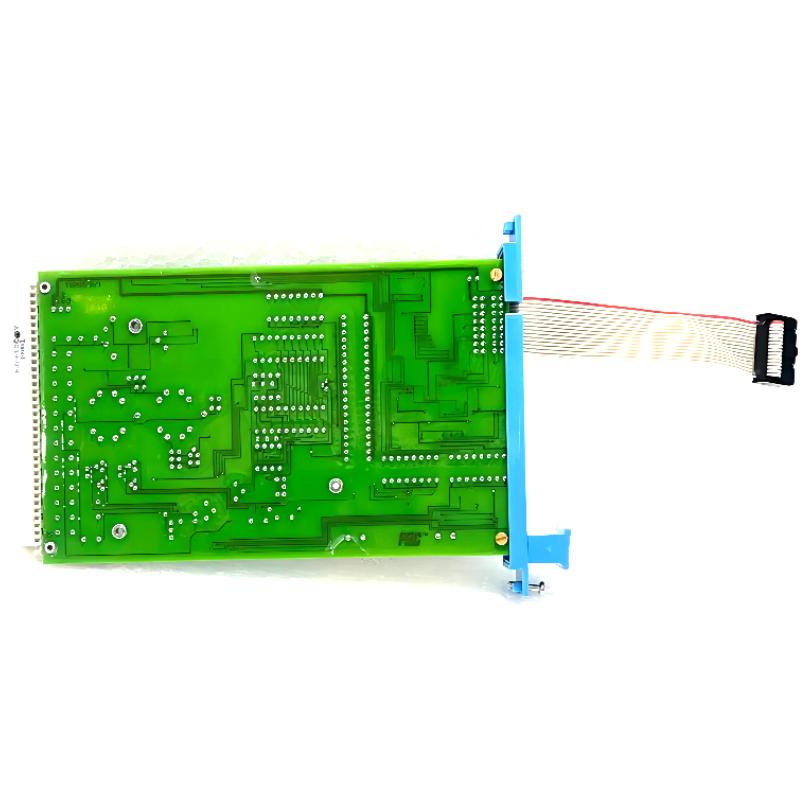

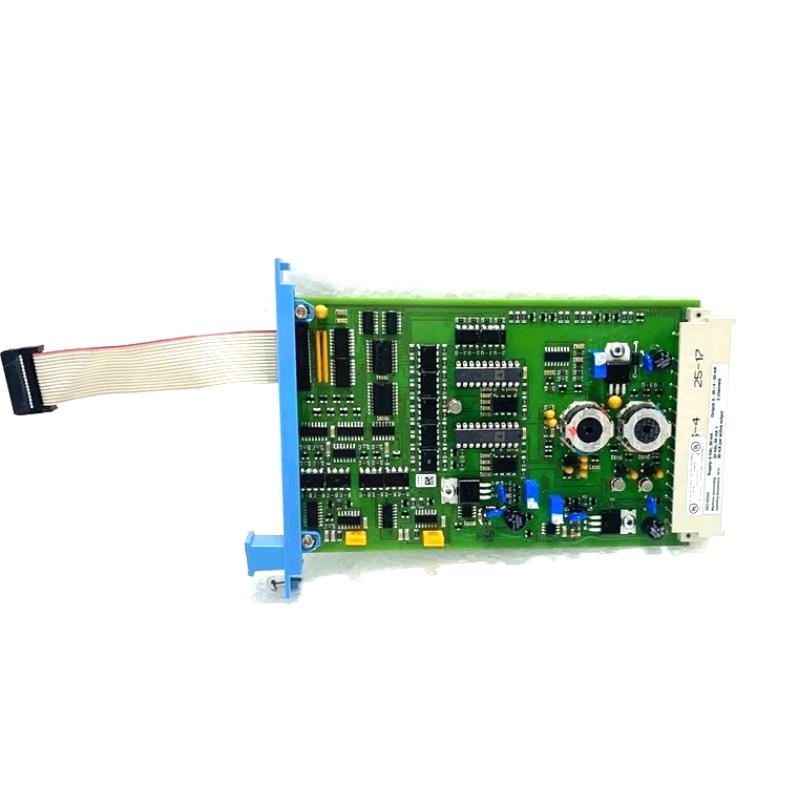

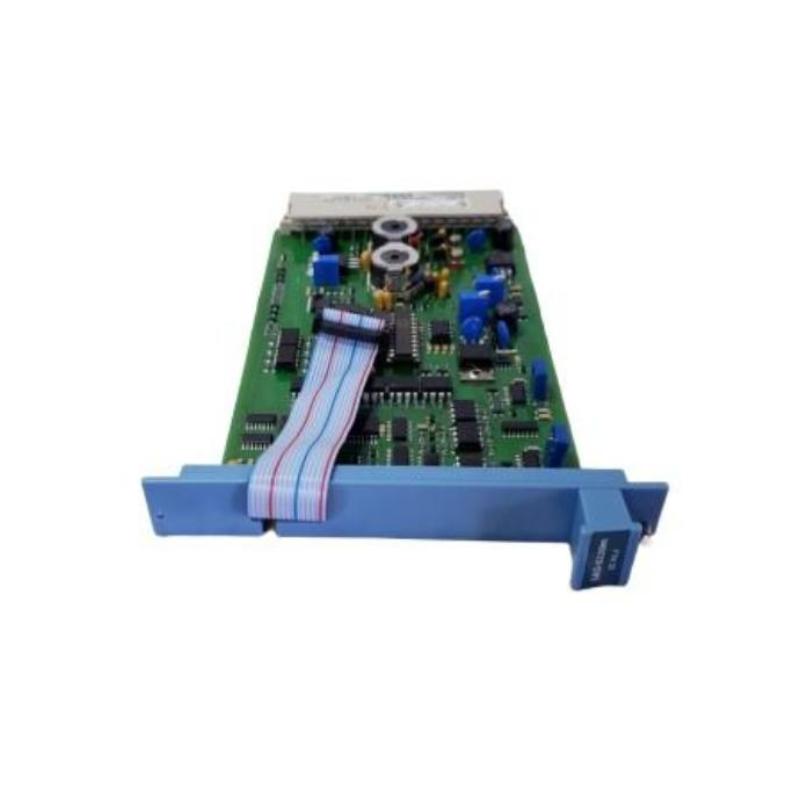

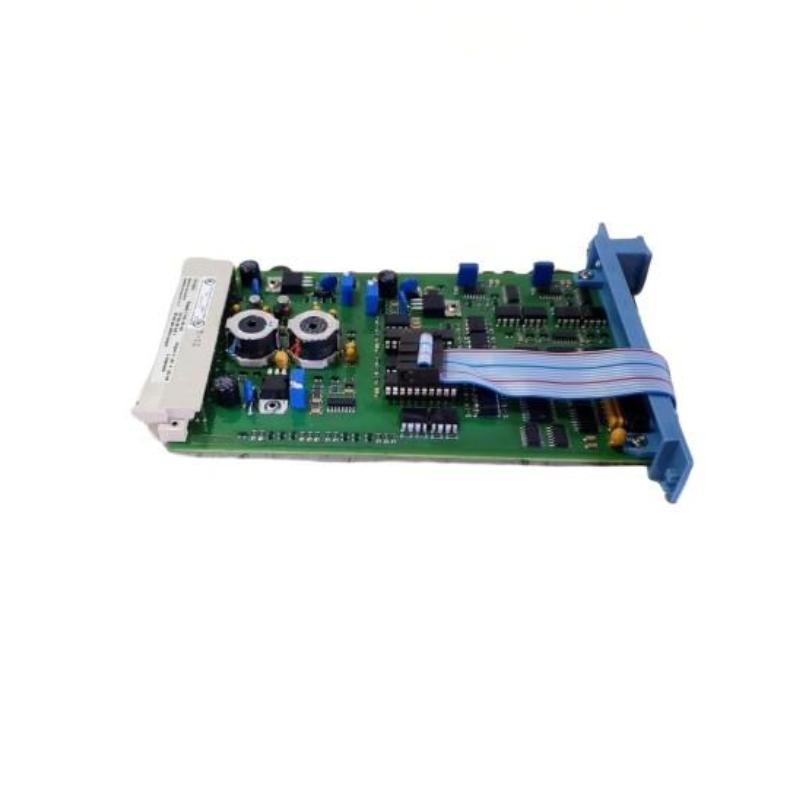

Honeywell FC-SAO-022M Safe Analog Output Module Trusted supplier 100% New

Brand：Honeywell DCS

Item No.：Honeywell FC-SAO-022M

Product origin：USA

Dimensions:100 x 180 x 100mm

Weight:0.5 kg

Formal channels, complete test instructions, and responsive services

Ten thousand models in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview

The Honeywell FC-SAO-022M is a safety-rated analog output module designed for industrial control and safety systems. It provides two analog output channels (0/4-20 mA) and is intended for use with the Honeywell Safety Manager platform and other high-integrity control networks.

General Information

Model / Type: FC-SAO-022M

Manufacturer: Honeywell

Country of Origin: United States

Product Category: Safe Analog Output Module – 2 channels, 0/4-20 mA

Typical Application: Safety instrumented systems (SIS), process control systems, redundant I/O racks

Electrical & Functional Specifications

Number of Output Channels: 2 (galvanically isolated from the 24 V DC and 5 V DC supplies)

Output Signal Range: 0-20 mA or 4-20 mA (selectable, active or passive)

D/A Resolution: 12-bit digital to analog converter for each channel

Monitoring: Each channel includes an A/D converter to read back the output value for diagnostics

Load Types Supported: Resistive or capacitive loads only; inductive loads are not permitted

Max Loop Resistance (Active, Loop Powered): 600 Ω

Max Output Voltage (Active): 30 V DC

Max External Supply Voltage (Passive Mode): 40 V DC; minimum voltage drop ~7.5 V

Off-Current (no output): < 0.05 mA

Power Requirements: 5 V DC supply ~30 mA; 24 V DC supply ~65 mA plus ~30 mA for each active output channel

Diagnostic Test Features:

Output value monitoring (±5%)

De-energize capability check

Cross-talk between outputs detection

Secondary de-energizing mechanism (SMOD) for safety

Approvals / Certifications: CE, TUV, UL, CSA, FM (as part of Honeywell Safety Manager system)

Environmental Conditions

Operating Temperature Range: Approximately –20 °C to +60 °C (some sources up to +70 °C)

Storage Temperature Range: Approximately –40 °C to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (typical rack / cabinet environment)

Mounting: Fits in standard Honeywell I/O rack frame; space requirement about 4 TE (module width) and 3U height

Dimensions & Weight

Dimensions: 100 x 180 x 100mm

Weight: 0.5 kg
