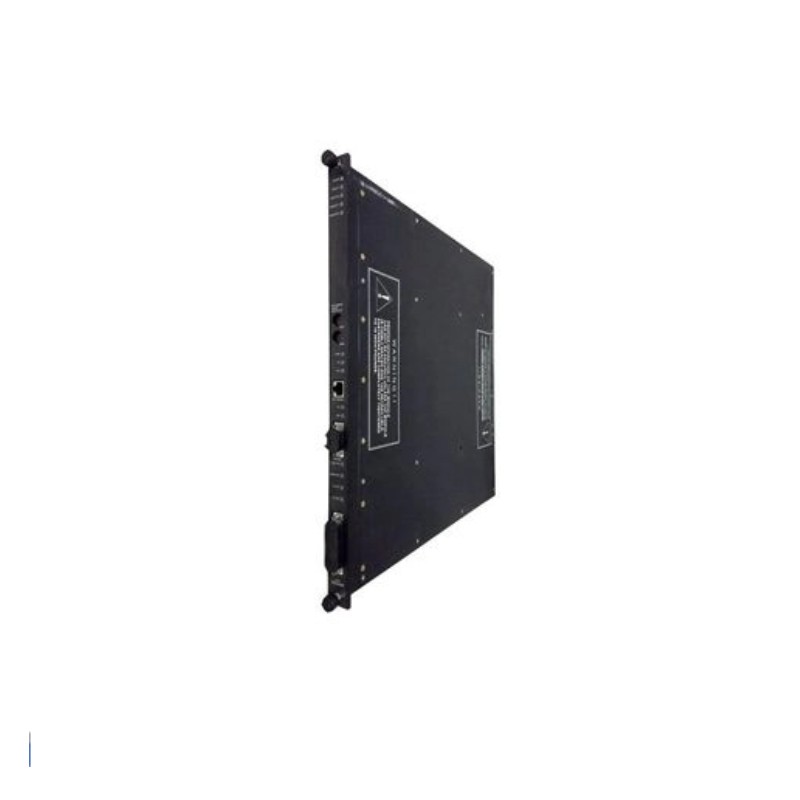

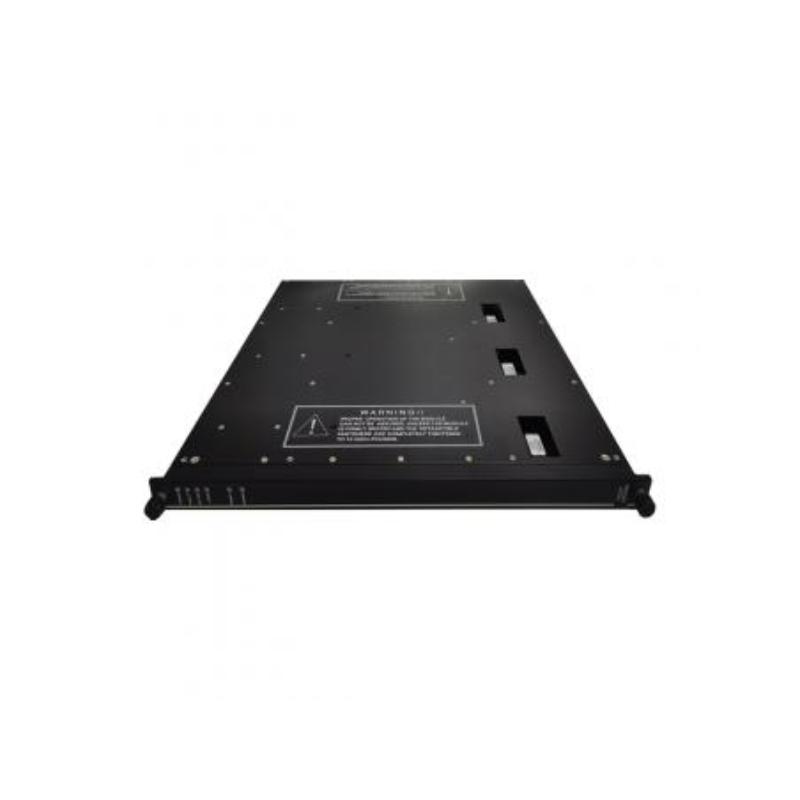

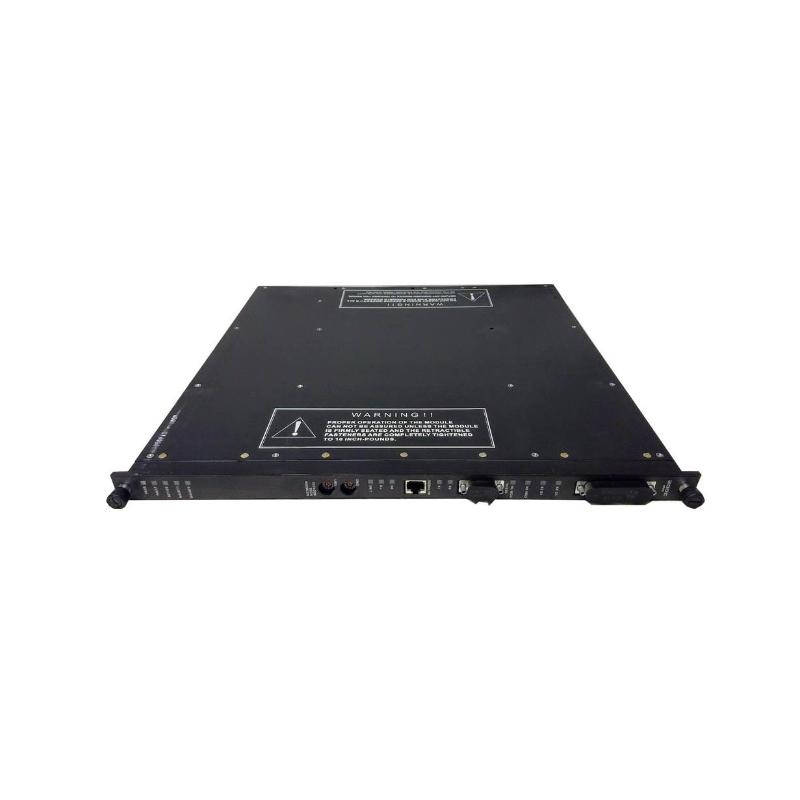

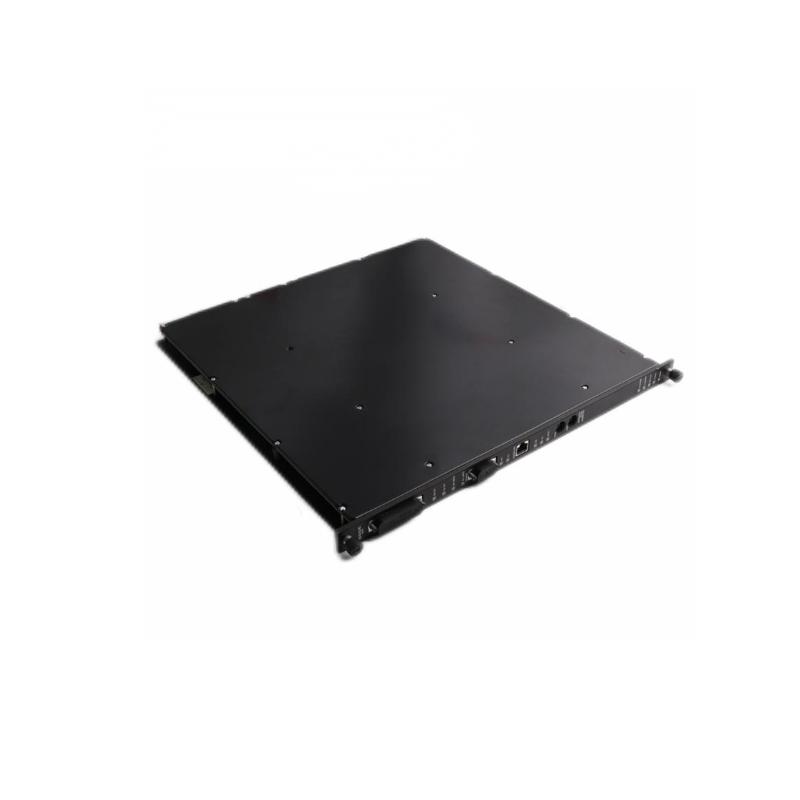

Triconex 3008 Main Processor Module Unbelievable Prices 12-Month Warranty

Brand：Invensys Triconex

Item No.：Triconex 3008

Product origin：USA

Dimensions:162 × 107 × 51 mm

Weight:0.68 kg

Original overseas introduction, testing assistance and support, stable and reliable service

The inventory covers multiple brands and series, supports fast delivery, welcome to call for negotiation!

Product Introduction：

Overview

The Triconex 3008 Main Processor (MP) is a high-performance, triple-modular redundant (TMR) processor designed for use in Tricon systems, particularly in safety instrumented systems (SIS). It executes user-written control programs and communicates with the I/O subsystem, ensuring high availability and reliability in critical applications.

General Information

Model / Type: 3008 Main Processor

Manufacturer: Triconex (Schneider Electric)

Country of Origin: USA

Product Category: Main Processor Module

Application: Safety Instrumented Systems (SIS), industrial automation

Electrical & Functional Specifications

Microprocessor: Motorola MPC860, 32-bit, 50 MHz

Memory:

DRAM: 16 MB (non-battery backed-up)

SRAM: 32 KB (battery backed-up)

Flash PROM: 6 MB

Communication:

Protocol: RS-485

Baud Rate: 375 kbps

Protocol: RS-485

Baud Rate: 2 Mbps

TriBus: 25 Mbps, 32-bit CRC protected, fully isolated 32-bit DMA

Serial Port: For diagnostic analysis

Optically Isolated RS-232 Interface: One 25-pin connector, 500 VDC isolation

Communication Interface:

I/O Interface:

Indicators:

PASS: Module has passed self-diagnostic tests

FAULT: Module has a fault and should be replaced

ACTIVE: Module is executing the user-written control program

MAINT1 / MAINT2: Maintenance indicators

COM TX / RX: Transmitting/Receiving data across COMM bus

I/O TX / RX: Transmitting/Receiving data across I/O bus

Power Consumption: Approximately 5 W

Environmental Conditions

Operating Temperature Range: –25 °C to +70 °C

Storage Temperature Range: –40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Mounting: Rack or chassis mounting in Tricon system

Protection Rating: IP20 (module designed for internal cabinet environment)

Dimensions & Weight

Dimension: Approximately 162 × 107 × 51 mm

Weight: Approximately 0.68 kg
