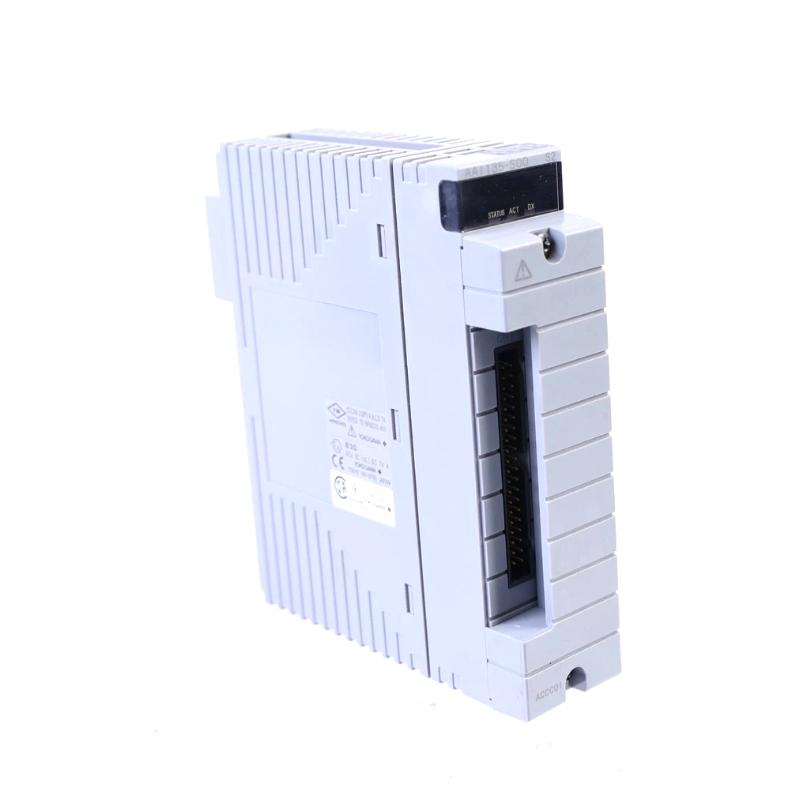

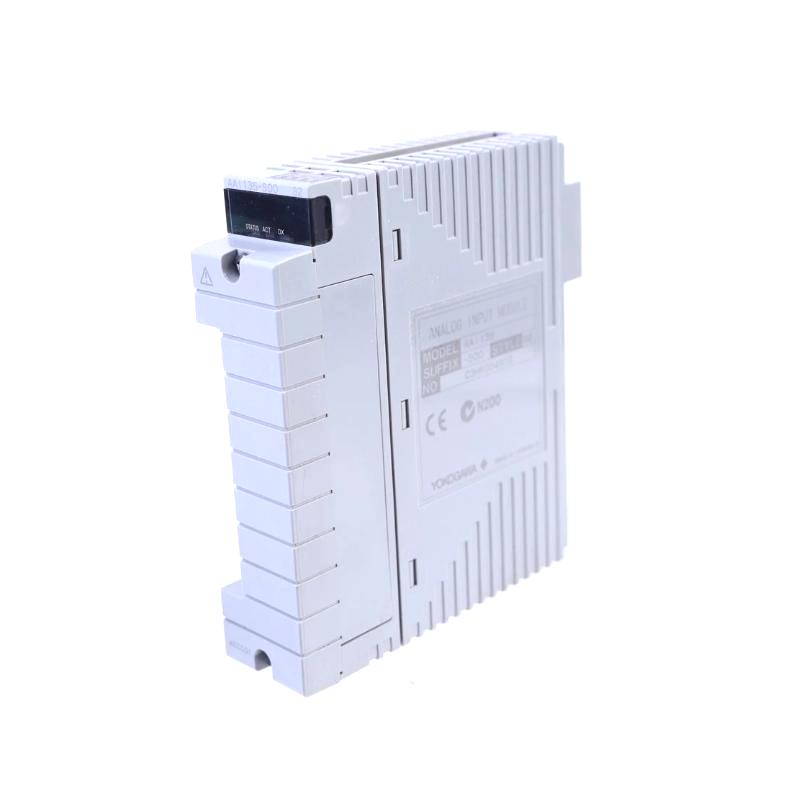

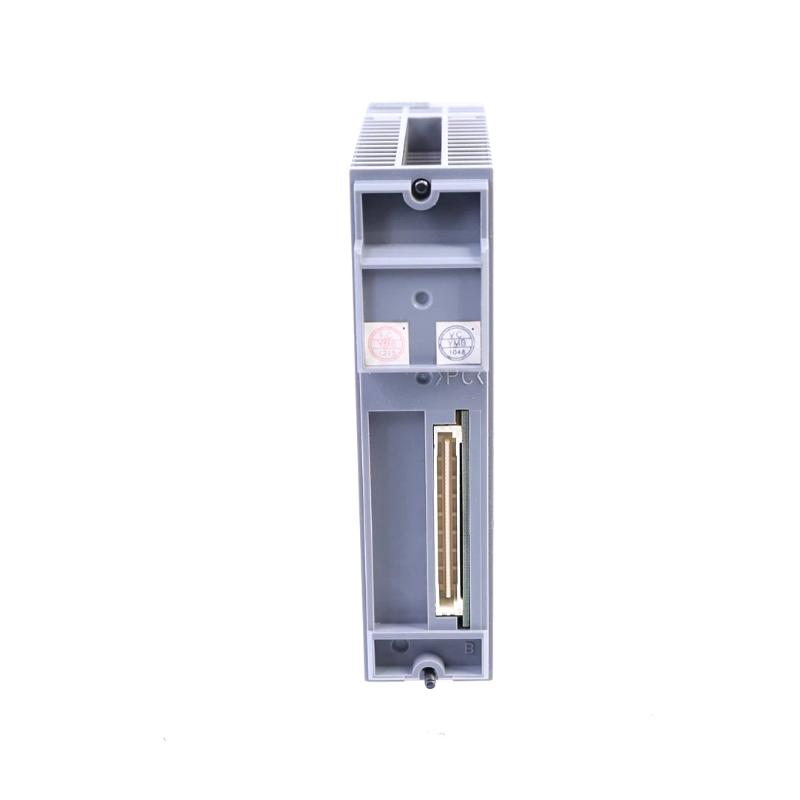

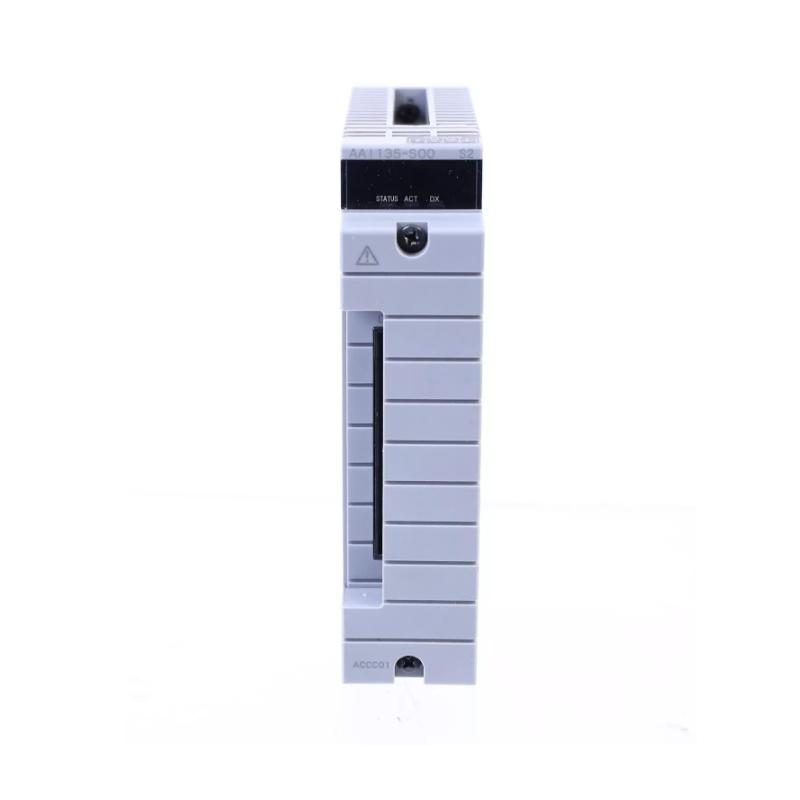

Yokogawa AAI135-S00 Analog Input Module New In Stock 12-Month Warranty

Brand：Yokogawa Electric

Item No.：Yokogawa AAI135-S00

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.3 kg

Original imported channel supply, support for testing instructions, worry-free after-sales

A wide range of spot models, support for quick docking of purchasing needs, welcome to inquire!

Product Introduction：

Overview

The Yokogawa AAI135-S00 is an 8-channel isolated analog input module designed for field instrumentation signal acquisition (4–20 mA) in distributed control and automation systems.

General Information

Model / Type: AAI135-S00

Manufacturer: Yokogawa

Country of Origin: Japan

Product Category: Analog Input Module – 8-channel, 4–20 mA (isolated channels)

Application: Process automation, DCS/PLC I/O racks, redundant I/O configurations

Electrical & Functional Specifications

Number of Input Channels: 8 isolated channels

Input Signal Type: 4 to 20 mA DC

Allowable Input Current: ~25 mA

Input Resistance (Power ON): ~270 Ω (at 20 mA) to ~350 Ω (at 4 mA)

Input Resistance (Power OFF): ≥ 500 kΩ

Accuracy: ±16 µA

Data Update Period: ~10 ms

Transmitter Power Supply (2-wire type): Minimum approx. 14.8 V at 20 mA; Maximum approx. 26.4 V at 0 mA

Drift due to Ambient Temperature Change: ±16 µA per 10 °C

Withstanding Voltage: 500 V AC between input and system or between input channels for 1 minute

Environmental Conditions

Operating Temperature Range: −20 °C to +70 °C

Storage Temperature Range: −40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Mounting / Connection: Provides pressure clamp terminals, KS cable interface adapter (depending on suffix)

Dimensions & Weight

Dimension: 107.5 × 32.8 × 130 mm

Weight: 0.3 kg
