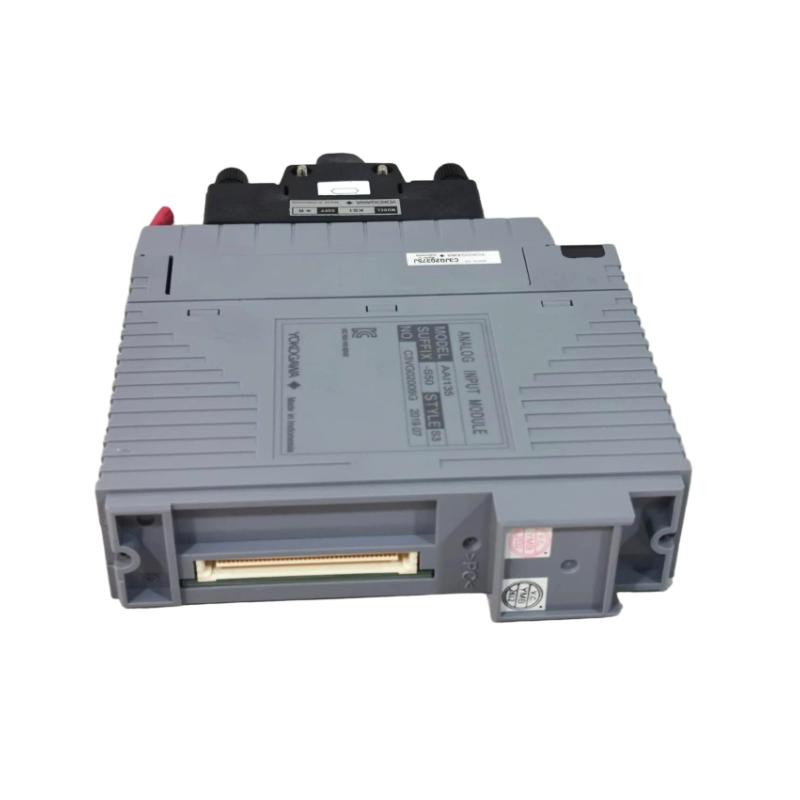

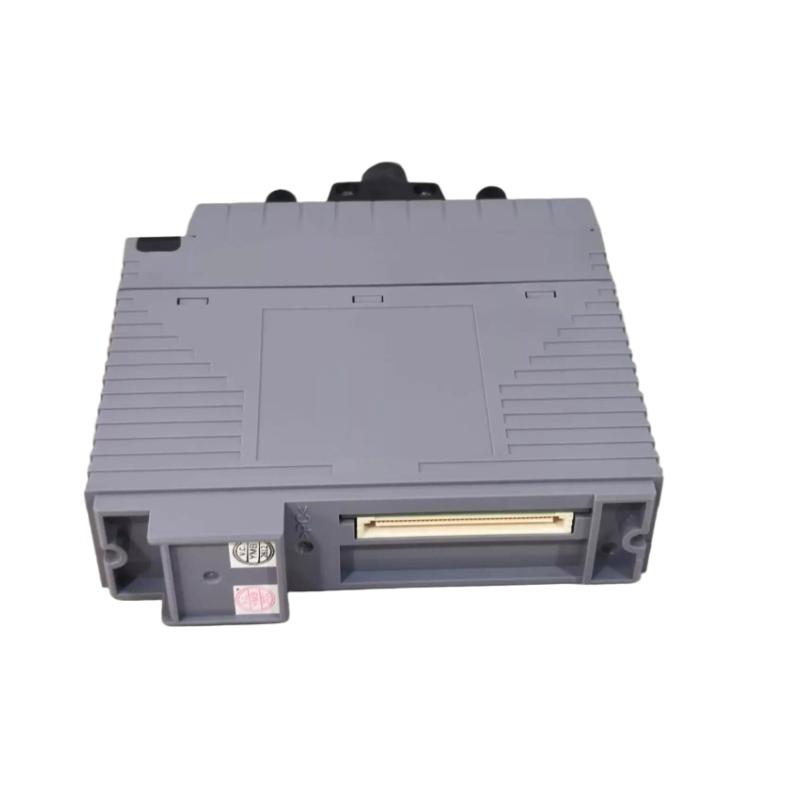

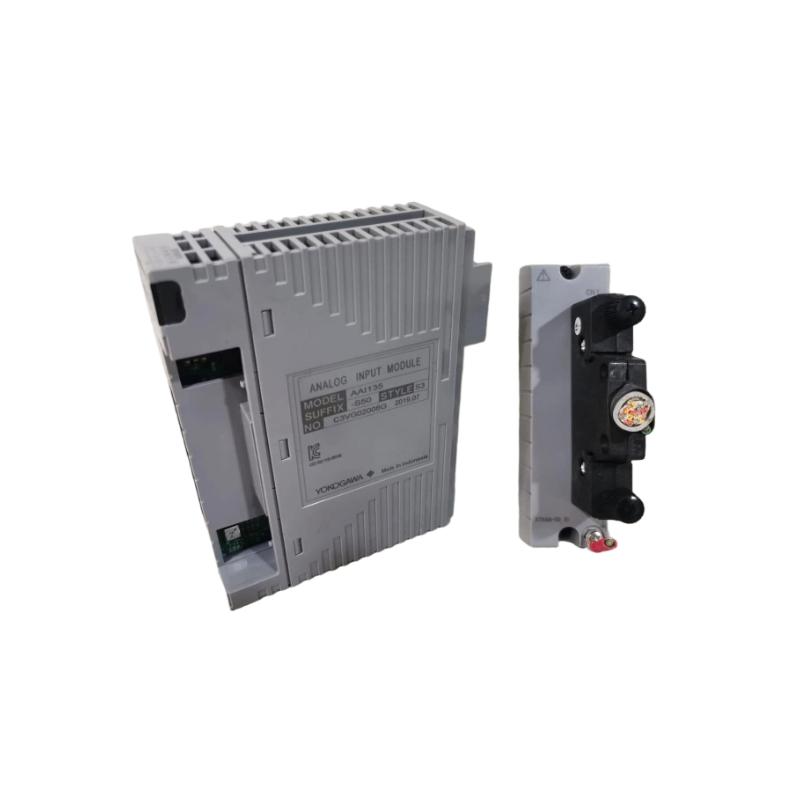

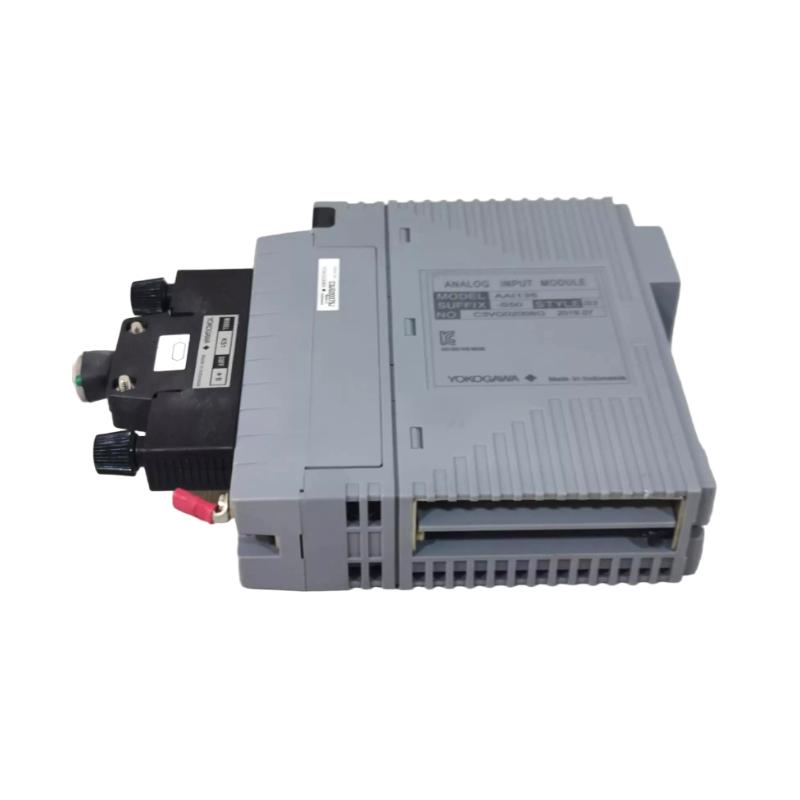

Yokogawa AAI135-S50/CCC01 Analog Input Module Thoughtful service 12-Month Warranty

Brand：Yokogawa Electric

Item No.：Yokogawa AAI135-S50/CCC01

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.3 kg

Regular supply, testing instructions can be coordinated, and after-sales service continues to follow up

Ten thousand models are in stock, spot fast delivery, welcome to consult!

Product Introduction：

Overview

The AAI135-S50/CCC01 is an 8-channel isolated analog input module designed for 4–20 mA transmitter signals. The “/CCC01” suffix indicates the module comes with a MIL-connector cover option. It is intended for use in industrial control systems and distributed I/O racks requiring high-integrity analog signal acquisition.

General Information

Model / Type: AAI135-S50/CCC01

Manufacturer: Yokogawa

Country of Origin: Japan

Product Category: Analog Input Module – 8-channel, 4–20 mA, isolated channels

Key Feature: MIL-connector cover included (option “/CCC01”)

Electrical & Functional Specifications

Number of Input Channels: 8 isolated channels

Input Signal: 4 to 20 mA DC

Input Resistance (Power ON): Approximately 290 Ω at 20 mA to ~450 Ω at 4 mA

Input Resistance (Power OFF): ≥ 500 kΩ

Maximum Input Current: ~25 mA

Accuracy: ±16 µA

Data Update Period: ~10 ms

Transmitter Power Supply (2-wire type): Minimum ~15.0 V at 20 mA; Maximum ~29.3 V at 0 mA

Temperature Drift: ±16 µA per 10 °C

Maximum Current Consumption: ~360 mA @ 5 V DC; ~450 mA @ 24 V DC

Withstanding Voltage: 500 V AC between input and system or between input channels (for 1 minute)

Environmental Conditions

Operating Temperature Range: −20 °C to +70 °C

Storage Temperature Range: −40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Mounting / Connection: Compatible with pressure clamp terminal, dedicated cable (KS type), or MIL-connector interface (with covering)

Dimensions & Weight

Dimension: 107.5 × 32.8 × 130 mm

Weight: 0.3 kg
