Product Introduction：

Overview

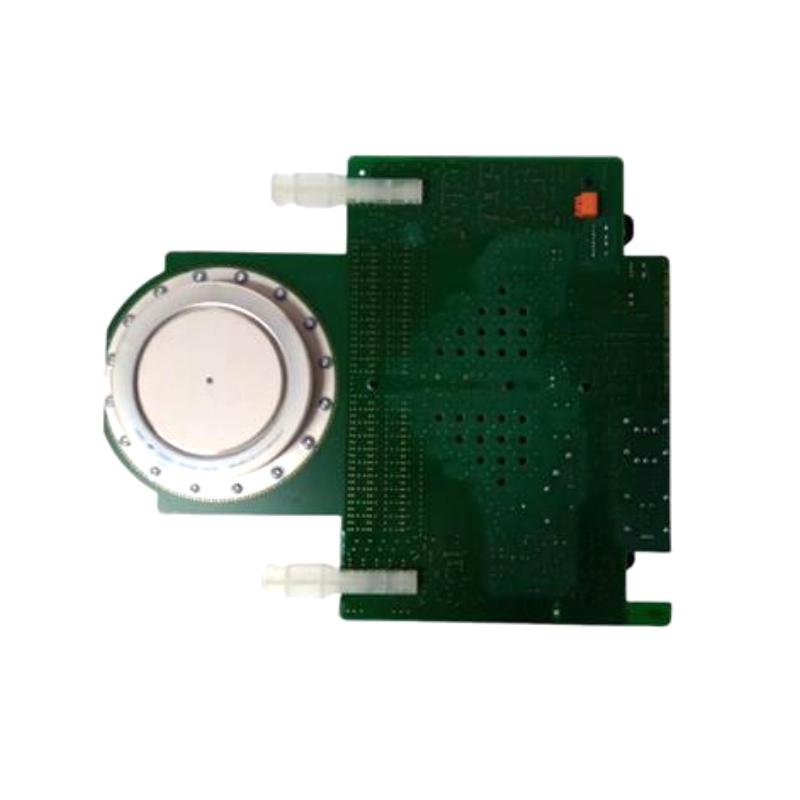

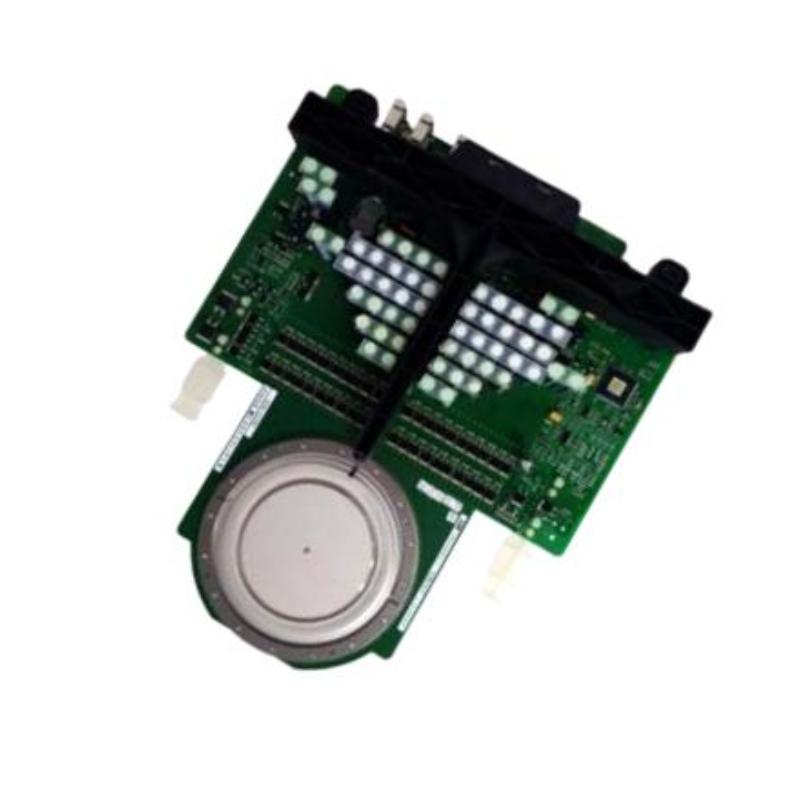

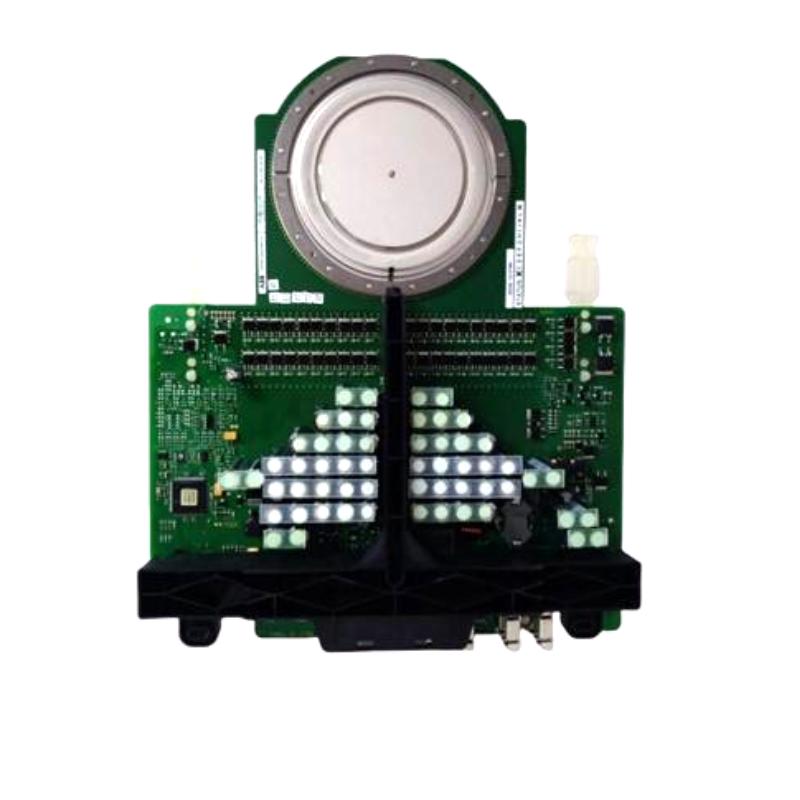

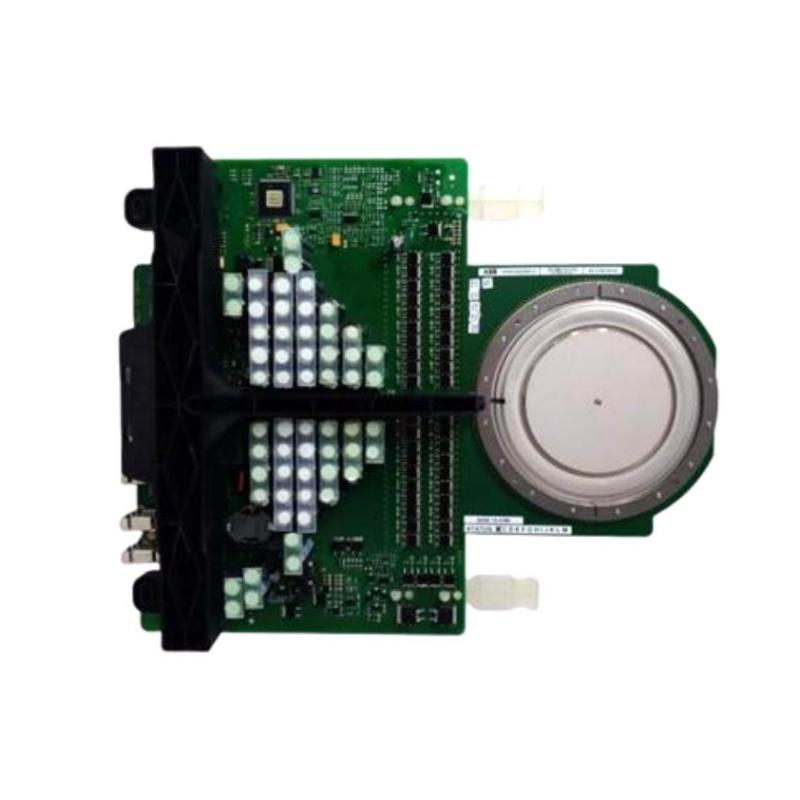

The ABB 5SDD2545L0001 (also marked with 3BHL000986P3012) is a high-power semiconductor module (IGCT/thyristor module) designed for industrial power control applications, such as medium-voltage drives, converters and rectifier systems.

General Information

Part Number: 5SDD2545L0001

Alternate / Associated Part Number: 3BHL000986P3012

Manufacturer: ABB

Country of Origin: Sweden

Product Category: IGCT/Thyristor Module – Power Semiconductor Device

Application: High-current, high-voltage industrial power conversion and control

Electrical & Functional Specifications

Rated blocking voltage (VRRM): 4,500 V

Rated continuous current: High-current module for heavy duty applications

Device type: IGCT (Integrated Gate Commutated Thyristor) or similar power semiconductor module

Turn-off gain: > 5 (typical)

dV/dt capability (turn-off): 6 kV/µs

dI/dt capability (turn-on): 2 kA/µs

Power dissipation: Efficient design with low losses for industrial environments

Designed for integration into drive and converter systems requiring robust dynamic switching

Environmental Conditions

Operating Temperature Range: –30 °C to +65 °C (typical for the product)

Storage Temperature Range: –40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Class: Intended for installation inside power cabinets or drive enclosures with appropriate cooling and ventilation

Cooling Requirement: High power module; requires mounting on heat-sink or appropriate cooling surface

Dimensions & Weight

Dimension: 32 x 127x 127 mm

Weight: 0.2 kg
