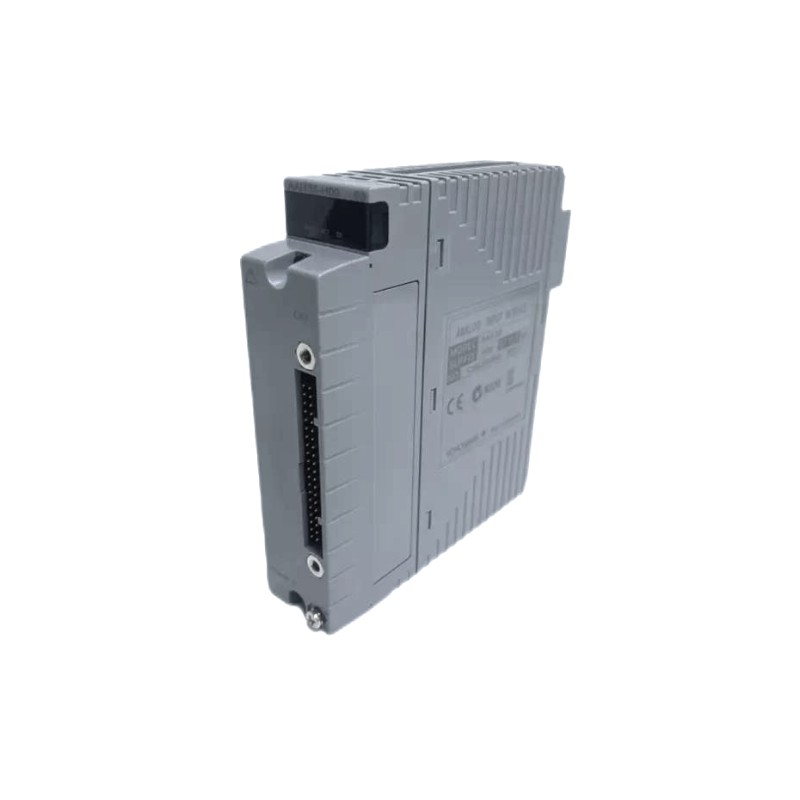

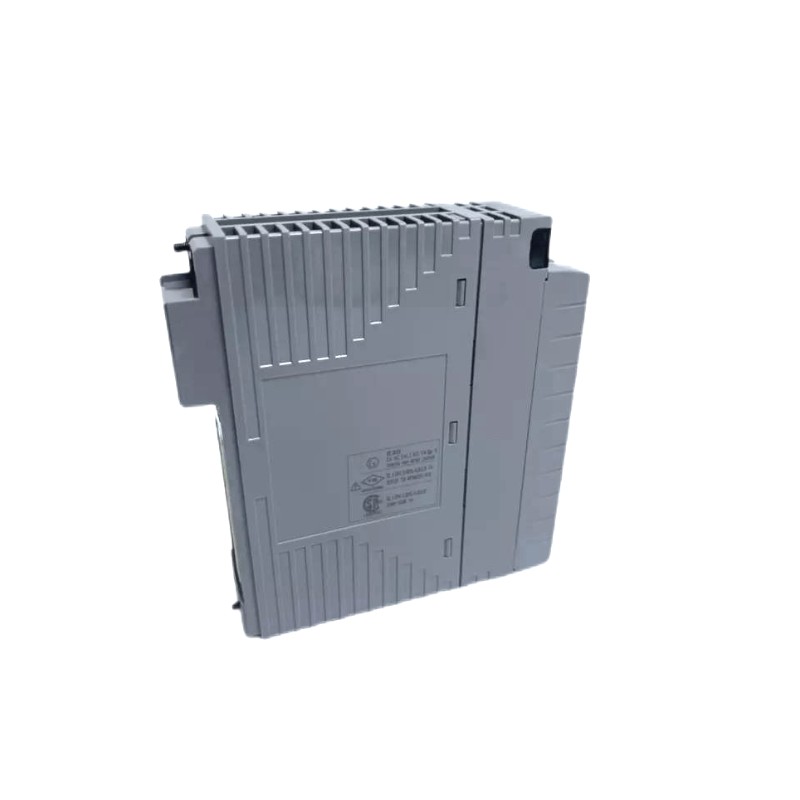

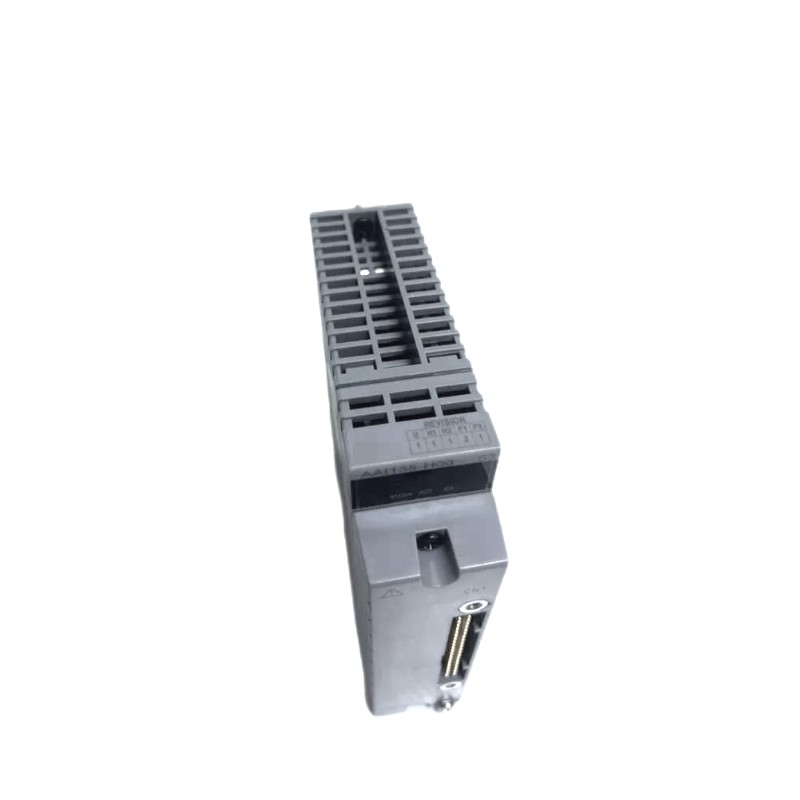

Yokogawa AAI135-H00 Analog Input Module 100% New Fast Shipping!

Brand：Yokogawa Electric

Item No.：Yokogawa AAI135-H00

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.3 kg

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

Tens of thousands of models are in sufficient stock, and the spot is shipped quickly. Welcome to consult!

Product Introduction：

Overview

The AAI135-H00 is an 8-channel isolated analog input module designed for use in industrial DCS/automation systems. It accepts standard 4–20 mA transmitter signals and provides channel‐isolation for enhanced signal integrity.

General Information

Model / Type: AAI135-H00

Manufacturer: Yokogawa

Country of Origin: Japan

Product Category: Analog Input Module – 4 to 20 mA, 8-channel, isolated

Application: Process automation, I/O racks, redundant I/O modules

Electrical & Functional Specifications

Number of Input Channels: 8 (isolated)

Input Signal: 4 to 20 mA DC

Allowable Input Current (max): ~24 mA

Input Resistance (Power ON): ~270 Ω at 20 mA to ~350 Ω at 4 mA

Input Resistance (Power OFF): ≥ 500 kΩ

Accuracy: ±16 µA

Data Update Period: ~10 ms

Transmitter Power Supply (2-wire type): Minimum ~19.0 V at 20 mA; Maximum ~25.5 V at 0 mA

Drift due to Ambient Temperature Change: ±16 µA per 10 °C

Maximum Current Consumption: Approx. 310 mA @ 5 V DC; Approx. 450 mA @ 24 V DC

Withstanding Voltage (Input ↔ System / Between Channels): ~500 V AC for 1 minute

Environmental & Physical Specifications

Operating Temperature Range: −20 °C to +70 °C (depending on suffix/option)

Weight: 0.3 kg

Dimension: 107.5 × 32.8 × 130 mm
